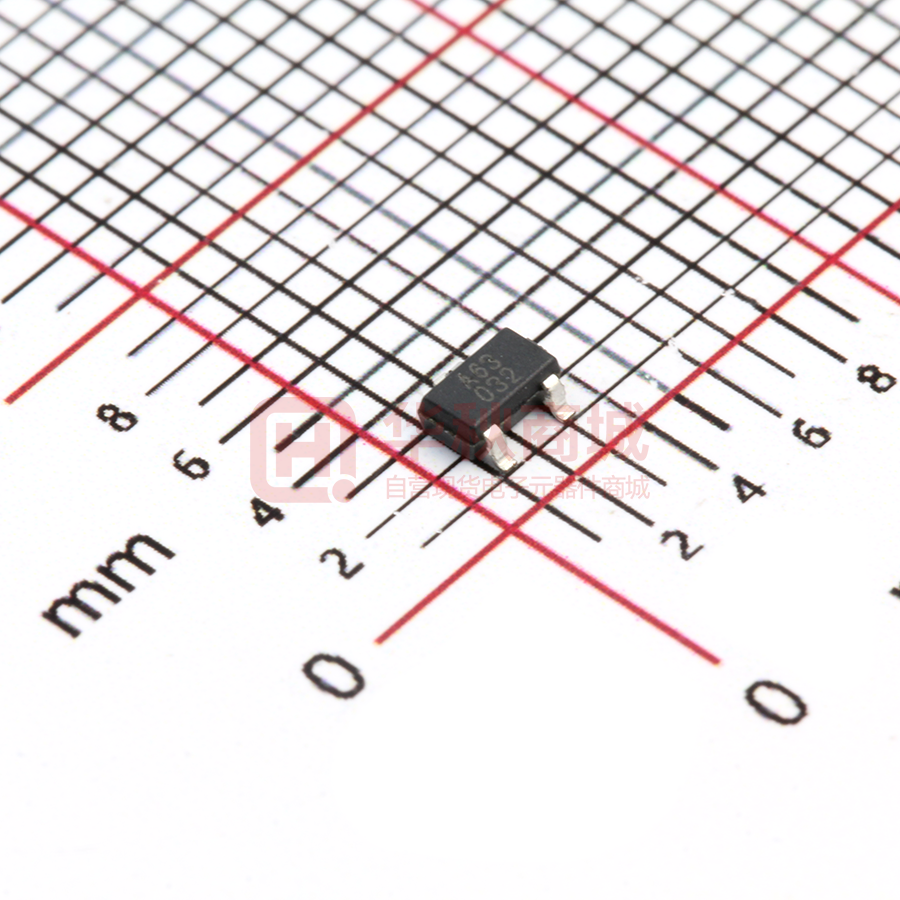

SLSS49E-3

SLSS49E High Voltage Hall Effect Switch Sensor Introduction SLSS49E Linear Hall-effect sensor is small, versatile device that is operated by the magnetic field from a permanent magnet. The linear sourcing output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The integrated circuitry features low noise output, which makes it unnecessary to use external filtering. The sensor Interfaces with many electrical components without buffering. It includes thin film resistors to provide increased temperature stability and accuracy. The linear Hall-effect sensor has an operating temperature range of -40 °C to 150°C, appropriate for consumer, industrial and medical environments. The sensor is available in 2 package styles, which are TO92 and SOT23. Features Potential Applications  Miniature construction  Current sensing  Low current consumption of 5 mA at 5 Vdc  Motor control  Voltage range of 3 Vdc to 12 Vdc  Position sensing  Low noise output  Magnetic code reading  Temperature range of -40 °C to 150 °C  Rotary encoder  Highest ESD performance up to ±4 kV  Ferrous metal detector  React differently to the Antarctic and Arctic  Liquid level sensing magnetic fields  Weight sensing Package www.slkormicro.com 1 SLSS49E Ordering information Part number Package Packing Ambient, TA SLSS49E-9 TO92S Bulk, 1000 pieces/bag -40℃ to 150℃ SLSS49E-3 SOT23 Tape&Reel, 3000 pieces/reel -40℃ to 150℃ Pin assignment Pin number Name Function 1 2 3 VDD GND Vout Power supply Ground Output Absolute Maximum Ratings The absolute maximum value is the limiting value when the chip is applied, above which the chip can be damaged. Although the function of the chip is not necessarily damaged when the absolute maximum value is exceeded, the reliability of the chip may be affected if the absolute maximum value is exceeded for a certain time. Parameter Symbol Value Units Supply voltage VDD 15 V Reverse voltage VDD -0.5 V Output Current IOUT 5 mA Operating temperature range Ta -40~150 ℃ Storage temperature range Ts -40~165 ℃ www.slkormicro.com 2 SLSS49E Electrical and magnetic characteristics (Ta=25˚C, VDD =5.0V) Parameter Operating voltage Supply current Output Current Response Time Test Conditions Min Typ Max Units VDD 3 5 12 V IDD IOUT Trs 3 5 8 1.5 mA mA uS Symbol 3 Quiescent Output Voltage Vo Sensitivity Sen Min Output Voltage Vmin B= -460G 1 V Max Output Voltage Vmax B= 460G 4 V Output load resistance RL |ΔVOUT|
