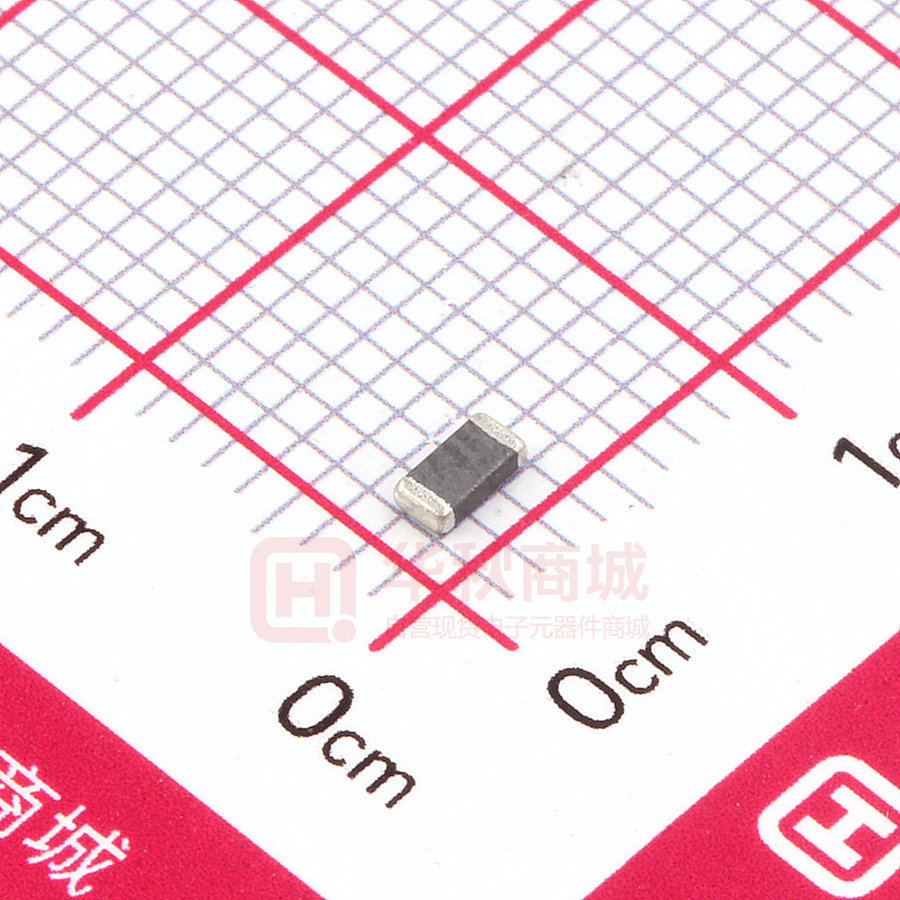

SBH3216S Series
High Current Chip Ferrite Bead
◆ Features
Pb
1 、 Internal silver printed layers and magnetic shielded
structures to minimize crosstalk
2、Large withstand current (allowable current:up to 6A)
3、Can be used in a wide range of frequency to suppress
EMI
4、Three types material and wide range of impedance values
for various applications
5、RoHS Compliant.
◆ PRODUCT IDENTIFICATION
◆ Application
1、High current DC power lines.
2、Noise suppression for power line or large current signal
of electric equipments such as computers and
peripheral devices, DVD cameras, LCD TVs,
communication equipments, OA equipments, etc.
SBH 3216
(1)
(2)
S
(3)
600 U
(4) (5)
S
P
(6) (7)
(1) Series Type
(2) Chip Size(mm):Length X Width
(3)
Material Code
(4)
Nominal Impedance:600=60Ω;601=600Ω;
102=1000Ω
(5)
Rated Curren
:E=300mA;F=500mA;J=800mA
L =1000mA; M=1500mA;
N=2000mA; P=2500mA;
Q=3000mA; R=4000mA;
U=5000mA W=6000mA.
(6) Company Code
(7) Packaging:P–Embossed paper tape, 7" reel
E- Embossed plastic tape, 7" reel
◆ Dimensions
Rev.01
Unit: mm
Size(EIA)
L
W
T
E
3216(1206)
3.20±0.20
1.60±0.20
0.9±0.20
0.50±0.30
Page 1 of 6
www. sunltech.com
SBH3216S Series
◆ Specifications
Impedance
(Ω)
Test Freq.
(MHz)
DCR Max.
(Ω)
Rated Current
(mA)
SBH3216S100WSP
10±25%
100
0.010
6000
SBH3216S300WSP
30±25%
100
0.012
6000
Part Number
SBH3216 Series
SBH3216S600USP
60±25%
100
0.015
5000
SBH3216S750RSP
75±25%
100
0.020
4000
SBH3216S900QSP
90±25%
100
0.025
3000
SBH3216S121QSP
120±25%
100
0.030
3000
SBH3216S181QSP
180±25%
100
0.037
3000
SBH3216S221QSP
220±25%
100
0.040
3000
SBH3216S301QSP
300±25%
100
0.040
3000
SBH3216S601NSP
600±25%
100
0.100
2000
SBH3216S102LSP
1000±25%
100
0.300
1000
◆ General Technical Data
Storage Condition
℃ ~ +125℃
Less than 40℃ and 70% RH
Soldering Method
Reflow or Wave Soldering
Operating Temperature Range
Rev.01
-55
Page 2 of 6
www. sunltech.com
SBH3216S Series
◆ Recommended Soldering Conditions
◆ Characteristics
SBH3216 TYPE
Rev.01
SBH3216S100WSP
SBH3216S300WSP
SBH3216S750RSP
SBH3216S900QSP
Page 3 of 6
SBH3216S600USP
SBH3216S121QSP
www. sunltech.com
SBH3216S Series
◆ Characteristics
SBH3216S181QSP
SBH3216S601NSP
Rev.01
SBH3216S221QSP
SBH3216S301QSP
SBH3216S102LSP
Page 4 of 6
www. sunltech.com
SBH3216S Series
◆ Packaging
Tape Carrier Packaging:
Packaging code: T
a. Tape carrier packaging are specified in attached figure
b. Tape carrier packaging quantity please see the following table
Type
T(mm)
Tape
Quantity
3216(1206)
0.9±0.1
Paper Tape
4K
(1) Taping Drawings (Unit: mm)
Remark: The sprocket holes are to the right as the tape is pulled toward the user.
Rev.01
Page 5 of 6
www. sunltech.com
SBH3216S Series
(2) Taping Dimensions (Unit: mm)
Paper Tape
Type
3216(1206)
A
1.9±0.2
B
3.5±0.2
P
4.0±0.2
T max
0.8
3) Reel Dimensions (Unit: mm)
Rev.01
Page 6 of 6
www. sunltech.com
