PESDHC2FD4V5BH

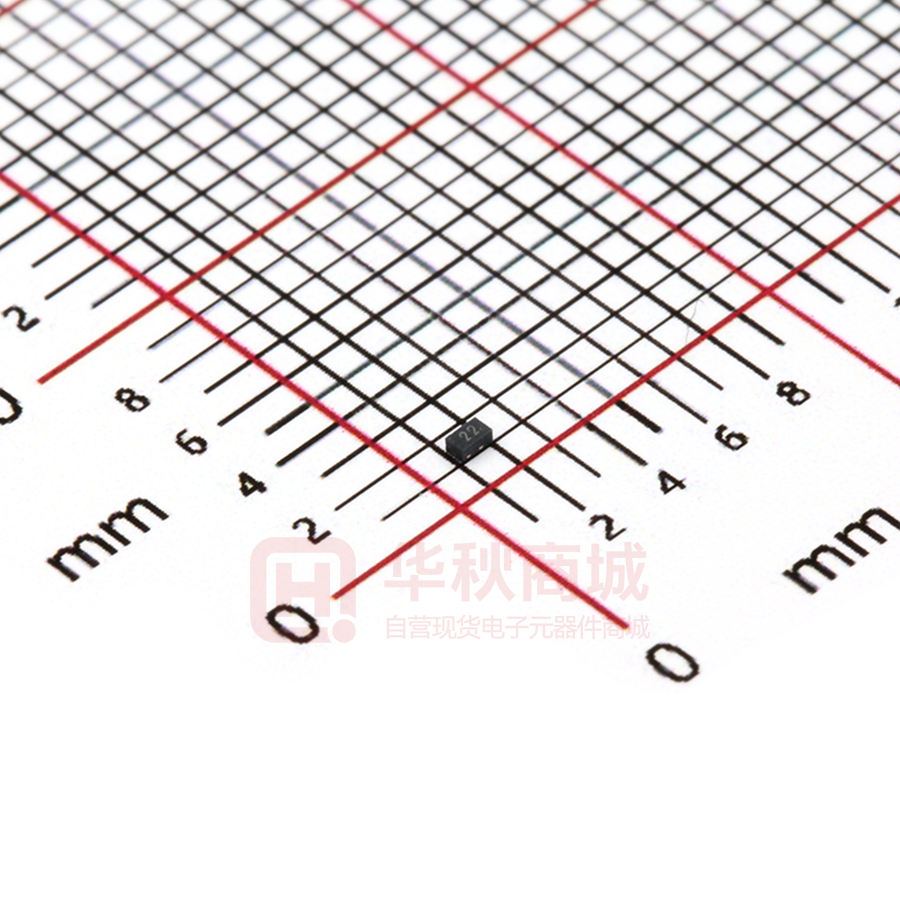

PESDHC2FD4V5BH Bi-directional 4.5V High Capacitance ESD Protector Description The PESDHC2FD4V5BH protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one bi-directional line in applications where arrays are not practical. DFN1006-2L(Bottom View) Feature  500W peak pulse power per line (tP = 8/20μs)  DFN1006-2L package  Replacement for MLV(0402)  Bidirectional configurations  Response time is typically < 1ns  Low clamping voltage  RoHS compliant  Transient protection for data lines to Pin 1 Pin 2 Circuit Diagram IEC61000-4-2(ESD) ±30KV(air), ±30KV(contact); IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Surge) 36A (8/20us) Applications  Cellular phones  Portable devices  Digital cameras  Power supplies 22 Marking (Top View) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Rev.06.2 1 www.prisemi.com ESD Protector PESDHC2FD4V5BH Electronics Parameter Symbol VRWM IR I Parameter IPP Peak Reverse Working Voltage Reverse Leakage Current @ VRWM VTRIG Reverse trigger Current VHOLD Reverse holding voltage VC IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF VHOLD VTRIG VRWM IT IR IR IT VRWM VC VTRIG VHOLD IPP Electrical characteristics per line@25℃ (unless otherwise specified) Parameter Symbol Conditions Min. Peak Reverse Working Voltage VRWM Reverse trigger voltage VTRIG ITRIG=2uA 4.7 Reverse holding voltage VHOLD IHOLD=50mA 4.6 Reverse Leakage Current IR VRWM = 4.5V T=25℃ Maximum Reverse Peak Pulse Current IPP Clamping Voltage VCL IPP=16A Clamping Voltage VC Clamping Voltage Typ. Max. Units 4.5 V V 1.0 μA 36 A tp=100ns 6 V IPP=1A tP = 8/20μs 4.8 5.8 V VC IPP=20A tP = 8/20μs 10 13 V Clamping Voltage VC IPP=36A tP = 8/20μs 14 18 V Junction Capacitance Cj VR=0V 80 90 pF f = 1MHz 70 Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 500 W Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.2 2 www.prisemi.com V ESD Protector PESDHC2FD4V5BH tf=8μs 100 100 80 60 % Of Rated Power IPP – Peak Pulse Current - % of IPP Typical Characteristics tP =20μs(IPP /2) 40 20 80 60 40 20 0 0 5 10 15 20 25 0 30 0 25 Fig 1.Pulse Waveform 125 150 125 150 20 Z0=50Ω tr=2ns tp=100ns 12 16 4 IR(nA) TLP Current(A) 100 Fig 2.Power Derating Curve 20 -4 12 8 4 -12 0 -8 -4 0 4 8 0 TLP Voltage(v) 25 50 75 100 Temperature (ºC) Fig 3.TLP Measurement Fig 4.Typical Leakage Current vs. Temperature 10000 20.0 Pulse waveform: tp=8/20us 15.0 Peak Pulse Power (W) VC-Clamping Voltage (V) 75 TL – Lead Temperature - ℃ t - Time -μs -20 50 10.0 5.0 0 0 9.5 19 28.5 38 100 10 1 10 100 1000 Pulse Duration(us) IPP-Peak pulse current (A) Fig 5. Clamping voltage vs. Peak pulse current Rev.06.2 1000 3 Fig 6. Non-Repetitive Peak Pulse Power vs. Pulse time www.prisemi.com ESD Protector PESDHC2FD4V5BH Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 210 240 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.2 4 www.prisemi.com ESD Protector PESDHC2FD4V5BH Product dimension (DFN1006-2L) A Dim B C R D E Millimeters MIN MAX MIN MAX A 0.013 0.020 0.34 0.50 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H R F Inches 0.015Typ. 0.001 0.005 0.40Typ. 0.05 0.15 H 1.10 0.60 0.40 Unit:mm Suggested PCB Layout Ordering information Device Package Reel Shipping PESDHC2FD4V5BH DFN1006-2L (Pb-Free) 7" 10000 / Tape & Reel Rev.06.2 5 www.prisemi.com ESD Protector PESDHC2FD4V5BH Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 4.00 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Unit：mm Rev.06.2 6 www.prisemi.com ESD Protector PESDHC2FD4V5BH IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.2 7 www.prisemi.com
