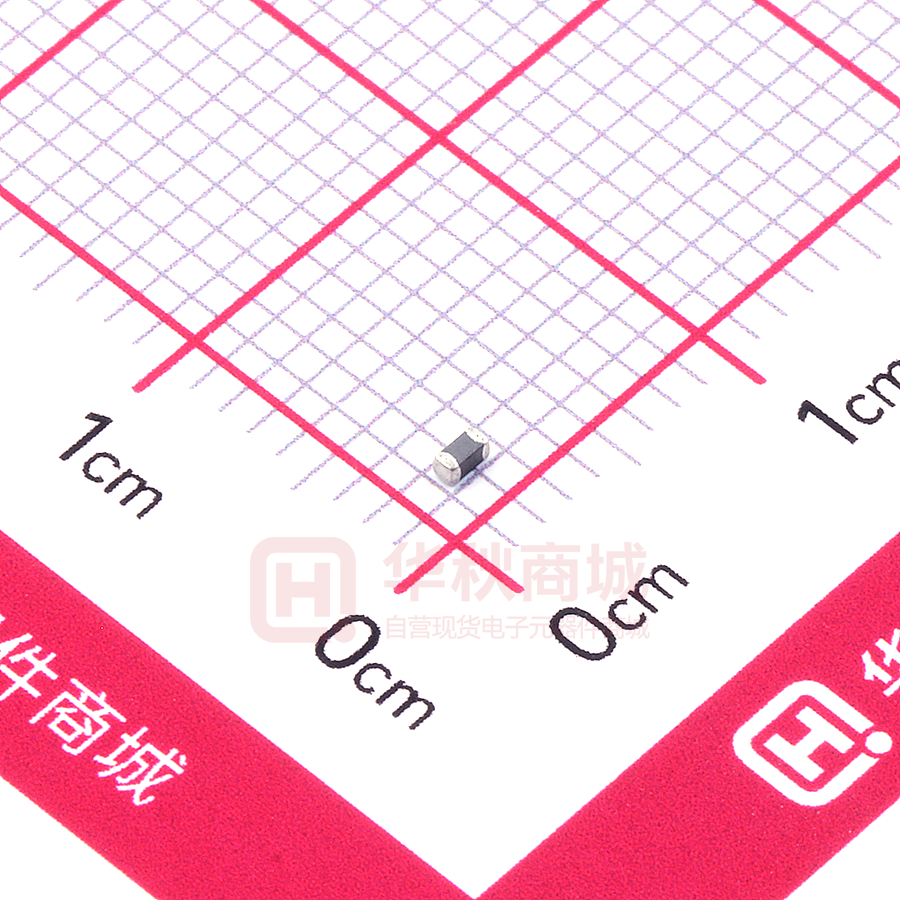

SBH1608S601LSP

SBH1608S Series High Current Chip Ferrite Bead ◆ Features Pb 1 、 Internal silver printed layers and magnetic shielded structures to minimize crosstalk 2、Large withstand current (allowable current:up to 6A) 3、Can be used in a wide range of frequency to suppress EMI 4、Three types material and wide range of impedance values for various applications 5、RoHS Compliant. ◆ PRODUCT IDENTIFICATION ◆ Application 1、High current DC power lines. 2、Noise suppression for power line or large current signal of electric equipments such as computers and peripheral devices, DVD cameras, LCD TVs, communication equipments, OA equipments, etc. SBH 1608 (1) (2) S (3) 601 J (4) (5) S P (6) (7) (1) Series Type (2) Chip Size（mm）:Length X Width (3) Material Code (4) Nominal Impedance:600=60Ω;601=600Ω; 102=1000Ω (5) Rated Curren ：E=300mA;F=500mA;J=800mA L =1000mA; M=1500mA; N=2000mA; P=2500mA; Q=3000mA; R=4000mA; U=5000mA W=6000mA. (6) Company Code (7) Packaging:P–Embossed paper tape, 7" reel E- Embossed plastic tape, 7" reel ◆ Dimensions Rev.02 Unit: mm Size(EIA) L W T E 1608(0603) 1.60±0.15 0.88±0.15 0.80±0.15 0.30±0.20 Page 1 of 4 www. sunltech.com SBH1608S Series ◆ Specifications Impedance (Ω) Test Freq. (MHz) DCR Max. (Ω) Rated Current (mA) SBH1608S100QSP 10±25% 100 0.040 3000 SBH1608S300QSP 30±25% 100 0.040 3000 SBH1608S600QSP 60±25% 100 0.040 3000 SBH1608S900QSP 90±25% 100 0.040 3000 SBH1608S121QSP 120±25% 100 0.070 3000 SBH1608S181NSP 180±25% 100 0.080 2000 SBH1608S221NSP 220±25% 100 0.090 2000 SBH1608S301LSP 300±25% 100 0.110 1000 SBH1608S471LSP 470±25% 100 0.150 1000 SBH1608S601LSP 600±25% 100 0.200 1000 SBH1608S102LSP 1000±25% 100 0.300 1000 SBH1608S152FSP 1500±25% 100 0.400 500 Part Number SBH1608S Series ◆ General Technical Data Storage Condition ℃ ~ +125℃ Less than 40℃ and 70% RH Soldering Method Reflow or Wave Soldering Operating Temperature Range -55 ◆ Recommended Soldering Conditions Rev.02 Page 2 of 4 www. sunltech.com SBH1608S Series ◆ Characteristics SBH1608 TYPE SBH1608S100QSP SBH1608S300QSP CMBH1608 SBH1608S900PSP C Rev.02 SBH1608S600PSP TYPE SBH1608S121NSP SBH1608S181MSP SBH1608S221MSP SBH1608S301LSP SBH1608S471LSP SBH1608S601LSP SBH1608S102LSP SBH1608S152FSP Page 3 of 4 www. sunltech.com SBH1608S Series Package ◆ Size EIA (EIA) Standard Packing Quantity (pcs / reel) Rev.02 1005 1608 2012 3216 4532 (0402) (0603) (0805) (1206) (1812) 10,000 4,000 4,000 4,000 1,000 Page 4 of 4 www. sunltech.com
