nRF51822
Multiprotocol Bluetooth® low energy/2.4 GHz RF System on Chip
Product Specification v3.3
Key Features
• 2.4 GHz transceiver
• -93 dBm sensitivity in Bluetooth® low energy mode
• 250 kbps, 1 Mbps, 2 Mbps supported data rates
• TX Power -20 to +4 dBm in 4 dB steps
• TX Power -30 dBm Whisper mode
• 13 mA peak RX, 10.5 mA peak TX (0 dBm)
• 9.7 mA peak RX, 8 mA peak TX (0 dBm) with DC/DC
• RSSI (1 dB resolution)
• ARM® Cortex™-M0 32 bit processor
• 275 μA/MHz running from flash memory
• 150 μA/MHz running from RAM
• Serial Wire Debug (SWD)
• S100 series SoftDevice ready
• Memory
• 256 kB or 128 kB embedded flash program memory
• 16 kB or 32 kB RAM
• On-air compatibility with nRF24L series
• Flexible Power Management
• Supply voltage range 1.8 V to 3.6 V
• 4.2 μs wake-up using 16 MHz RCOSC
• 0.6 μA at 3 V OFF mode
• 1.2 μA at 3 V in OFF mode + 1 region RAM retention
• 2.6 μA at 3 V ON mode, all blocks IDLE
• 8/9/10 bit ADC - 8 configurable channels
• 31 General Purpose I/O Pins
• One 32 bit and two 16 bit timers with counter mode
• SPI Master/Slave
• Low power comparator
• Temperature sensor
• Two-wire Master (I2C compatible)
• UART (CTS/RTS)
• CPU independent Programmable Peripheral Interconnect (PPI)
• Quadrature Decoder (QDEC)
• AES HW encryption
• Real Timer Counter (RTC)
• Package variants

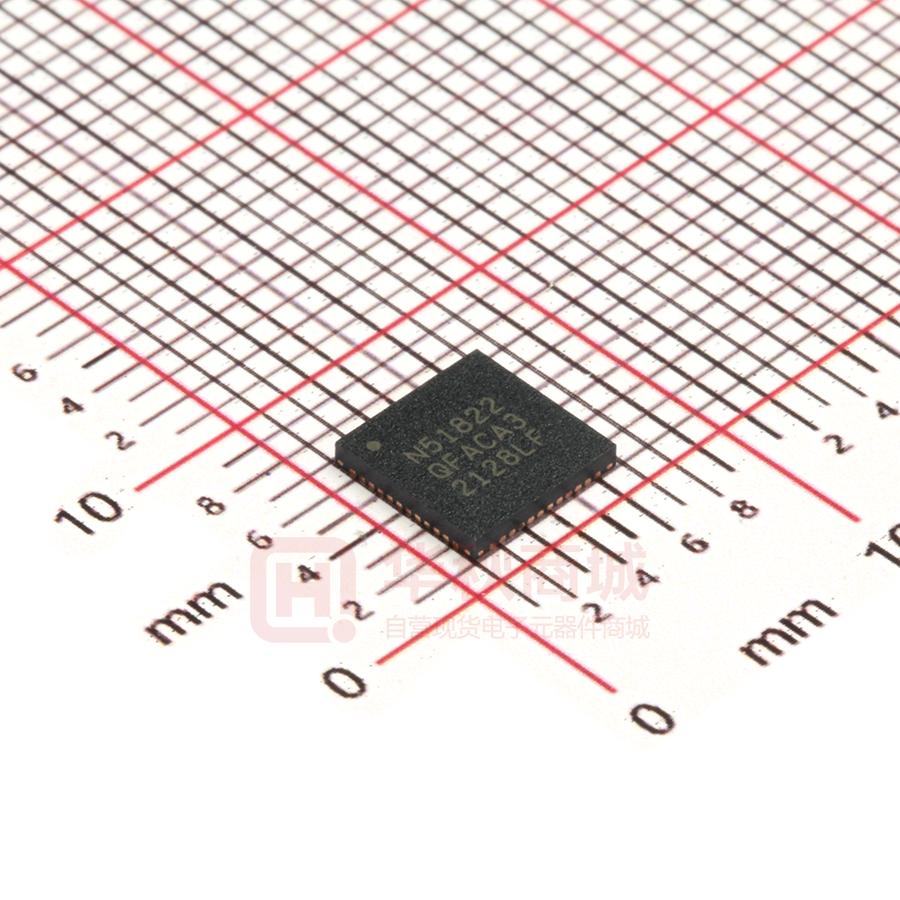

• QFN48 package, 6 x 6 mm
• WLCSP package, 3.50 x 3.83 x 0.50 mm
• WLCSP package, 3.50 x 3.83 x 0.35 mm
• WLCSP package, 3.83 x 3.83 x 0.50 mm
• WLCSP package, 3.83 x 3.83 x 0.35 mm
• WLCSP package, 3.50 x 3.33 x 0.50 mm
Applications
• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Multi-touch trackpad
• Interactive entertainment devices
• Remote control
• Gaming controller
• Beacons
• Personal Area Networks
• Health/fitness sensor and monitor
devices
• Medical devices
• Key-fobs + wrist watches
• Remote control toys
Copyright © 2014 Nordic Semiconductor ASA. All rights reserved.
Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder.
nRF51822 Product Specification v3.3
Liability disclaimer
Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to
improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out
of the application or use of any product or circuits described herein.
Life support applications
Nordic Semiconductor’s products are not designed for use in life support appliances, devices, or systems
where malfunction of these products can reasonably be expected to result in personal injury. Nordic
Semiconductor ASA customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Nordic Semiconductor ASA for any damages resulting from such
improper use or sale.
Contact details
For your nearest distributor, please visit www.nordicsemi.com.
Information regarding product updates, downloads, and technical support can be accessed through your
My Page account on our home page.
Main office: Otto Nielsens veg 12
7052 Trondheim
Norway
Mailing address: Nordic Semiconductor
P.O. Box 2336
7004 Trondheim
Norway
Phone: +47 72 89 89 00
Fax: +47 72 89 89 89
RoHS and REACH statement
Nordic Semiconductor's products meet the requirements of Directive 2002/95/EC of the European
Parliament and of the Council on the Restriction of Hazardous Substances (RoHS) and the requirements of
the REACH regulation (EC 1907/2006) on Registration, Evaluation, Authorization and Restriction of
Chemicals. The SVHC (Substances of Very High Concern) candidate list is continually being updated.
Complete hazardous substance reports, material composition reports and latest version of Nordic's REACH
statement can be found on our website www.nordicsemi.com.
Page 2
nRF51822 Product Specification v3.3
Datasheet Status
Status
Description
Objective Product Specification (OPS)
This product specification contains target specifications for product
development.
Preliminary Product Specification (PPS)
This product specification contains preliminary data; supplementary data
may be published from Nordic Semiconductor ASA later.
Product Specification (PS)
This product specification contains final product specifications. Nordic
Semiconductor ASA reserves the right to make changes at any time
without notice in order to improve design and supply the best possible
product.
Revision History
Date
July 2016
Version
3.3
Description
Added documentation for the nRF51822 CTAA version of the chip.
Added content:
• Section 9.5 “CTAA WLCSP package” on page 71
• Section 11.9 “CTAA WLCSP package” on page 118
Updated content:
• Feature list on the front page.
• Section 2.2.3 “CEAA, CFAC, CTAA, and CTAC WLCSP ball assignment and functions”
on page 17
• Section 3.2.1 “Code organization” on page 22
• Section 3.2.2 “RAM organization” on page 22
• Section 3.3 “Memory Protection Unit (MPU)” on page 23
• Section 7.1.2 “CTAA and CTAC light sensitivity” on page 39
• Section 7.2 “CTAA and CTAC mechanical strength” on page 39
• Section 10.6 “Code ranges and values” on page 76
• Section 10.7 “Product options” on page 78
• Chapter 11 “Reference circuitry” on page 79. Added resistor R1 on the schematics
for all variants.
Page 3
nRF51822 Product Specification v3.3
Date
January 2016
Version
3.2
Description
Added documentation for the nRF51822 CTAC version of the chip.
Added content:
• Section 4.10.1 “Enable 4 Mbps SPIS bit rate” on page 35
• Section 7.2 “CTAA and CTAC mechanical strength” on page 39
• Section 9.6 “CTAC WLCSP package” on page 72
• Section 11.10 “CTAC WLCSP package” on page 124
Updated content:
• Feature list on the front page.
• Section 2.2.3 “CEAA, CFAC, CTAA, and CTAC WLCSP ball assignment and functions”
on page 17
• Section 3.2.1 “Code organization” on page 22
• Section 3.2.2 “RAM organization” on page 22
• Section 3.3 “Memory Protection Unit (MPU)” on page 23
• Chapter 6 “Absolute maximum ratings” on page 38
• Section 7.1 “WLCSP light sensitivity” on page 39
• Section 8.1.2 “16 MHz crystal oscillator (16M XOSC)” on page 41
• Section 8.1.5 “32.768 kHz crystal oscillator (32k XOSC)” on page 43
• Section 8.1.6 “32.768 kHz RC oscillator (32k RCOSC)” on page 44
• Section 8.2 “Power management” on page 45
• Section 8.8 “Serial Peripheral Interface Slave (SPIS) specifications” on page 57
• Section 10.6 “Code ranges and values” on page 76
• Section 10.7 “Product options” on page 78
October 2014
3.1
Added documentation for the following versions of the chip:
• nRF51822-QFAC AA0
• nRF51822-QFAC Ax0
• nRF51822-CDAB AA0
• nRF51822-CDAB Ax0
• nRF51822-CFAC AA0
• nRF51822-CFAC Ax0
(The x in the build codes can be any number between 0 and 9.)
Added content:
• Section 2.2.2 “CDAB WLCSP ball assignment and functions” on page 14
• Section 9.2 “CDAB WLCSP package” on page 68
• Section 9.4 “CFAC WLCSP package” on page 70
Updated content:
• Feature list on the front page.
• Section 2.2.3 “CEAA and CFAC WLCSP ball assignment and functions” on page 17
• Section 3.2.1 “Code organization” on page 22
• Section 3.2.2 “RAM organization” on page 22
• Section 3.3 “Memory Protection Unit (MPU)” on page 23
• Section 8.2 “Power management” on page 45
• Section 8.3 “Block resource requirements” on page 49
• Section 8.12 “Analog to Digital Converter (ADC) specifications” on page 61
• Section 10.6 “Code ranges and values” on page 76
• Section 10.7 “Product options” on page 78
Page 4
nRF51822 Product Specification v3.3
Date
August 2014
Version
3.0
Description
Update to reflect the changes in build code:
• nRF51822-QFAA Hx0
• nRF51822-CEAA Ex0
• nRF51822-QFAB Cx0
(The x in the build codes can be any number between 0 and 9.)
If you are working with a previous revision of the chip, read version 2.x of the document.
Added content:
• Section 8.5.3 “Radio current consumption with DC/DC enabled” on page 51
• Section 11.1.1 “PCB layout example” on page 80
Updated content:
• Feature list on the front page.
• Section 2.1 “Block diagram” on page 11
• Section 3.2.1 “Code organization” on page 22
• Section 3.2.2 “RAM organization” on page 22
• Section 3.3 “Memory Protection Unit (MPU)” on page 23
• Section 3.4 “Power management (POWER)” on page 24
• Section 3.6 “Clock management (CLOCK)” on page 28
• Section 3.8 “Debugger support” on page 31
• Section 4.2 “Timer/counters (TIMER)” on page 33
• Chapter 5 “Instance table” on page 37
• Chapter 7 “Operating conditions” on page 39
• Section 8.1.2 “16 MHz crystal oscillator (16M XOSC)” on page 41
• Section 8.1.3 “32 MHz crystal oscillator (32M XOSC)” on page 42
• Section 8.1.4 “16 MHz RC oscillator (16M RCOSC)” on page 43
• Section 8.1.6 “32.768 kHz RC oscillator (32k RCOSC)” on page 44
• Section 8.1.7 “32.768 kHz Synthesized oscillator (32k SYNT)” on page 44
• Section 8.2 “Power management” on page 45
• Section 8.3 “Block resource requirements” on page 49
• Section 8.4 “CPU” on page 49
• Section 8.5.6 “Radio timing parameters” on page 55
• Section 8.5.7 “Antenna matching network requirements” on page 55
• Section 8.7 “Universal Asynchronous Receiver/Transmitter (UART) specifications”
on page 56
• Section 8.8 “Serial Peripheral Interface Slave (SPIS) specifications” on page 57
• Section 8.12 “Analog to Digital Converter (ADC) specifications” on page 61
• Section 8.13 “Timer (TIMER) specifications” on page 62
• Section 8.15 “Temperature sensor (TEMP)” on page 62
• Section 8.22 “Non-Volatile Memory Controller (NVMC) specifications” on page 65
• Section 8.24 “Low Power Comparator (LPCOMP) specifications” on page 66
• Section 9.2 “CDAB WLCSP package” on page 68
• Section 10.7.2 “Development tools” on page 78
• Chapter 11 “Reference circuitry” on page 79
Page 5
nRF51822 Product Specification v3.3
Date
October 2013
Version
2.0
Description
This version of the document will target the nRF51822 QFAA G0 revision of the chip. If you
are working with a previous revision of the chip, read version 1.3 or earlier of the
document.
Updated the following sections:
Key Feature list on the front page,
Chapter 1 “Introduction” on page 10,
Section 2.1 “Block diagram” on page 11,
Section 2.2 “Pin assignments and functions” on page 12,
Section 3.2 “Memory” on page 21,
Section 3.5 “Programmable Peripheral Interconnect (PPI)” on page 27,
Section 3.7 “GPIO” on page 31,
Section 4.1 “2.4 GHz radio (RADIO)” on page 32,
Section 4.2 “Timer/counters (TIMER)” on page 33,
Section 4.3 “Real Time Counter (RTC)” on page 33,
Section 4.10 “Serial Peripheral Interface (SPI/SPIS)” on page 35,
Section 4.12 “Universal Asynchronous Receiver/Transmitter (UART)” on page 36,
Section 4.14 “Analog to Digital Converter (ADC)” on page 36,
Section 4.15 “GPIO Task Event blocks (GPIOTE)” on page 36,
Chapter 5 “Instance table” on page 37,
Chapter 6 “Absolute maximum ratings” on page 38,
Chapter 8 “Electrical specifications” on page 40,
Section 8.1 “Clock sources” on page 40,
Section 8.1.2 “16 MHz crystal oscillator (16M XOSC)” on page 41,
Section 8.1.3 “32 MHz crystal oscillator (32M XOSC)” on page 42,
Section 8.2 “Power management” on page 45,
Section 8.3 “Block resource requirements” on page 49,
Section 8.7 “Universal Asynchronous Receiver/Transmitter (UART) specifications” on
page 56,
Section 8.9 “Serial Peripheral Interface (SPI) Master specifications” on page 58,
Section 8.11 “GPIO Tasks and Events (GPIOTE) specifications” on page 60,
Section 8.13 “Timer (TIMER) specifications” on page 62,
Section 8.16 “Random Number Generator (RNG) specifications” on page 63,
Section 8.17 “AES Electronic Codebook Mode Encryption (ECB) specifications” on page 63,
Section 8.18 “AES CCM Mode Encryption (CCM) specifications” on page 63,
Section 8.19 “Accelerated Address Resolver (AAR) specifications” on page 63,
Section 8.21 “Quadrature Decoder (QDEC) specifications” on page 64,
Section 11.1 “PCB guidelines” on page 79,
Section 11.3 “QFAA QFN48 package” on page 82, and
Section 11.7 “CEAA WLCSP package” on page 106.
Added the following sections:
Section 3.3 “Memory Protection Unit (MPU)” on page 23,
Section 4.5 “AES CCM Mode Encryption (CCM)” on page 34,
Section 4.6 “Accelerated Address Resolver (AAR)” on page 34,
Section 4.16 “Low Power Comparator (LPCOMP)” on page 36,
Section 8.5.7 “Antenna matching network requirements” on page 55,
Section 8.8 “Serial Peripheral Interface Slave (SPIS) specifications” on page 57,
Section 8.18 “AES CCM Mode Encryption (CCM) specifications” on page 63,
Section 8.19 “Accelerated Address Resolver (AAR) specifications” on page 63, and
Section 8.24 “Low Power Comparator (LPCOMP) specifications” on page 66.
May 2013
1.3
Updated schematics and BOMs in section 11.3 on page 61.
Page 6
nRF51822 Product Specification v3.3
Date
Version
Description
April 2013
1.2
Added chip variant nRF51822-CEAA. Updated feature list on front page.
Updated
Section 3.2.1 on page 15, Section 3.2.2 on page 15, Chapter 6 on page 28,
Section 10.4 on page 52, and Section 10.5.1 on page 53.
Added
Section 2.2.2 on page 10, Section 7.1 on page 29, Section 9.2 on page 50,
and Section 11.3 on page 61.
Removed PCB layouts in Chapter 11 on page 54.
March 2013
1.1
Added chip variant nRF51822-QFAB. Added 32 MHz crystal oscillator feature. Updated
feature list on front page. Moved subsection ‘Calculating current when the DC/DC
converter is enabled’ from chapter 8 to the nRF51 Series Reference Manual.
Updated
Chapter 1 on page 6, Section 2.2 on page 8, Section 3.2 on page 12,
Section 3.5 on page 16, Section 3.5.1 on page 17, Section 4.2 on page 21, Chapter 5 on
page 24, Section 8.1 on page 27, Section 8.1.2 on page 28, Section 8.1.5 on page 30,
Section 8.2 on page 32, Section 8.3 on page 34, Section 8.5.3 on page 36, Section 8.8 on
page 40, Section 8.9 on page 41, Section 8.10 on page 42, Section 8.14 on page 43,
Chapter 10 on page 47, Section 11.2 on page 51, Section 11.3 on page 54, and
Section 11.4 on page 57.
Added
Section 3.5.4 on page 19, Section 8.1.3 on page 29, and
Section 11.1 on page 50.
November 2012
1.0
Changed from PPS to PS. Updated the feature list on the front page.
Updated
Table 11 on page 25, Table 12 on page 26, Table 14 on page 28,
Table 15 on page 28, Table 16 on page 29, Table 17 on page 29,
Table 18 on page 30, Table 19 on page 31, Table 21 on page 32,
Table 22 on page 32, Table 23 on page 33,Table 27 on page 36,
Table 28 on page 37, Table 29 on page 37, Table 31 on page 38,
Table 32 on page 38, Table 35 on page 39, Table 38 on page 40,
Table 39 on page 40, Table 55 on page 47, Figure 9 on page 48, and
Table 57 on page 50.
Page 7
nRF51822 Product Specification v3.3
Table of contents
1
1.1
1.2
Introduction............................................................................................................................................. 10
Required reading............................................................................................................................................10
Writing conventions......................................................................................................................................10
2
2.1
2.2
Product overview.................................................................................................................................... 11
Block diagram .................................................................................................................................................11
Pin assignments and functions .................................................................................................................12
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
System blocks.......................................................................................................................................... 20
CPU ......................................................................................................................................................................20
Memory..............................................................................................................................................................21
Memory Protection Unit (MPU).................................................................................................................23
Power management (POWER) ...................................................................................................................24
Programmable Peripheral Interconnect (PPI) ......................................................................................27
Clock management (CLOCK)......................................................................................................................28
GPIO.....................................................................................................................................................................31
Debugger support .........................................................................................................................................31
4
Peripheral blocks .................................................................................................................................... 32
4.1
2.4 GHz radio (RADIO) ...................................................................................................................................32
4.2
Timer/counters (TIMER)................................................................................................................................33
4.3
Real Time Counter (RTC) ..............................................................................................................................33
4.4
AES Electronic Codebook Mode Encryption (ECB) .............................................................................33
4.5
AES CCM Mode Encryption (CCM)............................................................................................................34
4.6
Accelerated Address Resolver (AAR) .......................................................................................................34
4.7
Random Number Generator (RNG) ..........................................................................................................34
4.8
Watchdog Timer (WDT)................................................................................................................................34
4.9
Temperature sensor (TEMP) .......................................................................................................................35
4.10
Serial Peripheral Interface (SPI/SPIS) .......................................................................................................35
4.11
Two-wire interface (TWI)..............................................................................................................................35
4.12
Universal Asynchronous Receiver/Transmitter (UART) ....................................................................36
4.13
Quadrature Decoder (QDEC)......................................................................................................................36
4.14
Analog to Digital Converter (ADC)...........................................................................................................36
4.15
GPIO Task Event blocks (GPIOTE)..............................................................................................................36
4.16
Low Power Comparator (LPCOMP)..........................................................................................................36
5
Instance table .......................................................................................................................................... 37
6
Absolute maximum ratings .................................................................................................................. 38
7
7.1
7.2
Operating conditions............................................................................................................................. 39
WLCSP light sensitivity .................................................................................................................................39
CTAA and CTAC mechanical strength.....................................................................................................39
8
8.1
8.2
8.3
8.4
8.5
8.6
8.7
Electrical specifications ......................................................................................................................... 40
Clock sources ...................................................................................................................................................40
Power management......................................................................................................................................45
Block resource requirements .....................................................................................................................49
CPU ......................................................................................................................................................................49
Radio transceiver ............................................................................................................................................50
Received Signal Strength Indicator (RSSI) specifications.................................................................55
Universal Asynchronous Receiver/Transmitter (UART) specifications ........................................56
Page 8
nRF51822 Product Specification v3.3
8.8
8.9
8.10
8.11
8.12
8.13
8.14
8.15
8.16
8.17
8.18
8.19
8.20
8.21
8.22
8.23
8.24
9
9.1
9.2
9.3
9.4
9.5
9.6
Serial Peripheral Interface Slave (SPIS) specifications .......................................................................57
Serial Peripheral Interface (SPI) Master specifications ......................................................................58
I2C compatible Two Wire Interface (TWI) specifications..................................................................59
GPIO Tasks and Events (GPIOTE) specifications...................................................................................60
Analog to Digital Converter (ADC) specifications...............................................................................61
Timer (TIMER) specifications.......................................................................................................................62
Real Time Counter (RTC) ..............................................................................................................................62
Temperature sensor (TEMP) .......................................................................................................................62
Random Number Generator (RNG) specifications..............................................................................63
AES Electronic Codebook Mode Encryption (ECB) specifications.................................................63
AES CCM Mode Encryption (CCM) specifications ...............................................................................63
Accelerated Address Resolver (AAR) specifications...........................................................................63
Watchdog Timer (WDT) specifications ...................................................................................................64
Quadrature Decoder (QDEC) specifications .........................................................................................64
Non-Volatile Memory Controller (NVMC) specifications..................................................................65
General Purpose I/O (GPIO) specifications ............................................................................................66
Low Power Comparator (LPCOMP) specifications..............................................................................66
Mechanical specifications ..................................................................................................................... 67
QFN48 package ...............................................................................................................................................67
CDAB WLCSP package ..................................................................................................................................68
CEAA WLCSP package...................................................................................................................................69
CFAC WLCSP package...................................................................................................................................70
CTAA WLCSP package...................................................................................................................................71
CTAC WLCSP package...................................................................................................................................72
10
Ordering information ............................................................................................................................ 73
10.1
Chip marking....................................................................................................................................................73
10.2
Inner box label.................................................................................................................................................73
10.3
Outer box label................................................................................................................................................74
10.4
Order code ........................................................................................................................................................74
10.5
Abbreviations...................................................................................................................................................75
10.6
Code ranges and values...............................................................................................................................76
10.7
Product options ..............................................................................................................................................78
11
Reference circuitry.................................................................................................................................. 79
11.1
PCB guidelines.................................................................................................................................................79
11.2
Reference design schematics.....................................................................................................................81
11.3
QFAA QFN48 package ..................................................................................................................................82
11.4
QFAB QFN48 package...................................................................................................................................88
11.5
QFAC QFN48 package...................................................................................................................................94
11.6
CDAB WLCSP package ............................................................................................................................... 100
11.7
CEAA WLCSP package................................................................................................................................ 106
11.8
CFAC WLCSP package................................................................................................................................ 112
11.9
CTAA WLCSP package................................................................................................................................ 118
11.10
CTAC WLCSP package................................................................................................................................ 124
12
Glossary ..................................................................................................................................................130
Page 9
nRF51822 Product Specification v3.3
1
Introduction
The nRF51822 chip is an ultra-low power 2.4 GHz wireless System on Chip (SoC) integrating the nRF51 Series
2.4 GHz transceiver, a 32 bit ARM® Cortex™-M0 CPU, flash memory, and analog and digital peripherals.
nRF51822 can support Bluetooth® low energy and a range of proprietary 2.4 GHz protocols, such as Gazell
from Nordic Semiconductor.
Fully qualified Bluetooth low energy stacks for nRF51822 are implemented in the S100 series of SoftDevices.
The S100 series of SoftDevices are available for free and can be downloaded and installed on nRF51822
independent of your own application code.
1.1
Required reading
The following documentation is available for download from our Infocenter:
• nRF51 Series Reference Manual
• nRF51822-PAN (Product Anomaly Notification)
• PCN-092 (nRF51822 Product Change Notification)
1.2
Writing conventions
This product specification follows a set of typographic rules to ensure that the document is consistent and
easy to read. The following writing conventions are used:
Command, event names, and bit state conditions, are written in Lucida Console.
Pin names and pin signal conditions are written in Consolas.
File names and User Interface components are written in bold.
Internal cross references are italicized and written in semi-bold.
Placeholders for parameters are written in italic regular text font. For example, a syntax
description of Connect will be written as:
Connect(TimeOut, AdvInterval).
• Fixed parameters are written in regular text font. For example, a syntax description of
Connect will be written as:
Connect(0x00F0, Interval).
•
•
•
•
•
Page 10
nRF51822 Product Specification v3.3
2
Product overview
2.1
Block diagram
5$0
5$0
5$0
VODYH
VODYH
VODYH
6:&/.
5$0
VODYH
Q5) QP
*3,2
VODYH
6:'3
6:',2
3
3±3
VODYH
VODYH
&38
VODYH
'$3
VODYH
PDVWHU
$+%
0XOWL/D\HU
$+%72$3%
%5,'*(
),&5
8,&5
&2'(
$50
&257(;0
19,&
Q5(6(7
190&
51*
32:(5
57&>Q@
7,0(5>Q@
:'7
7(03
33,
(&%
;&
;&
;/
&/2&.
PDVWHU
(DV\'0$
PDVWHU
(DV\'0$
;/
&&0
$17
5$',2
$3%
$17
(DV\'0$
$$5
PDV
WHU
PDVWHU
PDVWHU
(DV\'0$
*3,27(
7:,>Q@
6'$
576
/3&203
8$57>Q@
$,1±$,1
$5()±$5()
6&/
$'&
&76
7;'
5;'
&61
/('
$
63,6>Q@
4'(&
0,62
026,
6&.
%
PDVWHU
(DV\'0$
63,>Q@
0,62
026,
6&.
Figure 1 Block diagram
Page 11
nRF51822 Product Specification v3.3
2.2
Pin assignments and functions
This section describes the pin assignment and the pin functions.
37
38
39
40
41
42
43
44
45
46
1
36
2
35
3
34
4
33
5
32
N51822
nRF5102
QFVVHP
QFN48
YYWWLL
6
7
8
31
30
29
9
28
10
27
exposed die pad
AVDD
AVDD
VSS
VSS
ANT2
ANT1
VDD_PA
DEC2
P0.20
P0.19
P0.18
P0.17
24
23
22
21
20
19
18
17
16
25
15
26
12
14
11
13
VDD
DCC
P0.30
P0.00
P0.01
P0.02
P0.03
P0.04
P0.05
P0.06
P0.07
VDD
47
48
P0.29
P0.28
P0.27
P0.26
P0.25
P0.24
P0.23
P0.22
P0.21
DEC1
XC2
XC1
Pin assignment QFN48
VSS
P0.08
P0.09
P0.10
P0.11
P0.12
P0.13
P0.14
P0.15
P0.16
SWDIO/nRESET
SWDCLK
2.2.1
Figure 2 Pin assignment - QFN48 packet
Note: VV = Variant code, HP = Build code, YYWWLL = Tracking code.
For more information, see Section 10.6 “Code ranges and values” on page 76.
Page 12
nRF51822 Product Specification v3.3
2.2.1.1
Pin functions QFN48
Pin
Pin name
Pin function
Description
1
VDD
Power
Power supply.
2
DCC
Power
DC/DC output voltage to external LC filter.
3
P0.30
Digital I/O
General purpose I/O pin.
4
P0.00
AREF0
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP reference input 0.
5
P0.01
AIN2
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP input 2.
6
P0.02
AIN3
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP input 3.
7
P0.03
AIN4
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP input 4.
8
P0.04
AIN5
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP input 5.
9
P0.05
AIN6
Digital I/O
Analog input
General purpose I/O pin.
ADC/LPCOMP input 6.
10
P0.06
AIN7
AREF1
Digital I/O
Analog input
Analog input
General purpose I/O pin.
ADC/LPCOMP input 7.
ADC/LPCOMP reference input 1.
11
P0.07
Digital I/O
General purpose I/O pin.
12
VDD
Power
Power supply.
13
VSS
Power
Ground (0 V)1.
P0.08 to P0.16
Digital I/O
General purpose I/O pin.
SWDIO/nRESET
Digital I/O
System reset (active low). Hardware debug and flash
programming I/O.
14 to 22
23
24
SWDCLK
Digital input
Hardware debug and flash programming I/O.
P0.17 to P0.20
Digital I/O
General purpose I/O pin.
29
DEC2
Power
Power supply decoupling.
30
VDD_PA
Power output
Power supply output (+1.6 V) for on-chip RF power amp.
31
ANT1
RF
Differential antenna connection (TX and RX).
32
ANT2
RF
Differential antenna connection (TX and RX).
33, 34
VSS
Power
Ground (0 V).
35, 36
AVDD
Power
Analog power supply (Radio).
37
XC1
Analog input
Connection for 16/32 MHz crystal or external 16 MHz clock
reference.
38
XC2
Analog output
Connection for 16/32 MHz crystal.
39
DEC1
Power
Power supply decoupling.
25 to 28
Page 13
nRF51822 Product Specification v3.3
Pin
40 to 44
45
46
47, 48
Pin name
Pin function
Description
P0.21 to P0.25
Digital I/O
General purpose I/O pin.
P0.26
AIN0
XL2
Digital I/O
Analog input
Analog output
General purpose I/O pin.
ADC/LPCOMP input 0.
Connection for 32.768 kHz crystal.
P0.27
AIN1
XL1
Digital I/O
Analog input
Analog input
General purpose I/O pin.
ADC/LPCOMP input 1.
Connection for 32.768 kHz crystal or external 32.768 kHz
clock reference.
P0.28 and P0.29
Digital I/O
General purpose I/O pin.
1. The exposed center pad of the QFN48 package must be connected to ground for proper device operation.
Table 1 Pin functions QFN48 packet
2.2.2
CDAB WLCSP ball assignment and functions
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
N51822
CDABHP
YYWWLL
G
H
Figure 3 Ball assignment CDAB packet (top side view)
Page 14
nRF51822 Product Specification v3.3
2.2.2.1
Ball functions CDAB
Ball
Name
Function
Description
A1
AVDD
Power
Analog power supply (Radio).
A2
XC1
Analog input
Crystal connection for 16/32 MHz crystal oscillator or
external 16/32 MHz crystal reference.
A3
XC2
Analog output
Crystal connection for 16/32 MHz crystal.
A4
DEC1
Power
Power supply decoupling.
A5
P0.21
Digital I/O
General purpose I/O.
A6
P0.24
Digital I/O
General purpose I/O.
A7
P0.26
AIN0
XL2
Digital I/O
Analog input
Analog output
General purpose I/O.
ADC input 0.
Crystal connection for 32.768 kHz crystal oscillator.
P0.27
AIN1
XL1
Digital I/O
Analog input
Analog input
General purpose I/O.
ADC input 1.
Crystal connection for 32.768 kHz crystal oscillator or
external 32.768 kHz crystal reference.
B1
VSS
Power
Ground (0 V).
B4
VSS
Power
Ground (0 V).
B5
P0.22
Digital I/O
General purpose I/O.
B6
P0.23
Digital I/O
General purpose I/O.
B7
P0.28
Digital I/O
General purpose I/O.
B8
VDD
Power
Power supply.
B9
DCC
Power
DC/DC output voltage to external LC filter.
C1
ANT2
RF
Differential antenna connection (TX and RX).
C5
P0.25
Digital I/O
General purpose I/O.
C6
N.C.
No Connection
Must be soldered to PCB.
C7
P0.29
Digital I/O
General purpose I/O.
C8
P0.30
Digital I/O
General purpose I/O.
C9
P0.00
AREF0
Digital I/O
Analog input
General purpose I/O.
ADC Reference voltage.
D1
ANT1
RF
Differential antenna connection (TX and RX).
D7
VSS
Power
Ground (0 V).
D8
P0.31
Digital I/O
General purpose I/O.
D9
P0.02
AIN3
Digital I/O
Analog input
General purpose I/O.
ADC input 3.
E1
VDD_PA
Power output
Power supply output (+1.6 V) for on-chip RF power amp.
E2
N.C.
No Connection
Must be soldered to PCB.
E3
N.C.
No Connection
Must be soldered to PCB.
E7
P0.01
AIN2
Digital I/O
Analog input
General purpose I/O.
ADC input 2.
E8
P0.04
AIN5
Digital I/O
Analog input
General purpose I/O.
ADC input 5.
A8
Page 15
nRF51822 Product Specification v3.3
Ball
Name
Function
Description
E9
P0.03
AIN4
Digital I/O
Analog input
General purpose I/O.
ADC input 4.
F1
DEC2
Power
Power supply decoupling.
F2
P0.19
Digital I/O
General purpose I/O.
F3
P0.18
Digital I/O
General purpose I/O.
F4
VSS
Power
Ground (0 V).
F5
N.C.
No Connection
Must be soldered to PCB.
F6
VSS
Power
Ground (0 V).
F7
N.C.
No Connection
Must be soldered to PCB.
F8
P0.06
AIN7
AREF1
Digital I/O
Analog input
Analog input
General purpose I/O.
ADC input 7.
ADC Reference voltage.
F9
VSS
Power
Ground (0 V).
G1
P0.20
Digital I/O
General purpose I/O.
G2
SWDCLK
Digital input
Hardware debug and flash programming I/O.
G3
P0.17
Digital I/O
General purpose I/O.
G4
P0.14
Digital I/O
General purpose I/O.
G5
P0.13
Digital I/O
General purpose I/O.
G6
P0.10
Digital I/O
General purpose I/O.
G7
P0.07
Digital I/O
General purpose I/O.
G8
VDD
Power
Power supply.
G9
P0.05
AIN6
Digital I/O
Analog input
General purpose I/O.
ADC input 6.
H2
nRESET
SWDIO
Digital I/O
System reset (active low).
Hardware debug and flash programming I/O.
H3
P0.16
Digital I/O
General purpose I/O.
H4
P0.15
Digital I/O
General purpose I/O.
H5
P0.12
Digital I/O
General purpose I/O.
H6
P0.11
Digital I/O
General purpose I/O.
H7
P0.09
Digital I/O
General purpose I/O.
H8
P0.08
Digital I/O
General purpose I/O.
Table 2 Ball functions CDAB packet
Page 16
nRF51822 Product Specification v3.3
2.2.3
CEAA, CFAC, CTAA, and CTAC WLCSP ball assignment and functions
1
2
3
4
5
6
7
8
9
1
A
A
B
B
C
C
N51822
CEAAHP
YYWWLL
D
E
F
G
F
G
J
J
3
4
5
6
7
8
9
1
A
A
B
B
C
C
D
E
F
G
N51822
CTAAHP
YYWWLL
D
E
F
4
5
6
7
8
9
8
9
N51822
CFACHP
YYWWLL
E
H
2
3
D
H
1
2
2
3
4
5
6
7
N51822
CTACHP
YYWWLL
G
H
H
J
J
Figure 4 Ball assignment CEAA, CFAC, CTAA, and CTAC packet (top side view)
Note: HP = Buildcode, YYWWLL = Tracking code
Solder balls not visible on the top side. Dot denotes A1 corner.
Page 17
nRF51822 Product Specification v3.3
2.2.3.1
Ball functions CEAA, CFAC, CTAA, and CTAC
Ball
Name
Function
Description
A1
AVDD
Power
Analog power supply (Radio).
A2
XC1
Analog input
Crystal connection for 16/32 MHz crystal oscillator or
external 16/32 MHz crystal reference.
A3
XC2
Analog output
Crystal connection for 16/32 MHz crystal.
A4
DEC1
Power
Power supply decoupling.
A5
P0.21
Digital I/O
General purpose I/O.
A6
P0.24
Digital I/O
General purpose I/O.
A7
P0.26
AIN0
XL2
Digital I/O
Analog input
Analog output
General purpose I/O.
ADC input 0.
Crystal connection for 32.768 kHz crystal oscillator.
P0.27
AIN1
XL1
Digital I/O
Analog input
Analog input
General purpose I/O.
ADC input 1.
Crystal connection for 32.768 kHz crystal oscillator or
external 32.768 kHz crystal reference.
B1
VSS
Power
Ground (0 V).
B4
VSS
Power
Ground (0 V).
B5
P0.22
Digital I/O
General purpose I/O.
B6
P0.23
Digital I/O
General purpose I/O.
B7
P0.28
Digital I/O
General purpose I/O.
B8
VDD
Power
Power supply.
B9
DCC
Power
DC/DC output voltage to external LC filter.
C1
ANT2
RF
Differential antenna connection (TX and RX).
C5
P0.25
Digital I/O
General purpose I/O.
C6
N.C.
No Connection
Must be soldered to PCB.
C7
P0.29
Digital I/O
General purpose I/O.
C8
VSS
Power
Ground (0 V).
C9
P0.00
AREF0
Digital I/O
Analog input
General purpose I/O.
ADC Reference voltage.
D1
ANT1
RF
Differential antenna connection (TX and RX).
D7
VSS
Power
Ground (0 V).
D8
P0.30
Digital I/O
General purpose I/O.
D9
P0.02
AIN3
Digital I/O
Analog input
General purpose I/O.
ADC input 3.
E1
VDD_PA
Power output
Power supply output (+1.6 V) for on-chip RF power amp.
E2
N.C.
No Connection
Must be soldered to PCB.
E3
N.C.
No Connection
Must be soldered to PCB.
E7
N.C.
No Connection
Must be soldered to PCB.
E8
P0.31
Digital I/O
General purpose I/O.
E9
P0.01
AIN2
Digital I/O
Analog input
General purpose I/O.
ADC input 2.
A8
Page 18
nRF51822 Product Specification v3.3
Ball
Name
Function
Description
F1
DEC2
Power
Power supply decoupling.
F2
P0.19
Digital I/O
General purpose I/O.
F3
N.C.
No Connection
Must be soldered to PCB.
F7
N.C.
No Connection
Must be soldered to PCB.
F8
P0.04
AIN5
Digital I/O
Analog input
General purpose I/O.
ADC input 5.
F9
P0.03
AIN4
Digital I/O
Analog input
General purpose I/O.
ADC input 4.
G1
P0.20
Digital I/O
General purpose I/O.
G2
P0.17
Digital I/O
General purpose I/O.
G3
N.C.
No Connection
Must be soldered to PCB.
G4
N.C.
No Connection
Must be soldered to PCB.
G5
N.C.
No Connection
Must be soldered to PCB.
G6
VSS
Power
Ground (0 V).
G7
N.C.
No Connection
Must be soldered to PCB.
G8
P0.06
AIN7
AREF1
Digital I/O
Analog input
Analog input
General purpose I/O.
ADC input 7.
ADC Reference voltage.
G9
VSS
Power
Ground (0 V).
H1
P0.18
Digital I/O
General purpose I/O.
H2
SWDCLK
Digital input
Hardware debug and flash programming I/O.
H3
VSS
Power
Ground (0 V).
H4
P0.14
Digital I/O
General purpose I/O.
H5
P0.13
Digital I/O
General purpose I/O.
H6
P0.10
Digital I/O
General purpose I/O.
H7
P0.07
Digital I/O
General purpose I/O.
H8
VDD
Power
Power supply.
H9
P0.05
AIN6
Digital I/O
Analog input
General purpose I/O.
ADC input 6.
J2
SWDIO/
nRESET
Digital I/O
System reset (active low). Also Hardware debug and flash
programming I/O.
J3
P0.16
Digital I/O
General purpose I/O.
J4
P0.15
Digital I/O
General purpose I/O.
J5
P0.12
Digital I/O
General purpose I/O.
J6
P0.11
Digital I/O
General purpose I/O.
J7
P0.09
Digital I/O
General purpose I/O.
J8
P0.08
Digital I/O
General purpose I/O.
Table 3 Ball functions for CEAA, CFAC, CTAA, and CTAC
Page 19
nRF51822 Product Specification v3.3
3
System blocks
The chip contains system-level features common to all nRF51 Series devices including clock control, power
and reset, interrupt system, Programmable Peripheral Interconnect (PPI), watchdog, and GPIO.
System blocks which have a register interface and/or interrupt vector assigned are instantiated in the device
address space. The instances of system blocks, their associated ID (for those with interrupt vectors), and base
addresses are found in Table 18 on page 37. Detailed functional descriptions, configuration options, and
register interfaces can be found in the nRF51 Series Reference Manual.
3.1
CPU
The ARM® Cortex™-M0 CPU has a 16 bit instruction set with 32 bit extensions (Thumb-2® technology) that
delivers high-density code with a small-memory-footprint. By using a single-cycle 32 bit multiplier, a 3-stage
pipeline, and a Nested Vector Interrupt Controller (NVIC), the ARM Cortex-M0 CPU makes program
execution simple and highly efficient.
The ARM Cortex Microcontroller Software Interface Standard (CMSIS) hardware abstraction layer for the
ARM Cortex-M processor series is implemented and available for M0 CPU. Code is forward compatible with
ARM Cortex M3 based devices.
Page 20
nRF51822 Product Specification v3.3
3.2
Memory
All memory and registers are found in the same address space as shown in the Device Memory Map, see
Figure 5. Devices in the nRF51 Series use flash based memory in the code, FICR, and UICR regions.
The RAM region is SRAM.
0xFFFFFFFF
reserved
0xE0100000
Private Peripheral Bus
0xE0000000
reserved
0x50000000
AHB peripherals
0x40080000
reserved
0x40000000
APB peripherals
reserved
RAM
0x20000000
reserved
0x10001000
UICR
reserved
FICR
0x10000000
reserved
Code
0x00000000
Figure 5 Memory Map
The embedded flash memory for program and static data can be programmed using In Application
Programming (IAP) routines from RAM through the SWD interface, or in-system from a program executing
from code area. The Non-Volatile Memory Controller (NVMC) is used for program/erase operations. Regions
of flash memory can be protected from read, write, and erase by the Memory Protection Unit (MPU). A User
Information Configuration Register (UICR) contains the lock byte for enabling readback protection to secure
the IP, while individual block protection is controlled using registers which can only be cleared on chip reset.
Page 21
nRF51822 Product Specification v3.3
3.2.1
Code organization
Chip variant
Code size
Page size
No of pages
nRF51822-QFAA
nRF51822-CEAA
nRF51822-CTAA
256 kB
1024 byte
256
nRF51822-QFAB
nRF51822-CDAB
128 kB
1024 byte
128
nRF51822-QFAC
nRF51822-CFAC
nRF51822-CTAC
256 kB
1024 byte
256
Table 4 Code organization
3.2.2
RAM organization
RAM is divided into blocks for separate power management which is controlled by the POWER System Block.
Each block is divided into two 4 kByte RAM sections with separate RAM AHB slaves.
Please see the nRF51 Series Reference Manual for more information.
Chip variant
RAM size
Block
Size
nRF51822-QFAA
nRF51822-CEAA
nRF51822-CTAA
16 kB
Block0
Block1
8 kB
8 kB
nRF51822-QFAB
nRF51822-CDAB
16 kB
Block0
Block1
8 kB
8 kB
32 kB
Block0
Block1
Block2
Block3
8 kB
8 kB
8 kB
8 kB
nRF51822-QFAC
nRF51822-CFAC
nRF51822-CTAC
Table 5 RAM organization
How to organize the use of the RAM
For the best performance we recommend the following use of the RAM AHB slaves (Note that the Crypto
consists of CCM, ECB, and AAR modules):
• If the Radio and Crypto buffers together are larger in size than one RAM section, the buffers
should be separated so the memory used by the Radio is in one RAM section while the
memory used by the Crypto is in another RAM section.
• The sections used by CODE should not be combined with sections used by the Radio,
Crypto, or SPI.
• The Stack and Heap should be placed at the top section and should not be combined with
sections used by the Radio, Crypto, or SPI.
Page 22
nRF51822 Product Specification v3.3
Table 6 and Table 7 shows how memory allocated to different functions can be distributed between RAM
sections for parallel access. There is a table for chip variants with 16 kB or 32 kB RAM.
RAM
Blocks/Sections
Block0
RAM0
Block1
RAM2
Radio
buffers
Crypto
buffers
x
x
SPIS
buffers
CPU
Stack/Heap
CODE
Global
variables
x
RAM1
x
x
x
x
RAM3
x
x
x
CPU
Stack/Heap
CODE
Global
variables
Table 6 16 kB RAM variants
RAM
Blocks/Sections
Block0
Block1
Block2
Block3
Radio
buffers
Crypto
buffers
SPIS
buffers
RAM0
x
(x)
x
RAM1
(x)
x
x
RAM2
x
x
RAM3
x
x
RAM4
x
x
RAM5
x
x
RAM6
x
x
x
x
RAM7
x
Table 7 32 kB RAM variants
3.3
Memory Protection Unit (MPU)
The memory protection unit can be configured to protect all flash memory on the device from readback, or
to protect blocks of flash from over-write or erase.
Chip variant
Flash block size
Number of protectable Flash blocks
nRF51822-QFAA
nRF51822-CEAA
nRF51822-CTAA
4 kB
64
nRF51822-QFAB
nRF51822-CDAB
4 kB
32
nRF51822-QFAC
nRF51822-CFAC
nRF51822-CTAC
4 kB
64
Table 8 MPU flash blocks
Page 23
nRF51822 Product Specification v3.3
3.4
3.4.1
Power management (POWER)
Power supply
nRF51 supports three different power supply alternatives:
• Internal LDO setup
• DC/DC converter setup
• Low voltage mode setup
See Table 20 on page 39 for the voltage range on the different alternatives. See Chapter 11 “Reference
circuitry” on page 79 for details on the schematic used for the different power supply alternatives.
3.4.1.1
Internal LDO setup
In internal LDO mode the DC/DC converter is bypassed (disabled) and the system power is generated
directly from the supply voltage VDD. This mode could be used as the only option or in combination with
the DC/DC converter setup. See DC/DC converter section for more details.
3.4.1.2
DC/DC converter setup
The nRF51 DC/DC buck converter transforms battery voltage to lower internal voltage with minimal power
loss. The converted voltage is then available for the linear regulator input. The DC/DC converter can be
disabled when the supply voltage drops to the lower limit of the voltage range so the LDO can be used for
low supply voltages. When enabled, the DC/DC converter operation is automatically suspended between
radio events when only the low current regulator is needed internally.
This feature is particularly useful for applications using battery technologies with nominal cell voltages
higher than the minimum supply voltage with DC/DC enabled. The reduction in supply voltage level from a
high voltage to a low voltage reduces the peak power drain from the battery. Used with a 3 V coin-cell
battery, the peak current drawn from the battery is reduced by approximately 25%.
3.4.1.3
Low voltage mode setup
Devices can be used in low voltage mode where a steady 1.8 V supply is available externally.
Page 24
nRF51822 Product Specification v3.3
3.4.2
Power management
The power management system is highly flexible with functional blocks such as the CPU, Radio Transceiver,
and peripherals having separate power state control in addition to the global System ON and OFF modes. In
System OFF mode, RAM can be retained and the device state can be changed to System ON through Reset,
GPIO DETECT signal, or LPCOMP ANADETECT signal. When in System ON mode, all functional blocks will
independently be in IDLE or RUN mode depending on needed functionality.
Power management features:
• Supervisor HW to manage
• Power on reset
• Brownout reset
• Power fail comparator
• System ON/OFF modes
• Pin wake-up from System OFF
• Reset
• GPIO DETECT signal
• LPCOMP ANADETECT signal
• Functional block RUN/IDLE modes
• RAM retention in System OFF mode (8 kB blocks)
• 16 kB versions will have 2 blocks
• 32 kB versions will have 4 blocks
3.4.2.1
System OFF mode
In system OFF mode the chip is in the deepest power saving mode. The system's core functionality is
powered down and all ongoing tasks are terminated. The only functionality that can be set up to be
responsive is the Pin wake-up mechanism.
One or more blocks of RAM can be retained while in System OFF mode.
Page 25
nRF51822 Product Specification v3.3
3.4.2.2
System ON mode
In system ON mode the system is fully operational and the CPU and selected peripherals can be brought
into a state where they are functional and more or less responsive depending on the sub-power mode
selected.
There are two sub-power modes:
• Low power
• Constant latency
Low Power
In Low Power mode the automatic power management system is optimized to save power. This is done by
keeping as much as possible of the system powered down. The cost of this is that you will have varying CPU
wakeup latency and PPI task response.
The CPU wakeup latency will be affected by the startup time of the 1V7 regulator. The PPI task response will
vary depending on the resources required by the peripheral where the task originated.
The resources that could be involved are:
• 1V7 with the startup time t1V7
• 1V2 with the startup time t1V2
• One of the following clock sources
• RC16 with the startup time tSTART,RC16
• XO16M/XO32M with the startup time the clock management system tXO1
Constant Latency
In Constant Latency mode the system is optimized for keeping the CPU latency and the PPI task response
constant and at a minimum. This is secured by forcing a set of base resources on while in sleep mode. The
cost is that the system will have higher power consumption.
The following resources are kept active while in sleep mode:
• 1V7 regulator with the standby current of I1V7
• 1V2 regulator. Here the current consumption is specified in combination with the clock
source.
• One of the following clock sources:
• RC16 with the standby current of I1V2RC16
• XO16M with the standby current of I1V2XO16
• XO32M with the standby current of I1V2XO32
1. For the clock source XO16M and XO32M we assume that the crystal is already running (standby). This will give an increase of the
power consumption in sleep mode given by ISTBY,X16M / ISTBY,X32M.
Page 26
nRF51822 Product Specification v3.3
3.5
Programmable Peripheral Interconnect (PPI)
The Programmable Peripheral Interconnect (PPI) enables peripherals to interact autonomously with each
other using tasks and events independent of the CPU. The PPI allows precise synchronization between
peripherals when real-time application constraints exist and eliminates the need for CPU activity to
implement behavior which can be predefined using PPI.
Instance
Channel
Number of channels
Number of groups
PPI
0 - 15
16
4
Table 9 PPI properties
The PPI system has in addition to the fully programmable peripheral interconnections, a set of channels
where the event (EEP) and task (TEP) endpoints are set in hardware. These fixed channels can be individually
enabled, disabled, or added to PPI channel groups in the same way as ordinary PPI channels. See the nRF51
Series Reference Manual for more information.
Instance
PPI
Channel
Number of channels
Number of groups
20 - 31
12
4
Table 10 Pre-programmed PPI channels
Page 27
nRF51822 Product Specification v3.3
3.6
Clock management (CLOCK)
The advanced clock management system can source the system clocks from a range of internal or external
high and low frequency oscillators and distribute them to modules based upon a module’s individual
requirements. This prevents large clock trees from being active and drawing power when system modules
needing this clock reference are not active.
If an application enables a module that needs a clock reference without the corresponding oscillator
running, the clock management system will automatically enable the RC oscillator option and provide the
clock. When the module goes back to idle, the clock management will automatically set the oscillator to idle.
To avoid delays involved in starting a given oscillator, or if a specific oscillator is required, the application can
override the automatic oscillator management so it keeps oscillators active when no system modules
require the clock reference.
Clocks are only available in System ON mode and can be generated by the sources listed in Table 11.
Clock
High Frequency Clock (HFCLK)1
Low Frequency Clock (LFCLK)
Source
Frequency options
External Crystal (XOSC)
16/32 MHz2
External clock reference3
16 MHz
Internal RC Oscillator (RCOSC)
16 MHz
External Crystal (XOSC)
32.768 kHz
External clock reference3
32.768 kHz
Synthesized from HFCLK
32.768 kHz
Internal RC Oscillator (RCOSC)
32.768 kHz
1. External Crystal must be used for Radio operation.
2. The HFCLK will be 16 MHz for both the 16 and 32 MHz crystal option.
3. See the nRF51 Series Reference Manual for more details on external clock reference.
Table 11 Clock properties
XL1
XL2
32.768 kHz
crystal
oscillator
XC1
32.768 kHz
RC
oscillator
16 MHz
RC
oscillator
LFCLKSRC
LFCLKSTART
LFCLKSTOP
XC2
16/32 MHz
crystal
oscillator
HFCLKSRC
LFCLK
clock control
HFCLKSTART
32.768 kHz
synthesizer
HFCLKSTOP
LFCLKSTARTED
HFCLK
clock control
HFCLKSTARTED
HFCLK
LFCLK
Figure 6 Clock management
Page 28
Request from the
rest of the system
nRF51822 Product Specification v3.3
3.6.1
16/32 MHz crystal oscillator
The crystal oscillator can be controlled either by a 16 MHz or a 32 MHz external crystal. However, the system
clock is always 16 MHz, see the nRF51 Series Reference Manual for more details. The crystal oscillator is
designed for use with an AT-cut quartz crystal in parallel resonant mode. To achieve correct oscillation
frequency, the load capacitance must match the specification in the crystal data sheet. Figure 7 shows how
the crystal is connected to the 16/32 MHz crystal oscillator.
XC1
XC2
C1
C2
16/32 MHz
crystal
Figure 7 Circuit diagram of the 16/32 MHz crystal oscillator
The load capacitance (CL) is the total capacitance seen by the crystal across its terminals and is given by:
C1' C2'
CL = --------------------------- C1' + C2'
C1’ = C1 + C_pcb1 + C_pin
C2’ = C2 + C_pcb2 + C_pin
C1 and C2 are ceramic SMD capacitors connected between each crystal terminal and ground. C_pcb1 and
C_pcb2 are stray capacitances on the PCB. C_pin is the pin input capacitance on the XC1 and XC2 pins, see
Table 22 on page 41 (16 MHz) and Table 23 on page 42 (32 MHz). The load capacitors C1 and C2 should have
the same value. See Chapter 11 “Reference circuitry” on page 79 for the capacitance value used for C_pcb1
and C_pcb2 in reference circuitry.
For reliable operation, the crystal load capacitance, shunt capacitance, equivalent series resistance (RS,X16M/
RS,X32M), and drive level must comply with the specifications in Table 22 on page 41 (16 MHz) and Table 23
on page 42 (32 MHz). It is recommended to use a crystal with lower than maximum RS,X16M/RS,X32M if the
load capacitance and/or shunt capacitance is high. This will give faster startup and lower current
consumption. A low load capacitance will reduce both startup time and current consumption.
Page 29
nRF51822 Product Specification v3.3
3.6.2
32.768 kHz crystal oscillator
The 32.768 kHz crystal oscillator is designed for use with a quartz crystal in parallel resonant mode. To
achieve correct oscillation frequency, the load capacitance must match the specification in the crystal data
sheet. Figure 8 shows how the crystal is connected to the 32.768 kHz crystal oscillator.
XL1
XL2
C1
C2
32.768 kHz
crystal
Figure 8 Circuit diagram of the 32.768 kHz crystal oscillator
The load capacitance (CL) is the total capacitance seen by the crystal across its terminals and is given by:
C1' C2'
CL = --------------------------- C1' + C2'
C1’ = C1 + C_pcb1 + C_pin
C2’ = C2 + C_pcb2 + C_pin
C1 and C2 are ceramic SMD capacitors connected between each crystal terminal and ground. C_pcb1 and
C_pcb2 are stray capacitances on the PCB. C_pin is the pin input capacitance on the XC1 and XC2 pins, see
Section 8.1.5 “32.768 kHz crystal oscillator (32k XOSC)” on page 43. The load capacitors C1 and C2 should
have the same value. See Chapter 11 “Reference circuitry” on page 79 for the capacitance value used for
C_pcb1 and C_pcb2 in reference circuitry.
3.6.3
32.768 kHz RC oscillator
The 32.768 kHz RC low frequency oscillator may be used as an alternative to the 32.768 kHz crystal oscillator.
It has a frequency accuracy of less than ± 250 ppm in a stable temperature environment or when calibration
is periodically performed in changing temperature environments. The 32.768 kHz RC oscillator does not
require external components.
Page 30
nRF51822 Product Specification v3.3
3.6.4
Synthesized 32.768 kHz clock
The low frequency clock can be synthesized from the high frequency clock. This saves the cost of a crystal
but increases average power consumption as the high frequency clock source will have to be active.
3.7
GPIO
The general purpose I/O is organized as one port with up to 32 I/Os (dependent on package) enabling
access and control of up to 32 pins through one port. Each GPIO can be accessed individually with the
following user configurable features:
•
•
•
•
•
•
Input/output direction
Output drive strength
Internal pull-up and pull-down resistors
Wake-up from high or low level triggers on all pins
Trigger interrupt on all pins
All pins can be used by the PPI task/event system. The maximum number of pins that can be
interfaced through the PPI at the same time is limited by the number of GPIOTE channels.
• All pins can be individually configured to carry serial interface or quadrature demodulator
signals.
3.8
Debugger support
The two pin Serial Wire Debug (SWD) interface provided as a part of the Debug Access Port (DAP) offers a
flexible and powerful mechanism for non-intrusive debugging of program code. Breakpoints and single
stepping are part of this support.
Page 31
nRF51822 Product Specification v3.3
4
Peripheral blocks
Peripheral blocks which have a register interface and/or interrupt vector assigned are instantiated, one or
more times, in the device address space. The instances, associated ID (for those with interrupt vectors), and
base address of features are found in Table 18 on page 37. Detailed functional descriptions, configuration
options, and register interfaces can be found in the nRF51 Series Reference Manual.
4.1
2.4 GHz radio (RADIO)
The nRF51 Series 2.4 GHz RF transceiver is designed and optimized to operate in the worldwide ISM
frequency band at 2.400 to 2.4835 GHz. Radio modulation modes and configurable packet structure enable
interoperability with Bluetooth® low energy (BLE), ANT™, Enhanced ShockBurst™, and other
2.4 GHz protocol implementations.
The transceiver receives and transmits data directly to and from system memory for flexible and efficient
packet data management. The nRF51 Series transceiver has the following features:
• General modulation features
• GFSK modulation
• Data whitening
• On-air data rates
• 250 kbps
• 1 Mbps
• 2 Mbps
• Transmitter with programmable output power of +4 dBm to -20 dBm, in 4 dB steps
• Transmitter whisper mode -30 dBm
• RSSI function (1 dB resolution)
• Receiver with integrated channel filters achieving maximum sensitivity
• -96 dBm at 250 kbps
• -93 dBm at 1 Mbps BLE
• -90 dBm at 1 Mbps
• -85 dBm at 2 Mbps
• RF Synthesizer
• 1 MHz frequency programming resolution
• 1 MHz non-overlapping channel spacing at 1 Mbps and 250 kbps
• 2 MHz non-overlapping channel spacing at 2 Mbps
• Works with low-cost ± 60 ppm 16 MHz crystal oscillators
• Baseband controller
• EasyDMA RX and TX packet transfer directly to and from RAM
• Dynamic payload length
• On-the-fly packet assembly/disassembly and AES CCM payload encryption
• 8 bit, 16 bit, and 24 bit CRC check (programmable polynomial and initial value)
Note: EasyDMA is an integrated DMA implementation requiring no configuration to take advantage
of flexible data management and avoids copying operations to and from RAM.
Page 32
nRF51822 Product Specification v3.3
4.2
Timer/counters (TIMER)
The timer/counter runs on the high-frequency clock source (HFCLK) and includes a 4 bit (1/2X) prescaler that
can divide the HFCLK.
The TIMER will start requesting the 1 MHz mode of the HFCLK for values of the prescaler that gives fTIMER less
or equal to 1 MHz. If the timer module is the only one requesting the HFCLK, the system will automatically
switch to using the 1 MHz mode resulting in a decrease in the current consumption. See the parameters
I1v2XO16,1M, I1v2XO32,1M, I1v2RC16,1M in Table 32 on page 48 and ITIMER0/1/2,1M in Table 52 on page 62.
The task/event and interrupt features make it possible to use the PPI system for timing and counting tasks
between any system peripheral including any GPIO of the device. The PPI system also enables the TIMER
task/event features to generate periodic output and PWM signals to any GPIO. The number of input/outputs
used at the same time is limited by the number of GPIOTE channels.
Instance
Bit-width
Capture/Compare registers
TIMER0
8/16/24/32
4
TIMER1
8/16
4
TIMER2
8/16
4
Table 12 Timer/counter properties
4.3
Real Time Counter (RTC)
The Real Time Counter (RTC) module provides a generic, low power timer on the low-frequency clock source
(LFCLK). The RTC features a 24 bit COUNTER, 12 bit (1/X) prescaler, capture/compare registers, and a tick
event generator for low power, tickless RTOS implementation.
Instance
Capture/Compare registers
RTC0
3
RTC1
4
Table 13 RTC properties
4.4
AES Electronic Codebook Mode Encryption (ECB)
The ECB encryption block supports 128 bit AES block encryption. It can be used for a range of cryptographic
functions like hash generation, digital signatures, and keystream generation for data encryption/decryption.
ECB encryption uses EasyDMA to access system RAM for in-place operations on cleartext and ciphertext
during encryption.
Page 33
nRF51822 Product Specification v3.3
4.5
AES CCM Mode Encryption (CCM)
Cipher Block Chaining - Message Authentication Code (CCM) Mode is an authenticated encryption
algorithm designed to provide both authentication and confidentiality during data transfer. CCM combines
counter mode encryption and CBC-MAC authentication.
Note: The CCM terminology "Message Authentication Code (MAC)" is called the "Message Integrity
Check (MIC)" in Bluetooth terminology and this document and the nRF51 Series Reference
Manual are consistent with Bluetooth terminology.
The CCM block generates an encrypted keystream, applies it to the input data using the XOR operation, and
generates the 4 byte MIC field in one operation. The CCM and radio can be configured to work
synchronously, as described in the nRF51 Series Reference Manual. The CCM will encrypt in time for
transmission and decrypt after receiving bytes into memory from the Radio. All operations can complete
within the packet RX or TX time.
CCM on this device is implemented according to Bluetooth requirements and the algorithm as defined in
IETF RFC3610, and depends on the AES-128 block cipher. A description of the CCM algorithm can also be
found in the NIST Special Publication 800-38C. The Bluetooth Core Specification v4.0 describes the
configuration of counter mode blocks and encryption blocks to implement compliant encryption for BLE.
The CCM block uses EasyDMA to load key, counter mode blocks (including the nonce required), and to read/
write plain text and cipher text.
4.6
Accelerated Address Resolver (AAR)
Accelerated Address Resolver is a cryptographic support function to implement the "Resolvable Private
Address Resolution Procedure" described in the Bluetooth Core Specification v4.1. "Resolvable Private
Address Generation" should be achieved using ECB and is not supported by AAR. The procedure allows two
devices that share a secret key to generate and resolve a hash based on their device address.
The AAR block enables real-time address resolution on incoming packets when configured according to the
description in the nRF51 Series Reference Manual. This allows real-time packet filtering (whitelisting) using a
list of known shared secrets (Identity Resolving Keys (IRK) in Bluetooth).
The following table outlines the properties of the AAR.
Instance
Number of IRKs supported for simultaneous resolution
AAR
8
Table 14 AAR properties
4.7
Random Number Generator (RNG)
The Random Number Generator (RNG) generates true non-deterministic random numbers derived from
thermal noise that are suitable for cryptographic purposes. The RNG does not require a seed value.
4.8
Watchdog Timer (WDT)
A countdown watchdog timer using the low-frequency clock source (LFCLK) offers configurable and robust
protection against application lock-up. The watchdog can be paused during long CPU sleep periods for low
power applications and when the debugger has halted the CPU.
Page 34
nRF51822 Product Specification v3.3
4.9
Temperature sensor (TEMP)
The temperature sensor measures die temperature over the temperature range of the device with 0.25° C
resolution.
4.10
Serial Peripheral Interface (SPI/SPIS)
The SPI interfaces enable full duplex synchronous communication between devices. They support a threewire (SCK, MISO, MOSI) bi-directional bus with fast data transfers. The SPI Master can communicate with
multiple slaves using individual chip select signals for each of the slave devices attached to a bus. Control of
chip select signals is left to the application through use of GPIO signals. SPI Master has double buffered I/O
data. The SPI Slave includes EasyDMA for data transfer directly to and from RAM allowing Slave data
transfers to occur while the CPU is IDLE.
The GPIOs used for each SPI interface line can be chosen from any GPIO on the device and are
independently configurable. This enables great flexibility in device pinout and efficient use of printed circuit
board space and signal routing.
The SPI peripheral supports SPI mode 0, 1, 2, and 3.
Instance
Master/Slave
SPI0
Master
SPI1
Master
SPIS1
Slave
Table 15 SPI properties
4.10.1
Enable 4 Mbps SPIS bit rate
In order to utilize 4 Mbps bit rate for SPIS, the SPIS must be the only peripheral using a specific RAM section.
Construction of RAM sections are described in Section 3.2.2 “RAM organization” on page 22. If other
peripherals than SPIS use a specific RAM section, only 2 Mbps bit rate is possible.
4.11
Two-wire interface (TWI)
The two-wire interface can communicate with a bi-directional wired-AND bus with two lines (SCL, SDA). The
protocol makes it possible to interconnect up to 127 individually addressable devices. The interface is
capable of clock stretching, supporting data rates of 100 kbps and 400 kbps.
The GPIOs used for each two-wire interface line can be chosen from any GPIO on the device and are
independently configurable. This enables great flexibility in device pinout and efficient use of board space
and signal routing.
Instance
Master/Slave
TWI0
Master
TWI1
Master
Table 16 Two-wire properties
Page 35
nRF51822 Product Specification v3.3
4.12
Universal Asynchronous Receiver/Transmitter (UART)
The Universal Asynchronous Receiver/Transmitter offers fast, full-duplex, asynchronous serial
communication with built-in flow control (CTS, RTS) support in hardware up to 1 Mbps baud. Parity
checking is supported.
The GPIOs used for each UART interface line can be chosen from any GPIO on the device and are
independently configurable. This enables great flexibility in device pinout and efficient use of board space
and signal routing.
4.13
Quadrature Decoder (QDEC)
The quadrature decoder provides buffered decoding of quadrature-encoded sensor signals. It is suitable for
mechanical and optical sensors with an optional LED output signal and input debounce filters. The sample
period and accumulation are configurable to match application requirements.
4.14
Analog to Digital Converter (ADC)
The 10 bit incremental Analog to Digital Converter (ADC) enables sampling of up to 8 external signals
through a front-end multiplexer. The ADC has configurable input, reference prescaling, and sample
resolution (8, 9, and 10 bit).
Note: The ADC module uses the same analog inputs as the LPCOMP module (AIN0 - AIN7 and
AREF0 - AREF1). Only one of the modules can be enabled at the same time.
4.15
GPIO Task Event blocks (GPIOTE)
A GPIOTE block enables GPIOs on Port 0 to generate events on pin state change which can be used to carry
out tasks through the PPI system. A GPIO can also be driven to change state on system events using the PPI
system. Low power detection of pin state changes on Port 0 is possible when in System ON or System OFF.
Instance
Number of GPIOTE channels
GPIOTE
4
Table 17 GPIOTE properties
4.16
Low Power Comparator (LPCOMP)
In System ON, the block can generate separate events on rising and falling edges of a signal, or sample the
current state of the pin as being above or below the threshold. The block can be configured to use any of the
analog inputs on the device. Additionally, the low power comparator can be used as an analog wakeup
source from System OFF or System ON. The comparator threshold can be programmed to a range of
fractions of the supply voltage.
Note: The LPCOMP module uses the same analog inputs as the ADC module (AIN0 - AIN7 and
AREF0 - AREF1). Only one of the modules can be enabled at the same time.
Page 36
nRF51822 Product Specification v3.3
5
Instance table
The peripheral instantiation of the chip is shown in the table below.
ID
Base address
Peripheral
Instance
Description
0
0x40000000
POWER
POWER
Power Control.
0
0x40000000
CLOCK
CLOCK
Clock Control.
0
0x40000000
MPU
MPU
Memory Protection Unit.
1
0x40001000
RADIO
RADIO
2.4 GHz Radio.
2
0x40002000
UART
UART0
Universal Asynchronous Receiver/Transmitter.
3
0x40003000
SPI
SPI0
SPI Master.
3
0x40003000
TWI
TWI0
I2C compatible Two-Wire Interface 0.
4
0x40004000
SPIS
SPIS1
SPI Slave.
4
0x40004000
SPI
SPI1
SPI Master.
4
0x40004000
TWI
TWI1
I2C compatible Two-Wire Interface 1.
5
Unused.
6
0x40006000
GPIOTE
GPIOTE
GPIO Task and Events.
7
0x40007000
ADC
ADC
Analog to Digital Converter.
8
0x40008000
TIMER
TIMER0
Timer/Counter 0.
9
0x40009000
TIMER
TIMER1
Timer/Counter 1.
10
0x4000A000
TIMER
TIMER2
Timer/Counter 2.
11
0x4000B000
RTC
RTC0
Real Time Counter 0.
12
0x4000C000
TEMP
TEMP
Temperature Sensor.
13
0x4000D000
RNG
RNG
Random Number Generator.
14
0x4000E000
ECB
ECB
Crypto AES ECB.
15
0x4000F000
CCM
CCM
AES Crypto CCM.
15
0x4000F000
AAR
AAR
Accelerated Address Resolver.
16
0x40010000
WDT
WDT
Watchdog Timer.
17
0x40011000
RTC
RTC1
Real Time Counter 1.
18
0x40012000
QDEC
QDEC
Quadrature Decoder.
19
0x40013000
LPCOMP
LPCOMP
Low Power Comparator.
20 - 25
Reserved as software interrupt.
26 - 29
Unused.
30
0x4001E000
NVMC
NVMC
Non-Volatile Memory Controller.
31
0x4001F000
PPI
PPI
Programmable Peripheral Interconnect.
NA
0x50000000
GPIO
GPIO
General Purpose Input and Output.
NA
0x10000000
FICR
FICR
Factory Information Configuration Registers.
NA
0x10001000
UICR
UICR
User Information Configuration Registers.
Table 18 Peripheral instance reference
Page 37
nRF51822 Product Specification v3.3
6
Absolute maximum ratings
Maximum ratings are the extreme limits the chip can be exposed to without causing permanent damage.
Exposure to absolute maximum ratings for prolonged periods of time may affect the reliability of the chip.
Table 19 specifies the absolute maximum ratings.
Symbol
Parameter
Min.
Max.
Unit
-0.3
+3.9
V
DEC2
2
V
VSS
0
V
-0.3
VDD + 0.3
V
-40
+125
°C
Supply voltages
VDD
I/O pin voltage
VIO
Environmental QFN48 package
Storage temperature
MSL
Moisture Sensitivity Level
2
ESD HBM
Human Body Model
4
kV
ESD CDM
Charged Device Model
750
V
+125
°C
Environmental WLCSP package
Storage temperature
-40
MSL
Moisture Sensitivity Level
1
ESD HBM
Human Body Model
4
kV
ESD CDM
Charged Device Model
500
V
Flash memory
Endurance
20 0001
Retention
10 years at 40 °C
50 years at 25 °C
Number of times an address
can be written between
erase cycles
write/erase cycles
2
times
1. Flash endurance is 20,000 erase cycles. The smallest element of flash that can be written is a 32 bit word.
Table 19 Absolute maximum ratings
Page 38
nRF51822 Product Specification v3.3
7
Operating conditions
The operating conditions are the physical parameters that the chip can operate within as defined in
Table 20.
Symbol
Parameter
VDD
Notes
Min.
Typ.
Max.
Units
Supply voltage, internal LDO setup
1.8
3.0
3.6
V
VDD
Supply voltage, DC/DC converter setup
2.1
3.0
3.6
V
VDD
Supply voltage, low voltage mode
setup
1
1.75
1.8
1.95
V
tR_VDD
Supply rise time (0 V to VDD)
2
100
ms
TA
Operating temperature
75
°C
-25
25
1. DEC2 shall be connected to VDD in this mode.
2. The on-chip power-on reset circuitry may not function properly for rise times outside the specified interval.
Table 20 Operating conditions
Nominal operating conditions (NOC) - conditions under which the chip is operated and tested are the
typical (Typ.) values in Table 20.
Extreme operating conditions (EOC) - conditions under which the chip is operated and tested are the
minimum (Min.) and maximum (Max.) values in Table 20.
7.1
7.1.1
WLCSP light sensitivity
CDAB, CEAA, and CFAC light sensitivity
The CDAB, CEAA, and CFAC package variants are sensitive to visible and near infrared light which means a
final product design must shield the chip properly. The marking side is covered with a light absorbing film,
while the side edges of the chip and the ball side must be protected by coating or other means.
7.1.2
CTAA and CTAC light sensitivity
The CTAA and CTAC package variant is sensitive to visible and close-range infrared light which means a final
product design must shield the chip properly. Unlike the other WLCSP variants that have some protection,
the CTAA and CTAC variant does not have any and therefore must be protected by light absorbing film
coating or other means.
7.2
CTAA and CTAC mechanical strength
The CTAA and CTAC is a thinner variant of the WLCSP package. To ensure a mechanical robust solution the
customer is recommended to perform board level bending validation test.
Page 39
nRF51822 Product Specification v3.3
8
Electrical specifications
This chapter contains electrical specifications for device interfaces and peripherals including radio
parameters and current consumption.
The test levels referenced are defined in Table 21.
Test level
Description
1
Simulated, calculated, by design (specification limit) or prototype samples
tested at NOC.
2
Parameters have been verified at Test level 1 and in addition:
Prototype samples tested at EOC.
3
Parameters have been verified at Test level 2 and in addition:
Production samples tested at EOC in accordance with JEDEC47.
4
Parameters have been verified at Test level 3 and in addition:
Production devices are limit tested at NOC.
Table 21 Test level definitions
8.1
Clock sources
8.1.1
16/32 MHz crystal startup
XOSC Ready
Enable XOSC
ISTART,XOSC
tSTART,XOSC
tSTART,X16M / tSTART,X32M
Figure 9 Current drawn at oscillator startup
Figure 9 shows the current drawn by the crystal oscillator (XOSC) at startup. The tSTART,XOSC period is the
time needed for the oscillator to start clocking. The length of tSTART,XOSC is dependent on the crystal
specifications.
The period following tSTART,XOSC to the end of tSTART,X16M /tSTART,X32M is fixed. This is the debounce period
where the clock stabilizes before it is made available to rest of the system.
Page 40
nRF51822 Product Specification v3.3
8.1.2
16 MHz crystal oscillator (16M XOSC)
Units
Test
level
MHz
N/A
±502
ppm
N/A
±402
ppm
N/A
100
150
200
Ω
Ω
Ω
N/A
N/A
N/A
100
μW
N/A
4
pF
1
SMD 2520 CL = 8 pF
4703
μA
1
IX16M,1M
Run current for the 16 MHz crystal
oscillator when used only for a Timer SMD 2520 CL = 8pF
at 1 MHz or less.
2503
μA
1
ISTBY,X16M
Standby current for 16 MHz crystal
oscillator.4
25
μA
1
ISTART,XOSC
Startup current for 16 MHz crystal
oscillator.
1.1
mA
3
tSTART,XOSC
Startup time for 16 MHz crystal
oscillator.
SMD 2520 CL = 8 pF
400
μs
2
tSTART,X16M
Total startup time
(tSTART,XOSC + debounce period).6
SMD 2520 CL = 8 pF
800
μs
1
VINEXTCLK
Input amplitude if driven by external
clock applied to XC1 pin.7
mV pp
1
Symbol
Description
Note
fNOM,X16M
Crystal frequency.
fTOL,X16M
Frequency tolerance.1
fTOL,X16M,BLE
Frequency tolerance, Bluetooth low
energy applications.1
RS,X16M
Equivalent series resistance.
PD,X16M
Drive level.
Cpin
Input capacitance on XC1 and XC2
pads.
IX16M
Run current for 16 MHz crystal
oscillator.
Min. Typ.
Max.
16
C0 ≤ 7 pF, CL,MAX ≤ 16 pF
C0 ≤ 5 pF, CL,MAX ≤ 12 pF
C0 ≤ 3 pF, CL,MAX ≤ 12 pF
50
75
100
SMD 2520 CL = 8 pF
800
5005
8
1. The Frequency tolerance relates to the amount of time the radio can be in transmit mode. See Table 38 on page 52.
2. Includes initial tolerance of the crystal, drift over temperature, aging, and frequency pulling due to incorrect load capacitance.
3. This number includes the current used by the automated power and clock management system.
4. Standby current is the current drawn by the oscillator when there are no resources requesting the 16M, meaning there
is no clock management active (see Table 33 on page 49). This value will depend on type of crystal.
5. Crystals with other specification than SMD 2520 may have much longer startup times.
6. This is the time from when the crystal oscillator is powered up until its output becomes available to the system. It
includes both the crystal startup time and the debounce period.
7. Leave XC2 pin unconnected.
8. Input signal must not swing outside supply rails.
Table 22 16 MHz crystal oscillator
Page 41
nRF51822 Product Specification v3.3
8.1.3
32 MHz crystal oscillator (32M XOSC)
Min. Typ. Max.
Units
Test
level
32
MHz
N/A
±502
ppm
N/A
±402
ppm
N/A
60
80
100
Ω
Ω
Ω
N/A
N/A
N/A
100
μW
N/A
4
pF
1
SMD 2520 CL = 8 pF
5003
μA
1
SMD 2520 CL = 8 pF
3003
μA
1
Standby current for 32 MHz crystal
SMD 2520 CL = 8 pF
oscillator.4
30
μA
1
ISTART,XOSC
Startup current for 32 MHz crystal
oscillator.
1.1
mA
3
tSTART,XOSC
Startup time for 32 MHz crystal
oscillator.
SMD 2520 CL = 8 pF
300
μs
1
tSTART,X32M
Total startup time
(tSTART,XOSC + debounce period).6
SMD 2520 CL = 8 pF
750
μs
1
Symbol
Description
Note
fNOM,X32M
Crystal frequency.
fTOL,X32M
Frequency tolerance.1
fTOL,X32M,BLE
Frequency tolerance, Bluetooth low
energy applications.1
RS,X32M
Equivalent series resistance.
PD,X32M
Drive level.
Cpin
Input capacitance on XC1 and XC2
pads.
IX32M
Run current for 32 MHz crystal
oscillator.
IX32M,1M
Run current for the 32 MHz crystal
oscillator when used only for a
Timer at 1 MHz or less.
ISTBY,X32M
C0 ≤ 7 pF, CL,MAX ≤ 12 pF
C0 ≤ 5 pF, CL,MAX ≤ 12 pF
C0 ≤ 3 pF, CL,MAX ≤ 9 pF
30
40
50
4005
1. The Frequency tolerance relates to the amount of time the radio can be in transmit mode. See Table 38 on page 52.
2. Includes initial tolerance of the crystal, drift over temperature, aging and frequency pulling due to incorrect load capacitance.
3. This number includes the current used by the automated power and clock management system.
4. Standby current is the current drawn by the oscillator when there are no resources requesting the 32M, meaning there
is no clock management active (see Table 33 on page 49). This value will depend on type of crystal.
5. Crystals with other specification than SMD 2520 may have much longer startup times.
6. This is the time from when the crystal oscillator is powered up until its output becomes available to the system. It
includes both the crystal startup time and the debounce period.
Table 23 32 MHz crystal oscillator
Page 42
nRF51822 Product Specification v3.3
8.1.4
16 MHz RC oscillator (16M RCOSC)
Symbol
Description
Min.
Typ.
fNOM,RC16M
Nominal frequency.
16
fTOL,RC16M
Frequency tolerance.
±1
IRC16M
Run current for 16 MHz RC oscillator.
7501
IRC16M,1M
Run current for 16 MHz RCOSC when used only for a
Timer at 1 MHz or less.
5401
tSTART,RC16M
Startup time for 16 MHz RC oscillator.
4.2
IRC16M, START
Startup current for 16 MHz RC oscillator.
400
Max.
±5
5.2
Units
Test
level
MHz
N/A
%
3
μA
1
μA
1
μs
1
μA
1
Units
Test
level
kHz
N/A
1. This number includes the current used by the automated power and clock management system.
Table 24 16 MHz RC oscillator
8.1.5
32.768 kHz crystal oscillator (32k XOSC)
Symbol
Description
Min.
Typ.
Max.
fNOM,X32k
Crystal frequency.
fTOL,X32k,BLE
Frequency tolerance, Bluetooth low energy
applications.
±250
ppm
N/A
CL,X32k
Load capacitance.
12.5
pF
N/A
C0,X32k
Shunt capacitance.
2
pF
N/A
RS,X32k
Equivalent series resistance.
80
kΩ
N/A
PD,X32k
Drive level.
1
μW
N/A
Cpin
Input capacitance on XL1 and XL2 pads.
4
pF
1
IX32k
Run current for 32.768 kHz crystal oscillator.
0.7
μA
1
ISTART,X32k
Startup current for 32.768 kHz crystal oscillator.
1.3
1.8
μA
1
tSTART,X32k
Startup time for 32.768 kHz crystal oscillator.
0.3
1
s
2
VINEXTCLK
Input amplitude if driven by external clock applied to
XL1 pin.1
6002,3
mV pp
1
32.768
50
200
1. Leave XL2 pin unconnected.
2. The oscillator run current will increase above 1 μA for higher amplitudes.
3. Input signal must not swing outside supply rails.
Table 25 32.768 kHz crystal oscillator
Page 43
nRF51822 Product Specification v3.3
8.1.6
32.768 kHz RC oscillator (32k RCOSC)
Symbol
Description
fNOM,RC32k
Nominal frequency.
fTOL,RC32k
Frequency tolerance.
fTOL,CAL,RC32k
Frequency tolerance.
IRC32k
Run current.
tSTART,RC32k
Startup time.
Note
Min.
Units
Test
level
32.768
kHz
N/A
±2
%
3
±250
ppm
1
1.3
1.5
μA
1
390
487
μs
1
Typ.
Calibration interval 4 s
Max.
Table 26 32.768 kHz RC oscillator
8.1.7
32.768 kHz Synthesized oscillator (32k SYNT)
Units
Test
level
32.768
kHz
1
fTOL,XO16M ±8
fTOL,XO32M ±8
ppm
1
Run and startup current for
32.768 kHz Synthesized clock
including the 16M XOSC.
15
μA
1
Startup time for 32.768 kHz
Synthesized clock.
406
μs
1
Symbol
Description
fNOM,SYNT32k
Nominal frequency.
fTOL,SYNT
Frequency tolerance.
ISYNT32k
tSTART,SYNT32k
Note
Min.
Typ.
Table 27 32.768 kHz Synthesized oscillator
Page 44
Max.
nRF51822 Product Specification v3.3
8.2
Power management
Symbol
Description
VPOF
Nominal power level warning
thresholds (falling supply voltage).
VTOL
Threshold voltage tolerance.
VHYST
Threshold voltage hysteresis.
Note
Min.
Typ.
Max.
Units
Test
level
V
2
%
3
mV
3
2.1
2.3
2.5
2.7
Accuracy as defined by VTOL
±5
VPOF = 2.1 V
VPOF = 2.3 V
VPOF = 2.5 V
VPOF = 2.7 V
46
62
79
100
Table 28 Power Fail Comparator
Symbol
Description
tHOLDRESETNORMAL
Hold time for reset pin when doing a pin reset.1
tHOLDRESETDEBUG
Hold time for reset pin when doing a pin reset
during debug.1,2
Units
Test
level
0.2
μs
1
100
μs
1
Min.
Typ.
Max.
1. SWDCLK pin must be kept low during reset.
2. Bit 0 in the RESET register in the power management module must be set to 1 to enable reset during debug.
Table 29 Pin Reset
Page 45
nRF51822 Product Specification v3.3
Power on reset time (tPOR) is the time from when the supply starts rising to when the device comes out of
reset and the CPU starts. The time increases with, and is inclusive of, supply rise time from 0 V to VDD.
Table 30 gives tPOR for a number of supply rise times, simulated with a linear ramp from 0 V to VDD, over the
supply voltage range 1.8 V to 3.6 V.
Note
Units
Test
level
19
ms
1
3.4
20
ms
1
11
12
28
ms
1
68
101
115
ms
1
Symbol
Description
Min.
Typ. Max.
tPOR, 10 μs
Power on reset time, 10 μs rise
time (0 V to VDD).
0.7
2.4
tPOR, 1 ms
Power on reset time, 1 ms rise
time (0 V to VDD).
1.7
tPOR, 10 ms
Power on reset time, 10 ms rise
time (0 V to VDD).
tPOR, 100 ms
Power on reset time, 100 ms rise
time (0 V to VDD).
Table 30 Power on reset time
The data in Figure 10 and Table 31 show measured t_POR data. Measurements were taken using the
reference circuit shown in Section 11.3.1 “QFAA QFN48 schematic with internal LDO setup” on page 82 with
the given supply voltage and temperature conditions.
Figure 10 Power on reset time (Test level 2)
VDD
Rise Time from 10% to 90% of VDD
1.8
570 μs
3.0
605 μs
3.6
635 μs
Table 31 Supply rise time at sample voltages for the measured data shown in Figure 10.
Page 46
nRF51822 Product Specification v3.3
Units
Test
level
0.61
μA
2
Additional current in SYSTEM
OFF per retained RAM block
(8 kB).
0.61
μA
2
IOFF2ON
OFF to CPU execute
transition current.
400
μA
1
tOFF2ON
OFF to CPU execute.
9.6
μs
1
ION,16k
SYSTEM-ON base current with
16 kB RAM enabled.
2.61
μA
2
ION,32k
SYSTEM-ON base current with
32 kB RAM enabled.
3.81
μA
2
t1V2
Startup time for 1V2 regulator.
2.3
μs
1
I1V2XO16
Current drawn by 1V2 regulator
and 16 MHz XOSC when both
are on at the same time.
See Table 33 on page 49.
8102
μA
1
I1V2XO32
Current drawn by 1V2 regulator
and 32 MHz XOSC when both
are on at the same time.
See Table 33 on page 49.
8402
μA
1
I1V2RC16
Current drawn by 1V2 regulator
and 16 MHz RCOSC when both
are on at the same time.
See Table 33 on page 49.
8802
μA
1
I1V2XO16,1M
For HFCLK in 1 MHz mode3.
Current drawn by 1V2 regulator
and 16 MHz XOSC when both
are on at the same time.
See Table 33 on page 49.
5202
μA
1
I1V2XO32,1M
For HFCLK in 1 MHz mode3.
Current drawn by 1V2 regulator
and 32 MHz XOSC when both
are on at the same time.
See Table 33 on page 49.
5602
μA
1
I1V2RC16,1M
For HFCLK in 1 MHz mode3.
Current drawn by 1V2 regulator
and 16 MHz RCOSC when both
are on at the same time.
See Table 33 on page 49.
6302
μA
1
tXO
Startup time for the clock
management system when the
XTAL is in standby.
μs
1
Symbol
Description
IOFF
Current in SYSTEM OFF, no RAM
retention.
IOFF, RET, 8k
Note
Min.
Typ. Max.
2.3
Page 47
10.6
5.3
nRF51822 Product Specification v3.3
Symbol
Description
t1V7
Startup time for 1V7 regulator.
I1V7
Current drawn by 1V7 regulator.
FDCDC
DC/DC converter current
conversion factor.
1.
2.
3.
4.
Note
Min.
Typ. Max.
2
3.6
105
0.654
Units
Test
level
μs
1
μA
2
1.24
Add 1 μA to the current value if the device is used in Low voltage mode.
This number includes the current used by the automated power and clock management system.
For details on 1 MHz mode, see Section 4.2 “Timer/counters (TIMER)” on page 33.
FDCDC will vary depending on VDD and internal radio current consumption (IDD). Please refer to the nRF51 Series Reference Manual, v3.0 or later, for a method to calculate IDD,DCDC. See Figure 11 on page 51 for a DC/DC conversion factor
chart.
Table 32 Power management
Page 48
1
nRF51822 Product Specification v3.3
8.3
Block resource requirements
Resource requirements
Block
ID
1V2
HFCLK1
Comment
LFCLK
1V7
Radio
1
x
x
Requires HFCLK XOSC.
UART
2
x
x
When receiver or transmitter are
STARTed.
SPIS
4
x
x
Requested when CSN asserts.
SPI
3, 4
x
x
TWI
3, 4
x
x
GPIOTE
6
x
x
Only in input mode.
ADC
7
x
x
Requires HFCLK XOSC.
x
Requires 1V2 when a TIMER EVENT is
triggered.
TIMER
8, 9, 10
RTC
11, 17
HFCLK will be requested if the LFCLK is
synthesized from HFCLK.
x
TEMP
12
x
x
RNG
13
x
x
ECB
14
x
x
WDT
16
QDEC
18
LPCOMP
19
CPU
--
Requires HFCLK XOSC.
HFCLK will be requested if the LFCLK is
synthesized from HFCLK.
x
x
x
No resources required.
x
x
x
1. HFCLK could be one of the following; RC16M, XO16M, or XO32M.
Table 33 Clock and power requirements for different blocks
8.4
CPU
Symbol
Description
ICPU, FLASH
Run current at 16 MHz (XOSC).
Executing code from flash memory.
ICPU, RAM
Run current at 16 MHz (XOSC).
Executing code from RAM.
ISTART, CPU
CPU startup current.
tSTART, CPU
Min.
03
IDLE to CPU execute.
1. Includes CPU, flash, 1V2, 1V7, RC16M.
2. Includes CPU, RAM, 1V2, RC16M.
3. t1V2 if 1V2 regulator is not running already.
Table 34 CPU specifications
Page 49
Units
Test
level
4.11
mA
2
2.42
mA
1
600
μA
1
μs
1
Typ.
Max.
nRF51822 Product Specification v3.3
8.5
Radio transceiver
8.5.1
General radio characteristics
Max.
Units
Test
level
2483
MHz
N/A
1
MHz
N/A
Frequency deviation at 250 kbps.
±170
kHz
2
Δf1M
Frequency deviation at 1 Mbps.
±170
kHz
2
Δf2M
Frequency deviation at 2 Mbps.
±320
kHz
2
ΔfBLE
Frequency deviation at BLE.
±275
kHz
4
bpsFSK
On-air data rate.
2000
kbps
N/A
Max.
Units
Test
level
Symbol
Description
Note
Min.
fOP
Operating frequencies.
1 MHz channel
spacing.
2400
PLLres
PLL programming resolution.
Δf250
±225
Typ.
±250
250
Table 35 General radio characteristics
8.5.2
Radio current consumption with DC/DC disabled
Symbol
Description
Note
ITX,+4dBm
TX only run current at POUT = +4 dBm.
1
16
mA
4
ITX,0dBm
TX only run current at POUT = 0 dBm.
1
10.5
mA
4
ITX,-4dBm
TX only run current at POUT = -4 dBm.
1
8
mA
2
ITX,-8dBm
TX only run current at POUT = -8 dBm.
1
7
mA
2
ITX,-12dBm
TX only run current at POUT = -12 dBm.
1
6.5
mA
2
ITX,-16dBm
TX only run current at POUT = -16 dBm.
1
6
mA
2
ITX,-20dBm
TX only run current at POUT = -20 dBm.
1
5.5
mA
2
ITX,-30dBm
TX only run current at POUT = -30 dBm.
1
5.5
mA
2
ISTART,TX
TX startup current.
2
7
mA
1
IRX,250
RX only run current at 250 kbps.
12.6
mA
1
IRX,1M
RX only run current at 1 Mbps.
13
mA
4
IRX,2M
RX only run current at 2 Mbps.
13.4
mA
1
ISTART,RX
RX startup current.
8.7
mA
1
3
Min.
Typ.
1. Valid for data rates 250 kbps, 1 Mbps, and 2 Mbps.
2. Average current consumption (at 0 dBm TX output power) for TX startup (130 μs), and when changing mode from RX to
TX (130 μs).
3. Average current consumption for RX startup (130 μs), and when changing mode from TX to RX (130 μs).
Table 36 Radio current consumption with DC/DC disabled (NOC, VDD = 3 V)
Page 50
nRF51822 Product Specification v3.3
8.5.3
Radio current consumption with DC/DC enabled
Units
Test
level
11.8
mA
2
1
8.0
mA
2
TX only run current at POUT = -4 dBm.
1
6.3
mA
2
ITX,-8dBm
TX only run current at POUT = -8 dBm.
1
5.6
mA
2
ITX,-12dBm
TX only run current at POUT = -12 dBm.
1
5.3
mA
2
ITX,-16dBm
TX only run current at POUT = -16 dBm.
1
5.0
mA
2
ITX,-20dBm
TX only run current at POUT = -20 dBm.
1
4.7
mA
2
ITX,-30dBm
TX only run current at POUT = -30 dBm.
1
4.7
mA
2
IRX,1M
RX only run current at 1 Mbps.
9.7
mA
2
Symbol
Description
Note
ITX,+4dBm
TX only run current at POUT = +4 dBm.
1
ITX,0dBm
TX only run current at POUT = 0 dBm.
ITX,-4dBm
Min.
Typ.
Max.
1. Valid for data rates 250 kbps, 1 Mbps, and 2 Mbps.
Table 37 Radio current consumption with DC/DC enabled (NOC, VDD = 3 V)
DC/DC conversion Factor
1,100
Conversion Factor (FDCDC)
Tx - 1 Mbps (-12 dBm)
1,000
Tx - 1 Mbps (0 dBm)
Rx - 1 Mbps
Tx - 1 Mbps (+4 dBm)
0,900
0,800
0,700
0,600
2,1
2,3
2,5
2,7
2,9
3,1
3,3
3,5
Supply Voltage (VDD)
Figure 11 DC/DC conversion factor as function of VDD
See chapter 12 Power management in the nRF51 Series Reference Manual on how to use the DC/DC
conversion factor to calculate the actual power consumption.
Page 51
nRF51822 Product Specification v3.3
8.5.4
Transmitter specifications
Min.
Units
Test
level
4
dBm
4
24
dB
2
dB
1
dBm
2
2000
kHz
2
950
1100
kHz
2
700
800
kHz
2
Symbol
Description
PRF
Maximum output power.
PRFC
RF power control range.
PRFCR
RF power accuracy.
PWHISP
RF power whisper mode.
PBW2
20 dB bandwidth for modulated carrier (2 Mbps).
1800
PBW1
20 dB bandwidth for modulated carrier (1 Mbps).
PBW250
20 dB bandwidth for modulated carrier (250 kbps).
20
Typ.
Max.
±4
-30
st
PRF1.2
1 Adjacent Channel Transmit Power.
±2 MHz (2 Mbps).
-20
dBc
2
PRF2.2
2nd Adjacent Channel Transmit Power.
±4 MHz (2 Mbps).
-45
dBc
2
PRF1.1
1st Adjacent Channel Transmit Power.
±1 MHz (1 Mbps).
-20
dBc
2
PRF2.1
2nd Adjacent Channel Transmit Power.
±2 MHz (1 Mbps).
-40
dBc
2
PRF1.250
1st Adjacent Channel Transmit Power.
±1 MHz (250 kbps).
-25
dBc
2
PRF2.250
2nd Adjacent Channel Transmit Power.
±2 MHz (250 kbps).
-40
dBc
2
tTX,30
Maximum consecutive transmission time,
fTOL < ±30 ppm.
16
ms
1
tTX,60
Maximum consecutive transmission time,
fTOL < ±60 ppm.
4
ms
1
Table 38 Transmitter specifications
Page 52
nRF51822 Product Specification v3.3
8.5.5
Symbol
Receiver specifications
Description
Min.
Units
Test
level
0
dBm
1
Typ.
Max.
Receiver operation
PRXMAX
Maximum received signal strength at
< 0.1% PER.
PRXSENS,2M
Sensitivity (0.1% BER)
at 2 Mbps.
-85
dBm
2
PRXSENS,1M
Sensitivity (0.1% BER)
at 1 Mbps.
-90
dBm
2
PRXSENS,250k
Sensitivity (0.1% BER)
at 250 kbps.
-96
dBm
2
PSENS IT
1 Mbps BLE
Receiver sensitivity:
Ideal transmitter.
-93
dBm
2
PSENS DT
1 Mbps BLE
Receiver sensitivity:
Dirty transmitter.1
-91
dBm
2
RX selectivity - modulated interfering signal2
2 Mbps
C/ICO
C/I co-channel.
12
dB
2
C/I1ST
1st ACS, C/I 2 MHz.
-4
dB
2
C/I2ND
2nd ACS, C/I 4 MHz.
-24
dB
2
C/I3RD
3rd ACS, C/I 6 MHz.
-28
dB
2
C/I6th
6th ACS, C/I 12 MHz.
-44
dB
2
C/INth
Nth ACS, C/I fi > 25 MHz.
-50
dB
2
1 Mbps
C/ICO
C/I co-channel (1 Mbps).
12
dB
2
C/I1ST
1st ACS, C/I 1 MHz.
4
dB
2
C/I2ND
2nd ACS, C/I 2 MHz.
-24
dB
2
C/I3RD
3rd ACS, C/I 3 MHz.
-30
dB
2
C/I6th
6th ACS, C/I 6 MHz.
-40
dB
2
C/I12th
12th ACS, C/I 12 MHz.
-50
dB
2
C/INth
Nth ACS, C/I fi > 25 MHz.
-53
dB
2
Page 53
nRF51822 Product Specification v3.3
Symbol
Description
Min.
Units
Test
level
4
dB
2
Typ.
Max.
250 kbps
C/ICO
C/I co-channel.
C/I1ST
1st ACS, C/I 1 MHz.
-10
dB
2
C/I2ND
2nd ACS, C/I 2 MHz.
-34
dB
2
C/I3RD
3rd ACS, C/I 3 MHz.
-39
dB
2
th
C/I6th
6 ACS, C/I fi > 6 MHz.
-50
dB
2
C/I12th
12th ACS, C/I 12 MHz.
-55
dB
2
C/INth
Nth ACS, C/I fi > 25 MHz.
-60
dB
2
Bluetooth Low Energy RX selectivity
C/ICO
C/I co-channel.
10
dB
2
C/I1ST
1st ACS, C/I 1 MHz.
1
dB
2
C/I2ND
2nd ACS, C/I 2 MHz.
-25
dB
2
C/I3+N
ACS, C/I (3+n) MHz offset [n = 0, 1, 2, . . .].
-51
dB
2
C/IImage
lmage blocking level.
-30
dB
2
C/IImage±1MHz
Adjacent channel to image blocking level (±1 MHz).
-31
dB
2
RX intermodulation3
P_IMD2Mbps
IMD performance, 2 Mbps,
3rd, 4th, and 5th offset channel.
-41
dBm
2
P_IMD1Mbps
IMD performance, 1 Mbps,
3rd, 4th, and 5th offset channel.
-40
dBm
2
P_IMD250kbps
IMD performance, 250 kbps,
3rd, 4th, and 5th offset channel.
-36
dBm
2
P_IMDBLE
IMD performance, 1 Mbps BLE,
3rd, 4th, and 5th offset channel.
-39
dBm
2
1. As defined in the Bluetooth Core Specification v4.0 Volume 6: Core System Package (Low Energy Controller Volume).
2. Wanted signal level at PIN = -67 dBm. One interferer is used, having equal modulation as the wanted signal. The input
power of the interferer where the sensitivity equals BER = 0.1% is presented.
3. Wanted signal level at PIN = -64 dBm. Two interferers with equal input power are used. The interferer closest in frequency is not modulated, the other interferer is modulated equal with the wanted signal. The input power of interferers
where the sensitivity equals BER = 0.1% is presented.
Table 39 Receiver specifications
Page 54
nRF51822 Product Specification v3.3
8.5.6
Radio timing parameters
Symbol
Description
250 k
1M
2M
BLE
Jitter
Units
tTXEN
Time between TXEN task and READY event.
132
132
132
140
0
μs
tTXDISABLE
Time between DISABLE task and DISABLED
event when the radio was in TX.
10
4
3
4
1
μs
tRXEN
Time between the RXEN task and READY event.
130
130
130
138
0
μs
tRXDISABLE
Time between DISABLE task and DISABLED
event when the radio was in RX.
0
0
0
0
1
μs
tTXCHAIN
TX chain delay.
5
1
0.5
1
0
μs
tRXCHAIN
RX chain delay.
12.5
3
2
3
0
μs
Units
Test
level
Table 40 Radio timing
8.5.7
Antenna matching network requirements
Symbol
Description
Min.
Typ.
Max.
ZQFN48,ANT1,2
Optimum differential impedance at 2.4 GHz seen
into the matching network from pin ANT1 and
ANT2 on the QFN48 packet.
15 + j85
Ω
1
ZWLCSP,ANT1,2
Optimum differential impedance at 2.4 GHz seen
into the matching network from pin ANT1 and
ANT2 on the WLCSP packet.
12.6 + j106
Ω
1
Table 41 Optimum differential load impedance
8.6
Received Signal Strength Indicator (RSSI) specifications
Symbol
Description
Note
RSSIACC
RSSI accuracy.
Valid range
-50 dBm to -80 dBm.
RSSIRESOLUTION
RSSI resolution.
RSSIPERIOD
Sample period.
RSSICURRENT
Current consumption in
addition to IRX.
Min.
Typ.
1
8.8
250
Table 42 RSSI specifications
Page 55
Max.
Units
Test
level
±6
dB
2
dB
1
μs
1
μA
1
nRF51822 Product Specification v3.3
8.7
Universal Asynchronous Receiver/Transmitter (UART) specifications
Units
Test
level
230
μA
1
Run current at 115200 bps.
220
μA
1
IUART1k2
Run current at 1200 bps.
210
μA
1
fUART
Baud rate for UART.
kbps
N/A
tCTSH
CTS high time.
μs
1
Symbol
Description
IUART1M
Run current at max baud rate.
IUART115k
Note
Min.
1.2
1
Table 43 UART specifications
Page 56
Typ.
Max.
1000
nRF51822 Product Specification v3.3
8.8
Serial Peripheral Interface Slave (SPIS) specifications
Symbol
Description
Min.
ISPIS125K
Run current for SPI slave at 125 kbps.1
ISPIS2M
Run current for SPI slave at 2 Mbps.1
fSPIS
Bit rates for SPIS.
Units
Test
level
180
μA
1
183
μA
1
Mbps
N/A
Typ.
Max.
42
0.125
1. CSN asserted.
2. This bit rate is only possible if the instructions are followed in Section 4.10.1 “Enable 4 Mbps SPIS bit rate” on
page 35.
Table 44 SPIS specifications
tCWH
CSN
tCC
tCH
tCL
tCCH
SCK
tDC
MOSI
tDH
b7
b6
tCSD
MISO
b0
tCDZ
tCD
b7
b0
Figure 12 SPIS timing diagram, one byte transmission, SPI Mode 0
Units
Test
level
10
ns
1
10
ns
1
7100
2100
ns
1
972
ns
1
40
ns
1
40
ns
1
7000
2000
ns
1
Last SCK edge to CSN hold.
2000
ns
1
tCWH
CSN inactive time.
300
ns
1
tCDZ
CSN to output high Z.
40
ns
1
fSCK
SCK frequency.
2
MHz
1
tR,tF
SCK rise and fall time.
100
ns
1
Symbol
Description
Note
Min.
tDC
Data to SCK setup.
tDH
SCK to data hold.
tCSD
CSN to data valid.
Low power mode.1
Constant latency mode.1
tCD
SCK to data valid.
CLOAD = 10 pF
tCL
SCK low time.
tCH
SCK high time.
tCC
CSN to SCK setup.
tCCH
Low power mode.1
Constant latency mode.1
0.125
Typ.
Max.
1. For more information on how to control the sub power modes, see the nRF51 Series Reference Manual.
2. Increases/decreases with 1.2 ns/pF load.
Table 45 SPIS timing parameters
Page 57
nRF51822 Product Specification v3.3
8.9
Serial Peripheral Interface (SPI) Master specifications
Symbol
Description
Min.
ISPI125K
Run current for SPI master at 125 kbps.
ISPI4M
Run current for SPI master at 4 Mbps.
fSPI
Bit rates for SPI.
Units
Test
level
180
μA
1
200
μA
1
Mbps
N/A
Units
Test
level
Typ.
0.125
Max.
4
Table 46 SPI specifications
tCH
tCL
SCK
tDC
MISO
tDH
b7
b6
b0
tCD
MOSI
b7
b0
Figure 13 SPI timing diagram, one byte transmission, SPI mode 0
Symbol
Description
Note
Min.
tDC
Data to SCK setup.
10
ns
1
tDH
SCK to data hold.
10
ns
1
tCD
SCK to data valid.
ns
1
tCL
SCK low time.
40
ns
1
tCH
SCK high time.
40
ns
1
fSCK
SCK frequency.
0.125
4
MHz
1
tR,tF
SCK rise and fall time.
100
ns
1
CLOAD = 10 pF
Max.
971
1. Increases/decreases with 1.2 ns/pF load.
Table 47 SPI timing parameters
Page 58
Typ.
nRF51822 Product Specification v3.3
8.10
I2C compatible Two Wire Interface (TWI) specifications
Symbol
Description
Note
I2W100K
Run current for TWI at 100 kbps.
I2W400K
Run current for TWI at 400 kbps.
f2W
Bit rates for TWI.
tTWI,START
Time from STARTRX/STARTTX task is
given until start condition.
Min.
Units
Test
level
380
μA
1
400
μA
1
kbps
N/A
μs
1
Typ. Max.
100
Low power mode.1
Constant latency mode.1
400
3
1
4.4
1. For more information on how to control the sub power modes, see the nRF51 Series Reference Manual.
Table 48 TWI specifications
1/fSCL
SCL
tSU_DAT
tHD_SDA
tSU_STO
tHD_DAT
tBUF
SDA
Figure 14 SCL/SDA timing
Standard
Min. Max.
Fast
Units
Min. Max.
Test
level
400
kHz
1
1300
ns
1
300
300
ns
1
Data hold time after negative
edge on SCL.
300
300
ns
1
tSU_STO
Setup time from SCL goes high
to STOP condition.
5200
1300
ns
1
tBUF
Bus free time between STOP and
START conditions.
4700
1300
ns
1
Symbol
Description
fSCL
SCL clock frequency.
tHD_STA
Hold time for START and repeated
START condition.
5200
tSU_DAT
Data setup time before positive
edge on SCL.
tHD_DAT
100
Table 49 TWI timing parameters
Page 59
nRF51822 Product Specification v3.3
8.11
GPIO Tasks and Events (GPIOTE) specifications
Units
Test
level
22
μA
1
Run current with 1 or more GPIOTE active channels
in Output mode.
0.1
μA
1
Run current when all channels are in Idle mode.
PORT event can be generated with a delay of up to
t1V2.
0.1
μA
1
Symbol
Description
Min.
IGPIOTE,IN
Run current with 1 or more GPIOTE active channels
in Input mode.
IGPIOTE,OUT
IGPIOTE,IDLE
Typ.
Max.
Table 50 GPIOTE specifications
Note: Setting up one or more GPIO DETECT signals to generate PORT EVENT, which can be used
either as a wakeup source or to give an interrupt, will not lead to an increase of the current
consumption.
Page 60
nRF51822 Product Specification v3.3
8.12
Analog to Digital Converter (ADC) specifications
Note: HFCLK XOSC is required to get the stated ADC accuracy.
Symbol
Description
Note
DNL10b
Differential non-linearity
(10 bit mode).
INL10b
Integral non-linearity
(10 bit mode).
VOS
Offset error.
eG
Gain error.
VREF_VBG
Internal Band Gap reference
voltage (VBG).
VREF_VBG_ERR
Internal Band Gap reference
voltage error.
-1.5
TCREF_VBG_DRIFT
Internal Band Gap reference
voltage drift.
-200
VREF_EXT
External reference voltage
(AREF0/1).
0.83
VREF_VDD_LIM
Limited supply voltage range for
ADC using VDD with prescaler as
the reference.
CONFIG.REFSEL =
SupplyOneHalfPrescaling
CONFIG.REFSEL =
SupplyOneThirdPrescaling
1
Min.
Units
Test
level
