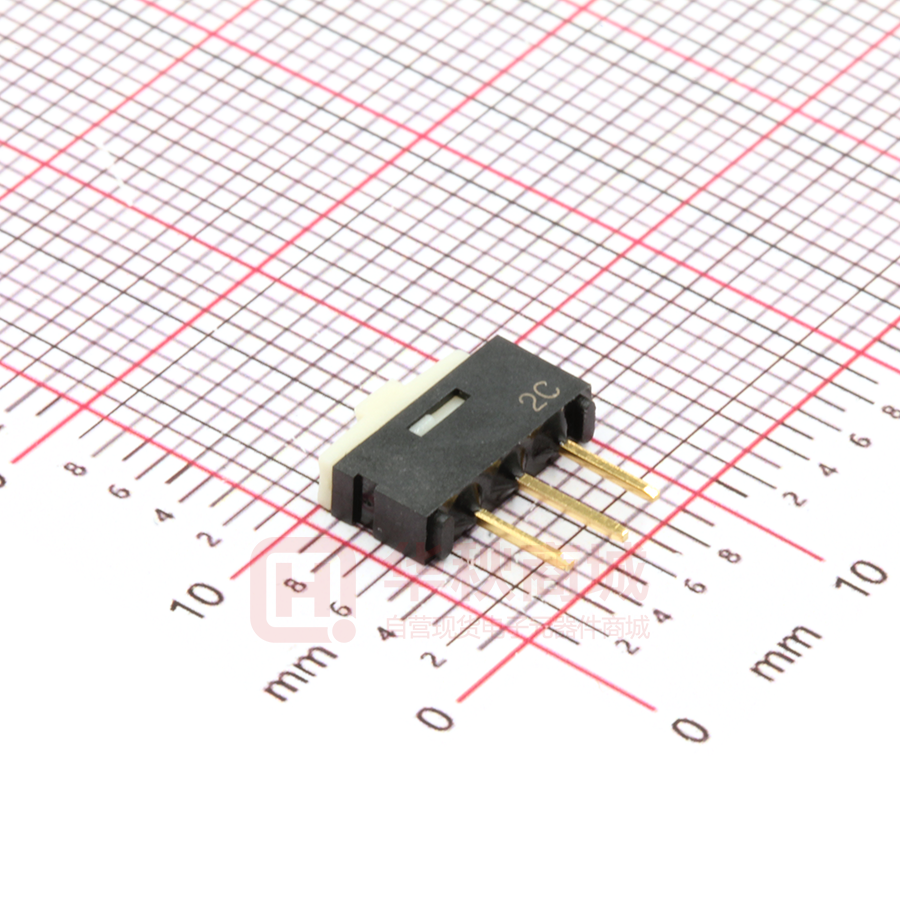

CL-SA-12C-02

CL-SA SLIDE SWITCHES RoHS compliant INTERNAL STRUCTURE ② ⑤ ⑥ ③ ① ④ Part name Material Flammability ① Housing Polyamido UL94V-0 ■ FEATURES ② Slider Polyamido UL94V-0 ● Correspond to rating current 500mA ● Possible to continue mounting with 2.54mm pitch ● RoHS compliant ③ Slider contact Copper alloy, Gold-plated — ④ Terminal pin Copper alloy, Gold-plated — ⑤ Click spring Stainless steel(SUS304) — ⑥ Click ball Stainless steel(SUS304) — ■ PART NUMBER DESIGNATION CL - SA - 1 2 C - 0 2 Series name Form of packaging Blank：Bulk in plastic bag No. of bits 1：1 pole Contact material 2：Gold No. of positions 2：2 positions Knob length・Color Shape of terminal C：PC terminal C4：PC terminal-R/A(Right angle) ※ Please refer to the LIST OF PART NUMBERS when placing orders. 0：Short・White 2：Short・Red CL-SA SLIDE SWITCHES ■ LIST OF PART NUMBERS No. of poles No. of contacts Contact material Knob length・ Shape of terminal Color Part number From of packaging Pieces in package Plastic bag 50pcs./pack CL-SA-12C-02 Short・White PC terminal 1 2 Short・Red CL-SA-12C-22 Short・White CL-SA-12C4-02 Gold PC terminal-R/A CL-SA-12C4-22 Short・Red ■ STANDARD SPECIFICATIONS Operating temp. range − 40 ~ 85 °C Storage temp. range Sealing Non- Washable ■ ELECTRICAL CHARACTERISTICS Contact rating Non-switching Switching Minimum 　　　　 Initial contact resistance Insulation resistance ■ MECHANICAL CHARACTERISTICS 22 m Ω maximum 10,000 M Ω minimum (DC100 V) AC500 V 60 s 1.6 mm Stroke Operation force Dielectric strength DC50 V 500mA DC12 V 500mA DC20 mV 1 μ A 2.5 ± 1.5 N {0.26 ± 0.15kgf} Rated load 2,000 cycles No load 10,000 cycles Load life ■ PACKAGING SPECIFICATION Plastic bag Flow：260 °C ± 3 5 ~ 6 s 2 times max. ※Except a right angle(CL-SA-12C4-＊2) Soldering heat Manual soldering： 380 ± 10 °C 3 ~ 4 s 50pcs./ pack CL-SA SLIDE SWITCHES ■ OUTLINE DIMESIONS Unless otherwise specified, tolerance: ± 0.3 (Unit: mm) ● CL-SA-12C-02 ● CL-SA-12C-22 ● CL-SA-12C4-02 ● CL-SA-12C4-22 ■ SIZE OF P.C.B. PROCESSING ● CL-SA-12C-02 ● CL-SA-12C-22 ■ PACKAGING SPECIFICATIONS ● The smallest unit of bulk pack in plastic bag is 10 pcs. per pack. Orders will be accepted for unit of minimum 10 pcs., i.e., 10, 20, 30 pcs., etc. ● Boxing of bulk in a plastic bag is performed with 50 pcs. (standard 100 pcs.) per box. (Unit : mm) ● CL-SA-12C4-02 ● CL-SA-12C4-22
