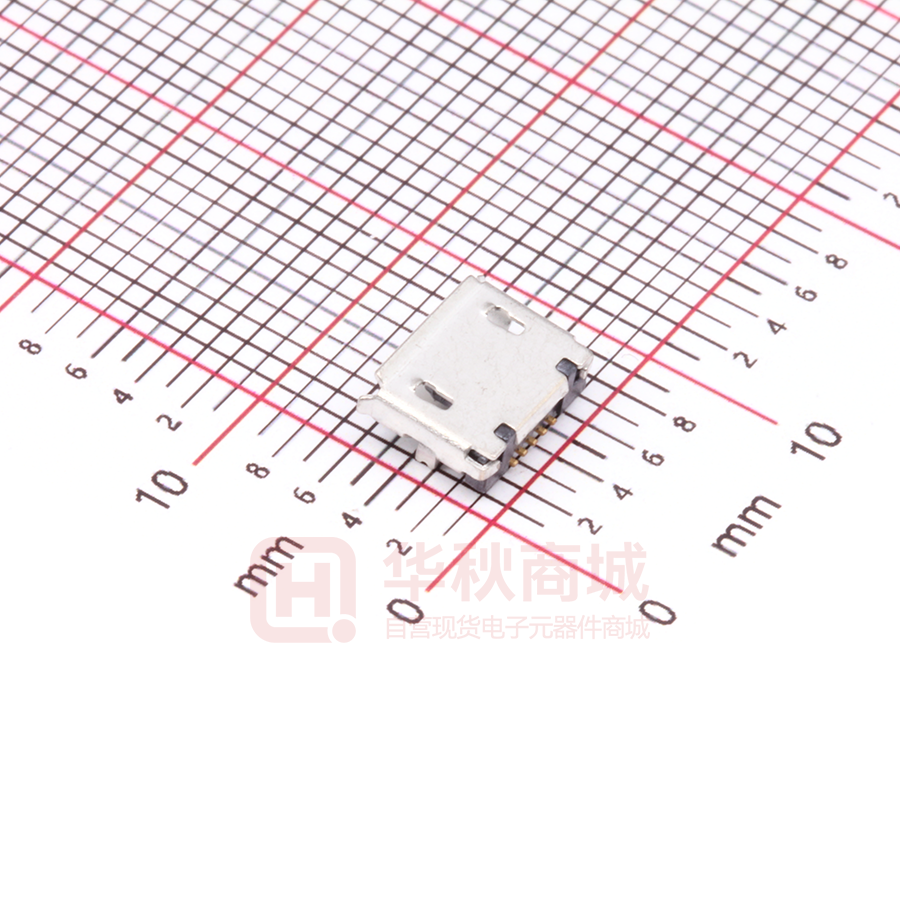

MC-103C-J59

碩方精密连接器 C ONNECTORS www.Sofng.com Operation:前 DIP 后 SMT 板上/导边&卧式 (5PIN)MICRO-USB 连接器 LTEM NO.:MC-103C-J59 RoHS Compliant (Series) (L5.65× (L5.65×W7.40× W7.40×H2.4 MICRO-USB CONNECTORS) 表面贴装 SMT 侧向操作 Material declaration Technical parameter ╲ LEVEL A[better product] Contact Rating 0.5A, 24V DC Electrical Initial Contact Resistance 50mΩ max. Properties Insulation Resistance Withstand Voltage 100MΩ min.500V DC Description ①A 基座 LCP (Gray)耐高温塑胶 UL94V-0 ②B 外壳 黄铜 C2680/SPCC[镀镍 50u〞min] ③C 动态端子 磷铜 C5191(镀金 1u〞/焊区雾锡) 可靠 STABILIZE 適合環保 RoHS Skey/PD：100MΩ min.300V DC 500V AC for 1 minute 350 V AC for 1 minut There No Load 6,000 Cycles 5,000 Cycles Rated Load 5,000 Cycles 4,000 Cycles CIRCUIT DIAGRAM Durable Performance Sterage temp. NAME B[average product] ╲ PROJECT 精密部品 NICETY No. -35℃～+75℃(Operating Temp: ) Operating Force IF:35N MAX.(EF:10.0N MIN.) Heat Rrsistance IR Reflow:255℃,5sec. Manual:350℃,3sec. 1 V BUS +5V 2 -DATA 0 Neagative Data Channel 0 3 +DATA 0 Positive Data Channel 0 4 ID OTG 5 GND Ground Unit:mm DECIMALS P.C.B LAYOUT ANGLES .X :±0.20 X.° .XX :±0.10 X.X° :±1.0° :±1.5° .XXX :±0.05 .XXX° :±0.5°
