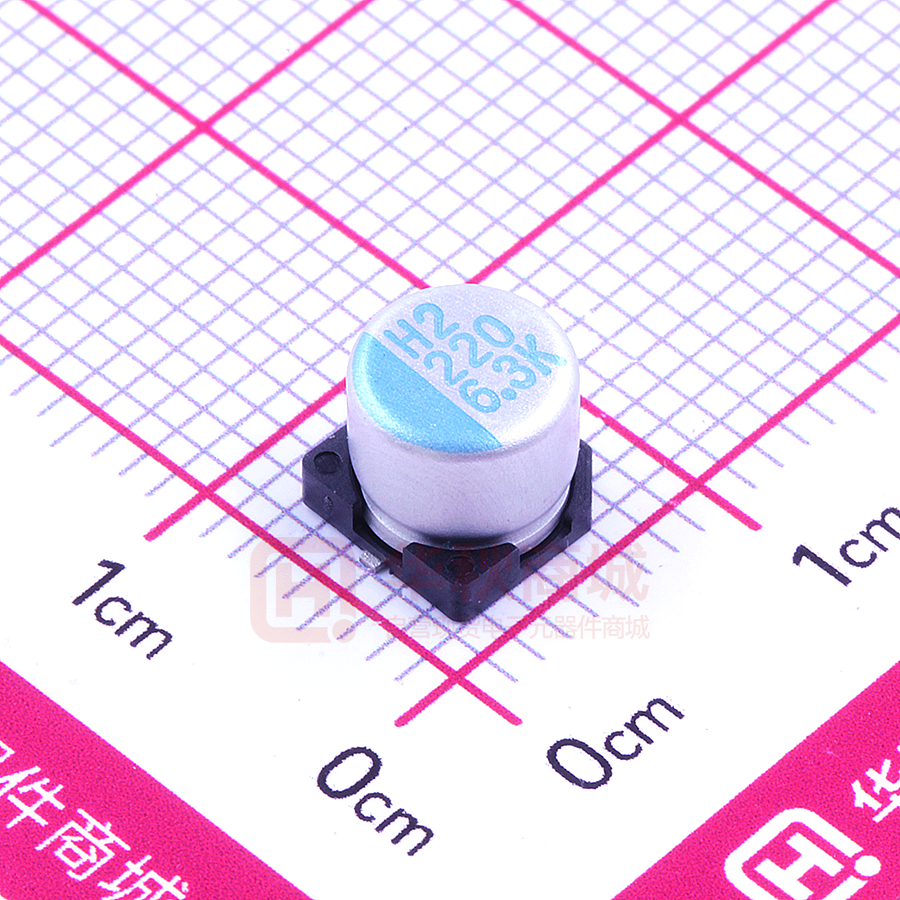

OVK221M0JTR-0606

Organic Conductive Polymer Capacitors OVK Features ‧ 105℃, 5,000 hours assured ‧ Ultra low ESR, solid capacitors of SMD type ‧ RoHS Compliance Marking color: Blue SPECIFICATIONS Items Category Temperature Range Capacitance Tolerance Performance -55℃ ~ +105℃ ±20% (at 120Hz, 20℃) Rated voltage applied, after 2 minutes at 20℃. See Standard Ratings Leakage Current (at 20℃ )* Dissipation Factor (Tanδ at 120Hz, 20℃ ) ESR (at 100k ~ 300k Hz, 20℃ ) See Standard Ratings See Standard Ratings Test Time 5,000 Hrs Within ±20% of initial value Capacitance Change Dissipation Factor Less than 150% of specified value ESR Less than 150% of specified value Leakage Current Within specified value * The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied for 5,000 hours at 105℃. Endurance Test Time 1,000 Hrs Within ±20% of initial value Capacitance Change Dissipation Factor Less than 150% of specified value ESR Less than 150% of specified value Leakage Current Within specified value * The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃, 90 to 95% RH for 1,000 hours. Leakage current should be tested after voltage treatment*. Moisture Resistance Within ±10% of initial value Less than 130% of specified value Less than 130% of specified value Within specified value Capacitance Change Dissipation Factor ESR Leakage Current Resistance to Soldering Heat * (Please refer to page 23 for reflow soldering conditions) Ripple Current & Frequency Multipliers Frequency (Hz) Multiplier 120 ≦ f < 1k 0.05 1k ≦ f < 10k 0.3 10k ≦ f < 100k 0.7 100k≦ f < 500k 1.0 * For any doubt about measured values, measure the leakage current again after the following voltage treatment. Voltage treatment: Applying DC rated voltage to the capacitors for 2 hours at 105 oC. DIAGRAM OF DIMENSIONS B±0.2 φD±0.5 LEAD SPACING AND DIAMETER W L 0.3 Max A±0.2 0.4 max φD 6.3 8 10 L 5.9+0.1/-0.3 6.7 ± 0.3 7.7 ± 0.3 A 6.6 8.4 10.4 B 6.6 8.4 10.4 Unit: mm C 7.4 9.2 11.2 P ± 0.2 W 0.5 ~ 0.8 2.0 0.7 ~ 1.1 3.1 0.7 ~ 1.1 4.7 P C±0.2 MARKING φD = 6.3 Negative polarity φD = 8 ~ 10 a1 10 16K Date code Rated cap. Rated voltage & Series code Negative polarity a1 OVK 470 6.3V Date code Series name Rated cap. Rated voltage 2011 Verison Organic Conductive Polymer Capacitors Dimension: φD× L(mm) Ripple Current: mA/rms at 100k Hz, 105℃ STANDARD RATINGS W. V. (V) 4V (0G) 6.3V (0J) 10V (1A) Capacitance (µF) Size φD×L(mm) 150 270 330 LC (µA) ESR (mΩ/at 100k ~ 300k Hz, 20℃ Max) Rated R. C. (mA/rms at 100k Hz, 105℃ ) 6.3×5.9 Tanδ (120Hz, 20℃ ) 0.12 120 22 2,570 8×6.7 0.12 216 22 3,220 6.3×5.9 0.12 264 20 2,800 8×6.7 0.12 264 22 3,220 560 8×6.7 0.12 448 18 3,600 680 10×7.7 0.12 544 20 4,130 100 6.3×5.9 0.12 126 22 2,800 120 6.3×5.9 0.12 151 22 2,800 6.3×5.9 0.12 277 20 2,800 8×6.7 0.12 277 22 3,220 220 390 8×6.7 0.12 491 22 3,220 470 10×7.7 0.12 592 20 4,130 56 6.3×5.9 0.12 112 27 2,300 68 6.3×5.9 0.12 136 27 2,300 120 6.3×5.9 0.12 240 27 2,300 8×6.7 0.12 300 30 2,760 10×7.7 0.12 300 30 3,020 8×6.7 0.12 540 22 3,200 330 10×7.7 0.12 660 24 3,770 39 6.3×5.9 0.12 125 30 2,200 68 6.3×5.9 0.12 218 30 2,200 82 8×6.7 0.12 262 28 2,800 100 10×7.7 0.12 320 35 2,670 120 8×6.7 0.12 384 28 2,800 150 270 16V (1C) OVK 180 10×7.7 0.12 576 29 3,430 Note: The surface temperature of aluminum case top must not exceed 105℃. A rise in temperature due to self-heating by ripple current should be factored in. 2011 Version
