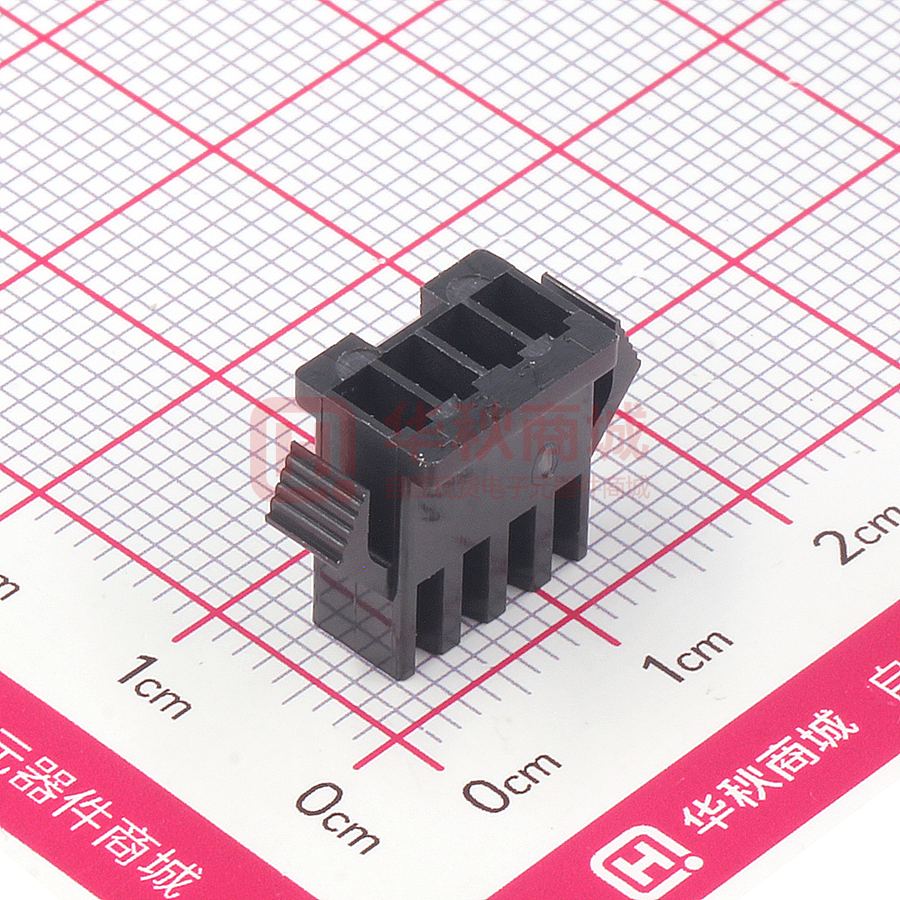

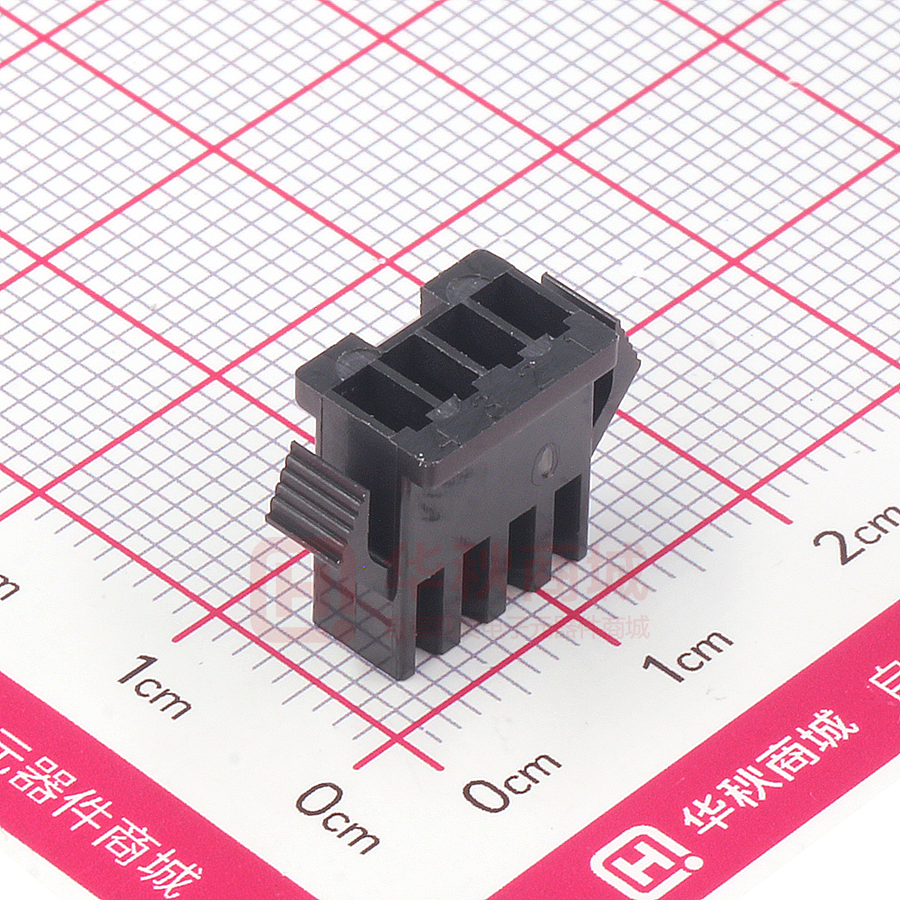

SMP-04V-BC

SM CONNECTOR 2.5mm pitch/Disconnectable Crimp style wire-to-wire connectors Specifications ––––––––––––––––––– • Current rating: 3A AC, DC max. • Voltage rating: 250V AC, DC max. • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max. • Insulation resistance: 500M Ω min. • Withstanding voltage: 1,500V AC/minute • Applicable wire: AWG #28 to #22 0.08 to 0.33mm2 • Applicable panel thickness: 0.5 to 2.0mm The SM series are 2.5mm pitch, wire-to-wire connectors that perform reliably in high-density, small current applications. • • • • High contact pressure Highly reliable housing construction Mountable on a variety of panels Arm lock mechanism * Compliant with RoHS. * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. Standards –––––––––––––––––––––– 0 Recognized E60389 1 Certified LR20812 2 R50120150 2∼12 circuits：8.7   18 circuits：14.5 （22.9） 4＋ 0.15 0 4.15＋ 0.15 0 5.15＋ 0.15 0 1.6 (2 to 12 circuits) Panel thickness (mm) 0.5∼0.9 1.0∼1.5 1.5∼2.0 Circuits Plug housing Model No. Panel hole dimensions (mm) General tolerance ＋0.15 0 2 B 3 4 7 ＋0.15 0 1.4 (18 circuits) ＋0.15 0 B ±0.1 5.7 9.6 5.7 9.8 5.7 10.0 8.2 12.1 8.2 12.3 8.2 12.5 10.7 14.6 10.7 14.8 10.7 15.0 13.2 17.1 13.2 17.3 13.2 17.5 15.7 19.6 15.7 19.8 15.7 20.0 18.2 22.1 18.2 22.3 18.2 22.5 20.7 24.6 20.7 24.8 20.7 25.0 23.2 27.1 23.2 27.3 23.2 27.5 25.7 29.6 25.7 29.8 25.7 30.0 28.2 32.1 28.2 32.3 28.2 32.5 30.7 34.6 30.7 34.8 30.7 35.0 23.2 27.2 23.2 27.4 23.2 27.6 A A 5 6 10.15 ＋ 0.15 0 7.15 ＋00.15 7 8 9 10 11 A 12 B 18 SMP-02V-B(N)C SMP-03V-B(N)C SMP-04V-B(N)C SMP-05V-B(N)C SMP-06V-B(N)C SMP-07V-B(N)C SMP-08V-B(N)C SMP-09V-B(N)C SMP-10V-B(N)C SMP-11V-B(N)C SMP-12V-B(N)C SMP-18V-B(N)C B ±0.1 ＋0.15 0 A B ±0.1 A Note: 1. Punch holes in the panel according to the sketch and table shown above. Burrs must be removed. 2. The strength of the panel must be considered when punching two or more holes. 3. The connector must be inserted from the same side as the hole is punched. 1 SM CONNECTOR Contact 1.95 1.1 Socket contact 1.1 Pin contact 9 15.8 3.8 2.3 1.7 2 3 0.64 1.7 Applicable wire Model No. Pin contact Socket contact SHF-001T-0.8BS SYM-001T-P0.6 mm2 AWG # Insulation O.D. (mm) 0.08∼0.33 28∼22 1.2∼1.8 Q´ty / reel Pin contact: 8,500 Socket contact: 5,000 Material and Finish Phosphor bronze, tin-plated (reflow treatment) RoHS compliance Note: 1. Contact JST for special products. 2. Contact JST for brass products. Contact Crimping machine Crimp applicator SYM-001T-P0.6 AP-K2N Applicator Crimp applicator with dies Dies MKS-L MK/SYM-001-06 APLMK SYM001-06 *MKS-SC SC/SYM-001-06 APLSC SYM001-06 Crimping machine Crimp applicator Contact SHF-001T-0.8BS AP-K2N Applicator Crimp applicator with dies Dies MKS-L MK/SHF-001-08S APLMK SHF001-08S *MKS-SC SC/SHF-001-08S APLSC SHF001-08S Note: *Strip-crimp applicator Contact position location numbers Contact position numbers are stamped Receptacle housing Plug housing 10 15 JST 14 13 1 1 2 3 4 18 7 5 6 15 18 12 1 2 3 4 5 6 7 8 9 10 11 12 9 5 14 4 4 4 13 JST 3 1 2 3 4 5 6 7 8 9 11 3 12 2 10 11 12 13 14 15 16 17 18 12 1 10 1 2 1 2 3 4 5 6 7 8 9 10 11 12 Plug housing JST Receptacle housing 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 SM CONNECTOR Housing Material: PA 6, UL94V-0 Current rating Receptacle housing(for pin contact) SMR-02V-B, black SMR-02V-N, white (natural) 5.5 3A Q´ty / bag 8 2 Plug housing(for socket contact) SMP-02V-BC, black SMP-02V-NC, white (natural) Q´ty / bag 5.5 Circuits 1,000 1,000 10.2 7.5 11.7 18.2 SMR-03V-B, black SMR-03V-N, white (natural) SMP-03V-BC, black SMP-03V-NC, white (natural) Q´ty / bag 8 8 3A 10.5 3 Q´ty / bag 7.4 1,000 1,000 10.2 18.2 11.7 SMR-04V-B, black SMR-04V-N, white (natural) 10.5 3A 13 4 Q´ty / bag 500 7.4 SMP-04V-BC, black SMP-04V-NC, white (natural) Q´ty / bag 10.5 7.5 1,000 10.2 7.5 18.2 11.7 SMR-05V-B, black SMR-05V-N, white (natural) SMP-05V-BC, black SMP-05V-NC, white (natural) Q´ty / bag 13 13 3A 15.5 5 Q´ty / bag 7.4 1,000 500 10.2 18.2 11.7 SMR-06V-B, black SMR-06V-N, white (natural) 15.5 3A 18 6 Q´ty / bag 500 7.4 SMP-06V-BC, black SMP-06V-NC, white (natural) Q´ty / bag 15.5 7.5 500 10.2 7.5 18.2 11.7 7.4 RoHS compliance 3 SM CONNECTOR Housing Material: PA 6, UL94V-0 Current rating Receptacle housing(for pin contact) SMR-07V-B, black SMR-07V-N, white (natural) 18 3A Q´ty / bag 20.5 7 Plug housing(for socket contact) SMP-07V-BC, black SMP-07V-NC, white (natural) Q´ty / bag 18 Circuits 500 500 10.2 11.7 18.2 SMR-08V-B, black SMR-08V-N, white (natural) 20.5 3A 23 8 Q´ty / bag 500 7.4 SMP-08V-BC, black SMP-08V-NC, white (natural) Q´ty / bag 20.5 7.5 500 10.2 11.7 18.2 SMR-09V-B, black SMR-09V-N, white (natural) 23 3A 25.5 9 Q´ty / bag 500 7.4 SMP-09V-BC, black SMP-09V-NC, white (natural) Q´ty / bag 23 7.5 500 10.2 7.5 18.2 11.7 SMR-10V-B, black SMR-10V-N, white (natural) SMP-10V-BC, black SMP-10V-NC, white (natural) Q´ty / bag 25.5 25.5 3A 28 10 Q´ty / bag 7.4 500 200 10.2 7.5 11.7 18.2 SMR-11V-B, black SMR-11V-N, white (natural) SMP-11V-BC, black SMP-11V-NC, white (natural) Q´ty / bag 28 28 3A 30.5 11 Q´ty / bag 7.4 500 200 10.2 7.5 RoHS compliance 4 18.2 11.7 7.4 SM CONNECTOR Housing Material: PA 6, UL94V-0 Current rating Receptacle housing(for pin contact) SMR-12V-B, black SMR-12V-N, white (natural) SMP-12V-BC, black SMP-12V-NC, white (natural) 30.5 3A Q´ty / bag 33 12 Plug housing(for socket contact) Q´ty / bag 30.5 Circuits 500 500 10.2 7.5 11.7 18.2 SMR-18V-B, black SMR-18V-N, white (natural) SMP-18V-BC, black SMP-18V-NC, white (natural) Q´ty / bag 23 23 2A 25.5 18 Q´ty / bag 7.4 200 200 10 12.5 18.7 11.7 12.4 RoHS compliance Note: 1. SM connectors with any number of circuits can be used either panel mounted or free hanging. 2. Contact JST for special products. 5
