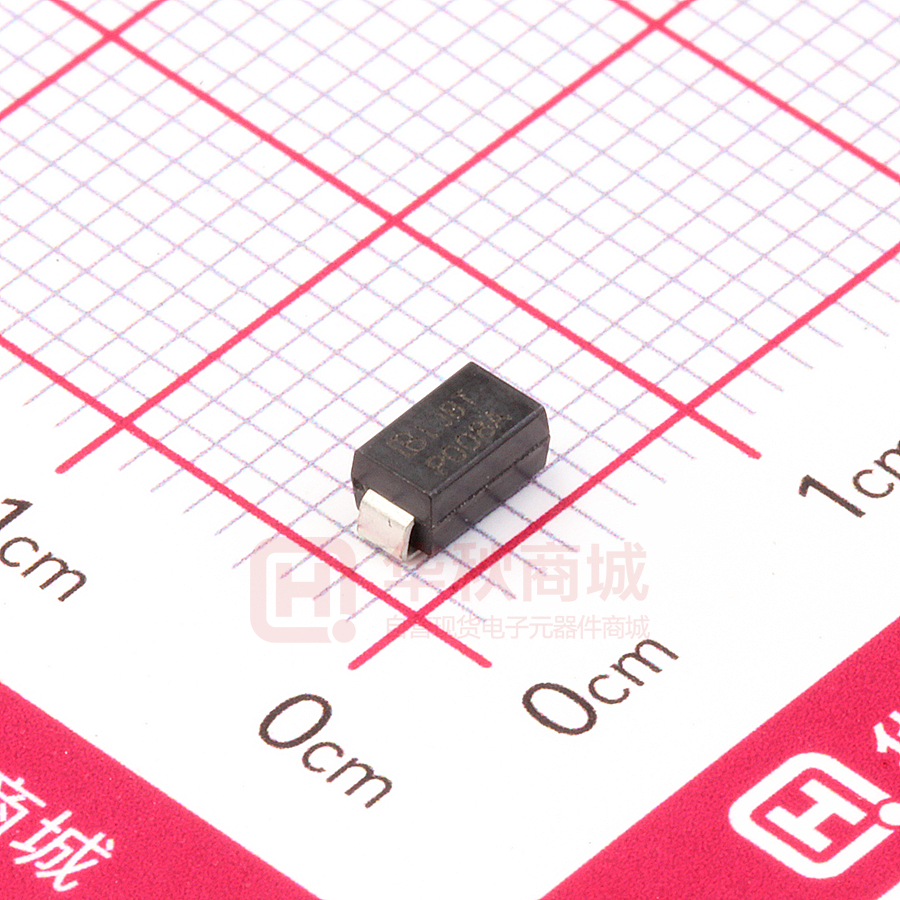

P0080TA

PXXXXTA SERIES Thyristor Surge Suppressors (TSS) Data Sheet Description DO-214AC Thyristor solid state protection thyristor protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. P Series devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA-968 (formerly known as FCC Part 68). Features Compared to surge suppression using other technologies, P Series devices offer absolute surge protection regardless of the surge current available and the rate of applied voltage (dv/dt). P Series devices: ■ Cannot be damaged by voltage ■ Eliminate hysteresis and heat dissipation typically found with clamping devices ■ Eliminate voltage overshoot caused by fast-rising transients ■ Are non-degenerative ■ Will not fatigue ■ Have low capacitance, making them ideal for high-speed transmission equipment ■ Meets MSL level 1, per J-STD-020 ■ Safety certification: UL: E244458 Electrical Parameters Parameter Definition VDRM Peak Off-state Voltage – maximum voltage that can be applied while maintaining off state VS Switching Voltage – maximum voltage prior to switching to on state VT On-state Voltage – maximum voltage measured at rated on-state current IDRM Leakage Current – maximum peak off-state current measured at VDRM IS Switching Current – maximum current required to switch to on state IT On-state Current – maximum rated continuous on-state current IH Holding Current – minimum current required to maintain on state CO Off-state Capacitance – typical capacitance measured in off state IPP Peak Pulse Current – maximum rated peak impulse current ITSM Peak One-cycle Surge Current – maximum rated one-cycle AC current di/dt Rate of Rise of Current – maximum rated value of the acceptable rate of rise in current over time Revision：23-Jun-15 www.brightking.com PXXXXTA SERIES Electrical Characteristics Part Number VDRM (V) VS (V) VT (V) IDRM (μA) IS (mA) IT (A) IH (mA) CO (pF) Marking P0080TA 6 25 4 5 800 2.2 50 50 P008A P0300TA 25 40 4 5 800 2.2 50 70 P03A P0640TA 58 77 4 5 800 2.2 150 50 P06A P0720TA 65 88 4 5 800 2.2 150 50 P07A P0900TA 75 98 4 5 800 2.2 150 45 P09A P1100TA 90 130 4 5 800 2.2 150 45 P11A P1300TA 120 160 4 5 800 2.2 150 45 P13A P1500TA 140 180 4 5 800 2.2 150 40 P15A P1800TA 170 220 4 5 800 2.2 150 40 P18A P2300TA 190 260 4 5 800 2.2 150 35 P23A P2600TA 220 300 4 5 800 2.2 150 35 P26A P3100TA 275 350 4 5 800 2.2 150 30 P31A P3500TA 320 400 4 5 800 2.2 150 30 P35A Notes: ·All measurements are made at an ambient temperature of 25℃. IPP applies to -40℃ through +85℃ temperature range. ·Off-state capacitance(CO) is measured at 1 MHz with a 2V bias and is typical value. ·For surge ratings, see table below. Surge Ratings Series IPP 2×10μs (A) IPP 8×20μs (A) IPP 10×160μs (A) IPP 10×560μs (A) IPP 10×1000μs (A) ITSM 60Hz (A) di/dt (A/μs) A 150 150 90 50 45 20 500 Thermal Considerations Package DO-214AC/SMA Revision：23-Jun-15 Symbol Parameter Value Unit TJ Operating Junction Temperature -40 to +150 ℃ TS Storage Temperature Range -40 to +150 ℃ RθJA Junction to Ambient on printed circuit 120 ℃/W www.brightking.com PXXXXTA SERIES Part Number Code and Marking Characteristics Curves Figure 1. V-I Characteristics Figure 2. tr × td Pulse Wave-form Figure 3. Normalized Vs Change versus Junction Temperature Figure 4. Normalized DC Holding Current versus Case Temperature Revision：23-Jun-15 www.brightking.com PXXXXTA SERIES Recommended Soldering Conditions Reflow Soldering Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) ( tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision：23-Jun-15 20-40 seconds 6℃/second max. 8 minutes max. www.brightking.com PXXXXTA SERIES Dimensions (SMA/DO-214AC) Symbol Millimeters Inches Min. Max. Min. Max. L 3.99 4.50 0.157 0.177 D 2.54 2.79 0.100 0.110 D1 1.25 1.65 0.049 0.065 T 4.93 5.28 0.194 0.208 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.00 2.50 0.079 0.098 Packaging Tape Reel Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.50±0.10 D1 Φ1.50±0.10 E 1.75±0.10 F 5.50±0.10 A0 2.79±0.10 B0 5.33±0.10 K0 2.55±0.10 T 0.25±0.05 D2 Φ330.0±2.0 D3 Φ13.5±0.5 H 2.5±0.5 W1 16.0±1.0 Quantity: 5000PCS Revision：23-Jun-15 www.brightking.com
