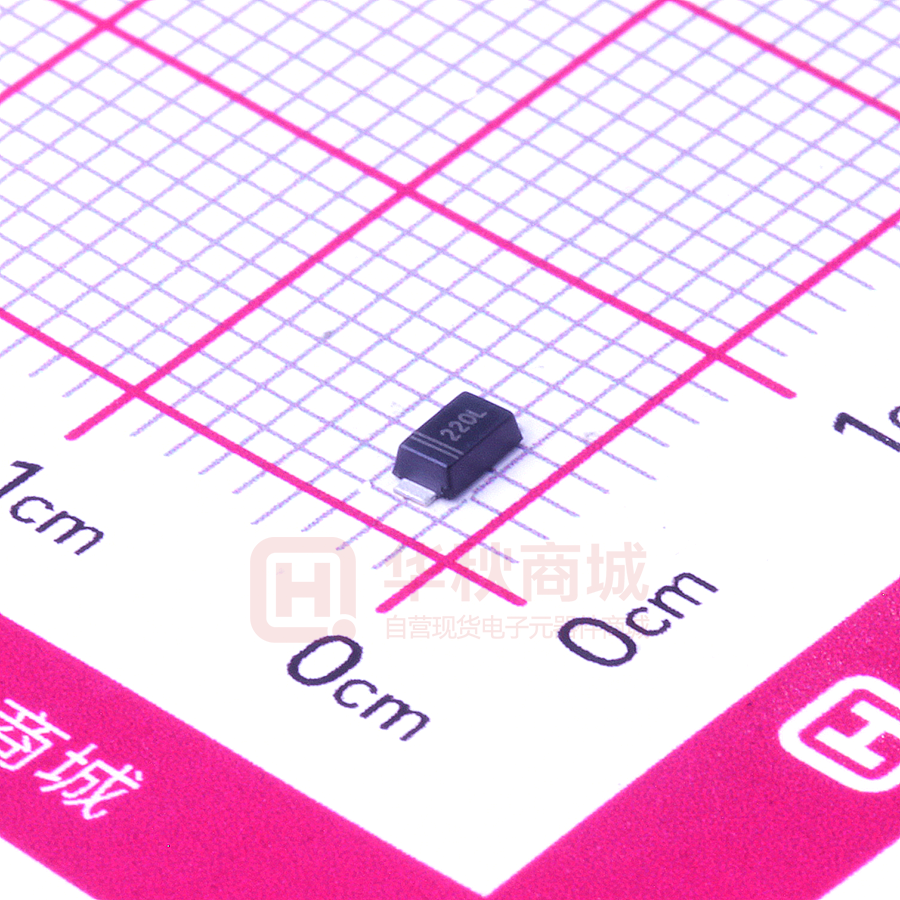

PSBD1DF40V2L
Schottky Barrier diode
Feature
Ultra Small mold type. (SOD-123FL)
Low VF
High reliability.
Construction
SOD-123FL (Top View)
Silicon epitaxial planar
Pin 2
Pin 1
Mechanical Characteristics
Lead finish:100% matte Sn(Tin)
Mounting position: Any
Qualified max reflow temperature:260℃
Device meets MSL 1 requirements
Pure tin plating: 7 ~ 17 um
Circuit Diagram
220L
Marking (Top View)
Electrical characteristics per line@25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Conditions
Forward voltage
VF
-
0.31
0.35
V
IF=1A
Forward voltage
VF
-
0.35
0.38
V
IF=2A
Reverse current
IR
-
90
500
µA
VR=40V
Absolute maximum rating@25℃
Parameter
Reverse voltage (DC)
Symbol
limits
Unit
VRM
40
V
Io
2
A
IFSM
50
A
Tj
-55 to 125
℃
Tstg
-40 to +125
℃
Average rectified forward current
Peak Forward Surge Current 8.3ms Single Half
Sine Wave Superimposed on Rated Load
Operating Junction temperature Range
Storage temperature
Rev.06.1
1
www.prisemi.com
Schottky Barrier diode
PSBD1DF40V2L
Typical Characteristics
10000
IR –Reverse Current (µA)
IF –Forward Current (mA)
10000
1000
25℃
100
10
1
0.1
0.0
0.1
0.2
0.3
0.4
0.5
1000
25℃
100
10
1
0.1
0.01
0
0.6
VF – Forward Voltage (V)
10
20
30
40
50
60
VR – Reverse Voltage (V)
Fig 1.Forward Voltage
Fig 2.Leakage Current
CT –Total Capacitance (pF)
1000
800
600
400
200
0
0
5
10
15
20
25
30
35
40
VR – Reverse Voltage (V)
Fig 3.Total Capacitance
Rev.06.1
2
www.prisemi.com
Schottky Barrier diode
PSBD1DF40V2L
Solder Reflow Recommendation
Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec
280
240
200
160
120
80
40
0
0
30
60
90
120
150
180
210
240
270
300
330
360
390
420
450
480
Time (sec)
Rev.06.1
3
www.prisemi.com
Schottky Barrier diode
PSBD1DF40V2L
Product dimension (SOD-123FL)
Unit:mm
Ordering information
Device
Package
Reel
Shipping
PSBD1DF40V2L
SOD-123FL (Pb-Free)
7"
3000 / Tape & Reel
Rev.06.1
4
www.prisemi.com
Schottky Barrier diode
PSBD1DF40V2L
IMPORTANT NOTICE
and
are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi
reserves the right to make changes without further notice to any products herein. Prisemi makes
no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does Prisemi
assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without limitation
special, consequential or incidental damages. “Typical” parameters which may be provided in
Prisemi data sheets and/or specifications can and do vary in different applications and actual
performance may vary over time. All operating parameters, including “Typicals” must be
validated for each customer application by customer’s technical experts. Prisemi does not
convey any license under its patent rights nor the rights of others. The products listed in this
document are designed to be used with ordinary electronic equipment or devices, Should you
intend to use these products with equipment or devices which require an extremely high level of
reliability and the malfunction of with would directly endanger human life (such as medical
instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), please be sure to consult with our sales representative in advance.
Website: http://www.prisemi.com
For additional information, please contact your local Sales Representative.
©Copyright 2009, Prisemi Electronics
is a registered trademark of Prisemi Electronics.
All rights are reserved.
Rev.06.1
5
www.prisemi.com
