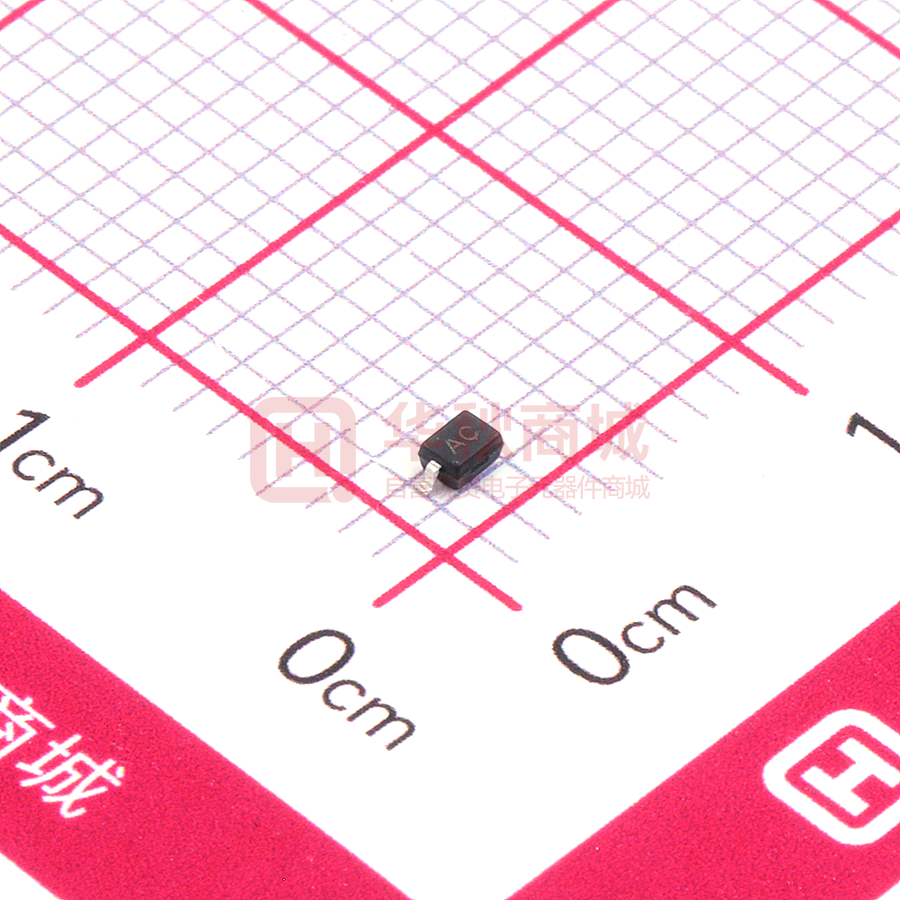

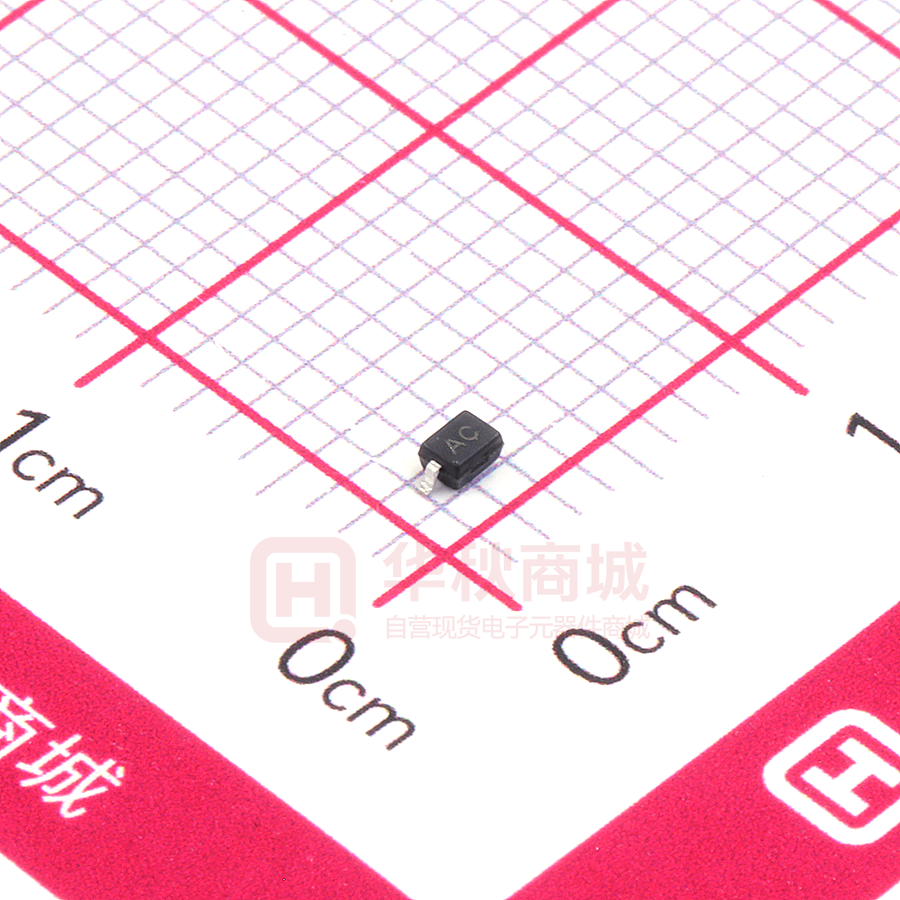

GBLC05C

GBLCxxC Series Bi-directional Ultra Low Capacitance TVS Array SOD-323 Plastic-Encapsulate ESD Protection Diodes DESCRIPTION The GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 300 Watts for an 8/20μs wave shape. The GBLCxxC and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package. Features Pin Configuration  Peak Power Dissipation 300W (8/20μs)  IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  IEC61000-4-5 (Lightning) 12A (8/20μs)  Protects one I/O line (bidirectional)  Low clamping voltage  Working voltages : 3V, 5V, 8V, 12V, 15V, 24V Circuit Diagram  Response Time is < 1 ns  Meets MSL 1 Requirements Applications        Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Peripherals USB Interface Mechanical Characteristics  Package: SOD-323  Flammability Rating: UL 94V-0  High temperature soldering guaranted: 260℃/10s  Packaging: Tape and Reel Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit VESD ± 15 ±8 kV Peak Pulse Power(tp=8/20us waveform) PPP 300 W Operating Temperature TOPT −55 to +150 °C Storage Temperature TSTG −55 to +150 °C TL 260(10 sec.) °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :1 GBLCxxC Series Bi-directional Ultra Low Capacitance TVS Array Electrical Characteristics (TA=25°C unless otherwise specified) VRWM VB IT VC@1A VC IR CT (V) (V) (mA) (V) (V) (µA) (pF) PART NUMBER DEVICE MARKING GBLC03C CC 3.0 4.0 GBLC05C AC 5.0 GBLC08C BC GBLC12C (max.) (min.) (max.) (max.) (@A) (max.) (typ.) 1 7.0 13.9 8 2 0.8 6.0 1 9.8 18.3 8 1 0.8 8.0 8.5 1 13.4 18.5 8 1 0.8 DC 12.0 13.3 1 19.0 28.6 6 1 0.8 GBLC15C EC 15.0 16.7 1 24.0 31.8 5 1 0.8 GBLC24C HC 24.0 26.7 1 43.0 56.0 3 1 0.8 The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :2 GBLCxxC Series Bi-directional Ultra Low Capacitance TVS Array ELECTRICAL CHARACTERISTICS CURVE The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :3 GBLCxxC Series Bi-directional Ultra Low Capacitance TVS Array Outlitne Drawing SOD-323 Package Outline Dimensions Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-323 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) 178 3000 183×188×80 45,000 386×265×215 180,000 7' http://www.microdiode.com Rev:2024A1 Page :4
