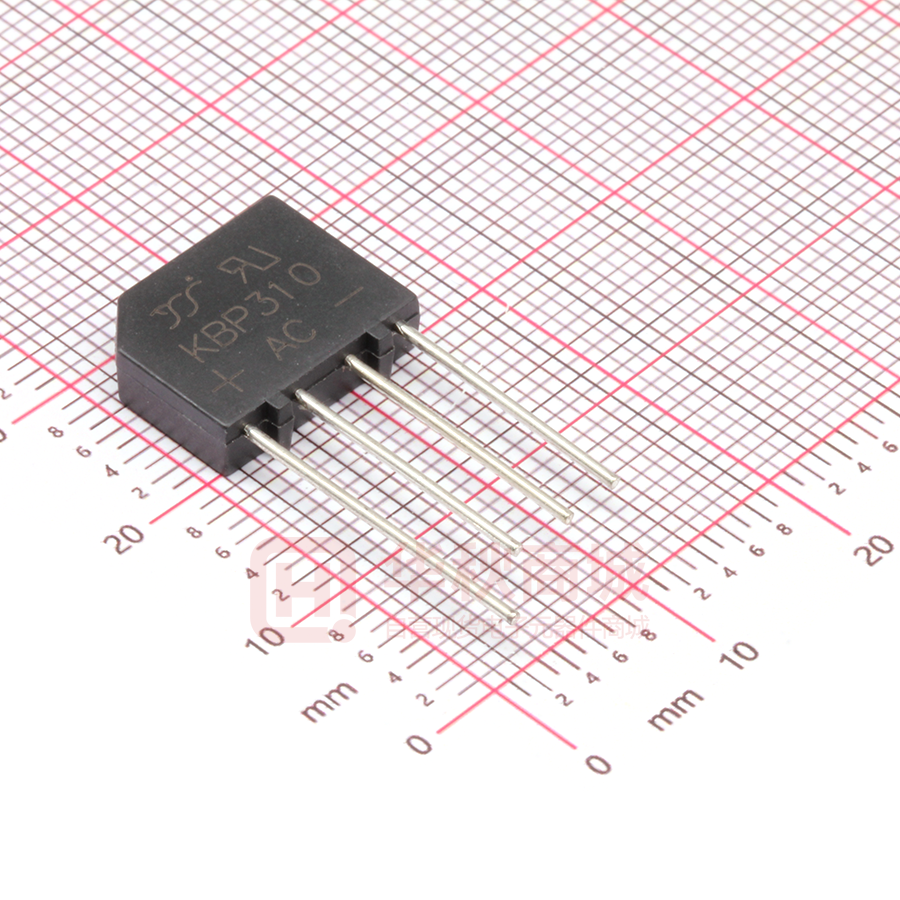

KBP310

K BP306 THRU K BP310 SINGLE PHASE 3.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 600 to 1000 Volts CURRENT FEATURES 3.0 Ampere * Ideal for printed circuit board KBP * Low forward voltage 0.600(15.24) 0.560(14.22) * Low leakage current * Polarity: marked on body 0.460(11.68) 0.420(10.67) 0.460(11.68) 0.420(10.6) * Mounting position: Any + AC - * Weight: 4.8 grams 0.640(16.25) MIN 0.035(0.9)DIA. 0.028(0.7)TPY. 0.05(1.27) 0.50(12.7) MIN 0.160(4.1) 0.140(3.6) 0.153(3.9) 0.146(3.7) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols KBP306 KBP308 KBP310 Units Maximum Recurrent Peak Reverse Voltage VRRM 600 800 1000 Volts Maximum RMS Voltage VRMS 420 560 700 Volts Maximum DC Blocking Voltage VDC 600 800 1000 Volts Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at T A=50℃ I(AV) 3.0 Amp IFSM 70 Amp VF 1.1 Volts Peak Forward Surge Current, 8.3ms single half-sine-wave superimposed on rated load (JEDEC method) Maximum Forward Voltage at 3.0A DC and 25℃ Maximum Reverse Current at TA=25℃ at Rated DC Blocking Voltage T A=100℃ IR 10.0 500 uAmp CJ 25 pF Typical Thermal Resistance (Note 2) RθJA 30 ℃/W Typical Thermal Resistance (Note 2) RθJL 16 ℃/W TJ，Tstg -55 to +150 ℃ Typical Junction Capacitance (Note 1) Operating and Storage Temperature Range NOTES: 1- Measured at 1 MHZ and applied reverse voltage of 4.0 VDC. 2- Thermal Resistance Junction to Ambient and form junction to lead at 0.375"(9.5mm) lead length P.C.B. Mounted. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (KBP306 THRU KBP310) REV 1.0 2017 JAN PAGE:2/2
