PTVSHC2EN4V5B
Transient Voltage Suppressor
Description
The PTVSHC2EN4V5B ESD protector is designed to replace multilayer varistors (MLVs) in
portable applications such as cell phones, notebook computers, and PDA’s. They feature
large cross-sectional area junctions for conducting high transient currents, offer desirable
electrical characteristics for board level protection, such as fast response time, lower
2
1
operating voltage, lower clamping voltage and no device degradation when compared to
MLVs. The PTVSHC2EN4V5B protects sensitive semiconductor components from
damage or upset due to electrostatic discharge (ESD) and other voltage induced transient

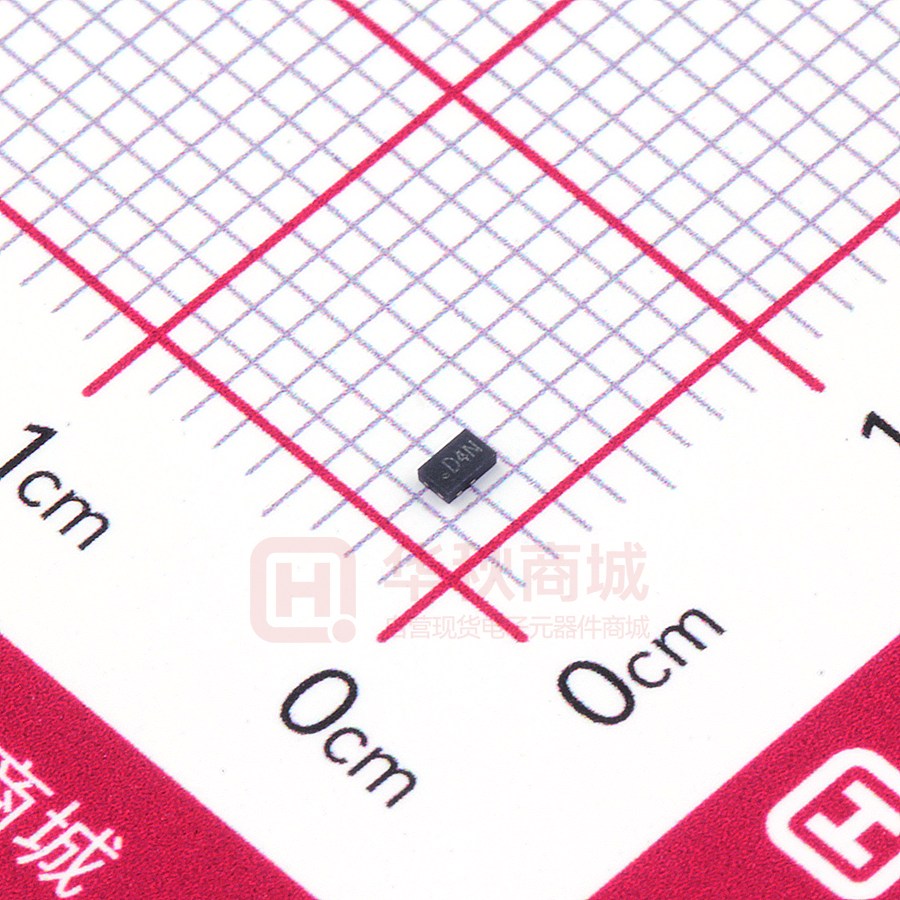

events. The PTVSHC2EN4V5B is available in a DFN1610-2L package with working
voltages of 4.5 volt. It is used to meet the ESD immunity requirements of IEC 61000-4-2,
(±30kV air, ±30kV contact discharge)
Feature
Applications
1200W Peak pulse power per line (tP = 8/20μs)
Cell phone handsets and accessories
DFN1610-2L package
Personal digital assistants (PDA’s)
Response time is typically < 1 ns
Notebooks, desktops, and servers
Protect one I/O or power line
Portable instrumentation
Low clamping Voltage
Cordless phones
RoHS compliant
Digital cameras
Transient protection for data lines to IEC 61000-4-2(ESD)
Peripherals
±30KV(air), ±30KV(contact); IEC 61000-4-4 (EFT) 40A (5/50ns)
MP3 players
Mechanical Characteristics
Lead finish:100% matte Sn(Tin)
Mounting position: Any
Qualified max reflow temperature:260℃
Pure tin plating: 7 ~ 17 um
Pin flatness:≤3mil
Rev.06.4
1
www.prisemi.com
Transient Voltage Suppressor
PTVSHC2EN4V5B
Electronics Parameter
Symbol
Parameter
I
IPP
VRWM
Peak Reverse Working Voltage
IR
Reverse Leakage Current @ VRWM
VBR
Breakdown Voltage @ IT
IT
Test Current
IPP
Maximum Reverse Peak Pulse Current
VC
Clamping Voltage @ IPP
PPP
Peak Pulse Power
CJ
Junction Capacitance
IT
IR
VC VBR VRWM
V
IR
IT
VRWM VBR VC
IPP
Electrical characteristics per line@25℃( unless otherwise specified)
Parameter
Symbol
Conditions
Reverse Zener Voltage
VZ
IZT = 5mA
Reverse Working Voltage(1)
VRWM
Breakdown Voltage(PIN1~PIN2)
VBR
It =1mA
IR
VRWM =4.5V
Reverse Leakage
Current(PIN1~PIN2)
Min.
Typ.
Max.
Units
5.1
4.6
V
4.5
V
6.1
V
2
μA
Clamping Voltage(PIN1~PIN2)
VC
IPP=20A
tP = 8/20μs
6.5
8
V
Clamping Voltage(PIN1~PIN2)
VC
IPP=45A
tP = 8/20μs
7.5
9
V
Clamping Voltage(PIN1~PIN2)
VC
IPP=90A
tP = 8/20μs
9.5
12
V
Clamping Voltage(PIN1~PIN2)
VC
IPP=130A
tP = 8/20μs
10
13
V
Junction Capacitance
Cj
VR=0V
f = 1MHz
300
350
pF
Note 1: VRWM is the maximum reverse working voltage, or reverse stand-off voltage. ESD can protect signal line properly
within its rated voltage. If the signal line's voltage is over VRWM, ESD will change to other state.
Absolute maximum rating@25℃
Rating
Symbol
Value
Units
Peak Pulse Power ( tP = 8/20μS )
Ppp
1200
W
Total Device Dissipation FR-5 Board
PD
500
mW
Lead Soldering Temperature
TL
260 (10 sec)
℃
Operating Temperature
TJ
-55 to +150
℃
TSTG
-55 to +150
℃
Storage Temperature
Rev.06.4
2
www.prisemi.com
Transient Voltage Suppressor
PTVSHC2EN4V5B
Typical Characteristics
tf=8μs
IPP – Peak Pulse Current - % of
IPP
100
100
60
% Of Rated Power
80
tP =20μs(IPP /2)
40
80
60
40
20
20
0
0
5
10
15
20
25
0
30
0
25
50
t - Time -μs
75
100
125
150
TL – Lead Temperature - ℃
Fig 1.Pulse Waveform
Fig 2.Power Derating Curve
375
28
C-Junction capacitance (pF)
VC-Clamping Voltage (V)
Pulse waveform: tp=8/20us
21
14
7
0
0
30
60
90
120
IPP-Peak pulse current (A)
300
225
150
75
0
150
Fig 3. Clamping voltage vs. Peak pulse current
0
1
2
3
VR-Reverse voltage (V)
4
Fig 4. Capacitance vs. Reveres voltage
Peak Pulse Power (W)
10000
1000
100
10
1
10
100
Pulse Duration(us)
1000
Fig 5. Non Repetitive Peak Pulse Power vs. Pulse time
Rev.06.4
3
www.prisemi.com
5
Transient Voltage Suppressor
PTVSHC2EN4V5B
Solder Reflow Recommendation
Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec
280
240
200
160
120
80
40
0
0
30
60
90
120
150
180
240
210
270
300
330
360
390
420
450
480
Time (sec)
PCB Design
For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD
protection. Novices in the area of ESD protection should take following suggestions to heart:
Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.
Do not make false economies and save copper for the ground connection.
Place via holes to ground as close as possible to the anode of the TVS diode.
Use as many via holes as possible for the ground connection.
Keep the length of via holes in mind! The longer the more inductance they will have.
Rev.06.4
4
www.prisemi.com
Transient Voltage Suppressor
PTVSHC2EN4V5B
Product dimension (DFN1610-2L)
D
L
b
E
1
2
h
e
h
Bottom View
A
C
A1
Dim
Millimeters
MIN
MAX
A
0.45
0.60
A1
--
0.05
b
0.75
0.85
c
0.10
0.20
D
1.55
e
1.65
1.10BSC
E
0.95
1.05
L
0.35
0.45
h
0.15
0.25
0.6
0.625
1.0
1.225
1.85
Recommended Soldering Pad
Unit:mm
Ordering information
Device
Package
Shipping
PTVSHC2EN4V5B
DFN1610-2L (Pb-Free)
3000 / Tape & Reel
Rev.06.4
5
www.prisemi.com
Transient Voltage Suppressor
PTVSHC2EN4V5B
Load with information
USER DIRECTION OF FEED
2.00 ± 0.05
4.00 ± 0.10
4.00 ± 0.10
Φ1.50 ± 0.10
1.75 ± 0.10
3.50 ± 0.05
8.00 ± 0.20
Unit:mm
Rev.06.4
6
www.prisemi.com
Transient Voltage Suppressor
PTVSHC2EN4V5B
IMPORTANT NOTICE
and
are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi
reserves the right to make changes without further notice to any products herein. Prisemi makes
no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does Prisemi
assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any and all liability, including without limitation
special, consequential or incidental damages. “Typical” parameters which may be provided in
Prisemi data sheets and/or specifications can and do vary in different applications and actual
performance may vary over time. All operating parameters, including “Typicals” must be
validated for each customer application by customer’s technical experts. Prisemi does not
convey any license under its patent rights nor the rights of others. The products listed in this
document are designed to be used with ordinary electronic equipment or devices, Should you
intend to use these products with equipment or devices which require an extremely high level of
reliability and the malfunction of with would directly endanger human life (such as medical
instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), please be sure to consult with our sales representative in advance.
Website: http://www.prisemi.com
For additional information, please contact your local Sales Representative.
©Copyright 2009, Prisemi Electronics
is a registered trademark of Prisemi Electronics.
All rights are reserved.
Rev.06.4
7
www.prisemi.com
