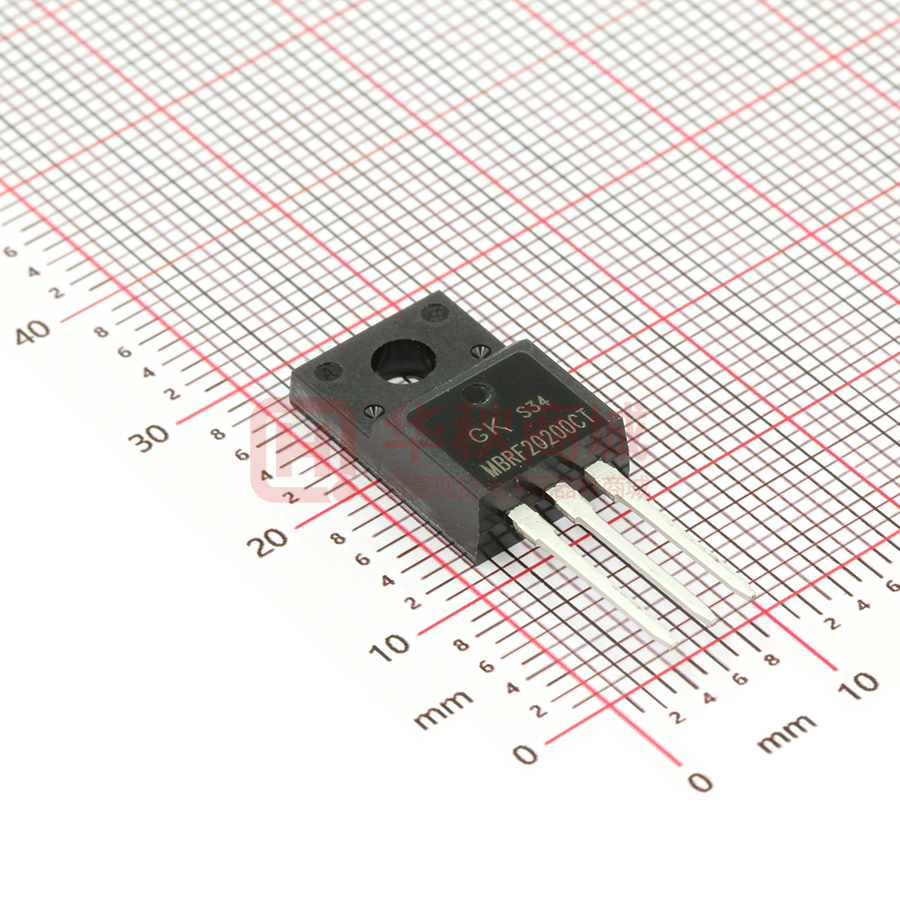

MBRF20200CT

MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere SCHOTTKY BARRIER RECTIFIER Features ITO-220AB  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Construction utilizes void-free molded plastic technique  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 250°C,0.25”(6.35mm) from case for 10 seconds PIN1 PIN2 Mechanical Data Case : JEDEC ITO-220AB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.080 ounce, 2.24 grams PIN3 PIN1 PIN2 PIN3 Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 10.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ VRRM V RMS V DC MDD MBRF 2060CT MDD MBRF 20100CT MDD MBRF 20150CT 100 70 150 135 150 60 45 32 42 60 45 100 I(AV) IFSM VF IR Typical thermal resistance (NOTE 2) R θ JC Operating junction temperature range TJ storage temperature range MDD MBRF 2045CT T STG 0.65 0.75 V V V A 150 A 0.85 0.95 0.2 50.0 1.5 50.0 2.0 200 140 200 UNITS 20.0 1.0 15.0 MDD MBRF 20200CT V mA ℃/W -55 to +150 ℃ -55 to +150 ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to case. http://www.microdiode.com Rev:2025A4 Page :1 MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics 20 15 ~2 10 00 V 5 0.0 20 40 60 80 100 120 140 160 180 Instaneous Reverse Current ( mA) 25 45 Average Forward Current (A) Fig.1 Typical Forward Current Derating Curve 100 45~60V 100~200V 10 T J =100°C 1.0 0.1 T J =25°C 0.01 0.001 0 Case Temperature (°C) 1 45V 60V 100V 150V 200V 0 0.2 0.4 0.6 0.8 60 80 100 1.0 Instaneous Forward Voltage (V) Fig.4 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) Instaneous Forward Current (A) T J =25°C 10 0.1 40 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic(per leg) 20 20 1.2 160 140 120 100 80 60 40 20 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles at 60Hz The curve above is for reference only. http://www.microdiode.com Rev:2025A4 Page :2 MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere Outlitne ITO-220AB Package Outline Dimensions C A E B M N D b F L L1 b1 H G UNIT mm G A B b b1 C D E F G H L L1 M N max 10.66 3.5 1.5 1.0 4.9 16.37 2.9 3.55 2.75 0.70 4.0 14.3 7.2 3.5 min 9.6 2.54 1.1 0.5 4.3 14.7 2.34 2.56 2.34 0.30 2.3 12.0 6.2 3.0 Important Notice and Disclaimer Microdiode Electronics (Shenzhen) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Shenzhen) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Shenzhen) assume any liability for application assistance or customer product design. Microdiode Electronics (Shenzhen) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Shenzhen). Microdiode Electronics (Shenzhen) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Shenzhen). http://www.microdiode.com Rev:2025A4 Page :3
