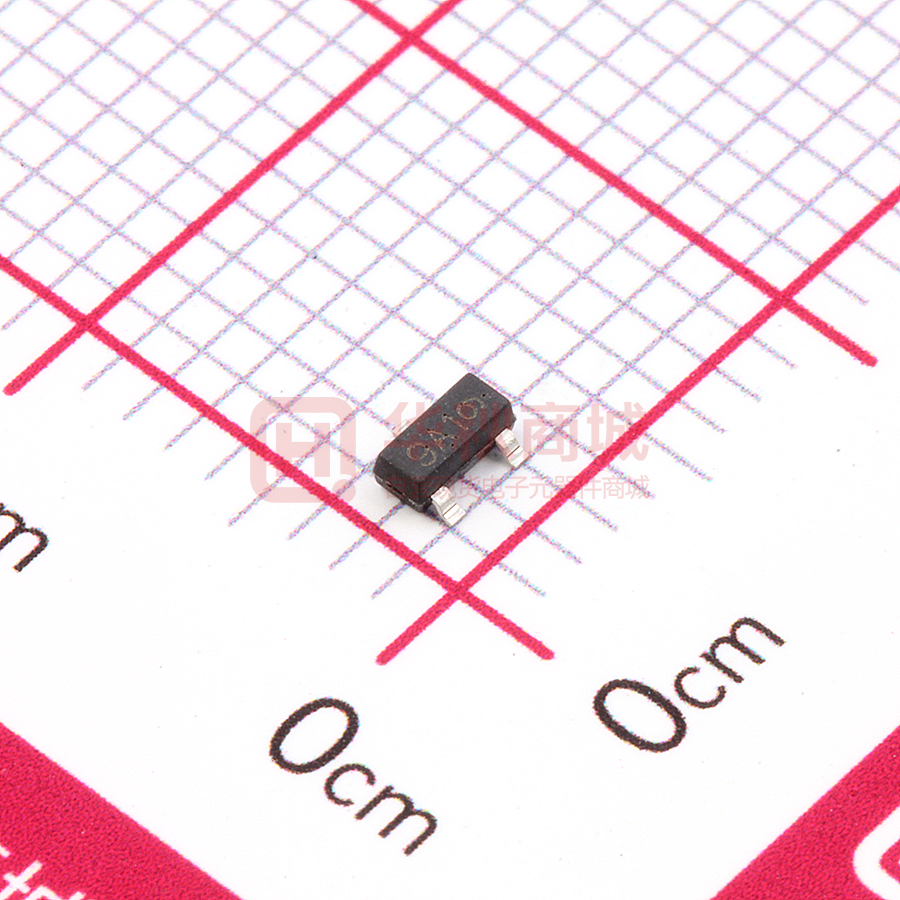

MMBZ9V1ALT1G

www.msksemi.com MMBZXXXALT1G Semiconductor Compiance FEATURES PIN CONFIGURATION  SOT-23 package allows either two separate unidirectional configurations or a single bidirectional configuration.  Working peak reverse voltage 3V to 22V  Standard Zener breakdown voltage 5.6V to 27V  Peak power 24 or 40 Watts @ 1.0ms (unidirectional) per Figure 6 Waveform  ESD Rating: Class 3B (>16kV) per the Human Body Model Class C (>400V) per Machine Model  ESD Rating of IEC61000-4-2 level 4, ±30kV contact Discharge  Low leakage < 5.0μA MACHANICAL DATA  SOT-23 package  Flammability Rating: UL 94V-0  Packaging: Tape and Reel  High temperature soldering guaranted:260℃/10s  Reel size: 7 inch APPLICATIONS SOT-23  Computers  Printers  Business Machines  Communication systems  Medical equipment www.msksemi.com MMBZXXXALT1G Semiconductor Compiance ABSOLUTE MAXIMUM RATING Symbol Parameter Value Units PPK Peak Power Dissipation @1.0ms MMBZ5V6AL thru MMBZ9V1AL MMBZ12VAL thru MMBZ27VAL 24 40 W PD Total Power Dissipation 200 mW TOPT Operating Temperature -55/+150 C TSTG Storage Temperature -55/+150 C ZZK VC 24 WATTS ELECTRICAL CHARACTERISTICS (Tamb=25C) UNIDIRECTIONAL (Circuit tied to Pins 1 and 3 or Pins 2 to 3) P/N VRWM IR (V) (µA) Marking @ VRWM VBR (V) Min Nom Max ZZT (mA) (Ω) @ Max IT @IZT (mA (Ω) ) @ Max IZK (V) Max (A) @ IPP MMBZ5V6ALT1G 5A6+code 3.0 5.0 5.32 5.6 5.88 20 11 1600 0.25 8.0 3.0 MMBZ6V2ALT1G 6A2+code 3.0 0.5 5.89 6.2 6.51 1.0 -- -- -- 8.7 2.76 MMBZ6V8ALT1G 6A8+code 4.5 0.5 6.46 6.8 7.14 1.0 -- -- -- 9.6 2.5 MMBZ9V1ALT1G 9A1+code 6.0 0.3 8.65 9.1 9.56 1.0 -- -- -- 14 1.7 VF=0.9V Max @ IF=10mA 40 WATTS ELECTRICAL CHARACTERISTICS (Tamb=25C) UNIDIRECTIONAL (Circuit tied to Pins 1 and 3 or Pins 2 to 3) P/N VRWM IR (V) (nA) Marking @ VRWM VBR VC (note1) (V) (mA) Min Nom Max @ IT (V) Max (A) @ IPP MMBZ12VALT1G 12A+code 8.5 200 11.40 12 12.60 1 17 2.35 MMBZ15VALT1G 15A+code 12.0 50 14.25 15 15.75 1 21 1.90 MMBZ18VALT1G 18A+code 14.5 50 17.10 18 18.90 1 25 1.60 MMBZ20VALT1G 20A+code 16.0 50 19 20 21 1 38 1.0 MMBZ27VALT1G 27A+code 22.0 50 25.65 27 28.35 1 40 1.0 VF=0.9V Max @ IF=10mA Note 1: Surge Current waveform per Figure 5 www.msksemi.com MMBZXXXALT1G Semiconductor Compiance www.msksemi.com MMBZXXXALT1G Semiconductor Compiance PACKAGE MECHANICAL DATA Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min Max 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP 1.800 2.000 0.550 REF 0.300 0.500 0° 8° Dimensions In Inches Min Max 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP 0.071 0.079 0.022 REF 0.012 0.020 0° 8° REEL SPECIFICATION P/N PKG QTY MMBZXXXALT1G SOT-23 3000 www.msksemi.com MMBZXXXALT1G Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from theauthorities concerned in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
