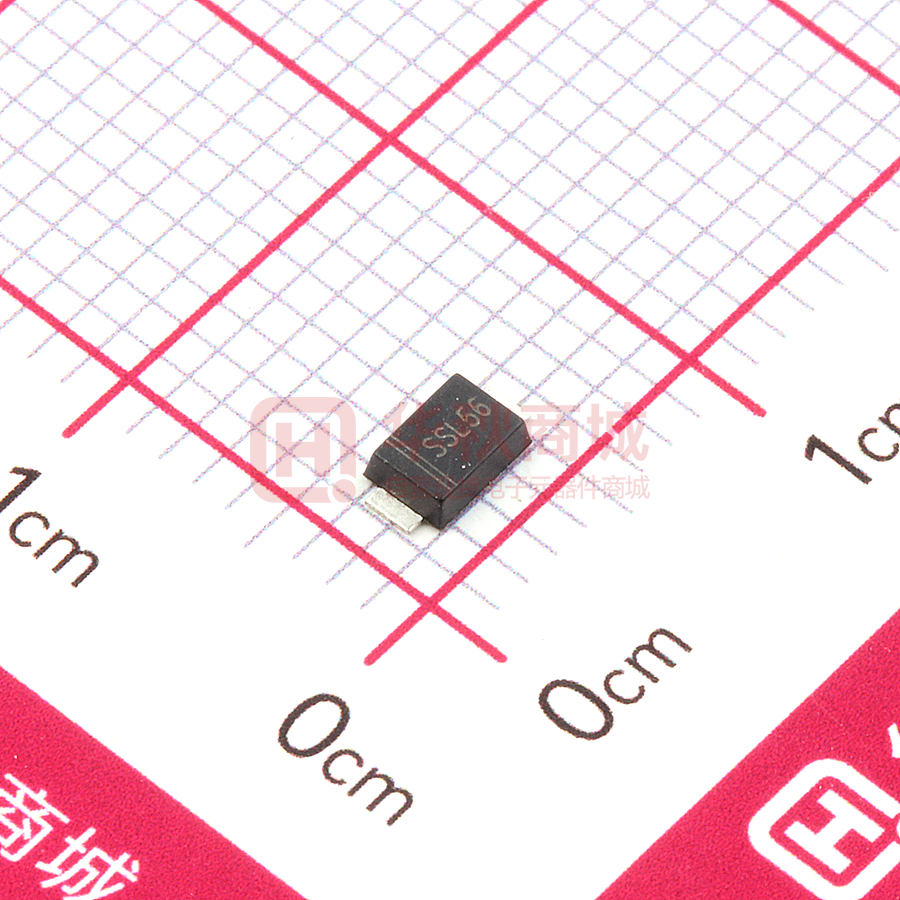

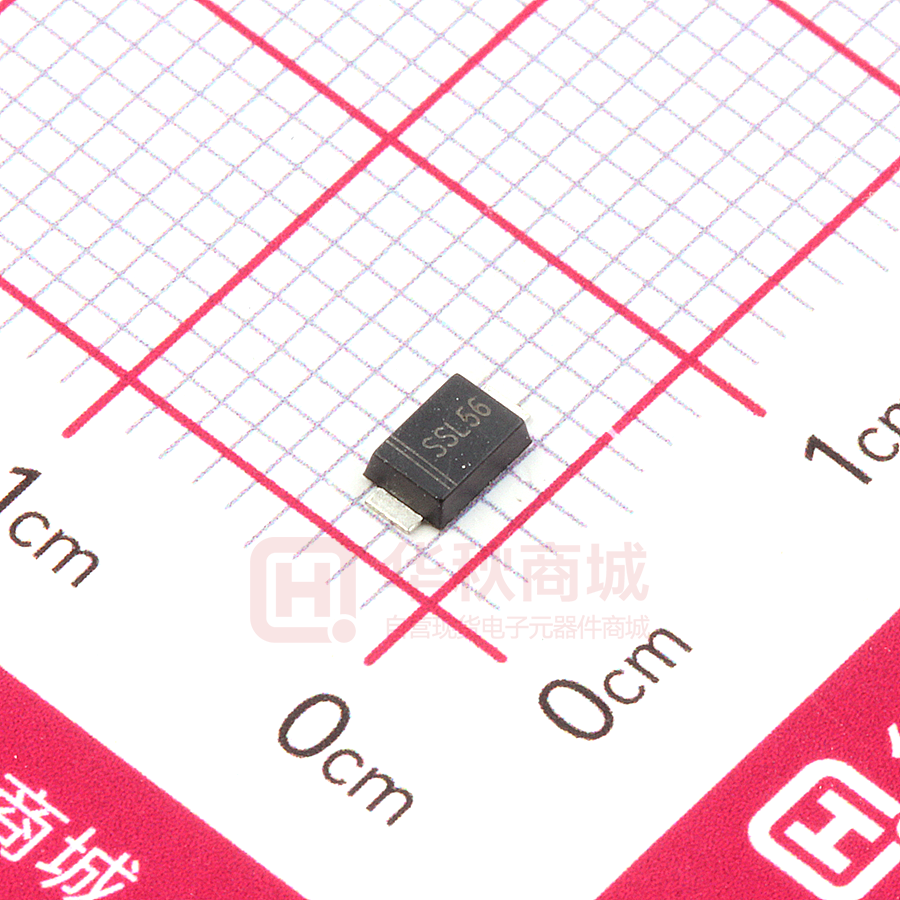

SSL56F

山东晶导微电子股份有限公司 SSL56F Jingdao Microelectronics co.LTD Surface Mount Schottky Barrier Rectifier Reverse Voltage - 60V Forward Current - 5.0A PINNING PIN FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: SSL56 Simplified outline SMAF and symbol MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 27mg / 0.00095oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols SSL56F Units Maximum Repetitive Peak Reverse Voltage V RRM 60 V Maximum RMS voltage V RMS 42 V Maximum DC Blocking Voltage V DC 60 V Maximum Average Forward Rectified Current I F(AV) 5 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 150 A Maximum Instantaneous Forward Voltage at 5A VF 0.5 V IR 1.0 50 mA Cj 500 pF RθJA 45 °C/W Operating Junction Temperature Range Tj -55 ~ +150 °C Storage Temperature Range T stg -55 ~ +150 °C Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =100 °C Typical Junction Capacitance （1） Typical Thermal Resistance （2） （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.08 SMAF-S-SSL56F-5A60V Page 1 of 3 山东晶导微电子股份有限公司 SSL56F Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics Average Forward Current (A) 6 5 4 3 2 1 Single phase half-wave 60 Hz resistive or inductive load 0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve 10 4 10 1 T J =25°C 10 0 0 60 80 1000 T J =25°C Junction Capacitance ( pF) 20 10 1 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 200 100 50 20 10 0.1 1 10 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 150 125 100 75 50 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 500 1.8 175 25 100 Fig.4 Typical Junction Capacitance 10 100 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Peak Forward Surage Current (A) T J =75°C 10 2 Case Temperature (°C) 200 100 10 Number of Cycles at 60Hz 2017.08 T J =100°C 10 3 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 SSL56F Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMAF ∠ALL ROUND C A ∠ALL ROUND HE g Top View mil Bottom View A C D E e g HE max 1.2 0.20 3.7 2.7 1.6 1.2 4.9 min 0.9 0.12 3.3 2.4 1.3 0.8 4.4 max 47 7.9 146 106 63 47 193 min 35 4.7 130 94 51 31 173 UNIT mm g pad e E A pad D E A V M 7° The recommended mounting pad size Marking Type number 2.2 (86) 1.6 (63) SSL56F Marking code SSL56 1.8 (71) 1.6 (63) ∠ mm Unit ： (mil) 2017.08 LA709157B0 Page 3 of 3
