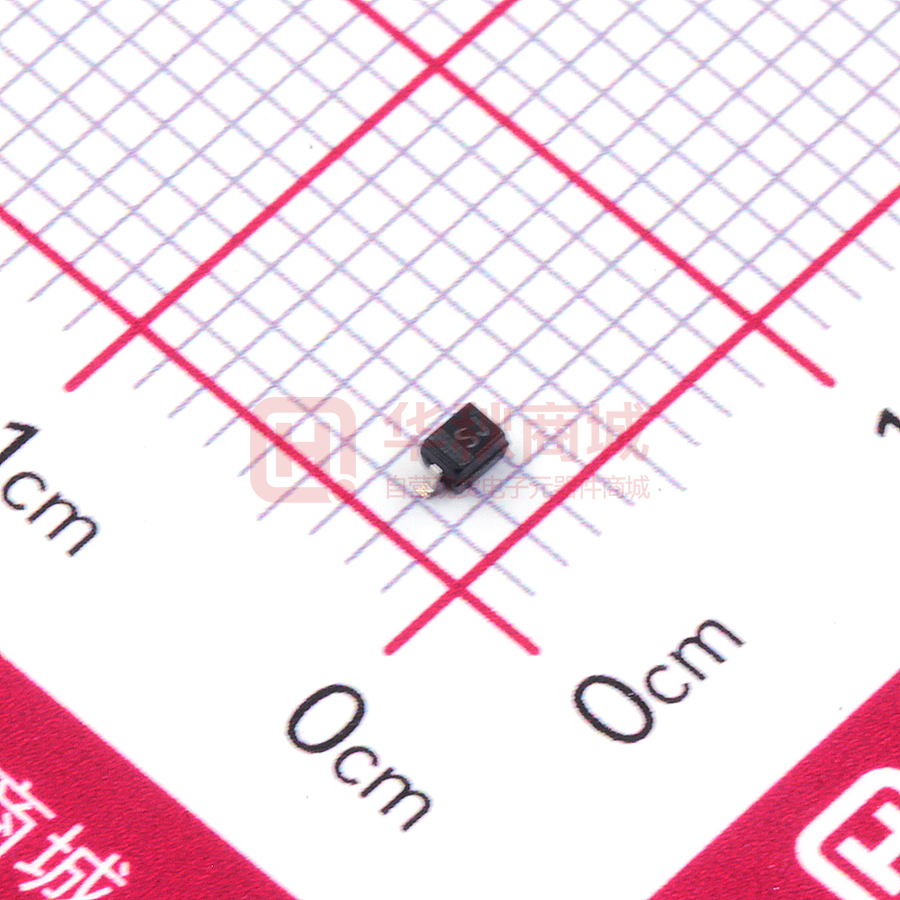

K1N5817HWS-7-F

K1N5817HWS-7-F K1N5818HWS-7-F K1N5819HWS-7-F ◇ ◇ ◇ ◇ ◇ ◇ Low Forward Voltage Schottky Rectifier High Frequency Inverters Rohs Compliant / Green Emc SOD323 Thin Smd Package Matte Tin (Sn) Lead Finish Cathode Band / Device Marking Device Marking Code SJ K1N5817HWS-7-F K1N5818HWS-7-F SK K1N5819HWS-7-F SL Maximum Ratings （Ta = 25 ℃） Symbol K1N5817HWS K1N5818HWS K1N5819HWS Units VRM Non-Repetitive Peak Reverse Voltage 20 30 40 V VRRM Repetitive Peak Reverse Voltage 20 30 40 V RMS Reverse Voltage 14 21 28 V VR(RMS) IO IFSM *1 Parameter Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @8.3mS 1 A 10 A PD Power Dissipation 200 mW TJ Junction Temperature 125 ℃ TSTG Storage Temperature -55 to +125 ℃ 8.3 ms single half sine-wave Electrical Characteristics （Ta = 25 ℃） Symbol Parameter Test Conditions Max 0.45 K1N5818HWS 0.55 K1N5819HWS 0.60 K1N5817HWS 0.75 K1N5818HWS 0.875 K1N5819HWS 0.90 VR=20V K1N5817HWS 1 VR=30V K1N5818HWS 1 VR=40V K1N5819HWS 1 Units V Forward Voltage IF=3A IR Typ K1N5817HWS IF=1A VF Min Reverse Current 1/4 V mA K1N5817HWS-7-F K1N5818HWS-7-F K1N5819HWS-7-F Symbol Test Conditions Parameter VR=4.0V,1.0MHZ CJ Min Typ Max Units 80 K1N5817HWS Typical Junction VR=10V,1.0MHZ 50 Capacitance VR=4.0V,1.0MHZ K1N5818HWS 48 VR=10V,1.0MHZ K1N5819HWS 32 pF Curve Characteristics Forward Current Derating Curve Maximum Non-Repetitive Peak Forward Surge Current Typical Instantaneous Forward Characteristics Typical Instantaneous Forward Characteristics 2/4 K1N5817HWS-7-F K1N5818HWS-7-F K1N5819HWS-7-F Typical Instantaneous Forward Characteristics Typical Reverse Leakage Characteristics Typical Reverse Leakage Characteristics Typical Reverse Leakage Characteristics 3/4 K1N5817HWS-7-F K1N5818HWS-7-F K1N5819HWS-7-F Package Dimensions Package outline : SOD-323 Top View Side View Symbol Dimensions in mm Min. Max. A A1 Front View 1.000 0.000 0.100 A2 0.800 0.900 b 0.250 0.350 c 0.080 0.150 D 1.200 1.400 E 1.600 1.800 E1 2.500 L 2.700 0.475 REF. L1 0.250 0.400 θ 0° 8° Notice: 2.Lead plating: Pb free solder 3.Lead thickness includes solder plating 4.Other Tolerance: ±0.05 5.Unit: mm Soldering Pattern 4/4
