富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Features
Broadband frequency range: 0.5 to 7.125GHz
Description
Ultra low switching time:150ns
The FM3585 is a CMOS silicon-on-insulator (SOI), single-
Low insertion 0.80dB@6.0GHz
pole, double-throw (SPDT) switch. The high linearity and
Input 0.1dB compression point: 33dBm
ruggedness performance and extremely low insertion loss

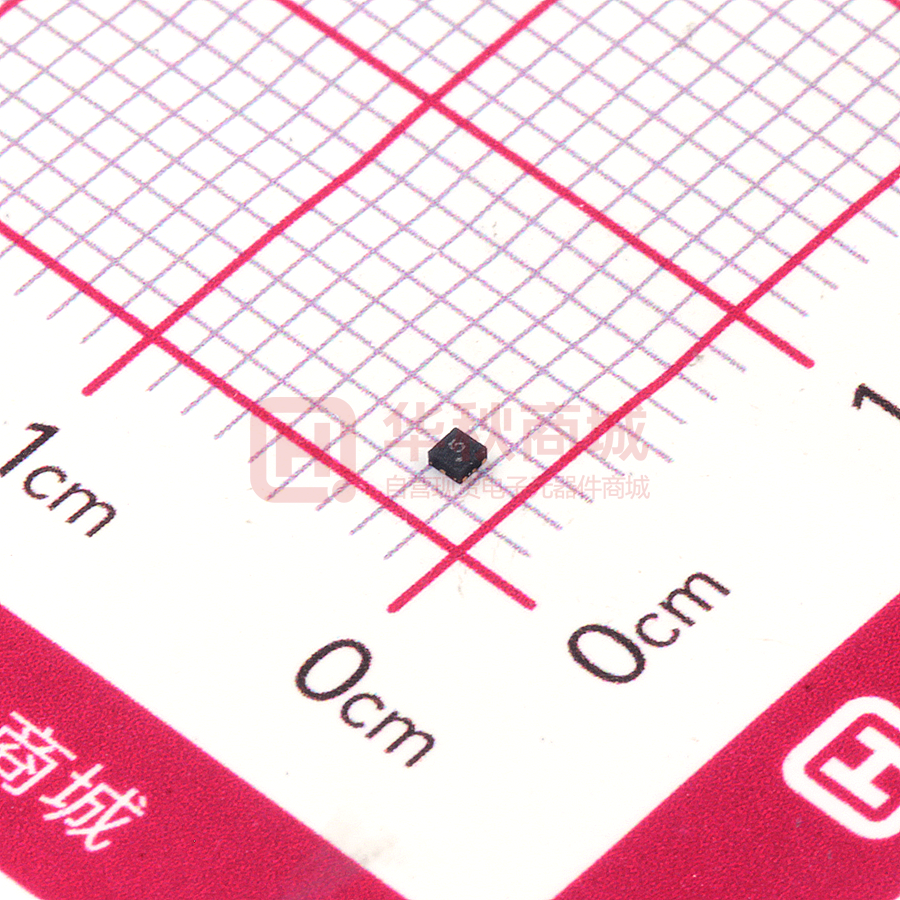

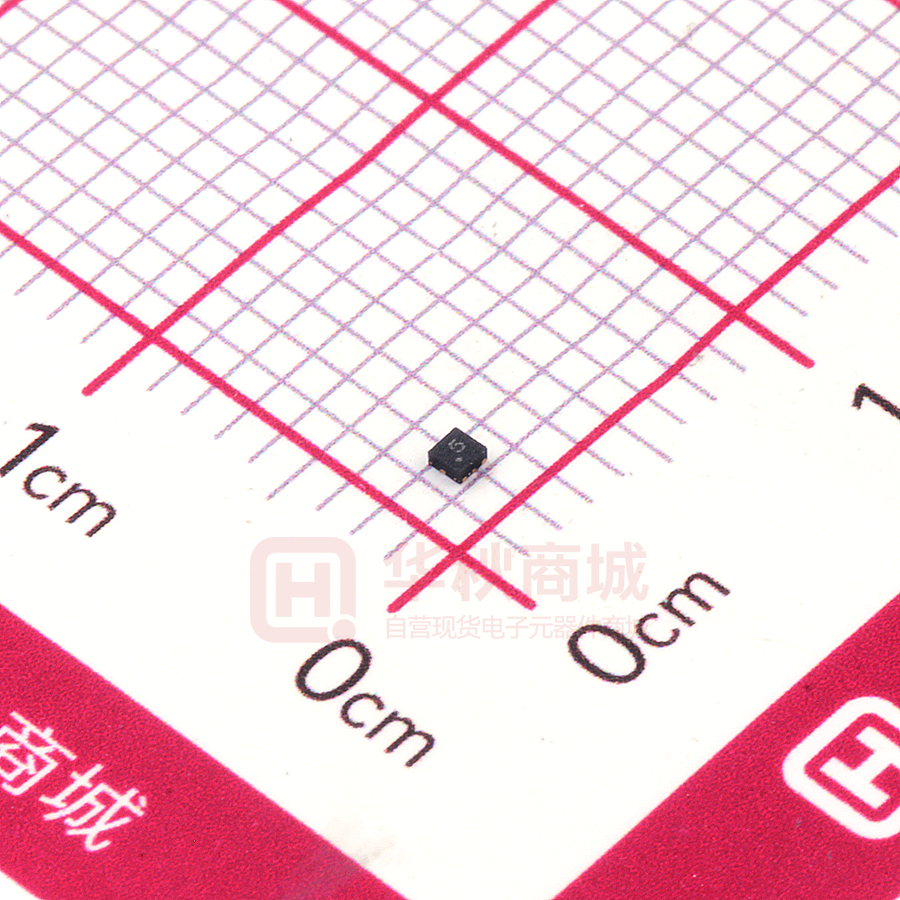

Small, QFN(6-pin, 1.0mm x 1.0mm x 0.45mm)
makes the device an ideal choice for WLAN applications
package, MSL1
such as 802.11 a/b/g/n/ac/ax.
The FM3585 SPDT switch is provided in a compact 1.0mm
Applications
x 1.0mm x 0.45mm 6-lead QFN package. A functional
WLAN 802.11ax/ac/b/g/n networks
block diagram, pin configuration and package are shown in
WLAN repeaters
Figure 1. Signal pin assignments and functional pin
ISM band radios
descriptions are provided in Table 1.
Low power transmitting and receiving systems
Figure 1 Functional Block and Pin Configuration
Version 1.0
Page 1
Copyright©2021, ShenZhen FM Co.ltd
富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Function Characteristics
Figure 2 Application Schematic
Table 1 Pin Descriptions
Pin No.
Name
Description
Pin No.
Name
Description
1
RF1
RF Port1
4
VC
Logic Control Voltage
2
GND
Ground
5
ANT
Antenna Port
3
RF2
RF port 2
6
VDD
Power Supply Voltage
Table 2 VC Truth Table for RF Channel Operation Mode
VC
RF Channel Operating Mode
High
ANT to RF1 On
Low
ANT to RF2 On
Version 1.0
Page 2
Copyright©2021, ShenZhen FM Co.ltd
富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Absolute Maximum Ratings
Table 3 Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Condition
DC Supply voltage
VDD
-0.3
4.2
V
TA=25℃
Logic Control Voltage
VCTL
-0.3
3.6
V
TA=25℃
33
dBm
F0=2.45GHz, CW, VSWR=1:1, TA=25℃
Max RF input Power
(ANT to RF1/RF2)
PINMAX
Device Operating Temperature
TOP
-40
90
℃
Device Storage Temperature
TSTG
-55
150
℃
Electrostatic Discharge
VESD(HBM)
1000
V
Human Body Model
(All Pins)
VESD(CDM)
1000
V
Charged Device Model
Notice3
Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device
with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the
limits listed here may result in permanent damage to the device.
Table 4 Recommended Operating Conditions
Parameter
Symbol
MIN
F0
0.5
DC Supply Voltage
VDD
1.62
1.8~3.3
Control Voltage High
VCH
1.5
1.8
Control Voltage Low
VCL
0
0
Operating Frequency
Version 1.0
Page 3
TYP
MAX
Unit
7.125
GHz
3.6
3.6
0.3
Copyright©2021, ShenZhen FM Co.ltd
V
富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Electrical Characteristics
Table 5 Nominal Operating Parameters
Parameter
Nominal Conditions
Symbol
Specification
MIN
TYP
MAX
Unit
Condition
VDD=3.3V, VCH=1.8V, VCL=0V, PIN=0dBm, ZO=50Ω, TA=25℃ Unless Otherwise Stated
DC Performances
DC Supply Current
Current on VC
IDD
110
IC
160
5
μA
Timing Performances
RF Path Switching Time
TSW
Turn On Time
TON
0.15
0.2
10
us
50% VC to 10%/90% RF power
50% VDD to 90% RF power
RF Performances
Insertion Loss
(ANT to RF1/RF2)
Isolation
(ANT to RF1/RF2)
Input 0.1dB Compression
Point(ANT to RF1/RF2)
Voltage Standing Wave
Ratio(All Pins)
2nd Order Harmonic
(ANT to RF1/RF2)
3rd Order Harmonic
(ANT to RF1/RF2)
Error Vector Magnitude
Version 1.0
IL
ISO
0.35
0.45
F0=0.5 to 0.96GHz
0.45
0.5
F0=1.71 to 2.17GHz
0.50
0.60
F0=2.17 to 2.69GHz
0.65
0.70
F0=3.6 to 3.8GHz
0.70
0.75
F0=4.8 to 5.0GHz
0.75
0.80
F0=5.0 to 6.0GHz
0.80
0.90
55
40
50
F0=1.71 to 2.17GHz
35
40
F0=2.17 to 2.69GHz
30
36
F0=3.6 to 3.8GHz
28
30
F0=4.8 to 5.0GHz
25
28
F0=5.0 to 6.0GHz
20
25
F0=6.0 to 7.2GHz
34
VSWR
1.5:1
3F0
EVM
F0=6.0 to 7.2GHz
50
P0.1dB
2F0
dB
80
88
75
85
72
75
70
73
2.5
dBm F0=0.5 to 6.0GHz, 20% DC
2.0:1
F0=0.5 to 6.0GHz
F0=0.8 to 2.7GHz @24dBm
dBc
Page 4
F0=4.8 to 6.0GHz @24dBm
F0=0.8 to 2.7GHz @24dBm
F0=4.8 to 6.0GHz @24dBm
%
2.5
F0=0.5 to 0.96GHz
802.11a, 54Mbps, Pin≤27dBm
802.11g, 54Mbps,Pin≤27dBm
Copyright©2021, ShenZhen FM Co.ltd
富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Tape and Reel Dimensions
Figure 4
Tape and Reel Dimensions
Reflow Chart
Figure 5 Recommended Lead-Free Reflow Profile
Version 1.0
Page 5
Copyright©2021, ShenZhen FM Co.ltd
富满微电子集团股份有限公司
FINE MADE MICROELECTRONICS GROUP CO., LTD.
FM3585(文件编号:S&CIC2064)
0.5 to 7.125GHz SPDT Switch for WiFi
Table7 Reflow Chart Parameters
Reflow Profile
Parameter
Preheat Temperature(TSMIN to TSMAX)
150℃ to 200℃
Preheat Time(ts)
60 to 180 Seconds
Ramp-Up Rate(TSMAX to TP)
3℃/s MAX
Time Above TL 217℃(tL)
60 to 150 Seconds
Peak Temperature(TP)
260℃
Time within 5℃ of Peak Temperature(tP)
20 to 40 Seconds
Ramp-Down Rate(TSMAX to TP)
6℃/s MAX
Time for 25℃ to Peak Temperature(t25-TP)
8 Minutes MAX
Version 1.0
Page 6
Copyright©2021, ShenZhen FM Co.ltd
