PESDXC2FD5VU

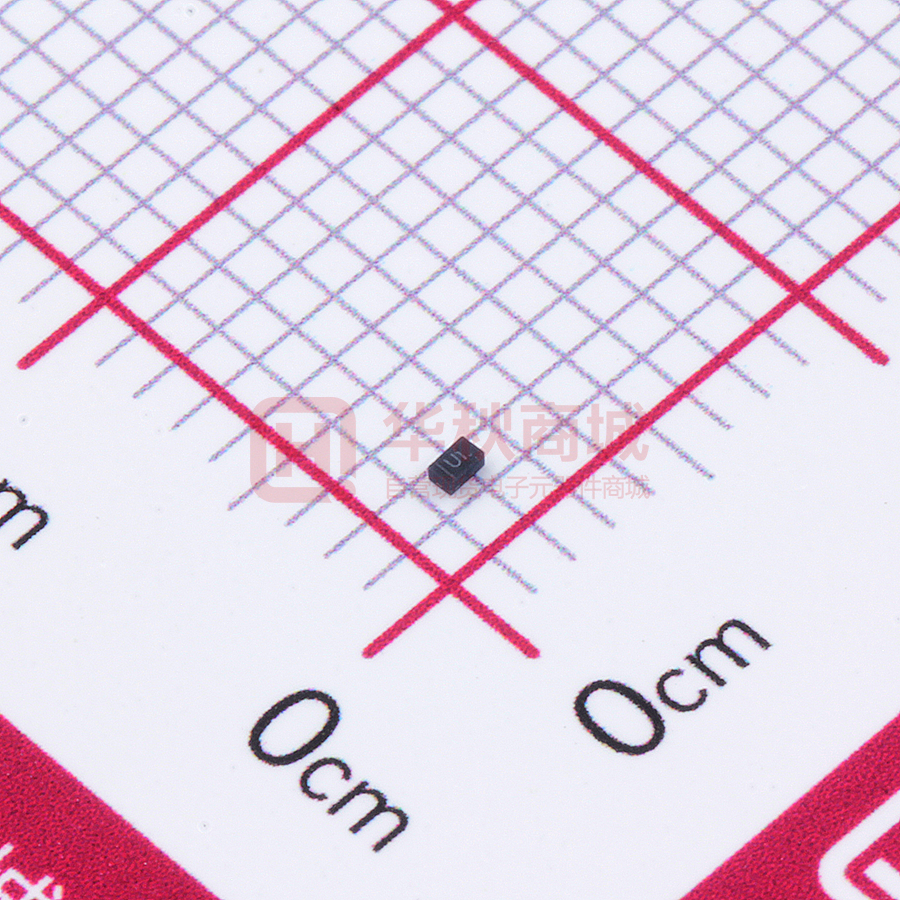

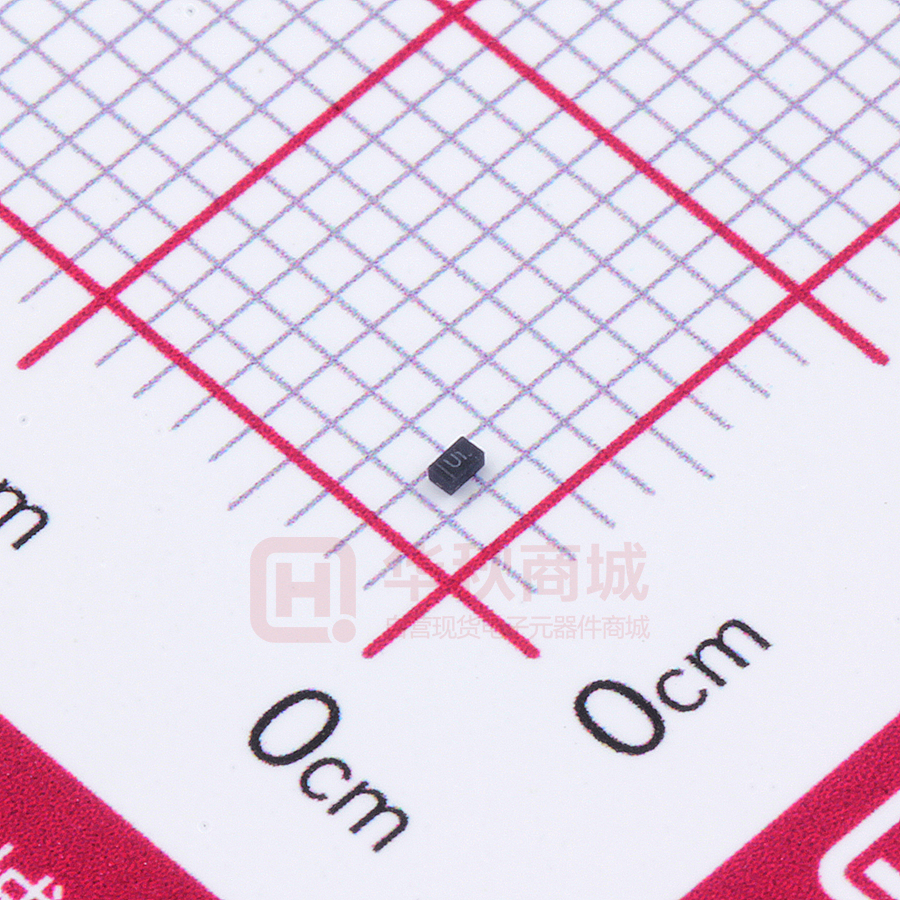

PESDXC2FD5VU Ultra Small ESD Protector Description The PESDXC2FD5VU ESD protector is designed to replace multilayer varistors(MLVs) in portable applications such as cell phones, notebook computers, and PDA’s. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, lower operating voltage, lower clamping voltage and no device degradation when compared to MLVs. The PESDXC2FD5VU protects sensitive semiconductor components from damage 2 1 or upset due to electrostatic discharge (ESD) and other voltage induced transient events. The PESDXC2FD5VU is available in a DFN1006-2L package with working voltages of 5 Top view volt. It gives designer the flexibility to protect one unidirectional line in applications where arrays are not practical. Additionally, it may be “ sprinkled ” around the board in applications where board space is at a premium. Feature Applications  Ultra low capacitance 0.5pF  Cell phone handsets and accessories  DFN1006-2L package  Personal digital assistants (PDA’s)  Replacement for MLV(0402)  Notebooks, desktops, and servers  Unidirectional configurations  Portable instrumentation  Response time is typically < 1 ns  Cordless phones  Protect one I/O or power line  Digital cameras  Low clamping voltage  Peripherals  RoHS compliant  MP3 players  Transient protection for data lines to IEC 61000-4-2(ESD) ±25KV (air), ±20KV (contact); IEC 61000-4-4 (EFT) 40A (5/50ns) Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  Pure tin plating: 7 ~ 17 um  Pin flatness:≤3mil Rev.06.6 1 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU Electronics Parameter Symbol Parameter VRWM Peak Reverse Working Voltage IR I IF Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF V VC VBR VRWM IR VF IT IPP Electrical characteristics per line@25℃( unless otherwise specified) Parameter Symbol Peak Reverse Working Voltage VRWM Breakdown Voltage Conditions Max. Units 5.0 V 8.5 V 1.0 μA 0.8 1.25 V 8.5 9.2 V tP = 8/20μS 14.0 16.0 V f = 1MHz 0.5 0.65 pF VBR It =1mA Reverse Leakage Current IR VRWM =5V Forward Voltage VF IF =10mA Clamping Voltage VC IPP=1A Clamping Voltage VC IPP=6.5A Junction Capacitance Cj VR=0V Min. 5.4 tP = 8/20μS Typ. 7.0 Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 100 W Lead Soldering Temperature TL 260(10 sec) ℃ Operating Temperature TJ -55 to 125 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.6 2 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU tf=8μs 100 100 80 60 80 % Of Rated Power IPP – Peak Pulse Current - % of IPP Typical Characteristics tP =20μs(IPP /2) 40 60 40 20 20 0 0 5 10 15 20 25 0 30 0 25 50 t - Time -μs 1 Pulse waveform: tp=8/20us 9 6 3 1 3 2 150 5 4 0.6 0.4 0.2 0 7 6 f=1MHz 0.8 C-Junction capacitance (pF) VC-Clamping Voltage (V) 12 0 125 Fig 2.Power Derating Curve 15 0 100 TL – Lead Temperature - ℃ Fig 1.Pulse Waveform 18 75 0 1 2 3 4 5 VR-Reverse voltage (V) IPP-Peak pulse current (A) Fig 3. Clamping voltage vs. Peak pulse current Fig 4. Capacitance vs. Reveres voltage 20 1000 18 Peak Pulse Power (W) 16 Current (A) 14 12 RD=0.73Ω 10 8 6 4 100 10 2 1 0 4 8 12 Voltage 16 20 24 26 1 100 1000 Pulse Duration(us) (V) Fig 5. TLP Measurement Rev.06.6 10 Fig 6. Non Repetitive Peak Pulse Power vs. Pulse time 3 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 240 210 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.6 4 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU Product dimension (DFN1006-2L) A Dim B C D R 2 E 1 Millimeters MIN MAX MIN MAX A 0.013 0.020 0.34 0.50 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H 0.015Typ. R F Inches 0.001 0.40Typ. 0.005 0.05 0.15 H 1.10 0.60 Unit:mm 0.40 Suggested PCB Layout Marking information U1 Ordering information Device Package Reel Shipping PESDXC2FD5VU DFN1006-2L (Pb-Free) 7" 10000 / Tape & Reel Rev.06.6 5 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 4.00 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Rev.06.6 6 www.prisemi.com Ultra Small ESD Protector PESDXC2FD5VU IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.6 7 www.prisemi.com
