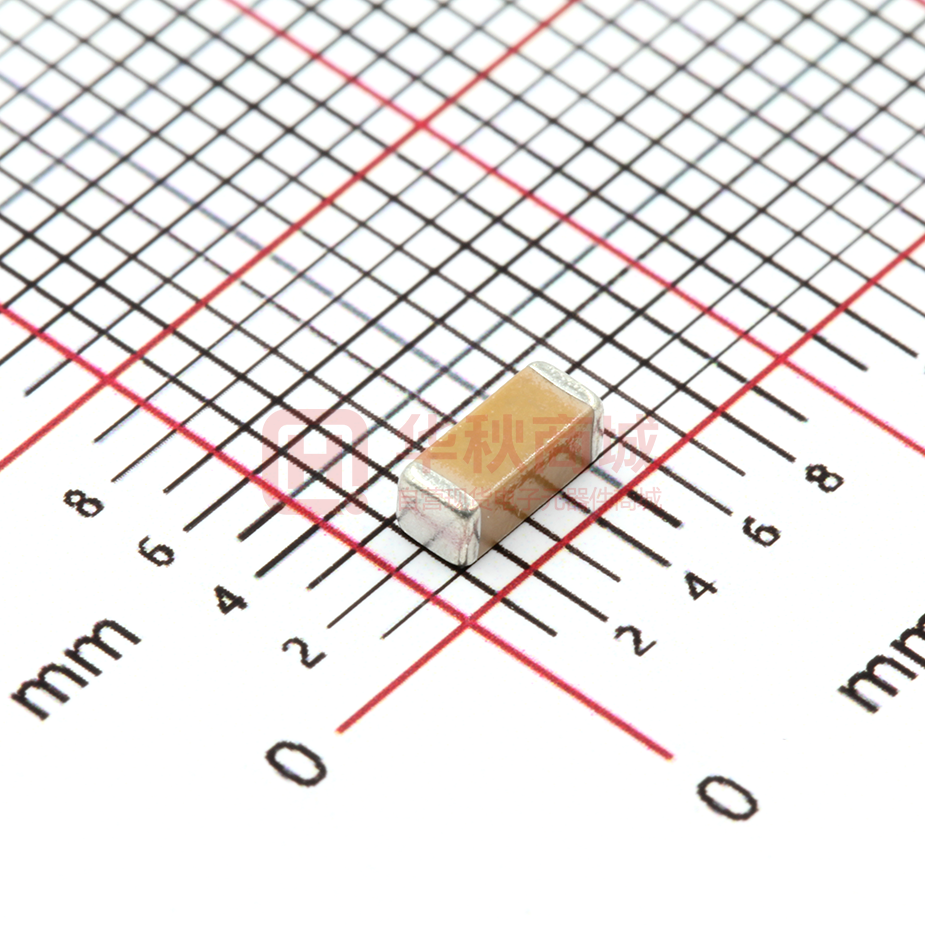

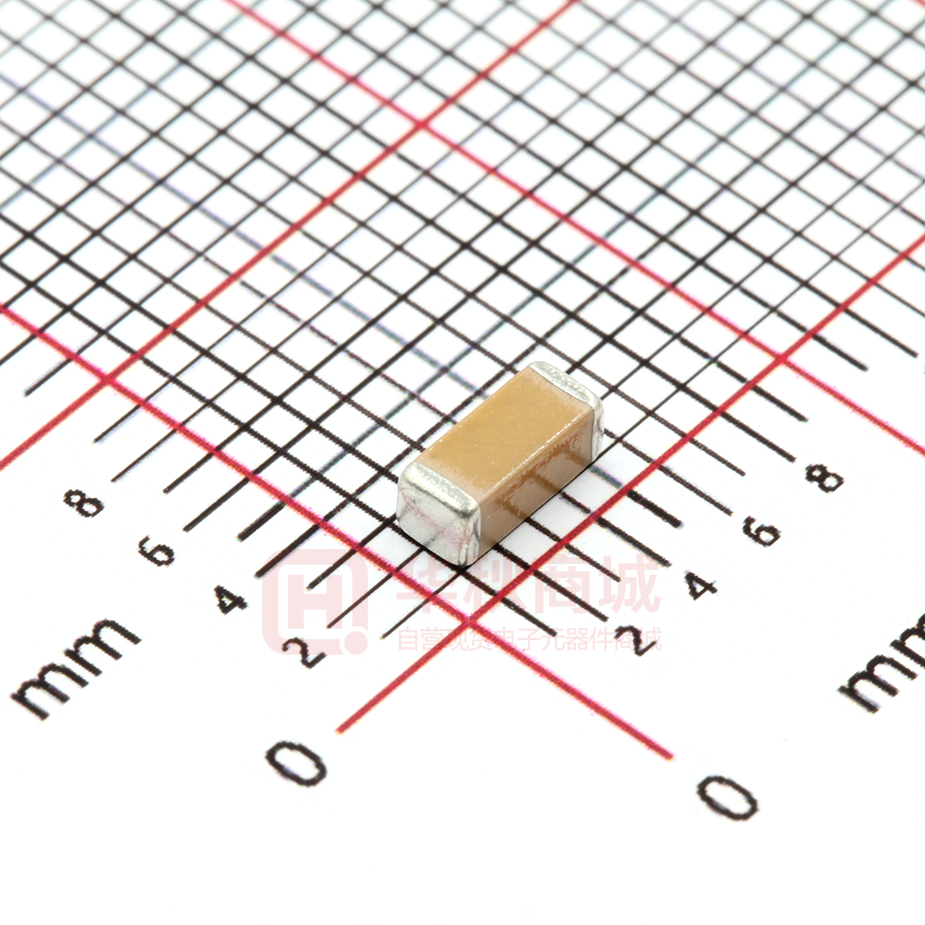

FK08X102K502EFG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 Messrs. : Date : 一般共用 2020/11/30 APPROVAL SHEET Product Name : Safety Certified Multilayer Ceramic Chip Capacitors Part No. : FK / FH Series Description : X1/Y2 & X2 Class, Size 1808~2220, C0G/X7R, 250Vac & UL 62368-1 Certified, Size 1206, X7R, 2.5KVdc PREPARED BY APPROVED BY 信昌電子陶瓷股份有限公司 PROSPERITY DIELECTRICS CO., LTD. 桃園市楊梅區高獅路 566-1 號 Tel : 03-4753355 ext : Contactor : http://www.pdc.com.tw Fax : 03-4854959 Mobile : DCM-003-8.1 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 SPECIFICATION FOR Product Name : Safety Certified Multilayer Ceramic Chip Capacitors Part No. : FK / FH Series Description : X1/Y2 & X2 Class, Size 1808~2220, C0G/X7R, 250Vac & UL 62368-1 Certified, Size 1206, X7R, 2.5KVdc SPEC. No. : FKFH-000-001-17 DATE : 2020/11/30 DRAWN BY CHECEKED BY APPROVED BY Jane Hsiao Yvens Chou Joseph Ling DCM-003-8.2 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 1. INTRODUCTION PROSPERITY’s SAFETY CERTIFIED CAPACITORS are designed for surge or lightning immunity in modem facsimile and other equipments. The capacitors of FK series are class X1/Y2 compliant, and the capacitors of FH series are class X2 compliant respectively. The green type capacitors in FK/FH series are manufactured by using environmentally friendly materials without lead or cadmium. The terminations are composed of plated nickel and pure tin to feature the superior leaching resistance during soldering. 2. FEATURES 3. APPLICATIONS a. High reliability and stability. b. Small size and high capacitance. c. Safety standard approval by : EN 60384-14 : 2013/A1 : 2016 IEC 60384-14 : 2013/AMD1 : 2016 UL 60384-14 (Ed 2.0) UL 62368-1 (2nd Edition) d. Certificate number : R 50041666 & R 50359148 by TUV. E346791 (FOWX2/8) by UL, E231248 by UL. e. CQC20001247849 by CQC (FK series) CQC20001247848 by CQC (FH series) f. License No. ENEC-03020 (FK series) License No. ENEC-03021 (FH series) g. RoHS and HALOGEN compliant. a. b. c. d. Modem. Facsimile. Telephone. Other electronic equipment for lighting or surge protection and isolation. 4. HOW TO ORDER FK PDC Family Table 1 08 N Size 100 Table 2 Table 3 Table 4 PDC Family Code Description Table 5 E G Customer Packaging Thickness Code Table 7 Table 8 Table 9 Table 6 Code Safety X1 & Y2 series Safety X2 series Table 2 502 Impulse Voltage Table 6 Dielectric Capacitance Tolerance Table 1 FK FH J 252 (FH06X) Size F Impulse Voltage Description Code 2.5KV 302 (FH series) Table 7 Description Code Description 2.5KV 502 602 5KV 6KV Packaging Type Code Description Code Description Code Description Code Description Code Description 06 1206 (3216) 12 1812 (4532) 20 2220 (5750) B Bulk E Embossed Tape 08 1808 (4520) 21 2211 (5728) Table 8 Table 3 Dielectric Material Characteristics Code Description Code Description N C0G X X7R Table 4 Capacitance Rule Code Thickness Description Code Description Code Description Code Description C D 1.25±0.10 mm E F 1.60±0.20 mm G H 2.50±0.30 mm 1.40±0.15 mm Table 9 2.00±0.20 mm 2.80±0.30 mm Customer Code Code Description Code Description Code Description Code Description Code Description 0R5 0.5pF 104 104=10x104=100nF G RoHs compliant Q Anti-Arcing E Anti-Bending H High reliability Z Table 5 Anti-Arcing+Anti-Bending Tolerance Code Description Code Description Code Description D F ±0.50 pF ±1 % G J ±2 % ±5 % K M ±10 % ±20 % Specification No. : FKFH-000-001-17 ~1~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 5. EXTERNAL DIMENSIONS Size Inch (mm) L (mm) W (mm) Code / T (mm) 1206(3216) 3.30±0.40 1.60±0.20 MB (mm) L 0.50±0.25 T 1808(4520) 4.50+0.6/-0.3 2.00±0.30 1812(4532) 4.50+0.6/-0.3 3.20±0.40 2211(5728) 5.70±0.50 2.80±0.40 2220(5750) 5.70±0.50 5.00±0.50 See No.4 Reference Table 8 0.50±0.25 W 0.50±0.25 MB MB 0.60±0.30 0.60±0.30 Fig. 5.1 The outline of MLCC 6. GENERAL ELECTRICAL DATA Dielectric Size Rated voltage Capacitance range Capacitance tolerance C0G 1808, 1812, 2211 250Vac X1/Y2 Class (Impulse 6KV) : 4pF ~ 100pF X1/Y2 Class : 100pF ~ X1/Y2 Class (Impulse 5KV) : 3pF ~ 720pF 4700pF X2 Class : 3pF ~ 1000pF X2 Class : 100pF ~ 56000pF Cap. Rang Cap.1000pF, 1.0±0.2Vrms, 1KHz±10%. Dielectric 3. Q/D.F. (Dissipation Factor) IEC 60384-1 4.2.3 * Class II : (X7R) Class I (C0G) 1.0±0.2Vrms, 1KHz±10%. Class II (X7R) Q/D.F. Remark Q≥1000 Cap.≥30pF Q≥400+20C Cap.500 500Vdc ≤50mA 60 sec. Class I (C0G) Class II (X7R) Requirements ≥100GΩ or RxC≥1000Ω-F, whichever is smaller ≥10GΩ or RxC≥500Ω-F, whichever is smaller * Solder temperature : 235±5°C (1206). * Solder temperature : 245±5°C (1808~2220). * 75% min. coverage of all metalized area. * Dipping time : 2.0±0.5 sec. * Appearance : * Solder temperature : 260±5°C. 8. IEC 60384-14 Resistance to 4.4 Soldering IEC Heat 60384-21/22 4.9 * Dipping time : 10±1 sec. * Preheating : 120 to 150°C for 1 minute before immerse the capacitor in a eutectic solder. * Measurement to be made after keeping at room No remarkable damage. * Cap. change : C0G within ±2.5% or ±0.25pF, whichever is larger. X7R within ±7.5%. * D.F. value : temperature for 24±2 hrs (Class I) and 48±4 hrs C0G to meet initial requirement. (Class II). X7R to meet initial requirement. * I.R. : ≥1GΩ. Specification No. : FKFH-000-001-17 ~4~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Standard Methods Test Condition Requirements * Conduct the five cycles according to the temperatures and time. 9. Temperature Cycle IEC 60384-21/22 4.11 * Appearance : Step Temp.(°C) Time(min.) 1 Min. operating temp. +0/-3 30±3 2 Room temp. 2~3 3 Max. operating temp. +3/-0 30±3 4 Room temp. 2~3 No remarkable damage. * Cap. change : C0G within ±2.5% or ±0.25pF, whichever is larger. X7R within ±7.5%. * D.F. value : C0G to meet initial requirement. * Measurement to be made after keeping at room X7R≤150% of initial requirement. temperature for 24±2 hrs (Class I) and 48±4 hrs * I.R. : To meet initial requirement. (Class II). * Appearance : * Test temp. : 40±2°C. * Humidity : 90~95% RH. Humidity 10. (Damp Heat) Steady State IEC 60384-14 4.12 * Test time : 500 +24/-0hrs. No remarkable damage. * Cap. change : C0G within ±3.0% or ±2.0pF, whichever is larger. * Applied voltage : 250Vac. (FH06X series without the X7R within ±15%. voltage) * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) and 48±4 hrs (Class II). * D.F. value : C0G≤0.25%. X7R≤5.0%. * I.R. : ≥1GΩ or RxC≥25Ω-F, whichever is smaller. 11. IEC 60384-14 Passive 4.17 Flammability IEC 60384-1 4.38 * Volume sample : 21.56 mm3. * Flame exposure time : 5 sec. Max. * Category of flammability : C. * Capacitor didn’t burn at all. (FH06X series not include) * The capacitors applied UR (250Vac). Then each 12. IEC 60384-14 Active 4.17 Flammability IEC 60384-1 4.38 sample shall be subjected to 20 discharges from a tank capacitor, charge to a voltage that, when discharged, places Ui 2500V for X2, Ui 5000V for * The cheese cloth shall not burn with a flame. (FH06X series not include) X1Y2 across the capacitor under test. The interval between successive discharges shall be 5 sec. * Impulse Voltage : Each individual capacitor shall be subjected to a Vp = 5.0KV (X1Y2 Class Impulse 5KV) or Vp = 2.5KV (X2 Class Impulse 2.5KV) impulse for three times before applied to endurance test. * Test temp. : 125±3°C. * Test time : 1000 +48/-0 hrs. * Applied voltage : 13. High Temperature Load (Endurance) X capacitor : 1.25UR (312.5Vac). IEC 60384-14 4.14 Y capacitor : 1.70UR (425Vac). Once every hour the voltage shall be increased to 1000Vrms for 0.1 sec. * Measurement to be made after keeping at room * Appearance : No mechanical damage. * Cap. change : C0G within ±5.0% or ±0.5pF, whichever is larger. X7R within ±20%. * D.F. value : C0G≤0.25%. X7R≤5.0%. temp. for 24±2 hrs (Class I) and 48±4 hrs (Class II). * I.R. : ≥1GΩ. * Dielectric strength satisfies the specified initial For FH06X series : value. (FH06X series not include) * Test temp. : 125±3°C. * To apply voltage : 2.5KVdc. * Test time : 1000 +24/-0 hrs. * Measurement to be made after keeping at room temp. for 48±4 hrs. Specification No. : FKFH-000-001-17 ~5~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Standard Methods Test Condition Requirements * Capacitors mounted on a substrate. The board shall be bent 1mm with a rate of 1mm/sec. * No remarkable damage. 14. Resistance to IEC Flexure of 60384-21/22 Substrate 4.8 Dielectric Cap. Change Class I Within ±3.0% or ±2.0pF, (C0G) whichever is larger Class II Within ±12.5% (X7R) (This capacitance change means the change of capacitance under specified flexure of substrate from the capacitance measured before the test) Unit : mm * Capacitors mounted on a substrate. A force of 10N applied perpendicular to the place of substrate and parallel the line joining the center of terminations for 10±1 sec. Adhesive 15. Strength of Termination IEC 60384-21/22 4.15 IEC 60384-1 4.13 * No remarkable damage or removal of the terminations. * Reflow solder the capacitors on P. C. Board before test. * Vibration frequency : 10~55 Hz/min. 16. Vibration IEC 60384-1 4.17 * Total amplitude : 1.5mm. * No remarkable damage. * Repeat the conditions for 2 hours each in 3 * Cap. change and Q/D.F. : To meet initial spec. perpendicular directions. * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) and 48±4 hrs (Class II). Specification No. : FKFH-000-001-17 ~6~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 9. PACKAGE DIMENSION AND QUANTITY Size 1206(3216) 1808(4520) 1812(4532) 2211(5728) 2220(5750) Thickness (mm) 1.25±0.10 1.25±0.10 1.40±0.15 1.60±0.20 2.00±0.20 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 2.00±0.20 2.50±0.30 Plastic tape 7” reel 13” reel 3k 10k 2k 10k 2k 10k 2k 8k 1k 6k 1k 1k 1k 0.5k 3k 1k 1k 0.5k 0.5k 1k 0.5k 2k REEL DIMENSIONS Size 1206 1808, 1812, 2211, 2220 Reel size 7” 7” 13.0 +0.5/-0.2 8.4 +1.5/-0 178.0 ±0.1 60.0 +1.0/-0 13.0 +0.5/-0.2 12.4 +2.0/-0 178.0 ±0.1 60.0 +1.0/-0 C W1 A N Fig. 9.1 The dimension of reel 9.1. EMBOSSED TAPE DIMENSIONS Fig. 9.2 The dimension of plastic tape Size 1206 1808 1.25±0.10 1.40±0.15 2.00±0.20 1.60±0.20
