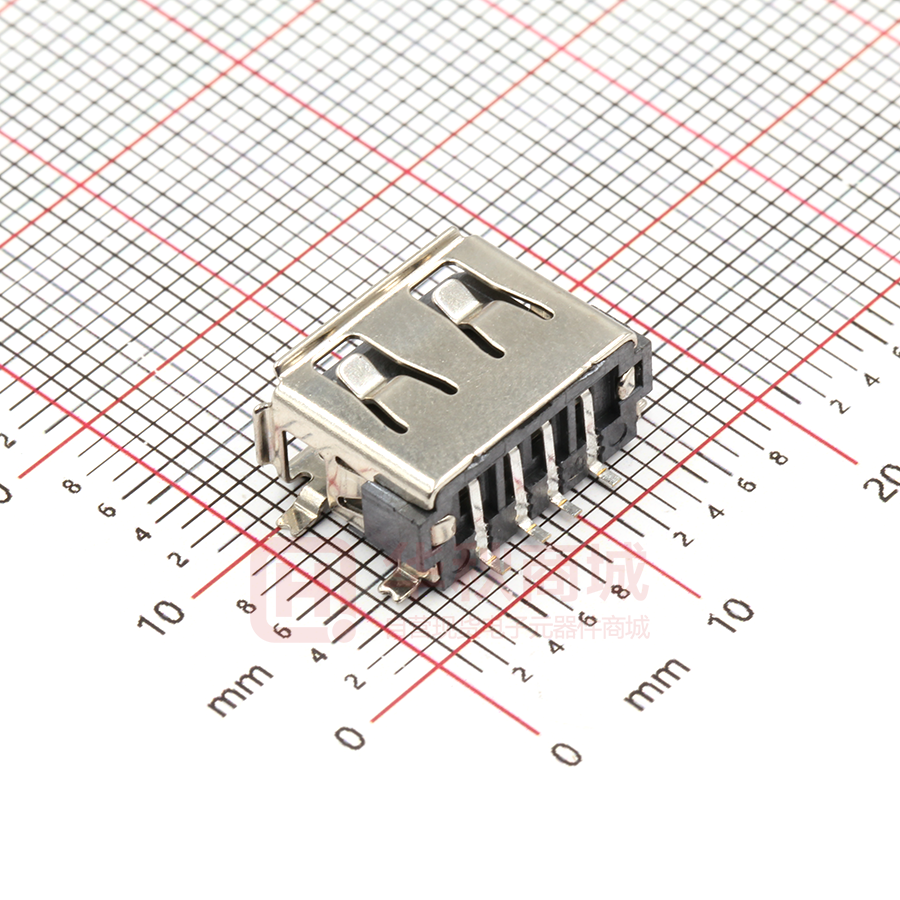

10.0 QTJ6.3

深圳市首韩科技有限公司 SHENZHEN SHOUHAN TECHNOLOGY CO.,LTD Tel: 0755-27597601 Fax: 0755-27597491 承 认 FOR APPROVAL SPECIFICATION 客 书 户 Customer： 产品名称 Project： 规格型号 Part No： ＵＳＢ插座 10.0 QTJ6.3 (１０．０全贴卷边６．３) 贵公司承认印 Approal slgnatures 料 号/Part No. 签 章/Signatures 日期 Date: 拟制/Drawn 李春风 审核/Check 刘学 批准/Approved 罗孝金 1 1/1 10.0 QTJ6.3(10.0 全贴卷边6.3) 產品名稱 Part Name 10.0短体系列 產品型號 Part Name 91-US01-424 測試日期 Date of Testing 2012.04.03~ 2012.04.04 報告編號 Report NO. MD20120403-02 樣品數量 Quantity 5PCS 測試環境 Measuring Environment 濕 度Temp:18~21℃ 相對濕度R.H.:49%~57% 一.電性測試 ELECTRICAL TEST 判定Judge 測試記錄Testing Result 序 號 NO. 測試項目 Testing Item 1 Contact i t resistance 2 Insulation resistance 3 測試條件 Testing Conditions Test current:150mA max Test voltage:500VDC Operation stated:1min Test voltage:500VAC Dielectric Cut-off current:0.5mA withstand voltage Operation stated:1 min 測試設備 Testing Equipment 規格 SPEC DIGITAL MICROOHMMETER ULTRA HIGH RESISTANCE METER BREAKDOWN TESTER 1 2 3 4 5 Pass Fail 30 mΩ M Max 16.58 Ω mΩ 17.34 Ω mΩ 18.57 Ω mΩ 17.27 Ω mΩ 19.60 Ω mΩ P 1000 MΩ Min 1420 MΩ 1531 MΩ 1575 MΩ 1620 MΩ 1771 MΩ P No discharge or Pass flashover occur Pass Pass Pass Pass P 二.機械特性測試 MECHANICAL TEST 測試項目 Testing Item 1 Durability test 2 Mating Force 3 判定Judge 測試記錄Testing Result 序 號 NO. 測試條件 Testing Conditions 測試設備 Testing Equipment 規格 SPEC Rate:200cycles/hour Total: 1500 cycles LIFE TESTER FOR CONNECTOR 35 Newtons maximum at a maximum rare of 7.5mm per minute 10 Newtons minimum Un-Mating Force at a maximum rare of 7.5mm per minute Pass Fail 1 2 3 4 5 No physical damage Pass Pass Pass Pass Pass P Insertion force testing machine No physical damage Pass Pass Pass Pass Pass P Insertion force testing machine No physical damage Pass Pass Pass Pass Pass P 測試設備 Testing Equipment 規格 SPEC 三.環境特性測試 ENVIRONMENTAL TEST 序 號 NO. 測試項目 Testing Item 1 HumidityTemperature cycle 2 Heat test 測試條件 Testing Conditions Temperature: 40±2℃ Humidity: 90~95% Duration:168H Temperature: 70±2℃ Duration:168H 判定Judge 測試記錄Testing Result 1 2 3 4 5 Pass Fail PROGRAM CONTROLLED TEMP. & HUMIDTY CHAMBER No physical damage Pass Pass Pass Pass Pass P OVEN No physical damage Pass Pass Pass Pass Pass P 第 1 頁，共 2 頁 深圳市首韩科技有限公司 李春风 刘学 罗孝金 10.0 QTJ6.3(10.0全贴卷边 6.3
