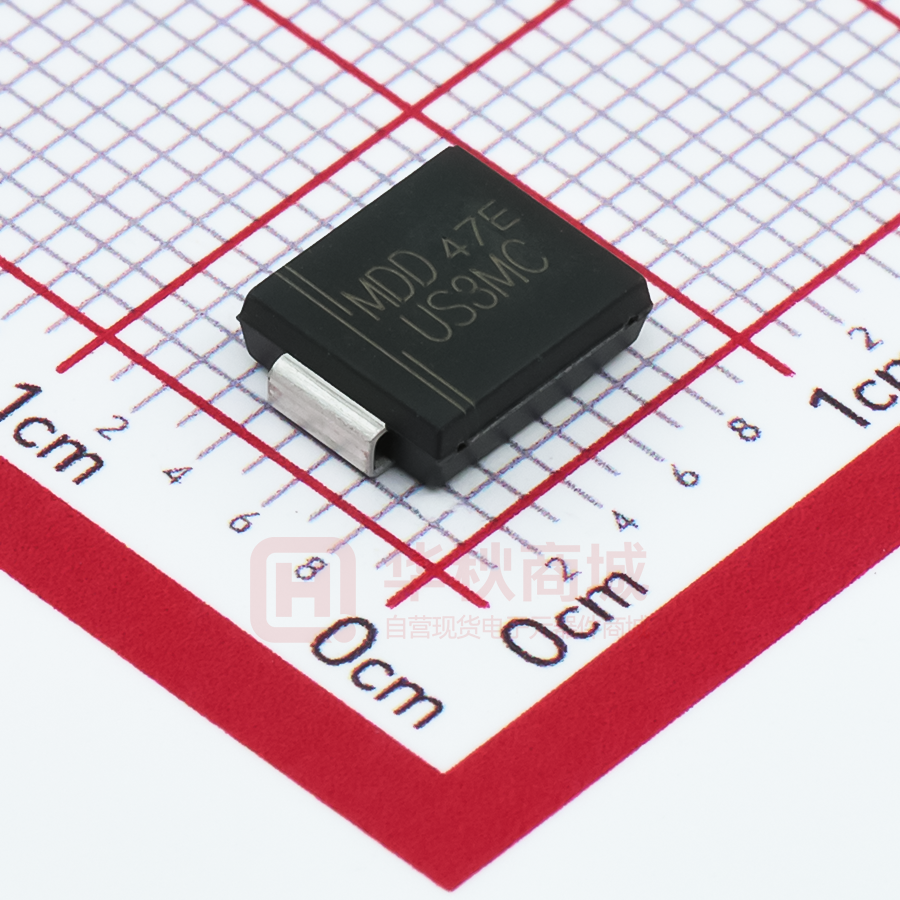

US3MC

US3AC THRU US3MC Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere SURFACE MOUNT ULTRA FAST RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0     For surface mounted applications 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90) Ultra fast switching for high efficiency Low reverse leakage Built-in strain relief,ideal for automated placement  High forward surge current capability 0.280(7.11) 0.260(6.60) 0.012(0.305) 0.006(0.152)  High temperature soldering guaranteed 250 °C/10 seconds at terminals 0.103(2.62) 0.079(2.06) Mechanical Data 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case : JEDEC DO-214AB/SMC Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.25 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current at rated DCblocking voltage Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range VRRM VRMS VDC MDD MDD MDD MDD MDD MDD MDD US3AC US3BC US3DC US3GC US3JC US3KC US3MC 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 3.0 A IFSM 90 A VF 1.0 1.3 5.0 100.0 IR trr 50 CJ RJA RθJC 75.0 TJ,TSTG 1.68 45.0 15.0 -55 to +150 V μA 75 ns 50 pF ℃/W ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 US3AC THRU US3MC Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics Fig.1 Maximum Average Forward Current Rating 4.0 Instaneous Reverse Current（μ A） 100 Average Forward Current (A) 3.5 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 TJ=125°C 10 1.0 TJ=25°C 0.1 175 00 Case Temperature (°C) Peak Forward Surage Current (A) Instaneous Forward Current (A) 80 100 120 140 120 1.0 US3AC~US3DC US3GC 0.1 US3JC~US3MC 0.01 0 60 Fig.4 Maximum Non-Repetitive Peak Forward Surage Current TJ=25°C 0.001 40 percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Forward Characteristics 10 20 0.5 1.0 1.5 Instaneous Forward Voltage (V) 2.0 2.5 100 80 60 40 20 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 US3AC THRU US3MC Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Ampere Packing information P0 unit:mm P1 d Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) CARTON (pcs) 365*365*340 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol Unit (mm) A 4.3 0.170 C 4.1 7.9 0.160 0.311 D 3.8 0.150 E 12 0.472 B http://www.microdiode.com Unit (inch) Rev:2024A2 Page :3
