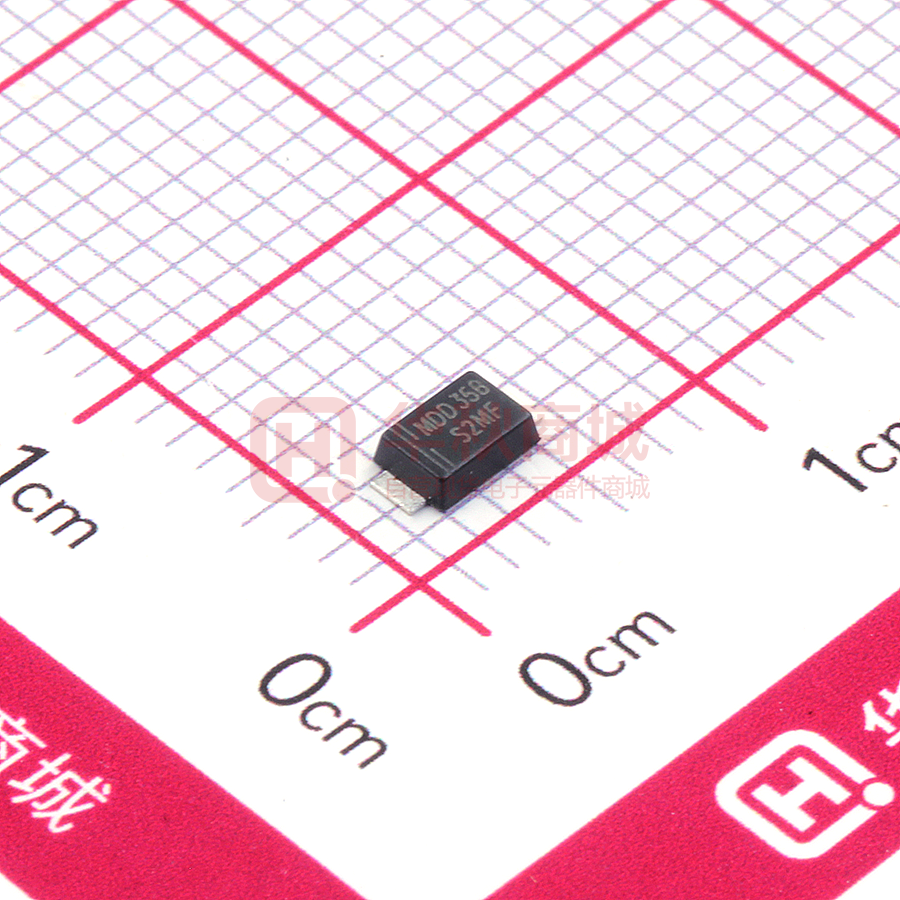

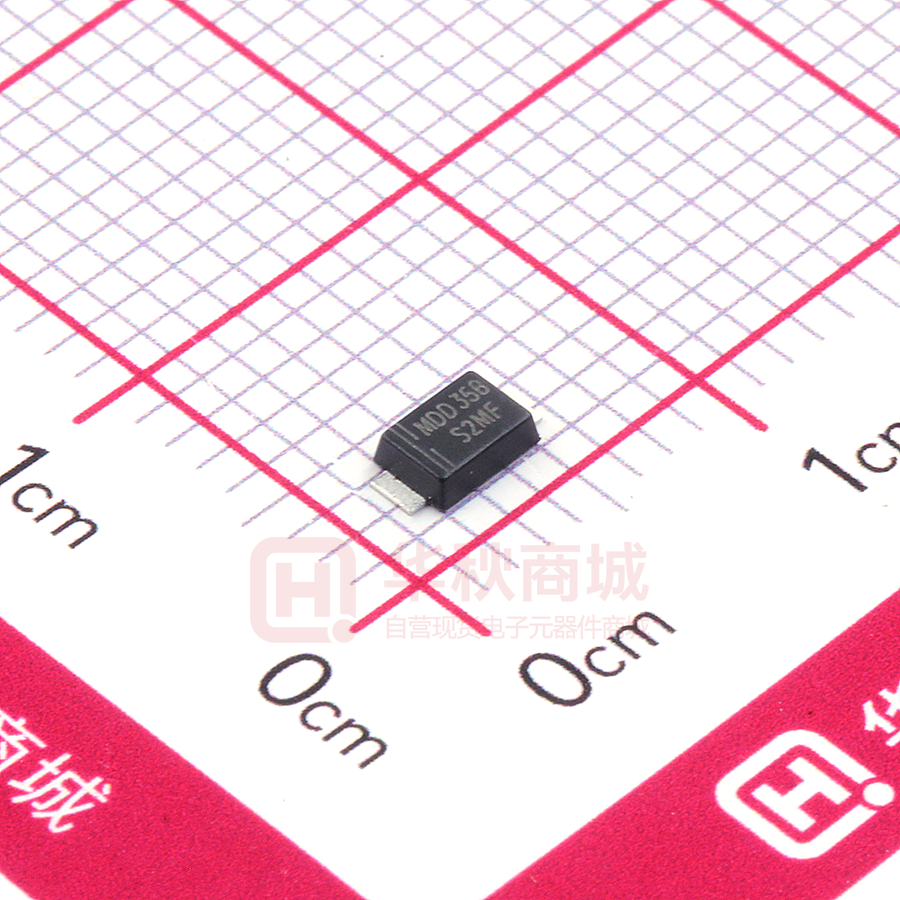

S2MF

S2AF THRU S2MF Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features SMAF  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 0.106(2.70) 0.094(2.40) 0.063 (1.60) 0.051 (1.30)  Idea for printed circuit board  Glass passivated junction  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed 0.146(3.70) 0.130(3.30) 250℃/10 seconds at terminals 0.047(1.20) 0.035(0.90) 0.008(0.20) 0.005(0.12) 0.047(1.20) 0.031(0.80) Mechanical Data 0.193(4.90) 0.173(4.40) Case:JEDEC SMAF molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position : Any Weight : 0.00095ounce, 0.027grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD S2AF MDD S2BF MDD S2DF MDD S2GF MDD S2JF MDD S2KF MDD S2MF UNITS VRRM 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=125℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current at rated DC blocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) VRMS VDC I(AV) 2.0 A IFSM 50 A VF 1.10 V IR 5.0 100 uA 22.0 pF CJ RJA RθJC Operating junction and storage temperature range TJ,TSTG 65.0 20.0 -55 to +150 ℃/W ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 S2AF THRU S2MF Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Typical Characterisitics Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve 100 Instaneous Reverse Current (μA) 2.5 Average Forward Current (A) 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 TJ=150°C TJ=125°C 10 TJ=100°C 1.0 TJ=75°C 0.1 TJ=25°C 0.01 175 0 400 600 800 Instaneous Reverse Voltage (V) Case Temperature (°C) Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 100 Junction Capacitance (pF) 10 Instaneous Forward Current (A) 200 1.0 TJ=25°C 10 TJ=25°C 1 0.1 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 75 60 45 30 15 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 S2AF THRU S2MF Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SMAF E F B A Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width W P D2 T D1 C W1 D 2.80 4.75 1.42 1.50 178.00 54.40 13.00 1.75 5.05 4.00 4.00 2.00 0.30 8.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMAF REEL SIZE 7" REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) APPROX. GROSS WEIGHT (kg) 3,000 4.0 6,000 210*208*203 178 400*265*400 120,000 10.0 Suggested Pad Layout Symbol http://www.microdiode.com Unit (mm) Unit (inch) A 1.8 0.071 B C 1.6 3.8 0.150 D 2.2 0.087 E 5.4 0.213 0.063 Rev:2024A2 Page :3
