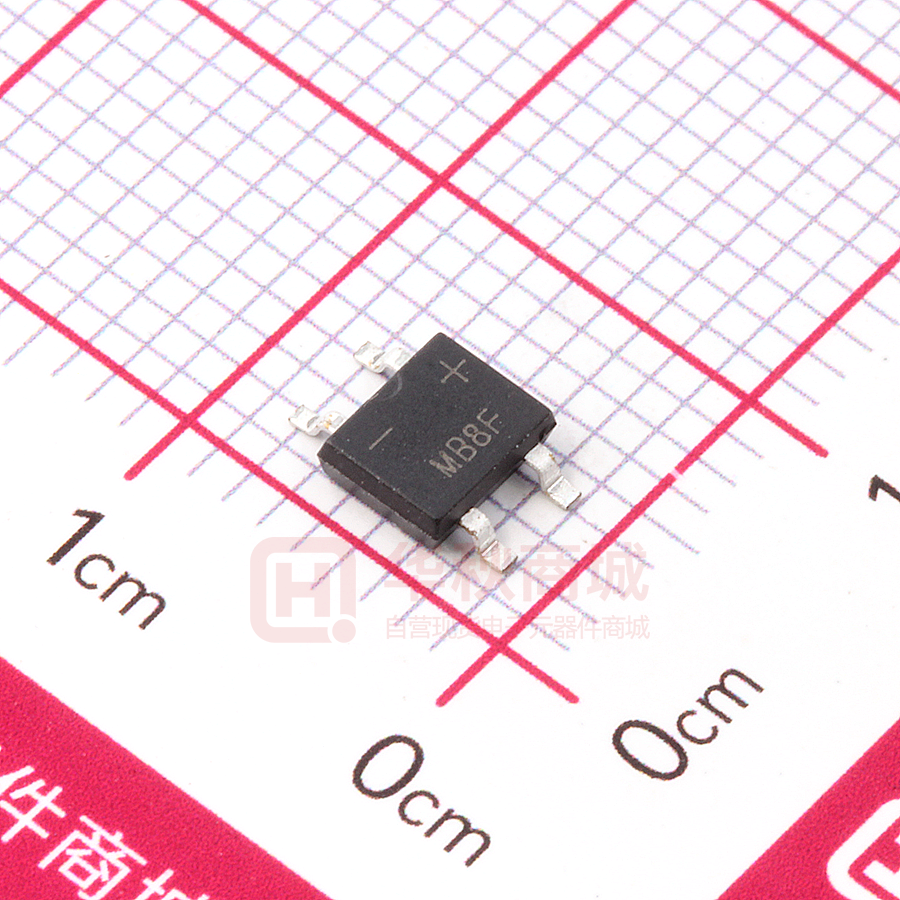

MB8F

山东晶导微电子股份有限公司 MB1F THRU MB10F Jingdao Microelectronics co.LTD 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: PINNING Glass Passivated Chip Junction Reverse Voltage - 100 to 1000 V PIN DESCRIPTION 1 Input Pin（~） 2 Input Pin（~） Forward Current - 0.8 A High Surge Current Capability 3 Output Anode（+） Designed for Surface Mount Application 4 Output Cathode（-） MECHANICAL DATA • Case: MBF • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 75mg 0.0026oz 3 4 2 1 MBF Package Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols MB1F MB2F Maximum Repetitive Peak Reverse Voltage V RRM 100 200 400 Maximum RMS voltage V RMS 70 140 Maximum DC Blocking Voltage V DC 100 200 Parameter Average Rectified Output Current at T c = 125 °C MB4F MB6F Units MB8F MB10F 600 800 1000 V 280 420 560 700 V 400 600 800 1000 V IO 0.8 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) I FSM 30 A Maximum Forward Voltage at 0.8 A VF 1.1 V IR 5 40 μA Cj 13 pF RθJA RθJC 90 30 °C/W T j , T stg -55 ~ +150 °C Maximum DC Reverse Current at Rated DC Blocking Voltage @ T A =25 °C @ T A =125 °C Typical Junction Capacitance（Note1） Typical Thermal Resistance（Note2） Operating and Storage Temperature Range Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. Mounted on glass epoxy PC board with 4×1.5"×1.5"（3.81×3.81 cm）copper pad. 2016.01 MBF-A-MB1F~MB10F-0.8A1KV Page 1 of 3 山东晶导微电子股份有限公司 MB1F THRU MB10F Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics 1.2 1.0 0.8 0.6 0.4 0.2 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 60 80 100 120 140 100 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 10 T J =25°C 1 0.5 1.0 1.5 2.0 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2016.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 MB1F THRU MB10F Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 4 leads MBF ∠ALL ROUND C A a L1 L d HE e D e E MBF mechanical data A C D E HE d e L L1 a max 1.6 0.22 5.0 4.1 7.0 2.7 0.8 1.7 1.1 0.2 min 1.2 0.15 4.5 3.6 6.4 2.3 0.5 1.3 0.5 max 63 8.7 197 161 276 106 31 67 43 min 47 5.9 177 142 252 91 20 51 20 UNIT ∠ mm 7° 8 mil Marking 6.0 236 2.5 100 0.9 35 2.4 94 mm Unit ： (mil) Type number Marking code MB1F MB1F MB2F MB2F MB4F MB4F MB6F MB6F MB8F MB8F MB10F MB10F MBxxF 2016.01 JD512284B2 Page 3 of 3
