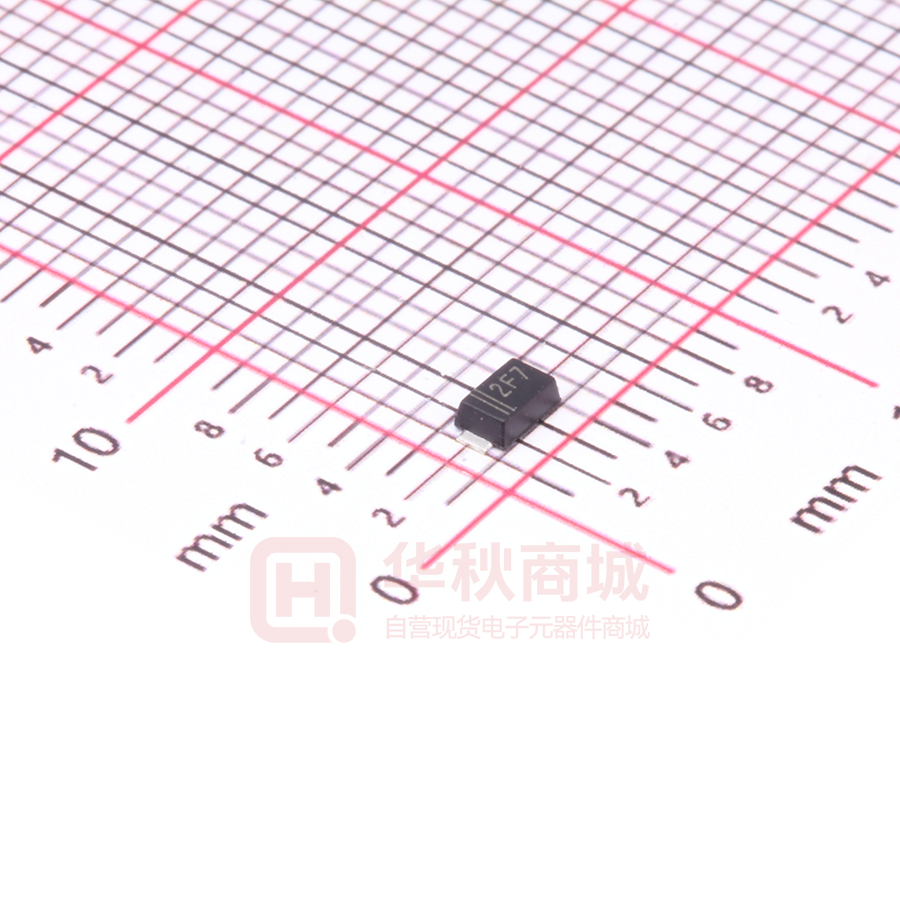

山东晶导微电子有限公司 RS2AW THRU RS2MW Jingdao Microelectronics Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 2 A PIN FEATURES ▪ For surface mounted applications ▪ Low profile package ▪ Glass Passivated Chip Junction ▪ Ideal for automated placement ▪ Fast reverse recovery time ▪ Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: RS2AW~RS2GW: 2F2 RS2JW: 2F5 RS2KW~RS2MW: 2F7 Simplified outline SOD-123FL and symbol MECHANICAL DATA ▪ Case: SOD-123FL ▪ Terminals: Solderable per MIL-STD-750, Method 2026 ▪ Approx. Weight:15mg 0.00053oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols Parameter RS2AW RS2BW RS2DW RS2GW RS2JW RS2KW RS2MW Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 125 °C I F(AV) 2 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 50 A Maximum Forward Voltage at 2 A VF 1.3 V IR 5 100 μA Cj 30 pF Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time t rr （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range 150 250 500 ns RθJA RθJC 75 22 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2016.01 SOD123FL-F-RS2AW~RS2MW-2A1KV Page 1 of 3 山东晶导微电子有限公司 RS2AW THRU RS2MW Jingdao Microelectronics Fig.2 Typical Reverse Characteristics 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 1 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 60 50 40 30 20 10 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2016.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 RS2AW THRU RS2MW Jingdao Microelectronics PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm g pad e E A pad HE 7° The recommended mounting pad size Marking Type number 1.2 (47) ∠ 2.0 (79) Marking code RS2AW 1.2 (47) RS2BW 2F2 1.2 (47) RS2DW RS2GW RS2JW 2F5 RS2KW Unit： mm (mil) 2016.01 JD512265B6 2F7 RS2MW Page 3 of 3
