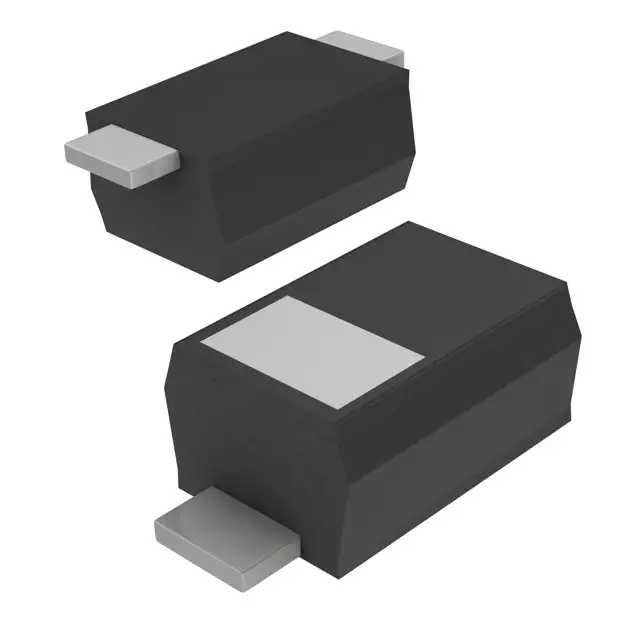

BZT52C75

BZT52C2V0 - BZT52C75 Zener Voltage - 2 to 75 Volts Peak Pulse Power - 0.5 W SURFACE MOUNT ZENER DIODE Features SOD-123  Total power dissipation: Max. 500mW.  Wide zener reverse voltage range 2.0V to 75V.  Small plastic package suitable for surface mounted design.  Tolerance approximately±5% 0.071(1.80) 0.028(0.70) 0.020(0.50) 0.059(1.50) 0.008(0.20)max. Cathode bar 0.110(2.80) 0.098(2.50) 0.154 (3.90) Mechanical Data Ordering Information 0.080 (0.0031) 0.150 (0.0059) 8° 0.019 (0.475) ref. 0° to 0.010 (0.25) Dimensions in inches and millimeters Type No. Marking BZT52C2V0-BZT52C75 See table 2 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Forward Voltage 0.018 (0.45) 0.008 (0.2 ) 0.049 (1.250) Case : JEDEC SOD-123 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.00056 ounce, 0.016 grams 0.041 (1.050) 0.142 (3.60) @ IF=10mA Power Dissipation Typical thermal resistance juncting to ambient Junction temperature Storage temperature range (1) Package Code SOD-123 Symbol Value Unit VF 0.9 V Pd 500 mW RθJA 305 ℃/W Tj 150 ℃ Tstg -65-150 ℃ Fig.1 Maximum Continuous Power Derating 0.6 Power Dissipation ( W ) 0.5 0.4 0.3 0.2 0.1 0.0 25 50 75 100 125 150 T c ,Case Temperature (°C) http://www.microdiode.com 175 Transient Thermal Impedance（ °C /W） (1) Thermal resistance from junction to ambient at P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper areas pads. Fig.2 Typical Transient Thermal Impedance 2000 1000 100 10 0.01 0.1 1 10 100 t, Pulse Duration（sec） Rev:2024A1 Page :1 BZT52C2V0 - BZT52C75 Zener Voltage - 2 to 75 Volts Peak Pulse Power - 0.5 W ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Dynamic Impedance Zener Voltage Range （1） Type Marking V ZT（at I ZT） Reverse Current I ZT Z ZT（at I ZT） IR at V R Max (Ω) Max（μA） （V） Min（V） Nom（V） Max（V） (mA) 1.8 2.0 2.15 5 100 120 0.5 BZT52C2V0 WY BZT52C2V2 WZ 2.08 2.2 2.33 5 100 120 0.7 BZT52C2V4 WX 2.28 2.4 2.56 5 100 120 1 BZT52C2V7 W1 2.5 2.7 2.9 5 110 120 1 BZT52C3V0 W2 2.8 3.0 3.2 5 120 50 1 BZT52C3V3 W3 3.1 3.3 3.5 5 130 20 1 BZT52C3V6 W4 3.4 3.6 3.8 5 130 10 1 BZT52C3V9 W5 3.7 3.9 4.1 5 130 5 1 BZT52C4V3 W6 4 4.3 4.6 5 130 5 1 BZT52C4V7 W7 4.4 4.7 5 5 130 2 1 BZT52C5V1 W8 4.8 5.1 5.4 5 130 2 1.5 BZT52C5V6 W9 5.2 5.6 6 5 80 1 2.5 BZT52C6V2 WA 5.8 6.2 6.6 5 50 1 3 BZT52C6V8 WB 6.4 6.8 7.2 5 30 0.5 3.5 BZT52C7V5 WC 7 7.5 7.9 5 30 0.5 4 BZT52C8V2 WD 7.7 8.2 8.7 5 30 0.5 5 BZT52C9V1 WE 8.5 9.1 9.6 5 30 0.5 6 BZT52C10 WF 9.4 10 10.6 5 30 0.1 7 BZT52C11 WG 10.4 11 11.6 5 30 0.1 8 BZT52C12 WH 11.4 12 12.7 5 35 0.1 9 BZT52C13 WI 12.4 13 14.1 5 35 0.1 10 BZT52C15 WJ 13.8 15 15.6 5 40 0.1 11 BZT52C16 WK 15.3 16 17.1 5 40 0.1 12 BZT52C18 WL 16.8 18 19.1 5 45 0.1 13 BZT52C20 WM 18.8 20 21.2 5 50 0.1 15 BZT52C22 WN 20.8 22 23.3 5 55 0.1 17 BZT52C24 WO 22.8 24 25.6 5 60 0.1 19 BZT52C27 WP 25.1 27 28.9 5 70 0.1 21 BZT52C30 WQ 28 30 32 5 80 0.1 23 35 BZT52C33 WR 31 33 5 80 0.1 25 BZT52C36 WS 34 36 38 5 90 0.1 27 BZT52C39 WT 37 39 41 2.5 100 2 30 BZT52C43 WU 40 43 46 2.5 130 2 33 BZT52C47 WV 44 47 50 2.5 150 2 36 BZT52C51 WW 48 51 54 2.5 180 1 39 BZT52C56 XW 52 56 60 2.5 180 1 43 BZT52C62 6E 58 62 66 2.5 200 0.2 47 BZT52C68 6F 64 68 72 2.5 250 0.2 52 BZT52C75 6H 70 75 79 2.5 300 0.2 57 （1） V ZT is tested with pulses (20 ms) http://www.microdiode.com Rev:2024A1 Page :2 BZT52C2V0 - BZT52C75 Zener Voltage - 2 to 75 Volts Peak Pulse Power - 0.5 W Packing information unit:mm P0 P1 d Item Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SOD-123 E F B A W P D2 T D1 C W1 D Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width 2.1 4.0 1.60 1.55 178.00 50.0 13.00 1.75 3.50 4.00 4.00 2.00 0.25 8.15 10.5 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-123 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol A http://www.microdiode.com Unit (mm) Unit (inch) 1.2 1.2 0.047 B C 3.2 0.126 D 2.0 0.079 E 4.4 0.173 0.047 Rev:2024A1 Page :3
