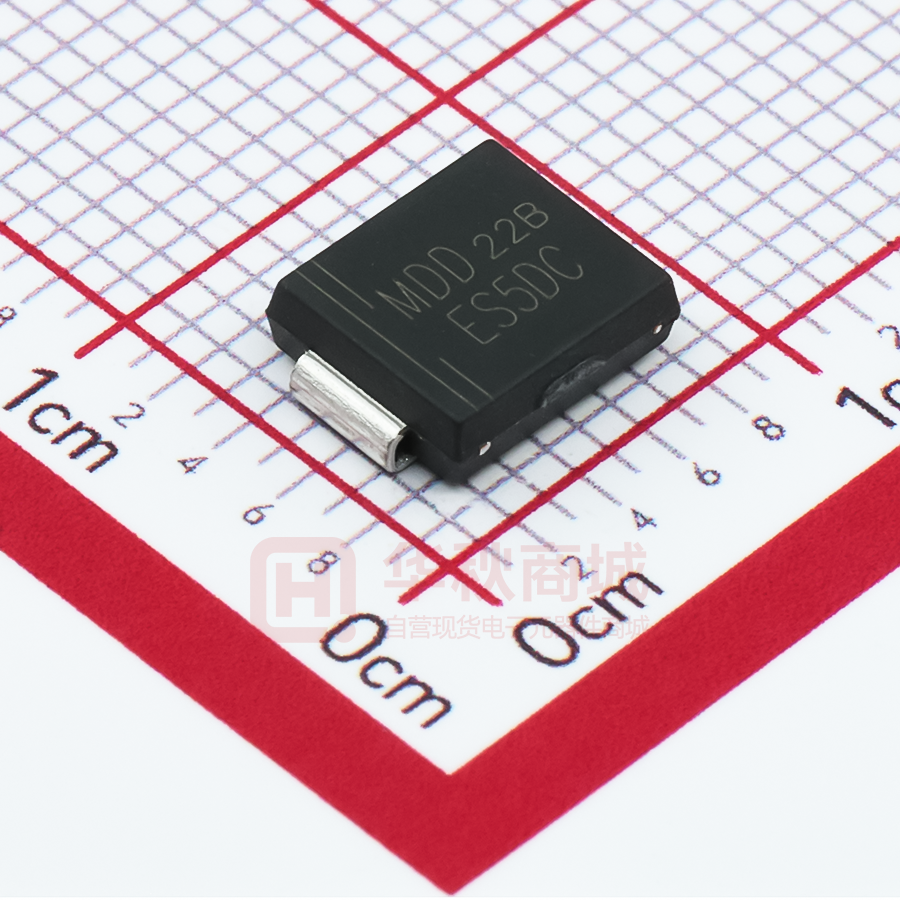

ES5AC THRU ES5JC
Reverse Voltage - 50 to 600 Volts
Forward Current - 5.0 Ampere
SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER
Features
DO-214AB/SMC
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief,ideal for automated
placement High forward surge current capability
High temperature soldering guaranteed:
0.245(6.22)
0.220(5.59)
0.126 (3.20)
0.114 (2.90)
0.280(7.11)
0.260(6.60)
0.012(0.305)
0.006(0.152)
250°C/10 seconds at terminals
Glass passivated chip junction
0.103(2.62)
0.079(2.06)
0.060(1.52)
0.030(0.76)
Mechanical Data
0.008(0.203)MAX.
0.320(8.13)
0.305(7.75)
Case : JEDEC DO-214AB/SMC Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
Weight : 0.007 ounce, 0.25 grams
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
ES5AC ES5BC
SYMBOLS
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at TL=55℃
VRRM
VRMS
VDC
I(AV)
ES5CC ES5DC ES5EC
MDD
MDD
MDD
MDD
MDD
MDD
MDD
ES5AC ES5BC ES5CC ES5DC ES5EC ES5GC ES5JC
50
35
50
100
70
100
150
105
150
IFSM
150
Maximum instantaneous forward voltage at 5.0A
VF
1
Maximum DC reverse current
at rated DCblocking voltage
TA=125℃
IR
200
140
200
300
210
300
400
280
400
600
420
600
A
135
1.25
10.0
100.0
UNITS
V
V
V
5.0
Peak forward surge current
8.3ms single half sine-wave
superimposed onrated load (JEDEC Method)
TA=25℃
ES5GC ES5JC
A
1.70
V
μA
trr
35
ns
CJ
95.0
pF
Typical thermal resistance (NOTE 3)
RJA
45.0
℃/W
Operating junction and storage temperature range
TJ,TSTG
Maximum reverse recovery time
(NOTE 1)
Typical junction capacitance (NOTE 2)
-50to+150
℃
Rev:2020A1
Page :1
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
DN:T20825A0
http://www.microdiode.com
ES5AC THRU ES5JC
Reverse Voltage - 50 to 600 Volts
Forward Current - 5.0 Ampere
Ratings And Characteristic Curves
t rr
10 ohm
Noninductive
50 ohm
Noninductive
+0.5
D.U.T
+
PULSE
GENERATOR
Note 2
25Vdc
approx
0
-
-0.25
1 ohm
NonInductive
OSCILLOSCOPE
Note 1
-1.0
Note:1.Rise Time = 7ns, max.
Input Impedance = 1megohm,22pF.
2. Ries Time =10ns, max.
Source Impedance = 50 ohms.
10ns/div
Set time Base for 10ns/div
Fig.3 Typical Reverse Characteristics
300
6
5
I R - Reverse Current (μA)
Average Forward Current (A)
Fig.2 Maximum Average Forward Current Rating
4
3
2
1
Single phase half-wave 60 Hz
resistive or inductive load
100
T J =125°C
10
T J =75°C
1.0
T J =25°C
0.1
0
25
50
75
100
125
150
175
20
0
40
Case Temperature (°C)
Junction Capacitance (pF)
Instaneous Forward Current (A)
T J =25°C
1.0
ES5AC~ES5DC
ES5EC/ES5GC
0.1
80
100
Fig.5 Typical Junction Capacitance
Fig.4 Typical Forward Characteristics
10
60
% of PIV.VOLTS
ES5JC
0.01
T J =25°C
100
10
T J=25°C
f = 1.0MHz
V sig = 50mV p-p
1
0.001
0
0.5
1.0
1.5
2.0
2.5
Instaneous Forward Voltage (V)
0.1
1.0
10
100
Reverse Voltage (V)
Peak Forward Surge Current (A)
Fig.6 Maximum Non-Repetitive Peak
Forward Surge Current
140
120
100
80
60
40
20
8.3 ms Single Half Sine Wave
(JEDEC Method)
00
1
10
100
Number of Cycles
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A1
Page :2
ES5AC THRU ES5JC
Reverse Voltage - 50 to 600 Volts
Forward Current - 5.0 Ampere
Packing information
P0
P1
unit:mm
d
E
F
B
A
Item
Symbol
Tolerance
SMC
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
Reel width
W1
0.1
0.1
0.1
0.05
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
6.15
8.41
2.42
1.50
330.00
50.00
13.00
1.75
7.50
8.00
4.00
2.00
0.25
16.00
16.50
W
P
D2
T
D1
C
W1
D
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
Reel packing
PACKAGE
REEL SIZE
REEL
(pcs)
COMPONENT
SPACING
(mm)
SMC
13"
3,000
4.0
INNER
BOX
(mm)
REEL
DIA,
(mm)
190*190*41
330
BOX
(pcs)
6000
CARTON
SIZE
(mm)
CARTON
(pcs)
365*365*340
42000
APPROX.
GROSS WEIGHT
(kg)
14.0
Suggested Pad Layout
Symbol
Unit (mm)
A
4.3
0.170
C
4.1
7.9
0.160
0.311
D
3.8
0.150
E
12
0.472
B
Unit (inch)
Important Notice and Disclaimer
Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and
specifications at any time without notice. Customers should obtain and confirm the latest product information and
specifications before final design,purchase or use.
Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application
assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with
products which are purchased or used for any unintended or unauthorized application.
No license is granted by implication or otherwise under any intellectual property rights of Microdiode
Electronics (Jiangsu).
Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support
devices or systems without express written approval of Microdiode Electronics (Jiangsu).
http://www.microdiode.com
Rev:2020A1
Page :3
