S9015

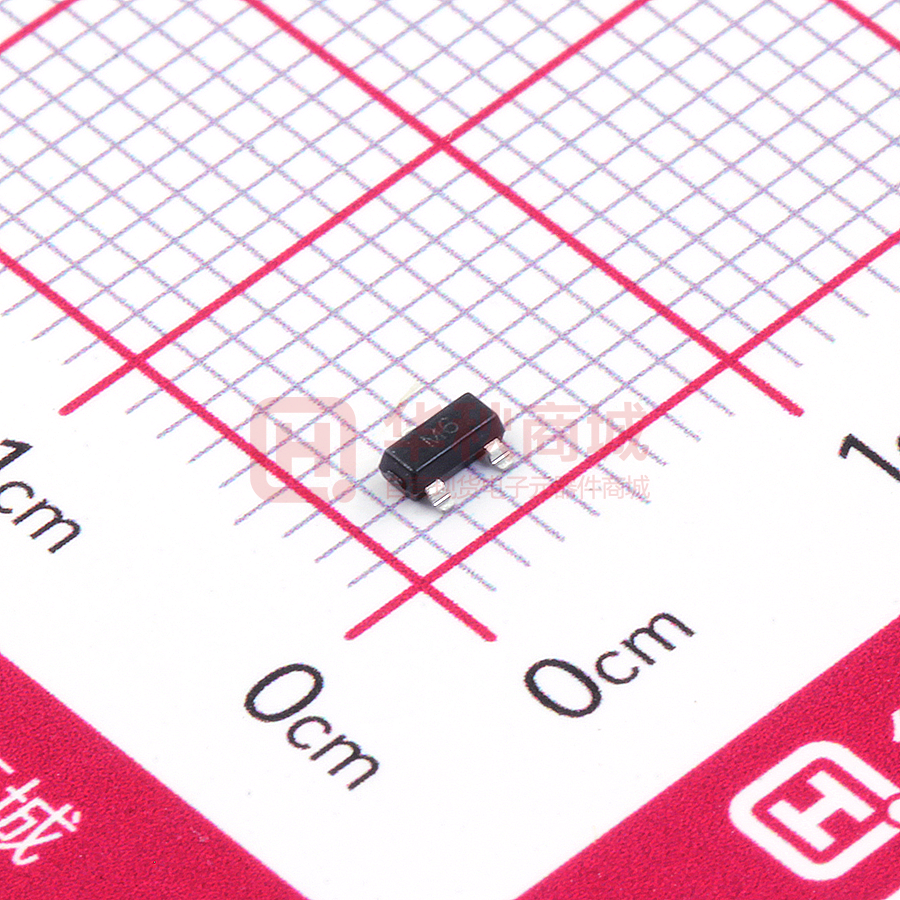

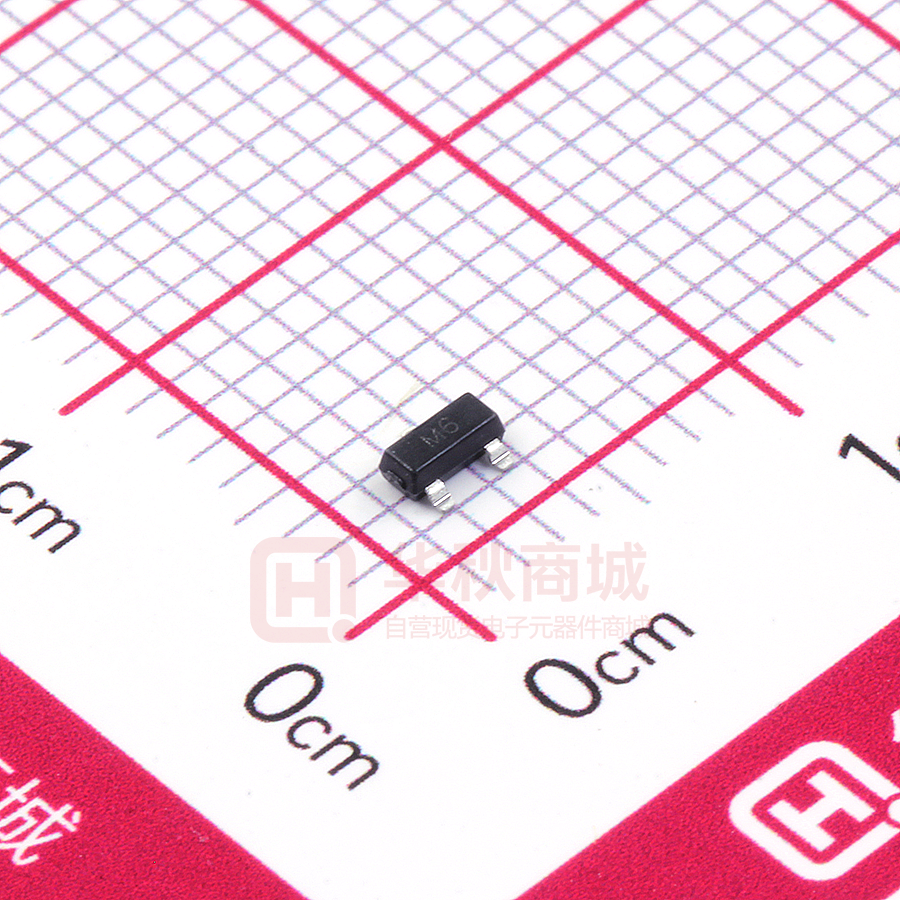

S9015 SOT-23 Plastic-Encapsulate Transistors S9015 TRANSISTOR (PNP) SOT-23 FEATURES z Complementary To S9014 1. BASE MARKING: M6 2. EMITTER 3. COLLECTOR MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -45 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -100 mA PC Collector Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 625 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA ELECTRICAL CHARACTERISTICS (Ta= 25℃ unless otherwise specified) Parameter Symbol ol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=-100μA, IE=0 -50 V Collector-emitter breakdown voltage V(BR)CEO IC=-0.1mA,IB=0 -45 V Emitter-base breakdown voltage V(BR)EBO IE=-100μA,IC=0 -5 V Collector cut-off current ICBO VCB=-50V, IE=0 -0.1 μA Emitter cut-off current IEBO VEB=-5V, IC=0 -0.1 μA DC current gain hFE VCE=-5V, IC=-1mA 200 1000 Collector-emitter saturation voltage VCE(sat) IC=-100mA, IB=-10mA -0.3 V Base-emitter saturation voltage VBE(sat) IC=-100mA, IB=-10mA -1 V Transition frequency fT VCE=-5V, IC=-10mA f=30MHz 150 MHz CLASSIFICATION OF hFE Rank L H Range 200-450 400-1000 http://www.microdiode.com Rev:2024A1 Page :1 S9015 Typical Characteristics Static Characteristic -8 hFE EMITTER -18uA (mA) -6 DC CURRENT GAIN -14uA -12uA -4 Ta=25℃ hFE -16uA IC COLLECTOR CURRENT Ta=100℃ Ta=25℃ -20uA —— IC 1000 COMMON -10uA -8uA -6uA -2 100 -4uA COMMON EMITTER VCE= -5V IB=-2uA -0 -0 -2 -4 -6 COLLECTOR-EMITTER VOLTAGE VCEsat COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (V) -1 —— VCE 10 -0.1 -8 -1 -10 COLLECTOR CURRENT (V) IC VBEsat —— IC -100 (mA) IC -2 -1 BASE-EMITTER SATURATION VOLTAGE VBEsat (V) Ta=25℃ -0.1 Ta=100℃ Ta=25℃ Ta=100℃ β=10 β=10 -0.1 -0.01 -1 -10 COLLECTOR CURRENT fT 1000 -1 COMMON EMITTER VCE=-5V -0.6 (mA) IC COMMON EMITTER VCE=-5V Ta=25℃ 10 -0.1 -1.2 -0.9 100 -1 BASE-EMMITER VOLTAGE VBE (V) Cob/ Cib —— -100 IC fT Ta=25℃ -0.3 -10 COLLECTOR CURRENT Ta=100℃ -0.1 -0.0 -1 (mA) -10 COLLECTOR CURRENT (mA) IC IC —— VBE IC -100 -0.2 -100 TRANSITION FREQUENCY (MHz) -0.2 -10 COLLECTOR CURRENT —— VCB/ VEB PC 30 —— IC -100 (mA) Ta 250 f=1MHz IE=0/IC=0 200 10 COLLECTOR POWER DISSIPATION PC (mW) C (pF) Ta=25 ℃ Cib CAPACITANCE Cob 150 100 50 0 1 -0.1 -1 REVERSE VOLTAGE http://www.microdiode.com -10 VR (V) -20 0 25 50 75 AMBIENT TEMPERATURE Rev:2024A1 100 Ta 125 150 (℃) Page :2 S9015 Outlitne Drawing SOT-23 Package Outline Dimensions e Suggested Pad Layout 0.037 0.95 0.037 0.95 L L1 E E1 Symbol A A1 b c D E E1 e L L1 θ Dimensions In Millimeters Min Typ Max 0.90 1.40 0.10 0.00 0.30 0.50 0.20 0.08 2.80 2.90 3.10 1.20 1.60 2.80 2.25 1.80 1.90 2.00 0.10 0.50 0.4 0° 0.55 10° Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. 0.079 2.0 0.035 0.9 0.031 0.8 http://www.microdiode.com inches mm Rev:2024A1 Page :3 S9015 SOT-23 Tape and Reel Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A1 Page :4
