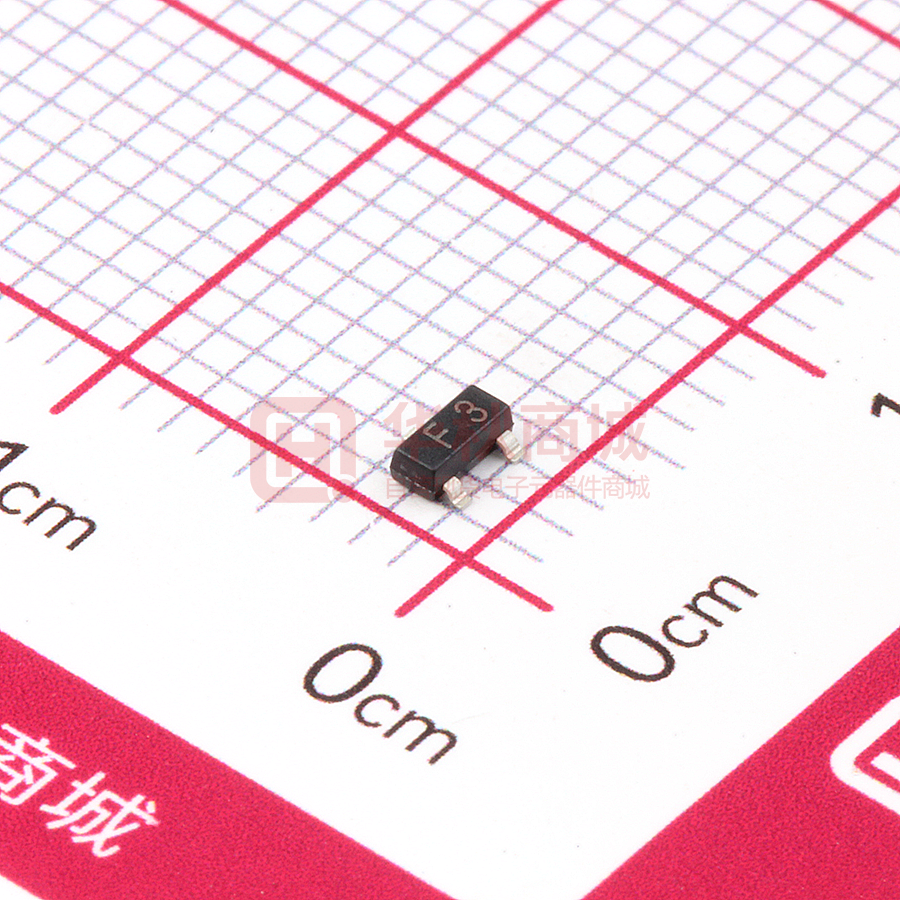

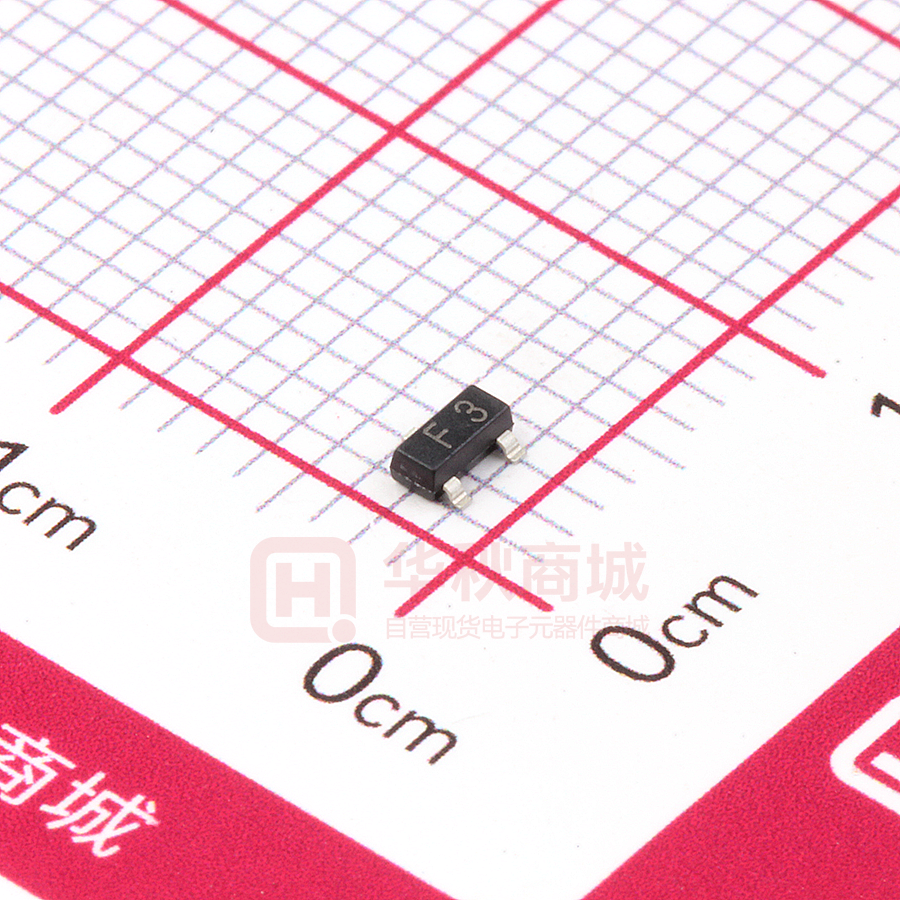

UMW 1SS193
SOT-23 Plastic-Encapsulate Diodes
1SS193
Switching Diodes
FEATURES:
● LOW Forward Voltage
● Fast Reverse Recovery Time
MARKING:
F3
Solid dot = Green molding compound device, if none,the normal device.
Maximum ratings (@Ta=25℃)
Parameter
Symbol
Limit
Unit
VRM
85
V
DC Blocking Voltage
VR
80
V
Forward Continuous Current
IFM
300
mA
IO
100
mA
IFSM
2.0
A
PD
150
mW
RθJA
833
℃/W
TJ
150
℃
TSTG
-55~+150
℃
Non-Repetitive Peak Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current @t=8.3ms
Power Dissipation
Thermal Resistance from Junction to Ambient
Junction Temperature
Storage Temperature Range
Electrical Characteristics (@Ta=25℃)
Parameter
Symbol
Test Condition
Min
V(BR)
IR=100μA
80
VF1
IF=1mA
0.61
V
VF2
IF=10mA
0.74
V
VF3
IF=100mA
0.92
IR1
Reverse breakdown voltage
Forward voltage
Typ
Max
Unit
V
1.2
V
VR=30V
0.1
uA
IR2
VR=80V
0.5
uA
Capacitance between terminals
CT
VR=0V,f=1MHz
1
3.0
PF
Reverse recovery time
trr
IF=IR=10mA,Irr=0.1×IR
1.6
4.0
nS
Reverse current
