NTR4003N
N-Channel Enhancement Mode Field Effect Transistor
Product Summary
● VDS
● ID
● RDS(ON)( at VGS=4.5V)
● RDS(ON)( at VGS=3.7V)
30V
560mA
<1.5ohm
<2.5ohm
General Description
● Trench Power MV MOSFET technology
● Voltage controlled small signal switch
● Low input Capacitance
● Fast Switching Speed
● Low Input / Output Leakage
Applications
● Battery operated systems
● Solid-state relays
● Direct logic-level interface:TTL/CMOS
■ Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Parameter
Symbol
Limit
Drain-source Voltage
VDS
30
V
Gate-source Voltage
VGS
±20
V
Drain Current
ID
560
mA
Pulsed Drain Current A
IDM
1.7
A
Total Power Dissipation @ TA=25℃
PD
690
mW
RθJA
357
℃/ W
TJ ,TSTG
-55~+150
℃
Thermal Resistance Junction-to-Ambient @ Steady State B
Junction and Storage Temperature Range
www.slkormicro.com
1
Unit
NTR4003N
■ Electrical Characteristics (TJ=25℃ unless otherwise noted)
Parameter
Symbol
Conditions
Min
Typ
Max
Units
Drain-Source Breakdown Voltage
BVDSS
VGS= 0V, ID=250μA
30
Zero Gate Voltage Drain Current
IDSS
VDS=30V,VGS=0V
1
μA
Gate-Body Leakage Current
IGSS1
VGS= ±20V, VDS=0V
±1
μA
Gate Threshold Voltage
VGS(th)
VDS= VGS, ID=250μA
1.6
V
Static Drain-Source On-Resistance
RDS(ON)
Static Parameter
Diode Forward Voltage
Maximum Body-Diode Continuous Current
V
0.8
VGS= 4.5V, ID=10mA
1.2
1.5
VGS= 3.7V, ID=10mA
1.9
2.5
Ω
VSD
IS=300mA,VGS=0V
IS
1.2
V
100
mA
Dynamic Parameters
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
17.5
VDS=25V,VGS=0V,f=1MHZ
11.5
pF
6.5
Switching Parameters
Total Gate Charge
Qg
Turn-on Delay Time
tD(on)
Turn-off Delay Time
tD(off)
Reverse recovery Time
trr
VGS=10V,VDS=25V,ID=0.3A
VGS=10V,VDD=25V, ID=100mA,
RGEN=6Ω
VGS=0V,IS=300mA,VR=25V, dIS/dt=100A/μs
A. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%.
B. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch.
www.slkormicro.com
2
1.7
2.4
nC
5
ns
17
30
ns
NTR4003N
■ Typical Performance Characteristics
Figure1. Output Characteristics
Figure2. Transfer Characteristics
Figure3. Capacitance Characteristics
Figure4. Gate Charge
Figure5. Drain-Source on Resistance
www.slkormicro.com
Figure6. Drain-Source on Resistance
3
NTR4003N
Figure7. Safe Operation Area
www.slkormicro.com
Figure8. Switching wave
4
NTR4003N

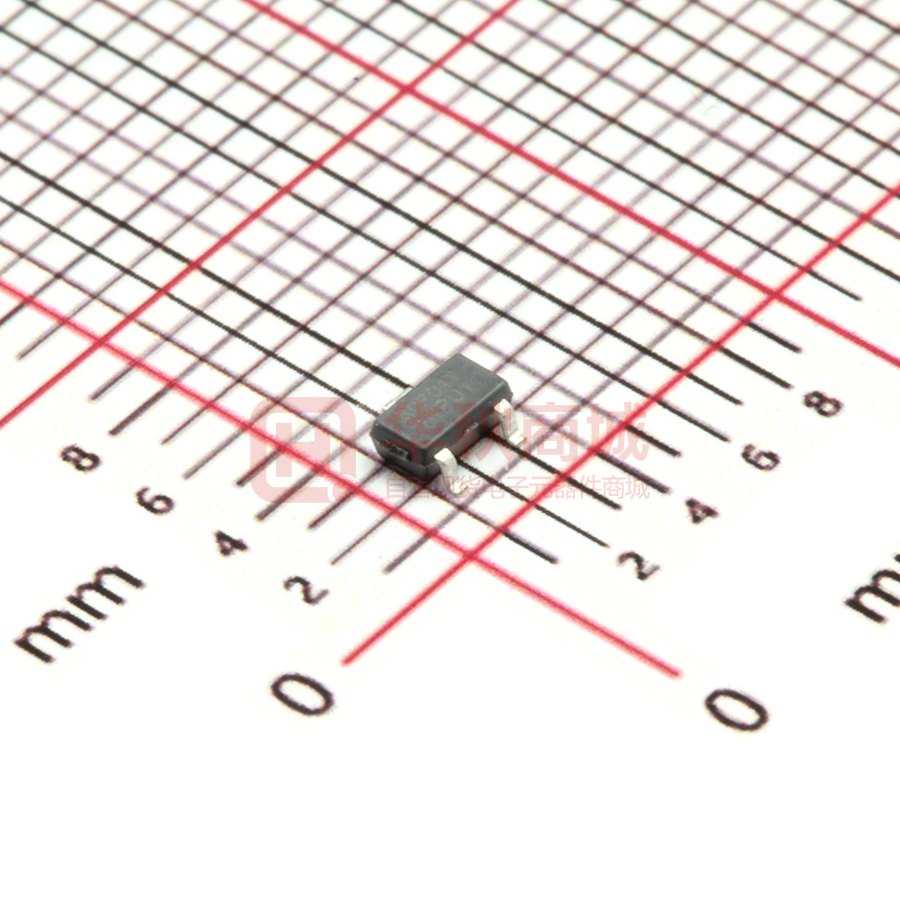

■ SOT-23 Package information
■SOT-23 Suggested Pad Layout
www.slkormicro.com
5
