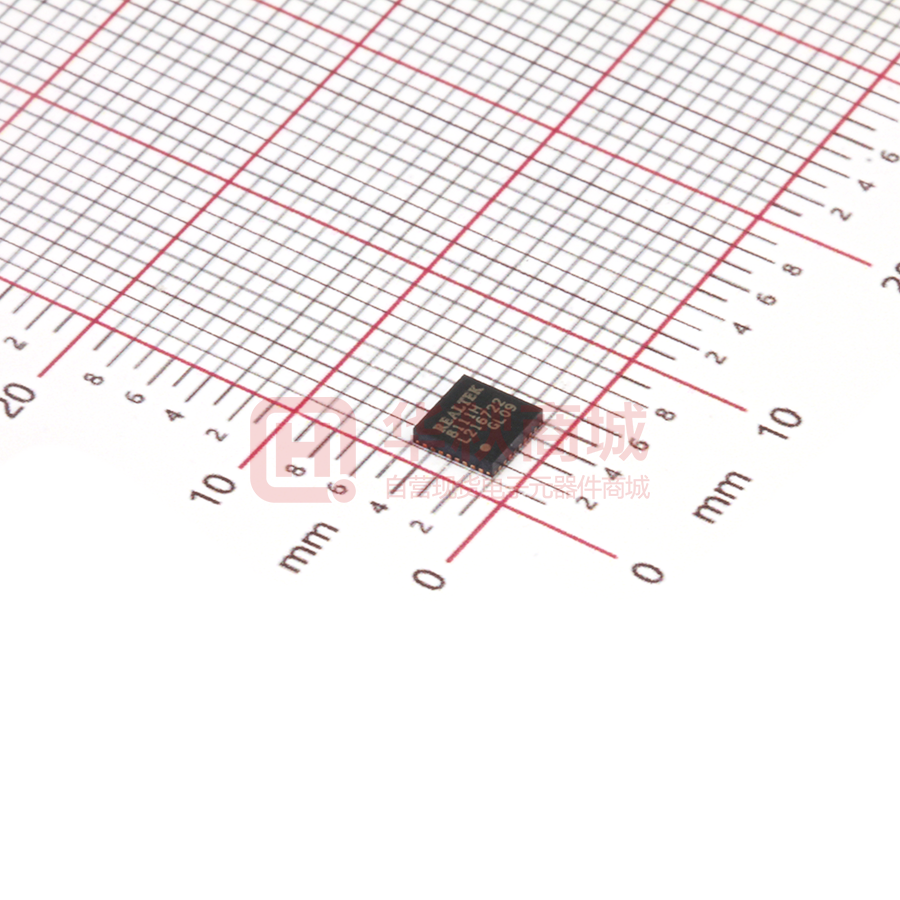

RTL8111H-CG
RTL8111HS-CG
INTEGRATED 10/100/1000M ETHERNET
CONTROLLER FOR PCI EXPRESS APPLICATIONS
DATASHEET
(CONFIDENTIAL: Development Partners Only)
Rev. 1.2
20 August 2014
Track ID: JATR-8275-15
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan
Tel.: +886-3-578-0211. Fax: +886-3-577-6047
www.realtek.com
RTL8111H/RTL8111HS
Datasheet
COPYRIGHT
©2014 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means without the written permission of Realtek Semiconductor Corp.
DISCLAIMER
Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements
and/or changes in this document or in the product described in this document at any time. This document
could include technical inaccuracies or typographical errors.
TRADEMARKS
Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document
are trademarks/registered trademarks of their respective owners.
LICENSE
This product is covered by one or more of the following patents: US5,307,459, US5,434,872,
US5,732,094, US6,570,884, US6,115,776, and US6,327,625.
USING THIS DOCUMENT
This document is intended for the software engineer’s reference and provides detailed programming
information.
Though every effort has been made to ensure that this document is current and accurate, more information
may have become available subsequent to the production of this guide.
REVISION HISTORY
Revision
1.0
1.1
Release Date
2014/01/21
2014/04/17
1.2
2014/08/20
Summary
First release.
Revised Table 20 Electrostatic Discharge Performance, page 24.
Revised Table 22 Oscillator Requirements, page 25.
Revised Table 24 DC Characteristics, page 26.
Added a new signal type code, type Ic, for 1.8V/3.3V compatible input, in section 6
Pin Descriptions, page 7.
Revised Minimum High Level Input Voltage for Ic Pinout, Table 24 DC
Characteristics, page 26.
Integrated 10/100/1000M Ethernet Controller for PCI Express
ii
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
Table of Contents
1.
GENERAL DESCRIPTION ..............................................................................................................................................1
2.
FEATURES .........................................................................................................................................................................3
3.
SYSTEM APPLICATIONS...............................................................................................................................................3
4.
FUNCTION BLOCK DIAGRAM.....................................................................................................................................4
5.
PIN ASSIGNMENTS .........................................................................................................................................................5
5.1.
5.2.
5.3.
5.4.
6.
PIN DESCRIPTIONS.........................................................................................................................................................7
6.1.
6.2.
6.3.
6.4.
6.5.
6.6.
6.7.
6.8.
7.
RTL8111H PIN ASSIGNMENTS ....................................................................................................................................5
PACKAGE IDENTIFICATION ...........................................................................................................................................5
RTL8111HS PIN ASSIGNMENTS ..................................................................................................................................6
PACKAGE IDENTIFICATION ...........................................................................................................................................6
POWER MANAGEMENT/ISOLATION ..............................................................................................................................7
PCI EXPRESS INTERFACE .............................................................................................................................................7
TRANSCEIVER INTERFACE ............................................................................................................................................8
CLOCK .........................................................................................................................................................................8
REGULATOR AND REFERENCE ......................................................................................................................................8
LEDS ...........................................................................................................................................................................9
POWER AND GROUND ..................................................................................................................................................9
GPO PIN ......................................................................................................................................................................9
FUNCTIONAL DESCRIPTION.....................................................................................................................................10
7.1.
PCI EXPRESS BUS INTERFACE....................................................................................................................................10
7.1.1. PCI Express Transmitter ......................................................................................................................................10
7.1.2. PCI Express Receiver ...........................................................................................................................................10
7.2.
CUSTOMIZABLE LED CONFIGURATION ......................................................................................................................11
7.2.1. LED Blinking Frequency Control.........................................................................................................................13
7.3.
PHY TRANSCEIVER ...................................................................................................................................................14
7.3.1. PHY Transmitter...................................................................................................................................................14
7.3.2. PHY Receiver .......................................................................................................................................................14
7.3.3. Link Down Power Saving Mode ...........................................................................................................................15
7.3.4. Next Page .............................................................................................................................................................15
7.4.
POWER MANAGEMENT...............................................................................................................................................15
7.5.
RECEIVE-SIDE SCALING (RSS) ..................................................................................................................................17
7.5.1. Receive-Side Scaling (RSS) Initialization .............................................................................................................17
7.5.2. Protocol Offload...................................................................................................................................................18
7.5.3. RSS Operation ......................................................................................................................................................18
7.6.
ENERGY EFFICIENT ETHERNET (EEE)........................................................................................................................18
7.7.
PHY DISABLE MODE .................................................................................................................................................19
7.8.
LATENCY TOLERANCE REPORTING (LTR) .................................................................................................................19
7.9.
WAKE PACKET INDICATION (WPI) ............................................................................................................................19
7.10.
‘REALWOW!’ (WAKE-ON-WAN) TECHNOLOGY ......................................................................................................19
7.11.
L1.OFF AND L1.SNOOZE ............................................................................................................................................20
7.12.
GIGA LITE (500M) .....................................................................................................................................................20
7.13.
XTAL-LESS WAKE-ON-LAN....................................................................................................................................20
7.14.
LAN DISABLE MODE .................................................................................................................................................20
8.
SWITCHING REGULATOR (RTL8111HS ONLY) ....................................................................................................21
9.
LDO REGULATOR (RTL8111H ONLY)......................................................................................................................21
Integrated 10/100/1000M Ethernet Controller for PCI Express
iii
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
10.
10.1.
11.
POWER SEQUENCE..................................................................................................................................................22
POWER SEQUENCE PARAMETERS ...............................................................................................................................23
CHARACTERISTICS.................................................................................................................................................24
11.1.
ABSOLUTE MAXIMUM RATINGS ................................................................................................................................24
11.2.
RECOMMENDED OPERATING CONDITIONS .................................................................................................................24
11.3.
ELECTROSTATIC DISCHARGE PERFORMANCE ............................................................................................................24
11.4.
CRYSTAL REQUIREMENTS ..........................................................................................................................................25
11.5.
OSCILLATOR REQUIREMENTS ....................................................................................................................................25
11.6.
ENVIRONMENTAL CHARACTERISTICS ........................................................................................................................25
11.7.
DC CHARACTERISTICS ...............................................................................................................................................26
11.8.
REFLOW PROFILE RECOMMENDATIONS .....................................................................................................................27
11.9.
PCI EXPRESS BUS PARAMETERS ................................................................................................................................28
11.9.1.
Differential Transmitter Parameters ...............................................................................................................28
11.9.2.
Differential Receiver Parameters ....................................................................................................................29
11.9.3.
REFCLK Parameters.......................................................................................................................................29
11.9.4.
Auxiliary Signal Timing Parameters ...............................................................................................................33
12.
MECHANICAL DIMENSIONS.................................................................................................................................34
13.
ORDERING INFORMATION ...................................................................................................................................35
Integrated 10/100/1000M Ethernet Controller for PCI Express
iv
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
List of Tables
TABLE 1.
TABLE 2.
TABLE 3.
TABLE 4.
TABLE 5.
TABLE 6.
TABLE 7.
TABLE 8.
TABLE 9.
TABLE 10.
TABLE 11.
TABLE 12.
TABLE 13.
TABLE 14.
TABLE 15.
TABLE 16.
TABLE 17.
TABLE 18.
TABLE 19.
TABLE 20.
TABLE 21.
TABLE 22.
TABLE 23.
TABLE 24.
TABLE 25.
TABLE 26.
TABLE 27.
TABLE 28.
TABLE 29.
TABLE 30.
POWER MANAGEMENT/ISOLATION ...............................................................................................................................7
PCI EXPRESS INTERFACE ..............................................................................................................................................7
TRANSCEIVER INTERFACE ............................................................................................................................................8
CLOCK ..........................................................................................................................................................................8
REGULATOR AND REFERENCE ......................................................................................................................................8
LEDS ............................................................................................................................................................................9
POWER AND GROUND ...................................................................................................................................................9
GPO PIN .......................................................................................................................................................................9
LED SELECT (IO REGISTER OFFSET 18H~19H) ..........................................................................................................11
CUSTOMIZED LEDS ...................................................................................................................................................11
FIXED LED MODE .....................................................................................................................................................11
LED FEATURE CONTROL-1........................................................................................................................................12
LED FEATURE CONTROL-2........................................................................................................................................12
LED OPTION 1 & OPTION 2 SETTINGS .......................................................................................................................12
LED BLINKING FREQUENCY CONTROL (IO OFFSET 1AH) .........................................................................................13
L1.OFF AND L1.SNOOZE PCIE PORT CIRCUIT ON/OFF ..............................................................................................20
POWER SEQUENCE PARAMETERS ...............................................................................................................................22
ABSOLUTE MAXIMUM RATINGS ................................................................................................................................24
RECOMMENDED OPERATING CONDITIONS .................................................................................................................24
ELECTROSTATIC DISCHARGE PERFORMANCE ............................................................................................................24
CRYSTAL REQUIREMENTS ..........................................................................................................................................25
OSCILLATOR REQUIREMENTS ....................................................................................................................................25
ENVIRONMENTAL CHARACTERISTICS ........................................................................................................................25
DC CHARACTERISTICS ...............................................................................................................................................26
REFLOW PROFILE RECOMMENDATIONS .....................................................................................................................27
DIFFERENTIAL TRANSMITTER PARAMETERS ..............................................................................................................28
DIFFERENTIAL RECEIVER PARAMETERS .....................................................................................................................29
REFCLK PARAMETERS .............................................................................................................................................29
AUXILIARY SIGNAL TIMING PARAMETERS.................................................................................................................33
ORDERING INFORMATION ..........................................................................................................................................35
List of Figures
FIGURE 1.
FIGURE 2.
FIGURE 3.
FIGURE 4.
FIGURE 5.
FIGURE 6.
FIGURE 7.
FIGURE 8.
FIGURE 9.
FIGURE 10.
FIGURE 11.
FIGURE 12.
FIGURE 13.
FUNCTION BLOCK DIAGRAM .......................................................................................................................................4
RTL8111H PIN ASSIGNMENTS ....................................................................................................................................5
RTL8111HS PIN ASSIGNMENTS ..................................................................................................................................6
LED BLINKING FREQUENCY EXAMPLE .....................................................................................................................13
POWER SEQUENCE .....................................................................................................................................................22
SINGLE-ENDED MEASUREMENT POINTS FOR ABSOLUTE CROSS POINT AND SWING ..................................................31
SINGLE-ENDED MEASUREMENT POINTS FOR DELTA CROSS POINT ...........................................................................31
SINGLE-ENDED MEASUREMENT POINTS FOR RISE AND FALL TIME MATCHING ........................................................31
DIFFERENTIAL MEASUREMENT POINTS FOR DUTY CYCLE AND PERIOD ....................................................................32
DIFFERENTIAL MEASUREMENT POINTS FOR RISE AND FALL TIME ...........................................................................32
DIFFERENTIAL MEASUREMENT POINTS FOR RINGBACK ............................................................................................32
REFERENCE CLOCK SYSTEM MEASUREMENT POINT AND LOADING .........................................................................33
AUXILIARY SIGNAL TIMING ......................................................................................................................................33
Integrated 10/100/1000M Ethernet Controller for PCI Express
v
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
1.
General Description
The Realtek RTL8111H-CG/RTL8111HS-CG 10/100/1000M Ethernet controller combines a triple-speed
IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI
Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode
signal technology, the RTL8111H/RTL8111HS offers high-speed transmission over CAT 5 UTP cable or
CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity
correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error
correction are implemented to provide robust transmission and reception capability at high speeds.
The RTL8111H/RTL8111HS supports the PCI Express 1.1 bus interface for host communications with
power management, and complies with the IEEE 802.3u specification for 10/100Mbps Ethernet and the
IEEE 802.3ab specification for 1000Mbps Ethernet. It supports an auxiliary power auto-detect function,
and will auto-configure related bits of the PCI power management registers in PCI configuration space.
The RTL8111H/RTL8111HS features embedded One-Time-Programmable (OTP) memory. The
RTL8111H provides a built-in LDO regulator, and the RTL8111HS provides a built-in switching
regulator.
Advanced Configuration Power management Interface (ACPI)—power management for modern
operating systems that are capable of Operating System-directed Power Management (OSPM)—is
supported to achieve the most efficient power management possible. PCI MSI (Message Signaled
Interrupt) and MSI-X are also supported.
In addition to the ACPI feature, remote wake-up (including AMD Magic Packet and Microsoft Wake-Up
Frame) is supported in both ACPI and APM (Advanced Power Management) environments. To support
WOL from a deep power down state (e.g., D3cold, i.e., main power is off and only auxiliary exists), the
auxiliary power source must be able to provide the needed power for the RTL8111H/RTL8111HS. To
further reduce power consumption, the RTL8111H/RTL8111HS also supports PCIe L1.Off and
L1.Snooze.
The RTL8111H/RTL8111HS supports ‘RealWoW!’ technology that enables remote wake-up of a sleeping
PC through the Internet. This feature allows PCs to reduce power consumption by remaining in low
power sleeping state until needed.
Note: The ‘RealWoW!’ service requires registration on first time use.
The RTL8111H/RTL8111HS supports Protocol offload. It offloads some of the most common protocols to
NIC hardware in order to prevent spurious wake-up and further reduce power consumption. The
RTL8111H/RTL8111HS can offload ARP (IPv4) and NS (IPv6) protocols while in the D3 power saving
state.
Integrated 10/100/1000M Ethernet Controller for PCI Express
1
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
The RTL8111H/RTL8111HS supports the ECMA (European Computer Manufacturers Association) proxy
for sleeping hosts standard. The standard specifies maintenance of network connectivity and presence via
proxies in order to extend the sleep duration of higher-powered hosts. It handles some network tasks on
behalf of the host, allowing the host to remain in sleep mode for longer periods. Required and optional
behavior of an operating proxy includes generating reply packets, ignoring packets, and waking the host.
The RTL8111H/RTL8111HS supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet
(EEE). IEEE 802.3az-2010 operates with the IEEE 802.3 Media Access Control (MAC) sublayer to
support operation in Low Power Idle mode. When the Ethernet network is in low link utilization, EEE
allows systems on both sides of the link to save power.
The RTL8111H/RTL8111HS is fully compliant with Microsoft NDIS5, NDIS6 (IPv4, IPv6, TCP, UDP)
Checksum and Segmentation Task-offload (Large send and Giant send) features, and supports IEEE 802
IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). The above
features contribute to lowering CPU utilization, especially benefiting performance when in operation on a
network server.
The RTL8111H/RTL8111HS supports Receive-Side Scaling (RSS) to hash incoming TCP connections
and load-balance received data processing across multiple CPUs. RSS improves the number of
transactions per second and number of connections per second, for increased network throughput.
The device features inter-connect PCI Express technology. PCI Express is a high-bandwidth,
low-pin-count, serial, interconnect technology that offers significant improvements in performance over
conventional PCI and also maintains software compatibility with existing PCI infrastructure.
The RTL8111H/RTL8111HS is suitable for multiple market segments and emerging applications, such as
desktop, mobile, workstation, server, communications platforms, and embedded applications.
Integrated 10/100/1000M Ethernet Controller for PCI Express
2
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
2.
Features
Hardware
LAN disable with GPIO pin
Integrated 10/100/1000M transceiver
Supports Giga Lite (500M) mode
Supports LTR (Latency Tolerance
Reporting)
Auto-Negotiation with Next Page capability
Wake-On-LAN and ‘RealWoW!’
Technology (remote wake-up) support
Supports PCI Express 1.1
Supports pair swap/polarity/skew correction
Supports 32-set 128-byte Wake-Up Frame
pattern exact matching
Crossover Detection & Auto-Correction
Supports 1-Lane 2.5Gbps PCI Express Bus
Supports Microsoft WPI (Wake Packet
Indication)
Embedded OTP memory
Supports PCIe L1.Off and L1.Snooze
Supports hardware ECC (Error Correction
Code) function
Supports hardware CRC (Cyclic
Redundancy Check) function
IEEE
Fully compliant with IEEE 802.3,
IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority
Encoding
Transmit/Receive on-chip buffer support
Supports PCI MSI (Message Signaled
Interrupt) and MSI-X
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az-2010 (EEE)
Supports 25MHz or 48MHz Oscillator
Built-in switching (RTL8111HS) and LDO
(RTL8111H) regulator
Supports Full Duplex flow control
(IEEE 802.3x)
Software Offload
Supports power down/link down power
saving/PHY disable mode
Customized LEDs
Controllable LED Blinking Frequency and
Duty Cycle
32-pin QFN ‘Green’ package
Supports EMAC-393 ECMA ProxZzzy
Standard for sleeping hosts
XTAL-Less Wake-On-LAN
3.
Microsoft NDIS5, NDIS6 Checksum
Offload (IPv4, IPv6, TCP, UDP) and
Segmentation Task-offload (Large send v1
and Large send v2) support
Supports jumbo frame to 9K bytes
Supports quad core Receive-Side Scaling
(RSS)
Supports Protocol Offload (ARP & NS)
System Applications
PCI Express 10/100/1000M Ethernet on Motherboard, Notebook, or Embedded systems
Integrated 10/100/1000M Ethernet Controller for PCI Express
3
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
4.
Function Block Diagram
Figure 1.
Function Block Diagram
Integrated 10/100/1000M Ethernet Controller for PCI Express
4
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
5.
Pin Assignments
LED 2
REGOUT
VDDREG
DVDD10
LANWAKEB
ISOLATEB
PERSTB
HSON
HSOP
5.1. RTL8111H Pin Assignments
24
23
22
21
20
19
18
17
25
16
REFCLK _N
LED 1/ GPO
26
15
REFCLK _P
LED0
27
14
HSI N
CKXTAL1
28
13
HSI P
CKXTAL2
29
12
CLKREQ B
AVDD10
30
11
AVDD33
RSET
31
10
MDIN3
9
MDIP3
REALTEK
8111H
LLLLLLL
GXXXV
33 GND ( Exposed Pad )
3
4
5
6
AVDD10
MDIP1
MDIN1
MDIP2
Figure 2.
7
8
AVDD10
2
MDIN2
1
MDIN0
32
MDIP0
AVDD33
RTL8111H Pin Assignments
5.2. Package Identification
Green package is indicated by the ‘G’ in GXXXV (Figure 2).
Integrated 10/100/1000M Ethernet Controller for PCI Express
5
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
5.3. RTL8111HS Pin Assignments
Figure 3.
RTL8111HS Pin Assignments
5.4. Package Identification
Green package is indicated by the ‘G’ in GXXXV (Figure 3).
Integrated 10/100/1000M Ethernet Controller for PCI Express
6
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
6.
Pin Descriptions
The signal type codes below are used in the following tables:
I: Input
O/D: Open Drain
Ic: 1.8V/3.3V compatible input
P: Power
O: Output
6.1. Power Management/Isolation
Symbol
LANWAKEB
ISOLATEB
Type
Pin No
Ic /O/D
21
Ic
20
Table 1. Power Management/Isolation
Description
Power Management Event (Open Drain; Active Low, 1.8V/3.3V compatible
input/output mode with a weak external pull up resistor).
Used to reactivate the PCI Express slot’s main power rails and reference clocks.
Isolate Pin (Active Low, 1.8V/3.3V compatible input).
Used to isolate the RTL8111H/RTL8111HS from the PCI Express bus. The
RTL8111H/RTL8111HS will not drive its PCI Express outputs (excluding
LANWAKEB) and will not sample its PCI Express input as long as the Isolate pin
is asserted. The isolate pin will follow the system state S0 to high, and S3/S4 to
low.
6.2. PCI Express Interface
Symbol
REFCLK_P
REFCLK_N
HSOP
HSON
HSIP
HSIN
PERSTB
CLKREQB
Type
I
I
O
O
I
I
Pin No
15
16
17
18
13
14
Ic
19
Ic /O/D
12
Table 2.
Description
PCI Express Interface
PCI Express Differential Reference Clock Source (100MHz ± 300ppm).
PCI Express Transmit Differential Pair.
PCI Express Receive Differential Pair.
PCI Express Reset Signal (Active Low, 1.8V/3.3V compatible input).
When the PERSTB is asserted at power-on state, the RTL8111H/RTL8111HS
returns to a pre-defined reset state and is ready for initialization and configuration
after the de-assertion of the PERSTB.
Reference Clock Request Signal (Open Drain; Active Low, 1.8V/3.3V compatible
input/output mode with a weak external pull up resistor).
This signal is used by the RTL8111H/RTL8111HS to request starting of the PCI
Express reference clock.
The signal is also used by the L1.off mechanism. In this case, CLKREQB can be
asserted by either the system or RTL8111H/RTL8111HS to initiate an L1 exit.
Integrated 10/100/1000M Ethernet Controller for PCI Express
7
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
6.3. Transceiver Interface
Symbol
MDIP0
Type
IO
Pin No
1
MDIN0
IO
2
MDIP1
IO
4
MDIN1
IO
5
MDIP2
MDIN2
MDIP3
MDIN3
IO
IO
IO
IO
6
7
9
10
Table 3. Transceiver Interface
Description
In MDI mode, this is the first pair in 1000Base-T, i.e., the BI_DA+/- pair, and is
the transmit pair in 10Base-T and 100Base-TX.
In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair
in 10Base-T and 100Base-TX.
In MDI mode, this is the second pair in 1000Base-T, i.e., the BI_DB+/- pair, and is
the receive pair in 10Base-T and 100Base-TX.
In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit
pair in 10Base-T and 100Base-TX.
In MDI mode, this is the third pair in 1000Base-T, i.e., the BI_DC+/- pair.
In MDI crossover mode, this pair acts as the BI_DD+/- pair.
In MDI mode, this is the fourth pair in 1000Base-T, i.e., the BI_DD+/- pair.
In MDI crossover mode, this pair acts as the BI_DC+/- pair.
6.4. Clock
Symbol
CKXTAL1
Type
I
Pin No
28
CKXTAL2
IO
29
Table 4. Clock
Description
Input of 25MHz or 48MHz Clock Reference.
Input of External Clock Source.
Output of 25MHz or 48MHz Clock Reference.
6.5. Regulator and Reference
Table 5. Regulator and Reference
Description
RTL8111HS: Switching Regulator 1.0V Output.
RTL8111H: LDO Regulator 1.0V Output.
VDDREG
P
23
Digital 3.3V Power Supply for Switching/LDO Regulator.
RSET
I
31
Reference (External Resistor Reference).
Note: See section 8 Switching Regulator, page 21, and section 9 LDO Regulator, page 21 for additional information.
Symbol
REGOUT
Type
O
Pin No
24
Integrated 10/100/1000M Ethernet Controller for PCI Express
8
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
6.6. LEDs
Table 6. LEDs
Symbol
Type
Pin No Description
27
See Section 7.2 Customizable LED Configuration, Page 11 for Details.
LED0
O
26
LED1/GPO
O
LED2
O
25
Note 1: During power down mode, the LED signals are logic high.
Note 2: The LED1 pin can be changed to a GPO pin. The setting is changed from the register. Only one function (LED1
or GPIO) may be selected at one time (Default: LED1). For GPO function details, see section 6.8 GPO Pin, page 9.
6.7. Power and Ground
Table 7. Power and Ground
Symbol
Type
Pin No
Description
AVDD10
P
3, 8, 30
Analog 1.0V Power Supply.
DVDD10
P
22
1.0V Power Supply.
GND
P
33
Ground (Exposed Pad).
AVDD33
P
11, 32
3.3V Power Supply.
Note: Refer to the latest schematic circuit for correct configuration.
6.8. GPO Pin
Table 8. GPO Pin
Symbol
Type
Pin No
Description
GPO/LED1
Ic/O
26
General Purpose Input/Output Pin (1.8V/3.3V compatible input, 3.3V output
only).
The setting is changed from the register. Only one function (LED1 or GPIO)
may be selected at one time (default: LED1).
Power Saving Feature: Output pin.
Link OK Feature: Output pin.
PHY Disable Mode (active low): Input pin.
Note: The LED1 pin can be changed to a GPO pin. The setting is changed from the register. Only one function (LED1 or
GPIO) may be selected at one time (Default: LED1).
Integrated 10/100/1000M Ethernet Controller for PCI Express
9
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.
Functional Description
7.1. PCI Express Bus Interface
The RTL8111H/RTL8111HS complies with PCI Express Base Specification Revision 1.1, and runs at a
2.5GHz signaling rate with X1 link width, i.e., one transmit and one receive differential pair. The
RTL8111H/RTL8111HS supports four types of PCI Express messages: interrupt messages, error
messages, power management messages, and hot-plug messages. To ease PCB layout constraints, PCI
Express lane polarity reversal is supported.
7.1.1.
PCI Express Transmitter
The RTL8111H/RTL8111HS’s PCI Express block receives digital data from the Ethernet interface and
performs data scrambling with Linear Feedback Shift Register (LFSR) and 8B/10B coding technology
into 10-bit code groups. Data scrambling is used to reduce the possibility of electrical resonance on the
link, and 8B/10B coding technology is used to benefit embedded clocking, error detection, and DC
balance by adding an overhead to the system through the addition of two extra bits. The data code groups
are passed through its serializer for packet framing. The generated 2.5Gbps serial data is transmitted onto
the PCB trace to its upstream device via a differential driver.
7.1.2.
PCI Express Receiver
The RTL8111H/RTL8111HS’s PCI Express block receives 2.5Gbps serial data from its upstream device
to generate parallel data. The receiver’s PLL circuits are re-synchronized to maintain bit and symbol lock.
Through 8B/10B decoding technology and data de-scrambling, the original digital data is recovered and
passed to the RTL8111H/RTL8111HS’s internal Ethernet MAC to be transmitted onto the Ethernet media.
Integrated 10/100/1000M Ethernet Controller for PCI Express
10
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.2. Customizable LED Configuration
The RTL8111H/RTL8111HS supports customizable LED operation modes via IO register offset 18h~19h.
Table 9 describes the different LED actions.
Bit
15:12
11:8
7:4
3:0
Symbol
LEDCntl
LEDSEL2
LEDSEL1
LEDSEL0
Table 9.
RW
RW
RW
RW
RW
LED Select (IO Register Offset 18h~19h)
Description
LED Feature Control.
LED Select for PINLED2.
LED Select for PINLED1.
LED Select for PINLED0.
When implementing customized LEDs:
Configure IO register offset 18h~19h to support your own LED signals. For example, if the value in the
IO offset 0x18 is 0x0CA9h (0000110010101001b), the LED actions are:
•
LED 0: On only in 10M mode, with blinking during TX/RX
•
LED 1: On only in 100M mode, with blinking during TX/RX
•
LED 2: On only in 1000M mode, with blinking during TX/RX
Speed
LED 0
LED 1
LED 2
Feature Control
Link 10M
Bit 0
Bit 4
Bit 8
Bit 12
Table 10. Customized LEDs
LINK
Link 100M
Link 1000M
Bit 1
Bit 2
Bit 5
Bit 6
Bit 9
Bit 10
Bit 13
Bit 14
ACT/Full
Bit 3
Bit 7
Bit 11
Bit 15
Note: There are two special modes:
LED OFF Mode: Set all bits to 0. All LED pin output become floating (power saving).
Fixed LED Mode: Set Option 1 LED table Mode: LED0=LED1=LED2=1 or 2 (see Table 11).
Bit31~Bit0 Value
1XXX 0001 0001 0001
1XXX 0010 0010 0010
Note: ‘X’ indicates ‘irrelevant’.
Table 11. Fixed LED Mode
LED0
LED1
ACT
LINK
Transmit
LINK
Integrated 10/100/1000M Ethernet Controller for PCI Express
11
LED2
Full Duplex + Collision
Receive
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
Table 12. LED Feature Control-1
Bit12
Bit13
Bit14
LED0 Low Active
LED1 Low Active
LED2 Low Active
Feature Control
0
1
LED0 High Active
LED Pin
LINK=0
LINK>0
10
LED1 High Active
LED2 High Active
Bit15
Indicates Option 1 of Table 14
is Selected
Indicates Option 2 of Table 14
is Selected
Table 13. LED Feature Control-2
ACT=0
ACT=1
Floating
All Speed ACT
Selected Speed LINK Option 1 (see Table 14): Selected Speed LINK+ Selected Speed ACT
Option 2 (see Table 14): Selected Speed LINK+ All Speed ACT
Link Bit
100
1000
Table 14. LED Option 1 & Option 2 Settings
Active Bit
Description
Link
Option 1 LED
Activity
0
LED Off
1
Act10+Act100+Act1000
0
Link1000
1
Link1000
Act1000
0
Link100
1
Link100
Act100
0
Link100+Link1000
1
Link100+Link1000
Act100+Act1000
0
Link10
1
Link10
Act10
0
Link10+Link1000
1
Link10+Link1000
Act10+Act1000
0
Link10+Link100
1
Link10+Link100
Act10+Act100
0
Link10+Link100+Link1000
1
Link10+Link100+Link1000
Act10+Act100+Act1000
0
0
0
0
0
0
0
0
1
0
0
1
0
1
0
0
1
0
0
1
1
0
1
1
1
0
0
1
0
0
1
0
1
1
0
1
1
1
0
1
1
0
1
1
1
1
1
1
Note:
Act10 = LED blinking when Ethernet packets transmitted/received at 10Mbps.
Act100 = LED blinking when Ethernet packets transmitted/received at 100Mbps.
Act1000 = LED blinking when Ethernet packets transmitted/received at 1000Mbps.
Link10 = LED lit when Ethernet connection established at 10Mbps.
Link100 = LED lit when Ethernet connection established at 100Mbps.
Link1000 = LED lit when Ethernet connection established at 1000Mbps.
Integrated 10/100/1000M Ethernet Controller for PCI Express
12
Option 2 LED
Activity
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Act10+Act100+Act1000
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.2.1.
LED Blinking Frequency Control
The RTL8111H/RTL8111HS supports LED blinking frequency control via IO register offset 1Ah to
control user’s LED blinking frequency and duty cycle (see Table 15). If the IO offset 0x1A is 0x0B
(00001011b), the LED blinking frequency is 80ms and the duty cycle is 75%. The LED State is shown in
Figure 4.
Bit
3:2
1:0
Table 15. LED Blinking Frequency Control (IO Offset 1Ah)
RW
Description
RW
LED Blinking Frequency.
0: 240ms
1: 160ms (default)
2: 80ms
3: Link Speed Dependent
RW
LED Blinking Duty Cycle.
0: 12.5%
1: 25%
2: 50% (default)
3: 75%
Figure 4.
LED Blinking Frequency Example
Integrated 10/100/1000M Ethernet Controller for PCI Express
13
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.3. PHY Transceiver
7.3.1.
PHY Transmitter
Based on state-of-the-art DSP technology and mixed-mode signal processing technology, the
RTL8111H/RTL8111HS operates at 10/100/500/1000Mbps over standard CAT.5 UTP cable
(100/1000Mbps), 2-pair CAT.5 UTP cable (100/500Mbps), or CAT.3 UTP cable (10Mbps).
GMII (1000Mbps) Mode
The RTL8111H/RTL8111HS’s PCS layer receives data bytes from the MAC through the GMII interface
and performs the generation of continuous code-groups through 4D-PAM5 coding technology. These code
groups are passed through a waveform-shaping filter to minimize EMI effects, and are transmitted onto
the 4-pair CAT5 cable at 125MBaud/s through a D/A converter.
MII (100Mbps) Mode
The transmitted 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 25MHz (TXC), are converted into
5B symbol code through 4B/5B coding technology, then through scrambling and serializing, are
converted to 125MHz NRZ and NRZI signals. The NRZI signals are passed to the MLT3 encoder, then to
the D/A converter and transmitted onto the media.
MII (10Mbps) Mode
The transmitted 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 2.5MHz (TXC), are serialized into
10Mbps serial data. The 10Mbps serial data is converted into a Manchester-encoded data stream and is
transmitted onto the media by the D/A converter.
7.3.2.
PHY Receiver
GMII (1000Mbps) Mode
Input signals from the media pass through the sophisticated on-chip hybrid circuit to separate the
transmitted signal from the input signal for effective reduction of near-end echo. The received signal is
processed with state-of-the-art technology, e.g., adaptive equalization, BLW (Baseline Wander)
correction, cross-talk cancellation, echo cancellation, timing recovery, error correction, and 4D-PAM5
decoding. The 8-bit-wide data is recovered and is sent to the GMII interface at a clock speed of 125MHz.
The RX MAC retrieves the packet data from the receive MII/GMII interface and sends it to the RX
Buffer Manager.
MII (100Mbps) Mode
The MLT3 signal is processed with an ADC, equalizer, BLW (Baseline Wander) correction, timing
recovery, MLT3 and NRZI decoder, descrambler, 4B/5B decoder, and is then presented to the MII
interface in 4-bit-wide nibbles at a clock speed of 25MHz.
MII (10Mbps) Mode
The received differential signal is converted into a Manchester-encoded stream first. Next, the stream is
processed with a Manchester decoder and is de-serialized into 4-bit-wide nibbles. The 4-bit nibbles are
presented to the MII interface at a clock speed of 2.5MHz.
Integrated 10/100/1000M Ethernet Controller for PCI Express
14
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.3.3.
Link Down Power Saving Mode
The RTL8111H/RTL8111HS implements link-down power saving; greatly cutting power consumption
when the network cable is disconnected. The RTL8111H/RTL8111HS automatically enters link down
power saving mode ten seconds after the cable is disconnected from it. Once it enters link down power
saving mode, it transmits normal link pulses on its TX pins and continues to monitor the RX pins to
detect incoming signals. After it detects an incoming signal, it wakes up from link down power saving
mode and operates in normal mode according to the result of the connection.
7.3.4.
Next Page
If 1000Base-T mode is advertised, three additional Next Pages are automatically exchanged between the
two link partners. Users can set PHY Reg4.15 to 1 to manually exchange extra Next Pages via Reg7 and
Reg8 as defined in IEEE 802.3ab.
7.4. Power Management
The RTL8111H/RTL8111HS complies with ACPI (Rev 1.0, 1.0b, 2.0, 3.0), PCI Power Management (Rev
1.1), PCI Express Active State Power Management (ASPM), and Network Device Class Power
Management Reference Specification (V1.0a), such as to support an Operating System-directed Power
Management (OSPM) environment.
The RTL8111H/RTL8111HS can monitor the network for a Wake-Up Frame or a Magic Packet, and
notify the system via a PCI Express Power Management Event (PME) Message, Beacon, or the
LANWAKEB pin when such a packet or event occurs. The system can then be restored to a normal state
to process incoming jobs.
When the RTL8111H/RTL8111HS is in power down mode (D1~D3):
•
The RX state machine is stopped. The RTL8111H/RTL8111HS monitors the network for Wake-Up
events such as a Magic Packet and Wake-Up Frame in order to wake up the system. When in power
down mode, the RTL8111H/RTL8111HS will not reflect the status of any incoming packets in the ISR
register and will not receive any packets into the RX on-chip buffer.
•
The on-chip buffer status and packets that have already been received into the RX on-chip buffer
before entering power down mode are held by the RTL8111H/RTL8111HS.
•
Transmission is stopped. PCI Express transactions are stopped. The TX on-chip buffer is held.
•
After being restored to D0 state, the RTL8111H/RTL8111HS transmits data that was not moved into
the TX on-chip buffer during power down mode. Packets that were not transmitted completely last
time are re-transmitted.
The D3cold_support_PME bit (bit15, PMC register) and the Aux_I_b2:0 bits (bit8:6, PMC register) in PCI
configuration space depend on the existence of Aux power. If aux. power is absent, the above 4 bits are all
0 in binary.
Integrated 10/100/1000M Ethernet Controller for PCI Express
15
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
Magic Packet Wake-Up occurs only when the following conditions are met:
•
The destination address of the received Magic Packet is acceptable to the RTL8111H/RTL8111HS,
e.g., a broadcast, multicast, or unicast packet addressed to the current RTL8111H/RTL8111HS.
•
The received Magic Packet does not contain a CRC error.
•
The RTL8111H/RTL8111HS driver has set up the needed registers (automatically set), and the
corresponding wake-up method (message, beacon, or LANWAKEB) can be asserted in the current
power state.
•
The Magic Packet pattern matches, i.e., 6 * FFh + MISC (can be none) + 16 * DID (Destination ID)
in any part of a valid Ethernet packet.
A Wake-Up Frame event occurs only when the following conditions are met:
•
The destination address of the received Wake-Up Frame is acceptable to the RTL8111H/RTL8111HS,
e.g., a broadcast, multicast, or unicast address to the current RTL8111H/RTL8111HS.
•
The received Wake-Up Frame does not contain a CRC error.
•
The RTL8111H/RTL8111HS driver has set up the needed registers (automatically set).
•
The 16-bit CRC of the received Wake-Up Frame matches the 16-bit CRC of the sample Wake-Up
Frame pattern given by the local machine’s OS. Or, the RTL8111H/RTL8111HS is configured to
allow direct packet wake-up, e.g., a broadcast, multicast, or unicast network packet.
•
The 128 bytes of the received Wake-Up Frame exactly matches the 128 bytes of the sample Wake-Up
Frame pattern given by the local machine’s OS.
Note 1: 16-bit CRC: The RTL8111H/RTL8111HS supports 32-set 16-bit CRC Wake-Up Frames (covering
128 mask bytes from offset 0 to 127 of any incoming network packet).
CRC16 polynomial=x16+x12+x5+1.
Note 2: 128-byte Wake-Up Frame: The RTL8111H/RTL8111HS supports 32-set 128-byte Wake-Up
Frames. If enabled, the 16-bit CRC Wake-Up match will be disabled.
The corresponding wake-up method (message or LANWAKEB) is asserted only when the following
conditions are met:
•
The PME_En bit (bit8, PMCSR) in PCI Configuration Space is set to 1.
•
The RTL8111H/RTL8111HS may assert the corresponding wake-up method (message or
LANWAKEB) in the current power state or in isolation state, depending on the PME_Support
(bit15~11) setting of the PMC register in PCI Configuration Space.
•
A Magic Packet, LinkUp, or Wake-Up Frame has been received.
•
Writing a 1 to the PME_Status (bit15) of the PMCSR register in the PCI Configuration Space clears
this bit and causes the RTL8111H/RTL8111HS to stop asserting the corresponding wake-up method
(message or LANWAKEB) (if enabled).
Integrated 10/100/1000M Ethernet Controller for PCI Express
16
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
When the RTL8111H/RTL8111HS is in power down mode, e.g., D1~D3, the IO, and MEM accesses to
the RTL8111H/RTL8111HS are disabled. After a PERSTB assertion, the device’s power state is restored
to D0 automatically if the original power state was D3cold. There is almost no hardware delay at the
device’s power state transition. When in ACPI mode, the device does not support PME (Power
Management Enable) from D0 (this is the Realtek default setting). The setting may be changed from the
eFUSE, if required.
7.5. Receive-Side Scaling (RSS)
The RTL8111H/RTL8111HS complies with the Network Driver Interface Specification (NDIS) 6.0
Receive-Side Scaling (RSS) technology for the Microsoft Windows family of operating systems. RSS
allows packet receive-processing from a network adapter to be balanced across the number of available
computer processors, increasing performance on multi-CPU platforms.
7.5.1.
Receive-Side Scaling (RSS) Initialization
During RSS initialization, the Windows operating system will inform the RTL8111H/RTL8111HS that it
should store the following parameters: hash function, hash type, hash bits, indirection table,
BaseCPUNumber, and the secret hash key.
Hash Function
The default hash function is the Toeplitz hash function.
Hash Type
The hash types indicate which field of the packet needs to be hashed to get the hash result. There are
several combinations of these fields, mainly, TCP/IPv4, IPv4, TCP/IPv6, IPv6, and IPv6 extension
headers.
•
TCP/IPv4 requires hash calculations over the IPv4 source address, the IPv4 destination address, the
source TCP port and the destination TCP port.
•
IPv4 requires hash calculations over the IPv4 source address and the IPv4 destination address.
•
TCP/IPv6 requires hash calculations over the IPv6 source address, the IPv6 destination address, the
source TCP port and the destination TCP port.
•
IPv6 requires hash calculations over the IPv6 source address and the IPv6 destination address
(Note: The RTL8111H/RTL8111HS does not support the IPv6 extension header hash type in RSS).
Hash Bits
Hash bits are used to index the hash result into the indirection table
Indirection Table
The Indirection Table stores values that are added to the BaseCPUNumber to enable RSS interrupts to be
restricted from some CPUs. The OS will update the Indirection Table to rebalance the load.
Integrated 10/100/1000M Ethernet Controller for PCI Express
17
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
BaseCPUNumber
The lowest number CPU to use for RSS. BaseCPUNumber is added to the result of the indirection table
lookup.
Secret Hash Key
The key used in the Toeplitz function. For different hash types, the key size is different.
7.5.2.
Protocol Offload
Protocol offload is a task offload supported by Microsoft Windows 7. It maintains a network presence for
a sleeping higher power host. Protocol offload prevents spurious wake-up and further reduces power
consumption. It maintains connectivity while hosts are asleep, including receiving requests from other
nodes on the network, ignoring packets, generating packets while in the sleep state (e.g., the Ethernet
Controller will generate ARP responses if the same MAC and IPv4 address are provided in the
configuration data), and intelligently waking up host systems. The RTL8111H/RTL8111HS supports the
ECMA (European Computer Manufacturers Association) specification including proxy configuration and
management, IPv4 ARP, IPv6 NDP, and wake-up packets. The RTL8111H/RTL8111HS also supports
optional ECMA items such as QoS tagged packets and duplicate address detection.
7.5.3.
RSS Operation
After the parameters are set, the RTL8111H/RTL8111HS will start hash calculations on each incoming
packet and forward each packet to its correct queue according to the hash result. If the incoming packet is
not in the hash type, it will be forwarded to the primary queue. The hash result plus the BaseCPUNumber
will be indexed into the indirection table to get the correct CPU number. The RTL8111H/RTL8111HS
uses three methods to inform the system of incoming packets: inline interrupt, MSI, and MSIX.
Periodically the OS will update the indirection table to rebalance the load across the CPUs.
7.6. Energy Efficient Ethernet (EEE)
The RTL8111H/RTL8111HS supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet
(EEE), at 10Mbps, 100Mbps, 500Mbps, and 1000Mbps. It provides a protocol to coordinate transitions
to/from a lower power consumption level (Low Power Idle mode) based on link utilization. When no
packets are being transmitted, the system goes to Low Power Idle mode to save power. Once packets need
to be transmitted, the system returns to normal mode, and does this without changing the link status and
without dropping/corrupting frames.
To save power, when the system is in Low Power Idle mode most of the circuits are disabled, however,
the transition time to/from Low Power Idle mode is kept small enough to be transparent to upper layer
protocols and applications.
EEE also specifies a negotiation method to enable link partners to determine whether EEE is supported
and to select the best set of parameters common to both devices.
Refer to http://www.ieee802.org/3/az/index.html for more details.
Integrated 10/100/1000M Ethernet Controller for PCI Express
18
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.7. PHY Disable Mode
The RTL8111H/RTL8111HS can power down the PHY using board-level control signals.
7.8. Latency Tolerance Reporting (LTR)
The RTL8111H/RTL8111HS supports PCIe 3.0 LTR (Latency Tolerance Reporting).
The LTR mechanism enables Endpoints to report service latency requirements for Memory Reads/Writes.
The CPU utilizes LTR to determine transfers from low power (C7) to high power (C0) mode. See the
PCIe 3.0 specification for details.
7.9. Wake Packet Indication (WPI)
The RTL8111H/RTL8111HS supports Microsoft Wake Packet Indication (WPI) to provide Wake-Up
Frame information to the OS, e.g., PatternID, OriginalPacketSize, SavedPacketSize, SavedPacketOffset,
etc. WPI helps prevent unwanted/unauthorized wake-up of a sleeping computer. Refer to the Microsoft
Windows Hardware Certification Requirements for details.
Note: Wake Packet Indication (WPI) and Wake Packet Detection (WPD) are the same technology terms
defined by Microsoft, which terms both means the NIC is required to capture at least the first 128 bytes of
the packet causing the network wake and generate a status indication to the operating system.
7.10. ‘RealWoW!’ (Wake-On-WAN) Technology
The RTL8111H/RTL8111HS supports Realtek 'RealWoW!' technology that allows the
RTL8111H/RTL8111HS to send keep alive packets to the Wake Server when the PC is in
sleeping mode. Realtek 'RealWoW!' can pass wake-up packets through a NAT (Network
Address Translation) device. This feature allows PCs to reduce power consumption by
remaining in low power sleeping state until needed.
Users can login into the Wake Server via the Internet to wake the selected sleeping PC. Registration of
Account information to the Wake Server is required on first time use.
Integrated 10/100/1000M Ethernet Controller for PCI Express
19
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
7.11. L1.Off and L1.Snooze
The RTL8111H/RTL8111HS supports PCIe L1.Off and L1.Snooze power management features.
L1+CLKREQ# stops (or provides) the REFCLK to a device by toggling the CLKREQB pin to enter
L1.Off and L1.Snooze states (saving more power than L1+CLKREQ# only). Table 16 shows the PCIe
Port Circuit On/Off states.
State
L1
L1+CLKREQ#
L1.Snooze
L1.Off
Table 16. L1.Off and L1.Snooze PCIe Port Circuit On/Off
PLL
Common Mode Keeper
On
On
Off
On
Off
On
Off
Off
RX/TX
Off/Idle
Off/Idle
Off
Off
7.12. Giga Lite (500M)
The RTL8111H/RTL8111HS supports Giga Lite (500M) mode that allows two link partners that both
support 1000Base-T and Giga Lite mode to transmit at 500Mbps data rate if only two pairs (AB pairs)
can be detected in the CAT.5 UTP cable. This feature is a Realtek proprietary feature and it conforms to
the 802.3az-2010(EEE) specification.
7.13. XTAL-Less Wake-On-LAN
The RTL8111H/RTL8111HS supports board level design with an External 25MHz or 48MHz Clock
Source instead of a Crystal.
The external clock source may stop generating the clock when in suspend mode (S3/S4/S5). To support
the Wake-On-LAN function without an external clock source, the RTL8111H/RTL8111HS will
automatically change its source clock from the external clock to an internal self-oscillating auxiliary clock
when it enters suspend mode. Note that when in suspend mode, the auxiliary clock can establish only a
10Mbps link and does not support ARP/NS offload and ECMA ProxZzzy.
7.14. LAN Disable Mode
The RTL8111H/RTL8111HS supports ‘LAN Disable Mode’. This mode can use an external signal to
control whether the NIC is enabled or disabled.
Integrated 10/100/1000M Ethernet Controller for PCI Express
20
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
8.
Switching Regulator (RTL8111HS Only)
The RTL8111HS incorporates a state-of-the-art switching regulator that requires a well-designed PCB
layout in order to achieve good power efficiency and lower the output voltage ripple and input overshoot.
Note that the switching regulator 1.0V output pin (REGOUT) must be connected only to DVDD10 and
AVDD10 (do not provide this power source to other devices).
9.
LDO Regulator (RTL8111H Only)
The RTL8111H incorporates a linear Low-Dropout (LDO) regulator that features high power supply
ripple rejection and low output noise. The RTL8111H embedded LDO regulator does not require power
inductors on the PCB; only a 1.0V output capacitor between its 1.0V output and analog ground for phase
compensation, which saves cost and PCB real estate.
The output capacitors (and bypass capacitors) should be placed as close as possible to the power pins
(AVDD10 and DVDD10) for adequate filtering.
Note that with regard to voltage conversion efficiency, LDO is inferior to a switching regulator. This
balance between cost, size, and efficiency should be taken into consideration when choosing the regulator
type.
Note: The embedded LDO is designed for the RTL8111H internal use only. Do not provide this power
source to other devices.
Integrated 10/100/1000M Ethernet Controller for PCI Express
21
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
10.
Power Sequence
Rt1
3.3V
2.5~2.6V
1.0V (REGOUT)
0V
Rt2
Rt3
Figure 5.
Power Sequence
Table 17. Power Sequence Parameters
Symbol
Description
Min
Typical
Rt1
3.3V Rise Time.
0.5
Rt2
3.3V Off Time.
50
Rt3
1.0V (REGOUT) Settle Time.
Note: See the following section for power sequence requirements.
Integrated 10/100/1000M Ethernet Controller for PCI Express
22
Max
100
15
Units
ms
ms
ms
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
10.1. Power Sequence Parameters
The RTL8111H/RTL8111HS does not support fast 3.3V rising under normal circumstances. The 3.3V rise
time must be controlled over 0.5ms.
Rise Time > 0.5ms
No action to take.
Rise Time 0.1ms~0.5ms
If the rise time is between 0.1ms and 0.5ms, the customer MUST ensure that there is at least three times
as much margin for inrush current to the RTL8111H/RTL8111HS so as to be safely under the system’s
3.3V OCP threshold.
For example:
•
Assume customer supply power rise time of the RTL8111H/RTL8111HS is 0.374ms
•
The system 3.3V OCP is 9A
•
The inrush current of other 3.3V devices is 5.64A
The inrush current to the RTL8111H/RTL8111HS must be less than 1.12A, otherwise an unanticipated
system OCP may be triggered. It can be expressed in the following formula:
Inrush current to the RTL8111H/RTL8111HS < (System 3.3V OCP - inrush current of other 3.3V devices)
/3
Rise Time < 0.1ms
If the rise time is less than 0.1ms, there is risk of an unanticipated ESD trigger event, which may cause
permanent damage to the RTL8111H/RTL8111HS.
If there is any action that involves consecutive ON/OFF toggling of the switching regulator source
(3.3V), the design must make sure the OFF state of both the switching regulator source (3.3V) and output
(1.0V) reach 0V, and the time period between the consecutive ON/OFF toggling action must be longer
than 50ms.
Integrated 10/100/1000M Ethernet Controller for PCI Express
23
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
11.
Characteristics
11.1. Absolute Maximum Ratings
WARNING: Absolute maximum ratings are limits beyond which permanent damage may be caused to the
device, or device reliability will be affected. All voltages are specified reference to GND unless otherwise
specified.
Table 18. Absolute Maximum Ratings
Symbol
Description
Minimum
AVDD33
Supply Voltage 3.3V
-0.3
AVDD10, DVDD10
Supply Voltage 1.0V
-0.3
3.3V DCinput
Input Voltage
-0.3
3.3V DCoutput
Output Voltage
1.0V DCinput
Input Voltage
-0.3
1.0V DCoutput
Output Voltage
N/A
Storage Temperature
-55
Note: Refer to the most updated schematic circuit for correct configuration.
Maximum
3.6
1.2
Unit
V
V
3.6
V
1.2
V
+125
°C
11.2. Recommended Operating Conditions
Table 19. Recommended Operating Conditions
Pins
Minimum
Typical
AVDD33
3.14
3.3
Supply Voltage VDD
AVDD10, DVDD10
0.95
1.0
Ambient Operating Temperature TA 0
Maximum Junction Temperature
Note: Refer to the most updated schematic circuit for correct configuration.
Description
Maximum
3.46
1.05
70
125
Unit
V
V
°C
°C
11.3. Electrostatic Discharge Performance
Table 20. Electrostatic Discharge Performance
Results
All Pins: |4KV|
All Pins: |150V|
All Pins: |1KV|
All MDI Pins: |8KV|
Cable ESD*
All Pairs: |16KV|
I/O Pins: 400mA
Latch Up
Power Pins: 1.5xVDD
Note: ‘All MDI pins’ means the ESD current is introduced to each MDI pin separately. ‘All pairs’ means the ESD current
is introduced to the aggregated MDI pairs.
Test Item
HBM ESD
MM ESD
CDM ESD
Integrated 10/100/1000M Ethernet Controller for PCI Express
24
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
11.4. Crystal Requirements
Table 21. Crystal Requirements
Description/Condition
Minimum
Typical Maximum
Unit
Parallel Resonant Crystal Frequency Tolerance,
25
MHz
Fref
Fundamental Mode, AT-Cut Type
Parallel Resonant Crystal Frequency Tolerance,
-30
+30
ppm
Fref Stability
Fundamental Mode, AT-Cut Type. Ta=0°C~70°C
Parallel Resonant Crystal Frequency Tolerance,
-50
+50
ppm
Fref Tolerance
Fundamental Mode, AT-Cut Type. Ta=25°C
Fref Duty Cycle Reference Clock Input Duty Cycle
40
60
%
ESR
Equivalent Series Resistance
30
Ω
Jitter
Broadband Peak-to-Peak Jitter
200
ps
DL
Drive Level
0.3
mW
Note 1: The CLK source can come from other places in the system, but it must accord with the parameters above.
Note 2: Broadband RMS=9ps; 25KHz to 25MHz RMS=3ps.
Symbol
11.5. Oscillator Requirements
Table 22. Oscillator Requirements
Parameter
Condition
Minimum
Typical
Maximum
Unit
Frequency
25/48
MHz
-30
+30
ppm
Frequency Stability
Ta = 0°C~70°C
-50
+50
ppm
Frequency Tolerance
Ta = 25°C
Duty Cycle
40
60
%
Broadband Peak-to-Peak Jitter
200
ps
Vih
1.4
V
Vil
0.4
V
Rise Time
10
ns
Fall Time
10
ns
0
70
Operation Temp Range
°C
Note 1: The CLK source can come from other places in the system, but it must accord with the parameters above.
Note 2: Broadband RMS=9ps; 25KHz to 48MHz RMS=3ps.
11.6. Environmental Characteristics
Table 23. Environmental Characteristics
Parameter
Range
Storage Temperature
-55 ~ +125
Ambient Operating Temperature
0 ~ 70
Moisture Sensitivity Level (MSL)
Level 3
Integrated 10/100/1000M Ethernet Controller for PCI Express
25
Units
°C
°C
N/A
Track ID: JATR-8275-15
Rev. 1.2
RTL8111H/RTL8111HS
Datasheet
11.7. DC Characteristics
Table 24. DC Characteristics
Parameter
Conditions
Minimum
3.3V Supply Mean
3.14
AVDD33
Voltage
AVDD10, 1.0V Supply Mean
0.95
DVDD10 Voltage
Minimum High Level
Ioh = -4mA
Voh
0.9*VDD33
Output Voltage
Maximum Low Level
Iol = 4mA
Vol
0
Output Voltage
Minimum High Level
Input Voltage for 3.3V &
1.57
1.8V compatible Pinout
Vih
Minimum High Level
2
Input Voltage for 3.3V
only Pinout
Maximum Low Level
Vil
Input Voltage
Iin
Input Current
Vin = VDD33 or GND
0
Average Operating Supply
At 1Gbps with heavy
Current from 3.3V (does
Icc33
NOT include 1.0V power
network traffic
consumption)
Average Operating Supply
At 1Gbps with heavy
Icc10
Current from 1.0V
network traffic
Average Operating Supply
At 1Gbps with heavy
Current for total system
Isys33
3.3V (includes 1.0V
network traffic
power consumption)
Note 1: Refer to the latest schematic circuit for correct configuration.
Note 2: All Supply Mean Voltage power noise
工商网监
湘ICP备2023018690号
