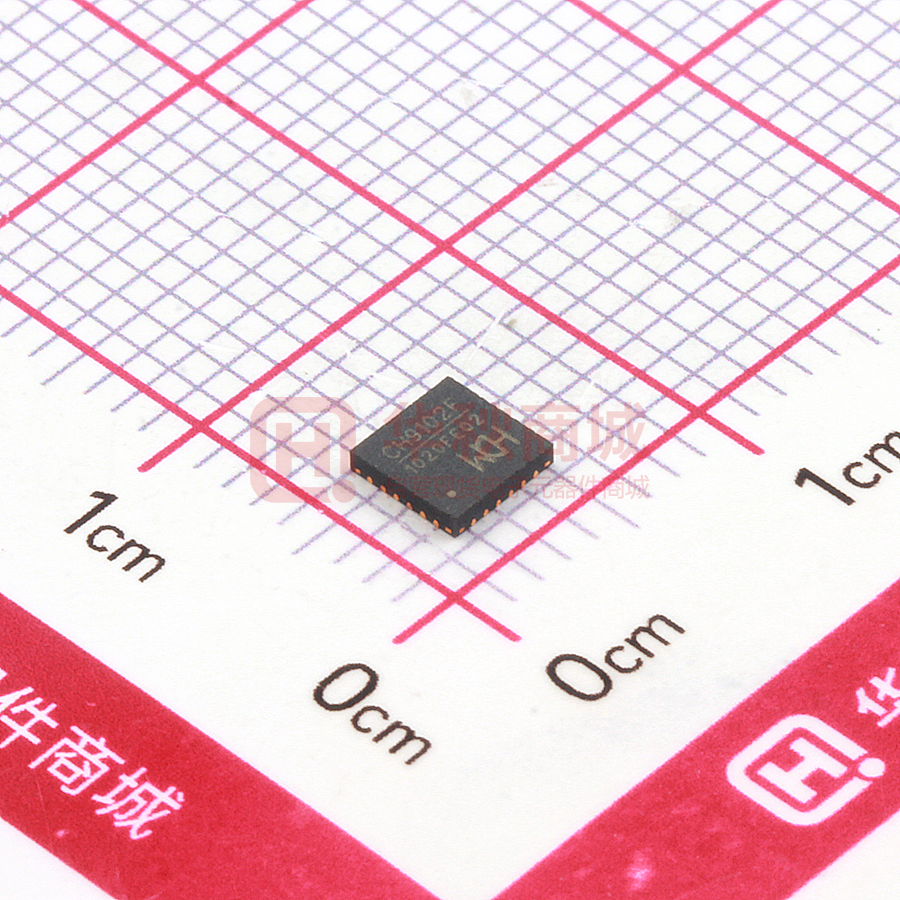

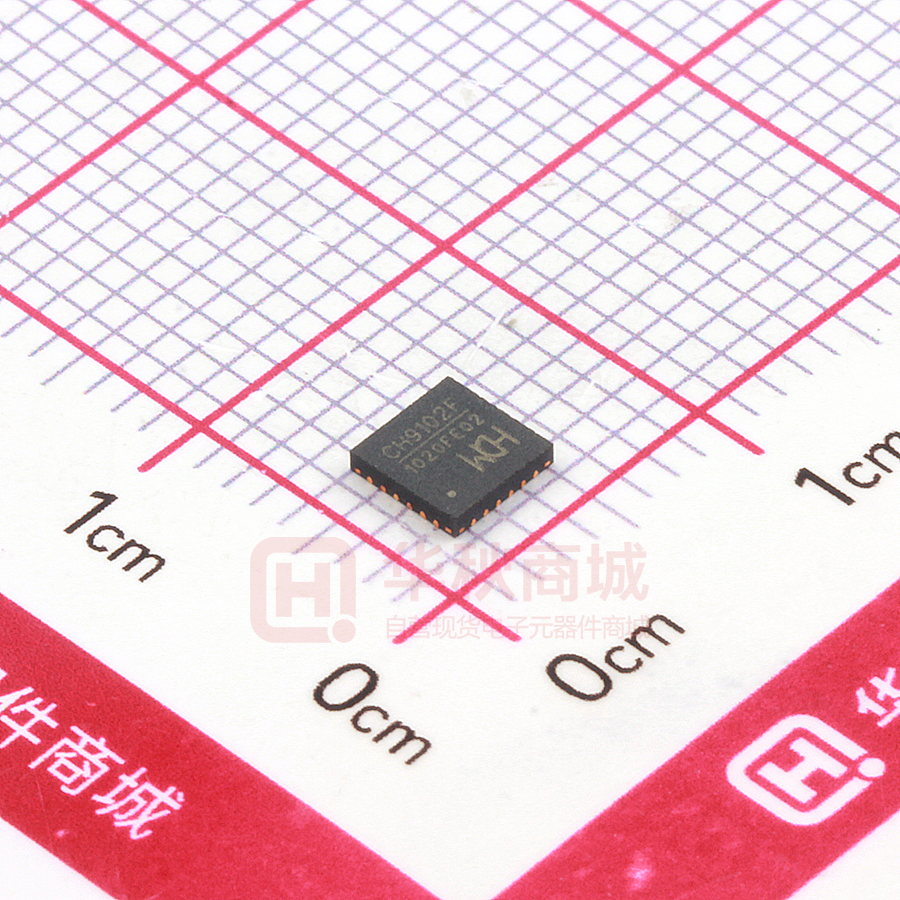

CH9102F

CH9102F

  • 厂商:

    WCH(南京沁恒)

  • 封装:

    QFN24_4X4MM_EP

  • 描述:

    USB 转串口芯片 QFN24_4X4MM_EP

  • 数据手册
  • 价格&库存
CH9102F 数据手册
1 CH9102 DataSheet USB to High Speed Serial Port Chip CH9102 DataSheet Version: 1A http://wch.cn 1. Introduction CH9102 is a USB bus converter chip, which converts USB to serial UART interface. CH9102 provides common MODEM signal, to expand UART interface of computer or upgrade common serial devices or MCU to USB bus directly. VIO VDD5 Computer or other USB host USB CH9102 convert chip UART/RS232/RS485/RS422 2. Features l Full speed USB device interface, USB 2.0 compatible. l Built-in firmware, emulate standard UART interface, used to upgrade the original serial peripherals or expand additional serial UART via USB. l Original serial applications are totally compatible without any modification. l Support free-installation operating system built-in CDC driver or multi-functional high-speed VCP manufacturer driver. l Hardware full duplex serial UART interface, integrated transmit-receive buffer, supports communication baud rate varies from 50bps to 4Mbps. l Supports 5, 6, 7 or 8 data bits, supports odd, even, blank, mark and no parity. l Supports common MODEM interface signals RTS, DTR, DCD, RI, DSR and CTS. l Supports CTS and RTS hardware automatic flow control. l Supports half-duplex, provides sending status TNOW supports RS485 switch. l Provides further RS232 interface, through external voltage conversion chip. l Supports 5V and 3.3V power supply. l CH9102F serial port interface I/O powered independently, support 5V, 3.3V, 2.5V, 1.8V power supply voltage. l CH9102X serial port interface I/O only supports 3.3V voltage. l Built-in power-on reset, built-in clock, no external crystal required. l RoHS compliant QFN24 and QFN28 PB-free package. 2 CH9102 DataSheet 3. Packages Package Width Of Plastic Pitch Of Pin Instruction Of Package Ordering Information QF24_4X4 4*4mm 0.5mm 19.7mil Ultra-small square without lead 24-pin CH9102F QF28_5X5 5*5mm 0.5mm 19.7mil Ultra-small square without lead 28-pin CH9102X Note: The backplane of the CH9102F and CH9102X is 0# pin GND, which is an optional connection, but suggested connection; other GND are necessary connections. CH9102X VIO pins and V3 pins have been short-circuited internally. 4. Pin Out QNF24 Pin No. QNF28 Pin No. Pin Name Pin Type 7 7 VDD5 POWER Power supply voltage input, requires an external 0.1uF decoupling capacitor 5 V3 Connected to VIO internally VIO POWER I/O power supply voltage input, requires an external 0.1uF decoupling capacitor 2,0 3, 0 GND POWER Ground 6 6, 22 V3 9 9 RST Pin Description Internal voltage regulator output and kernel and USB power supply input. When VDD5 voltage is less than 3.6V, connects to POWER VDD5. When VDD5 voltage is more than 3.6V, connects to external 0.1uF decoupling capacitor IN Input of external reset, active low, integrated pull-up 3 CH9102 DataSheet resistor 3 4 UD+ USB signal Connect to USB D+ Signal directly 4 5 UD- USB signal Connect to USB D- Signal directly 8 8 VBUS IN VBUS status detection input of USB bus, integrated pull-down resistor 21 26 TXD OUT Transmit asynchronous data output, idle state is high level 20 25 RXD IN Receive asynchronous data input, integrated pull-up resistor 18 23 CTS IN MODEM input signal, clear to send, active low 22 27 DSR IN MODEM input signal, data set ready, active low 1 2 RI IN MODEM input signal, ring indicator , active low 24 1 DCD IN MODEM input signal, data carrier detect, active low 23 28 DTR OUT MODEM output signal, data terminal ready, active low 19 24 RTS OUT MODEM output signal, request to send, active low 15 11 SUSPEND# OUT USB suspend state output, active low, normal working state output high level, output low level after suspension 17 12 SUSPEND OUT USB suspend state output, active high, normal working state output low level, output high level after suspension 11 16 WAKEUP/ GPIO3 USB wake-up event detects input, low active, built-in IN/ pull-up resistor (IN/OUT) GPIO3, configurable input or output 12 17 TNOW/ GPIO2 OUT/ The serial port sends the status indication in progress, active high (IN/OUT) GPIO2, configurable input or output 13 18 RXS/GPIO1 OUT/ The RXD pin input state indicator (IN/OUT) GPIO1, configurable input or output 14 19 TXS/GPIO0 OUT/ The TXD pin output state indicator (IN/OUT) GPIO0, configurable input or output NONE 20 GPIO6 IN/OUT GPIO6, configurable input or output NONE 21 GPIO5 IN/OUT GPIO5, configurable input or output 16 NONE GPIO4 IN/OUT GPIO4, configurable input or output 10 10 ACT# OUTPUT NONE 13, 14, 15 NC NONE USB configuration completed state output, active low, invalid when suspended No Connection, must be suspended 4 CH9102 DataSheet 5. Function Description 5.1. Power and power consumption The CH9102 has 3 power supplies and a built-in voltage regulator which generates 3.3V. VDD5 is the input of the power regulator, V3 is the output of the voltage regulator and USB transceiver and core power supply input, and VIO is the I/O pin power supply. The CH9102 supports 5V or 3.3V supply voltage, and the V3 pin should be externally connected to a power decoupling capacitor with a capacity of about 0.1uF. When using 5V power supply(greater than 3.8V), VDD5 inputs external 5V power supply (for example, the USB bus power supply), the internal voltage regulator generates 3.3V on V3 which used by USB transceivers. When using 3.3V or lower operating voltage (less than 3.6V), V3 should be connected to VDD5, while input external 3.3V power supply. V3 still requires an external decoupling capacitor. VIO pin of CH9102 provides I/O power for serial port I/O and RST pin. It supports 1.8V~5V power supply voltage. VIO should use the same power supply as MCU and other peripherals. UD+, UD- and VBUS pins use V3 power supply, not VIO power supply. CH9102 automatically supports USB device suspension to save power consumption. In the USB suspend state, if the I/O output pin has no external load and the I/O input pin is floating (internally pulled up) or in a high level state, the VIO power supply will not consume current. In addition, when V3 and VDD5 lose power and are at a voltage of 0V, the current consumption of VIO is the same as above, and VIO will not flow backwards current to VDD5 or V3. VBUS should be connected to USB bus power supply, and when the loss of USB power is detected, CH9102 will turn off the USB and sleep (hang up). CH9102 provides VIO low-voltage protection mechanism when VBUS connects with resistor in series and used to control VIO power through PMOS. During the shutdown of the VBUS pull down resistance, if VIO voltage is detected to be lower than about 1.4V, then CH9102 will automatically absorb about 300uA discharge current on VBUS, until the end of the discharge current after the VIO voltage rises, and enables the pull-down resistance automatically. Several power connection schemes for reference here: Power supply scheme All USB power supply UART signals voltage MCU operating voltage V3 Not less than V3 voltage Rated around 3.3V Both use the same power supply, 1.8V~5V 5V USB powered 5V Connects to capacitor only USB powered 5V 3.3V USB powered 5V Connects to capacitor Powered by V3 for 3.3V, up to 10mA 3.3V 1.8V~4V VIO MCU or peripheral power supply VDD5 USB 5V power stepped down to 3.3V via external LDO power regulator, V3 connects to external capacitor USB powered 5V Connects to capacitor only USB powered by external LDO regulator 5 CH9102 DataSheet USB+ self-powered Dual power supply All self-powered 1.8V~5V USB powered 5V Connects to capacitor only Self-powered 1.8V~5V (1.8V,2.5V,3.3V,5V) 4V~5V Self-powered 4V~5V Connects to capacitor only Self-powered 4V~5V 1.8V~5V Self-powered, rated 3.3V, connects to external capacitor Self-powered 1.8V~5V VIO and V3 of CH9102X have been shorted internally. VIO uses the 3.3V power output by the internal voltage regulator LDO. CH9102X only supports 3.3V serial port signals. 5.2. UART In serial UART mode, CH9102 contains: data transfer pins, MODEM interface signals and assistant pins. Data transfer pins contain: TXD and RXD. RXD should be high when UART input is idle. When UART output is idle, TXD is high level. MODEM interface signals contain: CTS, DSR, RI, DCD, DTR and RTS. All these MODEM interface signals are controlled and function defined by computer applications. Assistant pins contain: SUSPEND#, SUSPEND, WAKEUP, RXS, TXS, ACT#, etc. SUSPEND# and SUSPEND are the output signals to indicate suspend states of the chip. When the chip is in the normal working state, the SUSPEND# pin outputs a high level, and the SUSPEND pin outputs a low level; when the chip is in a suspend state, the SUSPEND# pin outputs low level, SUSPEND pin outputs high level. WAKEUP is the USB wake-up event detection input pin. It is low active and has a built-in pull-up resistor. RXS is the output pin of UART receiving data status, TXS is the output pin of UART sending data status. ACT# is USB device configuration complete status output, which can be used to notify the MCU or drive the LED which connects to the VIO through the current limiting resistor. CH9102 supports CTS and RTS hardware automatic flow control, which can be enabled by software. If enabled, UART will continue to send the next data only when CTS is valid (active low), otherwise the UART transmission will be suspended; when the receiving buffer is empty, UART will automatically set RTS to be valid (active low), it will automatically invalidate RTS until the data in the receiving buffer is nearly full, and RTS will be valid again when the buffer is empty. While using hardware automatic flow control, CTS of CH9102 should connect to RTS of the other side, and RTS of CH9102 should connect to CTS of the other side. CH9102 has integrated separate transmit-receive buffer and supports simplex, half-duplex and full duplex UART communication. UART data contains one low-level start bit, 5, 6, 7 or 8 data bits and 1 or 2 high-level stop bits, supports odd/even/mark/space parity. CH9102 supports common baud rate: 50, 75, 100, 110, 134.5, 150, 300, 600, 900, 1200, 1800, 2400, 3600, 4800, 9600, 14400, 19200, 28800, 33600, 38400, 56000, 57600, 76800, 115200, 128000, 153600, 230400, 256000, 307200, 460800, 921600, 1M, 1.5M, 2M, 6 CH9102 DataSheet 3M 4M etc. In applications with high communication baud rate, it is recommended to enable hardware automatic flow control. Full-speed USB is only 12Mbps, considering the protocol overhead and other factors, the serial port should be avoided in a continuous or full-duplex high-speed communication state of 3Mbps and above in applications. The allowable baud rate error of CH9102 UART reception is less than 2%, the baud rate error of UART transmission is less than 1.5%. On operating systems, CH9102 supports CDC class driver that comes with system, and VCP manufacturer driver could be installed to support high speed communication and other functions. It can simulate the standard serial port, so most serial port applications are fully compatible, usually without any modification. CH9102 can be used to upgrade the UART peripherals, or expand extra serial ports for computers via USB bus, provides further RS232, RS485, RS422 interface, etc. through external voltage conversion chip. 5.3. Clock and reset and others CH9102 has a built-in USB pull-up resistor, and the UD+ and UD- pins should be directly connected to the USB bus. CH9102 has built-in power-on reset circuit and a low-voltage reset circuit. It also monitors the voltage of the V3 pin and the VIO pin. When the V3 voltage is lower than VRV3 or the VIO voltage is lower than VRVIO, the chip will automatically reset by hardware. CH9102 has built-in clock generator, without external crystal and oscillation capacitor. In larger batch applications, the manufacturer identification such as VID, PID, product information and pin definition of CH9102 can be customized. 6. Parameters 6.1. Absolute Maximum Ratings (critical state or exceeding maximum can cause chip to not work or even be damaged) Name Parameter Description Min. Max. Unit TA Operating Ambient Temperature -40 85 ℃ TS Storage Temperature -55 105 ℃ VDD5 USB power supply voltage (VDD5 connects to power, GND to ground) -0.5 6.0 V VIO Serial port I/O power supply voltage (VIO connects to power, GND to ground) -0.5 6.0 V VVBUS Voltage on VBUS -0.5 6.5 V VUSB Voltage on USB signals -0.5 V3+0.5 V VUART Voltage on UART and other pins -0.5 VIO+0.5 V 6.2. Electrical Parameters (test conditions: TA=25℃,VCC=5V OR VDD5=V3=3.3V, VIO1.8~5V, exclude pins connected to USB 7 CH9102 DataSheet bus) Name VDD5 Parameter Description USB power supply voltage Min. Typical Max. V3 doesn’t connect to VDD5, V3 connected to capacitor 4.0 5 5.3 V3 connected to VDD5, VDD5=V3 3.0 3.3 3.6 1.7 5 5.5 V Unit V VIO Serial port I/O power supply voltage IVDD Operating VDD5 or V3 power supply current 3 15 mA IVIO Operating VIO Supply current 0 10 mA VDD5 power supply =5V 0.09 0.16 mA VDD5=V3 power supply =3.3V 0.005 0.02 mA VIO power supply, no I/O load/pull up 0.002 0.05 mA 10 mA ISLP ILDO VIL VIH VIHVBS VOL VOH IPUP Operating Supply Current(USB Suspend) External load capacity of internal power regulator Low-level input voltage High-level input voltage VBUS pin high level voltage Output Low Voltage Output High Voltage VIO=5V 0 1.5 V VIO=3.3V 0 0.9 V VIO=1.8V 0 0.5 V VIO=5V 2.5 VIO V VIO=3.3V 1.9 VIO V VIO=1.8V 1.2 VIO V VIO=1.8~5V 1.7 5.8 V VIO=5V, 15mA draw current 0.4 0.5 V VIO=3.3V, 8mA draw current 0.3 0.4 V VIO=1.8V, 3mA draw current 0.3 0.4 V VIO=5V, 10mA output current VIO-0.5 VIO-0.4 V VIO=3.3V, 5mA output current VIO-0.4 VIO-0.3 V VIO=1.8V, 2mA output current VIO-0.4 VIO-0.3 V VIO=5V 35 150 220 uA VIO=3.3V 15 60 90 uA VIO=1.8V 3 14 21 uA VBUS>1.6V 6 10 16 uA VBUS
