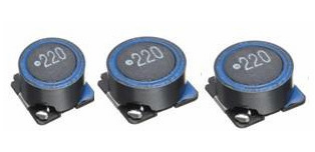

SLP6028S220MTT

SLP-S Series On-Board Type Coils / Chip Power Inductor ◆ Features Pb 1. Magnetic Shielded surface mount inductor with high current rating. 2.Low resistance to keep power loss minimum. 3.The products contain no lead and also support lead-free soldering. ◆ Applications Excellent for power line DC-DC conversion applications used in hard disk, notebook computers and other electronic equipment. ◆ Lead Free Part Numbering SLP 6045 (1) (2) S 100 M (3) (4) (5) (1) (2) (3) (4) T T (6) (7) Series Type Dimension：A X C Material Code Inductance：2R2=2.2μH 100=10μH；101=100μH (5) Inductance Tolerance：M= 20%, Y= 30% (6) Company Code (7) Packaging packed in embossed carrier tape ； ± ± ： ◆ Dimensions Series SLP6025S A(mm) 6.0±0.2 B(mm) 6.0±0.2 C(mm) D(mm) E(mm) F(mm) 2.5±0.2 2.0±0.1 0.9±0.1 4.0±0.2 SLP6028S 6.0±0.2 6.0±0.2 2.8±0.2 2.0±0.1 0.9±0.1 4.0±0.2 SLP6045S SLP7032S 6.0±0.2 6.0±0.2 4.5±0.3 2.0±0.1 0.9±0.1 4.0±0.2 7.0±0.2 7.0±0.2 3.2±0.2 2.0±0.1 0.9±0.1 4.9±0.2 SLP7045S SLP7055S 7.0±0.2 7.0±0.2 4.5±0.3 2.0±0.1 0.9±0.1 4.9±0.2 7.0±0.2 7.0±0.2 5.5±0.3 2.0±0.1 0.9±0.1 4.9±0.2 SLP1045S 10.0±0.3 10.0±0.3 4.5±0.3 3.0±0.1 2.0±0.1 6.1±0.2 SLP1065S SLP1255S 10.0±0.3 10.0±0.3 6.5±0.3 3.0±0.1 2.0±0.1 6.1±0.2 12.5±0.3 12.5±0.3 5.5±0.3 3.0±0.1 2.0±0.1 8.5±0.2 12.5±0.3 12.5±0.3 6.5±0.3 3.0±0.1 2.0±0.1 8.5±0.2 12.5±0.3 12.5±0.3 7.5±0.3 3.0±0.1 2.0±0.1 8.5±0.2 SLP1265S SLP1275S Rev.01 Page 1 of 6 www.sunltech.com SLP-S Series ◆ Specification Inductance (μ μH) Test Frequency (Hz) DCR (Ω Ω) ±20%. IDC (A) max. SLP6025S4R7MTT 4.7±20% 1V/100K 0.031 1.80 SLP6025S6R8MTT 6.8±20% 1V/100K 0.044 1.50 SLP6025S100MTT 10±20% 1V/100K 0.057 1.30 SLP6025S150MTT 15±20% 1V/100K 0.085 1.10 SLP6025S220MTT 22±20% 1V/100K 0.122 0.94 SLP6025S330MTT 33±20% 1V/100K 0.180 0.79 SLP6025S470MTT 47±20% 1V/100K 0.240 0.67 SLP6025S680MTT 68±20% 1V/100K 0.370 0.54 SLP6025S101MTT 100±20% 1V/100K 0.500 0.47 SLP6028S6R8MTT 6.8±20% 1V/100K 0.028 2.50 SLP6028S100MTT 10±20% 1V/100K 0.035 2.20 SLP6028S150MTT 15±20% 1V/100K 0.053 1.80 SLP6028S220MTT 22±20% 1V/100K 0.074 1.40 SLP6028S330MTT 33±20% 1V/100K 0.104 1.30 SLP6028S470MTT 47±20% 1V/100K 0.148 1.10 SLP6028S680MTT 68±20% 1V/100K 0.210 0.92 SLP6028S101MTT 100±20% 1V/100K 0.290 0.78 SLP6028S151MTT 150±20% 1V/100K 0.430 0.64 SLP6028S221MTT 220±20% 1V/100K 0.650 0.50 SLP6045S1R5MTT 1.5±20% 1V/100K 0.016 4.10 SLP6045S2R2MTT 2.2±20% 1V/100K 0.018 3.80 SLP6045S3R3MTT 3.3±20% 1V/100K 0.021 3.40 SLP6045S4R7MTT 4.7±20% 1V/100K 0.026 3.20 SLP6045S6R8MTT 6.8±20% 1V/100K 0.033 2.80 SLP6045S100MTT 10±20% 1V/100K 0.039 2.70 SLP6045S150MTT 15±20% 1V/100K 0.059 2.20 SLP6045S220MTT 22±20% 1V/100K 0.082 1.80 Part Number SLP6025S Series SLP6028S Series SLP6045S Series Rev.01 Page 2 of 6 www.sunltech.com SLP-S Series ◆ Specification Inductance (μ μH) Test Frequency (Hz) DCR (Ω Ω) ±20%. IDC (A) max. SLP7032S3R3MTT 3.3±20% 1V/100K 0.023 2.60 SLP7032S3R5MTT SLP7032S4R7MTT 3.5±20% 1V/100K 0.025 2.50 4.7±20% 1V/100K 0.030 1.90 SLP7032S6R8MTT 6.8±20% 1V/100K 0.041 1.70 SLP7032S100MTT 10±20% 1V/100K 0.053 1.40 SLP7032S150MTT 15±20% 1V/100K 0.075 1.10 SLP7032S220MTT 22±20% 1V/100K 0.110 0.96 SLP7032S330MTT 33±20% 1V/100K 0.160 0.75 SLP7032S470MTT 47±20% 1V/100K 0.240 0.67 SLP7032S680MTT 68±20% 0.310 0.59 SLP7032S101MTT 100±20% 1V/100K 1V/100K 0.450 0.45 SLP7032S151MTT 150±20% 1V/100K 0.650 0.37 SLP7032S221MTT 220±20% 1V/100K 1.050 0.29 SLP7032S331MTT 330±20% 1V/100K 1.670 0.22 SLP7032S471MTT 470±20% 1V/100K 2.050 0.20 SLP7032S681MTT 680±20% 1V/100K 3.150 0.16 SLP7045S3R3MTT 3.3±20% 1V/100K 0.020 2.30 SLP7045S4R7MTT 4.7±20% 1V/100K 0.030 2.10 SLP7045S6R8MTT 6.8±20% 1V/100K 0.039 1.74 SLP7045S100MTT 10±20% 1V/100K 0.036 1.78 SLP7045S150MTT 15±20% 1V/100K 0.052 1.53 SLP7045S220MTT 22±20% 1V/100K 0.061 1.34 SLP7045S330MTT 33±20% 1V/100K 0.096 1.09 SLP7045S470MTT 47±20% 1V/100K 0.125 0.92 SLP7045S680MTT 68±20% 1V/100K 0.175 0.77 SLP7045S101MTT 100±20% 1V/100K 0.250 0.65 SLP7045S151MTT 150±20% 1V/100K 0.340 0.55 SLP7045S221MTT 220±20% 1V/100K 0.520 0.45 SLP7045S331MTT 330±20% 1V/100K 0.740 0.37 SLP7045S471MTT 470±20% 1V/100K 1.050 0.31 SLP7045S681MTT 680±20% 1V/100K 1.480 0.27 SLP7045S102MTT 1000±20% 1V/100K 2.280 0.25 Part Number SLP7032S Series SLP7045S Series Rev.01 Page 3 of 6 www.sunltech.com SLP-S Series ◆ Specification Inductance (μ μH) Test Frequency (Hz) DCR (Ω Ω) ±20%. IDC (A) max. SLP7055S1R5MTT 1.5±20% 1V/100K 0.017 6.2 SLP7055S2R2MTT 2.2±20% 1V/100K 0.021 5.3 SLP7055S3R3MTT 3.3±20% 1V/100K 0.024 4.3 SLP7055S4R7MTT 4.7±20% 1V/100K 0.028 3.6 SLP7055S6R8MTT 6.8±20% 1V/100K 0.034 3.0 SLP7055S100MTT 10±20% 1V/100K 0.039 2.6 SLP7055S150MTT 15±20% 1V/100K 0.051 2.1 SLP7055S220MTT 22±20% 1V/100K 0.064 1.7 SLP1045S3R3MTT 3.3±20% 1V/1K 0.016 4.90 SLP1045S5R6MTT 5.6±20% 1V/1K 0.022 3.80 SLP1045S100MTT 10±20% 1V/1K 0.036 3.00 SLP1045S150MTT 15±20% 1V/1K 0.047 2.40 SLP1045S220MTT 22±20% 1V/1K 0.059 2.10 SLP1045S330MTT 33±20% 1V/1K 0.082 1.60 SLP1045S470MTT 47±20% 1V/1K 0.100 1.40 SLP1045S680MTT 68±20% 1V/1K 0.140 1.20 SLP1045S101MTT 100±20% 1V/1K 0.200 1.00 SLP1045S151MTT 150±20% 1V/1K 0.350 0.79 SLP1045S221MTT 220±20% 1V/1K 0.470 0.65 SLP1045S331MTT 330±20% 1V/1K 0.680 0.54 SLP1045S471MTT 470±20% 1V/1K 1.030 0.47 SLP1045S681MTT 680±20% 1V/1K 1.600 0.38 SLP1045S102MTT 1000±20% 1V/1K 2.800 0.32 SLP1045S152MTT 1500±20% 1V/1K 3.400 0.22 SLP1065S1R5MTT 1.5±20% 1V/1K 0.0067 10.7 SLP1065S2R2MTT 2.2±20% 1V/1K 0.0084 8.9 SLP1065S3R3MTT 3.3±20% 1V/1K 0.0096 7.8 SLP1065S4R7MTT 4.7±20% 1V/1K 0.0117 6.1 SLP1065S6R8MTT 6.8±20% 1V/1K 0.014 4.6 SLP1065S100MTT 10±20% 1V/1K 0.018 4.1 SLP1065S150MTT 15±20% 1V/1K 0.027 3.1 Part Number SLP7055S Series SLP1045S Series SLP1065S Series Rev.01 Page 4 of 6 www.sunltech.com SLP-S Series ◆ Specification Inductance (μ μH) Test Frequency (Hz) DCR (Ω Ω) ±20%. IDC (A) max. SLP1255S6R0MTT 6±20% 1V/1K 0.016 4.90 SLP1255S100MTT 10±20% 1V/1K 0.022 4.30 SLP1255S150MTT 15±20% 1V/1K 0.026 3.90 SLP1255S220MTT 22±20% 1V/1K 0.034 3.40 SLP1255S330MTT 33±20% 1V/1K 0.042 3.10 SLP1255S470MTT 47±20% 1V/1K 0.062 2.50 SLP1255S680MTT 68±20% 1V/1K 0.083 2.20 SLP1255S101MTT 100±20% 1V/1K 0.117 1.80 SLP1255S151MTT 150±20% 1V/1K 0.190 1.40 SLP1255S221MTT 220±20% 1V/1K 0.270 1.20 SLP1255S331MTT 330±20% 1V/1K 0.410 1.00 SLP1255S471MTT 470±20% 1V/1K 0.520 0.88 SLP1255S681MTT 680±20% 1V/1K 0.760 0.73 SLP1255S102MTT 1000±20% 1V/1K 1.120 0.60 SLP1255S152MTT 1500±20% 1V/1K 1.730 0.48 SLP1265S2R0MTT 2±20% 1V/1K 0.012 10.0 SLP1265S4R2MTT 4.2±20% 1V/1K 0.015 7.3 SLP1265S7R0MTT 7±20% 1V/1K 0.018 5.7 SLP1265S100MTT 10±20% 1V/1K 0.020 5.0 SLP1265S150MTT 15±20% 1V/1K 0.024 4.2 SLP1265S220MTT 22±20% 1V/1K 0.032 3.5 SLP1265S330MTT 33±20% 1V/1K 0.041 2.8 SLP1265S470MTT 47±20% 1V/1K 0.058 2.4 SLP1265S680MTT 68±20% 1V/1K 0.079 2.0 SLP1265S101MTT 100±20% 1V/1K 0.123 1.6 SLP1265S221MTT 220±20% 1V/1K 0.273 1.0 Part Number SLP1255S Series SLP1265S Series Rev.01 Page 5 of 6 www.sunltech.com SLP-S Series ◆ Specification Inductance (μ μH) Test Frequency (Hz) DCR (Ω Ω) ±20%. IDC (A) max. SLP1275S1R2MTT 1.2±20% 1V/1K 0.007 13.0 SLP1275S2R7MTT 2.7±20% 1V/1K 0.009 10.0 SLP1275S3R9MTT 3.9±20% 1V/1K 0.010 9.0 SLP1275S5R6MTT 5.6±20% 1V/1K 0.012 7.8 SLP1275S6R8MTT 6.8±20% 1V/1K 0.013 7.2 SLP1275S100MTT 10±20% 1V/1K 0.016 5.5 SLP1275S150MTT 15±20% 1V/1K 0.018 4.7 SLP1275S220MTT 22±20% 1V/1K 0.026 4.0 SLP1275S330MTT 33±20% 1V/1K 0.040 3.2 SLP1275S470MTT 47±20% 1V/1K 0.053 2.7 SLP1275S680MTT 68±20% 1V/1K 0.078 2.0 SLP1275S101MTT 100±20% 1V/1K 0.125 1.9 SLP1275S151MTT 150±20% 1V/1K 0.175 1.5 SLP1275S221MTT 220±20% 1V/1K 0.258 1.3 Part Number SLP1275S Series Note ：1、Inductance measured by LCR Meter HP 4294/HP4291； 2、DCR measured by Milliohm meter CH502AC。 Rev.01 Page 6 of 6 www.sunltech.com
