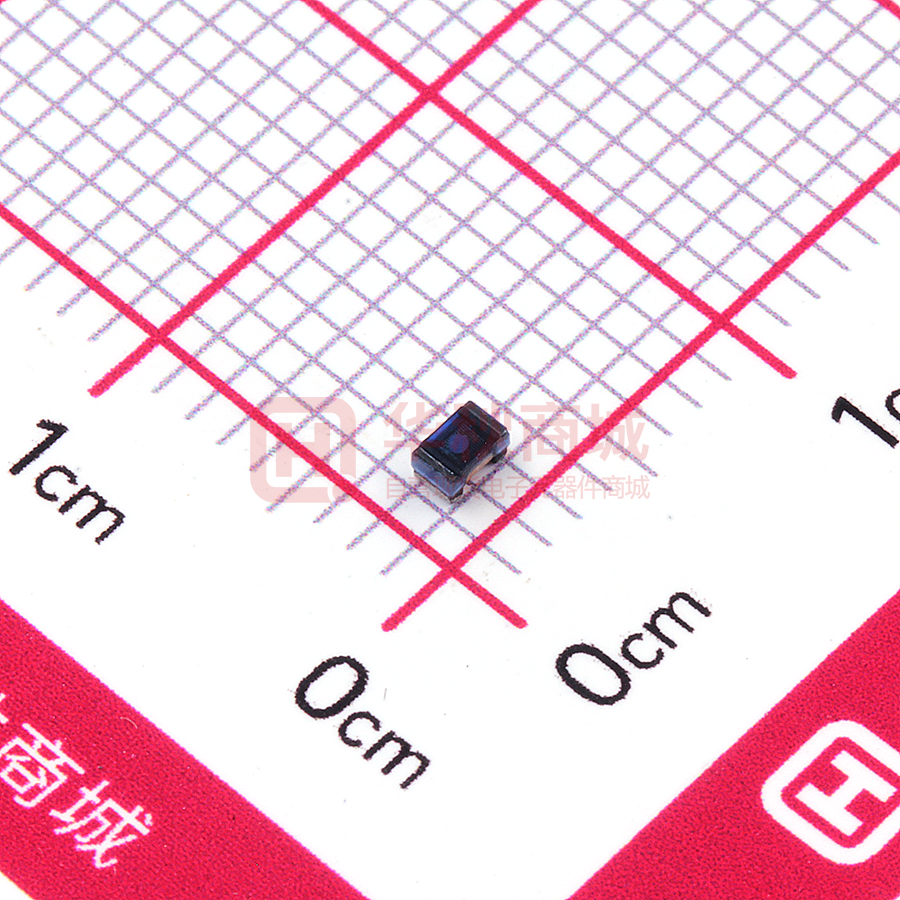

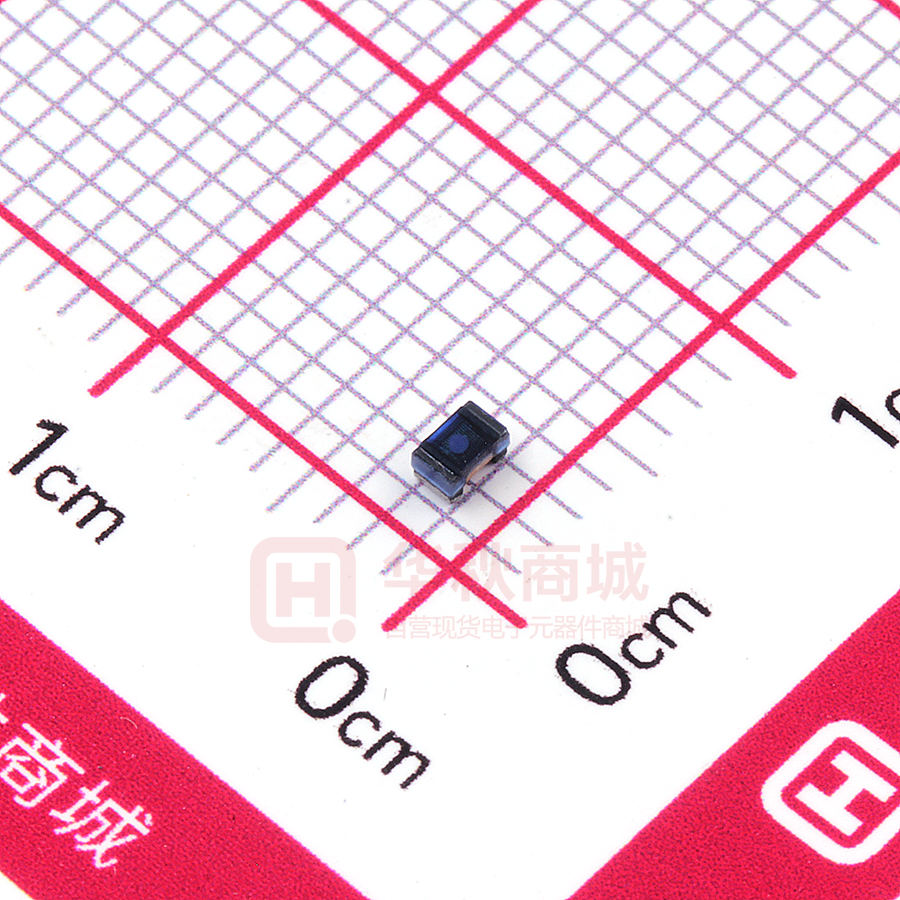

0805F-100K-1LRH

SMD WIRE WOUND FERRITE CHIP INDUCTORS 0805F Series ■ Mechanical Dimensions (Unit: mm) 0805F 1.78 1.6 Max. 1.6 1.6 Max. Max. 1.6 Max. 1.78 1.78 1.78 0.51 0.51 1.02 1.02 1.02 1.020.51 0.51 0.51 0.51 1.91 Max. 1.91 Max. 1.91 1.91 Max. Max. 0.51 0.51 1.02 1.02 1.02 1.02 0.76 1.02 1.02 1.02 0.76 0.76 0.76 1.02 2.29 Max. 2.29 2.29 2.29 Max. Max. Max. Recommended Patterns ■ Electrical Specification Part Number. Inductance (µH) Inductance Tolerance Test Freq. (MHz) Q (Min) Test Freq. (MHz) SRF (GHz) Min DCR (Ω) Max Irms (mA) 0805F-78N□-LRH 0.078 K,J 7.9 19 7.9 1.44 0.042 2000 BLACK 0805F-R11□-LRH 0.110 K,J 7.9 19 7.9 1.40 0.050 2000 BROWN 0805F-R18□-LRH 0.180 K,J 7.9 15 7.9 1.00 0.15 500 GRAY 0805F-R22□-LRH 0.220 K,J 7.9 15 7.9 1.00 0.15 500 VIOLET 0805F-R33□-LRH 0.330 K,J 7.9 15 7.9 0.862 0.25 300 WHITE 0805F-R39□-LRH 0.390 K,J 7.9 15 7.9 0.800 0.30 500 BLACK 0805F-R47□-LRH 0.470 K,J 7.9 19 7.9 0.500 0.31 720 RED 0805F-R56□-LRH 0.560 K,J 7.9 12 7.9 0.800 1.20 300 RED 0805F-R68□-LRH 0.680 K,J 7.9 20 7.9 0.400 0.46 590 ORANGE 0805F-R82□-LRH 0.820 K,J 7.9 12 7.9 0.600 1.00 300 YELLOW 0805F-1R0□-LRH 1.00 K,J 7.9 20 7.9 0.340 0.69 500 YELLOW 0805F-1R2□-LRH 1.20 K,J 7.9 15 7.9 0.400 0.75 800 BLACK 0805F-1R5□-LRH 1.50 K,J 7.9 20 7.9 0.275 0.83 490 GREEN 0805F-1R8□-LRH 1.80 K,J 7.9 20 7.9 0.246 1.15 410 BLUE 0805F-2R2□-LRH 2.20 K,J 7.9 20 7.9 0.106 1.28 365 VIOLET 0805F-2R7□-LRH 2.70 K,J 7.9 20 7.9 0.105 1.48 350 GRAY 0805F-3R3□-LRH 3.30 K,J 7.9 20 7.9 0.083 1.57 330 WHITE 0805F-3R9□-LRH 3.90 K,J 7.9 20 7.9 0.052 1.70 300 BLACK 0805F-4R7□-LRH 4.70 K,J 7.9 20 7.9 0.050 1.87 280 BROWN 0805F-5R6□-LRH 5.60 K,J 7.9 20 7.9 0.090 2.00 340 BLUE 0805F-6R8□-LRH 6.80 K,J 7.9 20 7.9 0.035 2.25 260 RED 0805F-8R2□-LRH 8.20 K,J 2.5 18 2.5 0.027 2.55 250 ORANGE 0805F-100□-LRH 10.0 K,J 2.5 18 2.5 0.021 3.45 200 YELLOW 0805F-120□-LRH 12.0 K,J 2.5 18 2.5 0.037 3.80 220 BROWN 0805F-150□-LRH 15.0 K,J 2.5 18 2.5 0.017 5.03 180 GREEN 0805F-180□-LRH 18.0 K,J 2.5 18 2.5 0.023 4.48 180 ORANGE 0805F-220□-LRH 22.0 K,J 2.5 18 2.5 0.013 6.18 150 BLUE 0805F-270□-LRH 27.0 K,J 2.5 15 2.5 0.011 11.04 120 VIOLET COLOR CODE e. SRF measured using the HP8753E,or HP8720D . f. DCR measured using the 16502 milli-ohm meter. g. Unspeified values available on request. a. Tolerance : K=±10% ; J=±5% b. Operating Temp : -40°C to +85°C c. For 15°CTemperature Rise. d. Inductance & Q measured using the HP4291B. ■ Characteristic Curve ‧0805F Inductance vs. Frequency Inductance vs. Frequency Q vs. Freqency Typical Typical Q vs. Frequency 1000 1000 100 Q Q 10 Inductance(nH) (uH) Inductance 100 2R2 1 3R9 2R7 10 3R9 2R2 1 0 1 0 1 10 Frequency Frequency(MHz) (MHz) 2R7 100 1000 10 100 Frequency (MHz) Prosperity Dielectrics Co., Ltd. 2013目錄.indd 27 1000 Frequency (MHz) 27 2013/2/1 下午 03:01:36
