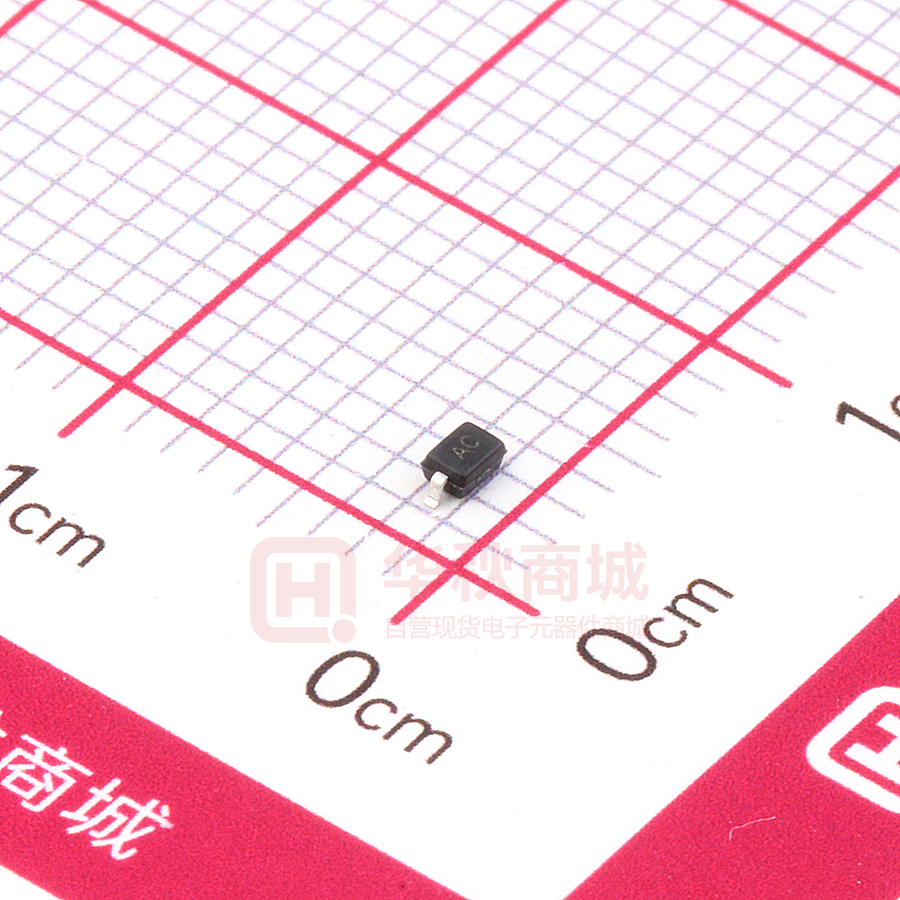

SBLC05CI

SBLCxxCI Series Bidirectional Ultra Low Capacitance TVS Array Description Features The SBLCxxCI Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. The SBLCxxCI and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package. • • • • • • • Ordering Information • • • • • Device: SBLCxxCI Package: SOD-323 Material: Halogen free Packing: Tape & Reel Quantity per reel: 3,000pcs Pin Configuration REV.08 IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ηs) Protects one I/O line (bidirectional) Low clamping voltage Working voltages : 3V, 5V, 8V, 12V, 15V, 24V Low leakage current Response Time is < 1 ns Machanical Data • • • • • SOD-323 package Flammability Rating: UL 94V-0 Packaging: Tape and Reel High temperature soldering guaranted:260℃/10s Reel size: 7 inch Applications • • • • • • • Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Peripherals USB Interface Package Outline 1 of 4 SBLCxxCI Series Absolute Maximum Rating ABSOLUTE MAXIMUM RATING Symbol Parameter Value Units VESD ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) ±15 ±8 kV PPP Peak Pulse Power (8/20μs) 250 W TOPT Operating Temperature -55/+150 °C TSTG Storage Temperature -55/+150 °C 260 °C TL Lead Soldering Temperature Electrical Characteristics(Tamb=25°C) VRWM VB IT VC@1A VC IR CT (V) (V) (mA) (V) (V) (µA) (pF) (max.) (min.) CC 3.0 4.0 SBLC05CI AC 5.0 SBLC08CI BC SBLC12CI PART NUMBER DEVICE MARKING SBLC03CI (max.) (max.) (@A) (max.) (typ.) 1 7.0 13.9 8 20 0.8 6. 0 1 9.8 18.3 8 5 0.8 8.0 8. 5 1 13.4 18.5 8 2 0.8 DC 12.0 13.3 1 19.0 28.6 6 1 0.8 SBLC15CI EC 15.0 16. 7 1 24.0 31.8 5 1 0.8 SBLC24CI HC 24.0 26.7 1 43.0 56.0 3 1 0.8 REV.08 2 of 4 SBLCxxCI Series Electrical Characteristics Curve REV.08 3 of 4 SBLCxxCI Series SOD-323 Package Outline Dimensions REV.08 4 of 4
