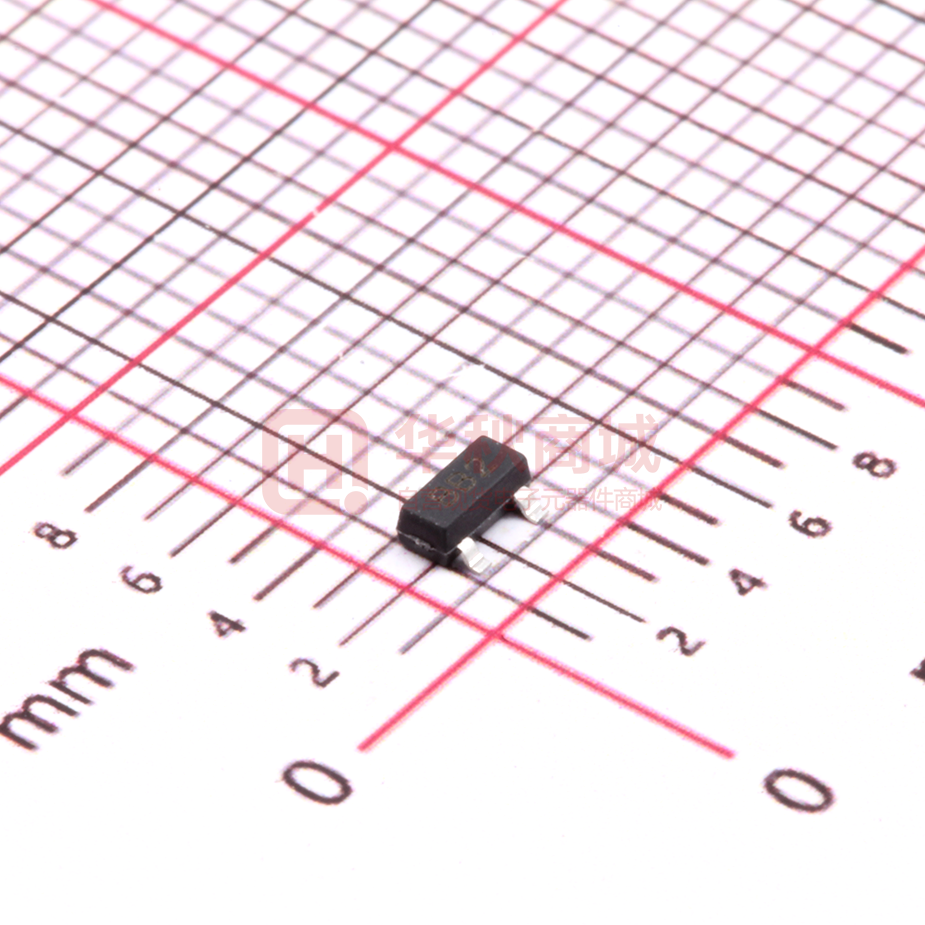

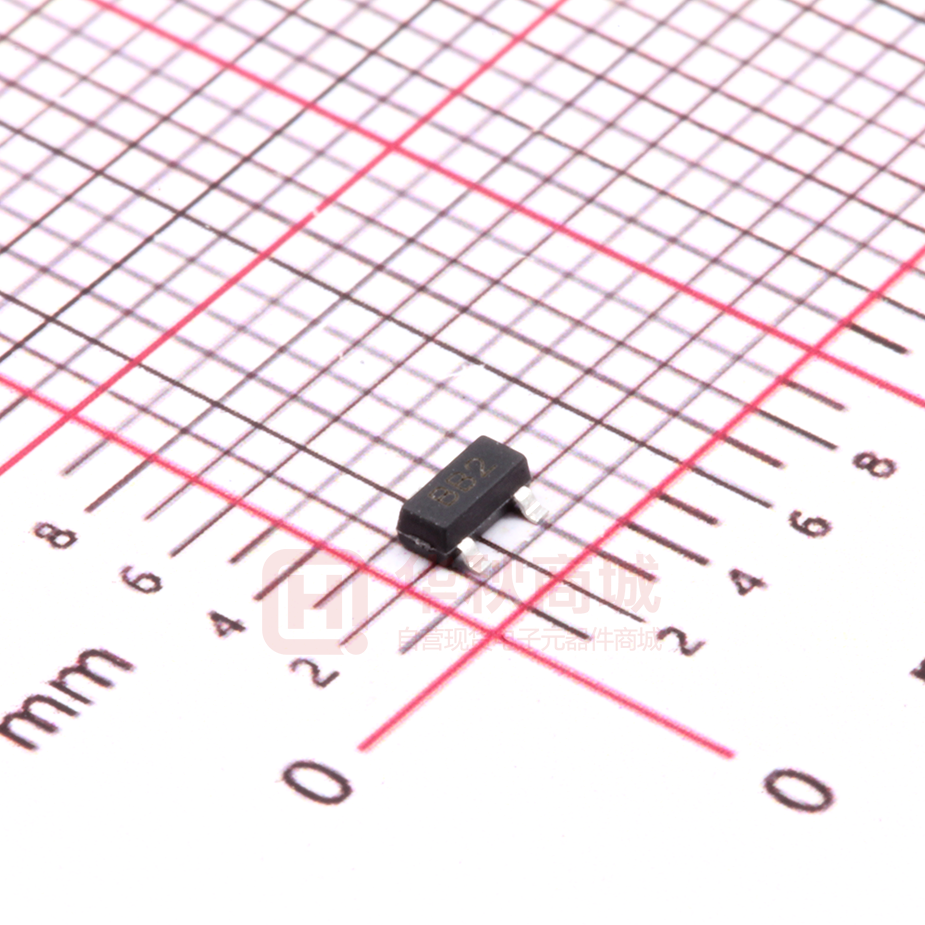

SM15C

SMxxC Series Bi-directional TVS Diodes Array SOT-23 Plastic-Encapsulate ESD Protection Diodes DESCRIPTION The SMxxC Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power 、 data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients). Features Pin Configuration  350 Watts Peak Pulse Power per (8/20μs)  IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)     Protects two bidirectional line Low clamping voltage Low leakage current Working voltages : 3V, 5V, 8V, 12V, 15V, 18V， 20V，24V，36V Circuit Diagram  Meets MSL 1 Requirements Applications         Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Networking and Telecom Serial and Parallel Ports Peripherals Mechanical Characteristics Package: SOT-23 Flammability Rating: UL 94V-0 Terminal: Matte tin plated. High temperature soldering guaranted: 260℃/10s  Packaging: Tape and Reel     Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit VESD ± 30 ± 30 KV Peak Pulse Power(tp=8/20us waveform) PPP 350 W Operating Temperature TOPT −55 to +150 °C Storage Temperature TSTG −55 to +150 °C TL 260(10 sec.) °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :1 SMxxC Series Bi-directional TVS Diodes Array Electrical Characteristics (TA=25°C unless otherwise specified) PART NUMBER DEVICE MARKING VRWM (V) VB IT VC@1A VC IR (V) (mA) (V) (V) (max.) (min.) (max.) (max.) (max.) (@A) (µA) (max.) CT (pF) SM03C C03 3.3 4 1 7.5 16 20 40 450 SM05C C05 5 6 1 9.8 18 17 10 200 SM08C C08 8 8.5 1 13.4 24 15 2 120 SM12C C12 12 13.3 1 19 32 11 1 75 SM15C C15 15 16.7 1 24 38 10 1 68 SM18C C18 18 20.0 1 29 45 9 1 57 SM20C C20 20 22.3 1 35 50 8 1 52 SM24C C24 24 26.7 1 43 52 7 1 50 SM36C C36 36 40 1 60 75 4.5 1 35 The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SMxxC Series Bi-directional TVS Diodes Array ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :3 SMxxC Series Bi-directional TVS Diodes Array Outlitne Drawing SOT-23 Package Outline Dimensions L L1 E E1 Symbol A A1 e Suggested Pad Layout 0.037 0.95 0.037 0.95 A A1 b c D E E1 e L L1 θ Dimensions In Millimeters Min Typ Max 1.40 0.89 1.00 0.10 0.01 0.06 0.50 0.37 0.44 0.20 0.09 0.13 2.80 2.90 3.10 1.20 1.30 1.60 2.10 2.40 2.80 1.78 1.90 2.04 0.10 0.30 0.69 0.54 0.35 0° 10° Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. 0.079 2.0 0.035 0.9 0.031 0.8 http://www.microdiode.com inches mm Rev:2024A2 Page :4 SMxxC Series Bi-directional TVS Diodes Array SOT-23 Tape and Reel Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A2 Page :5
