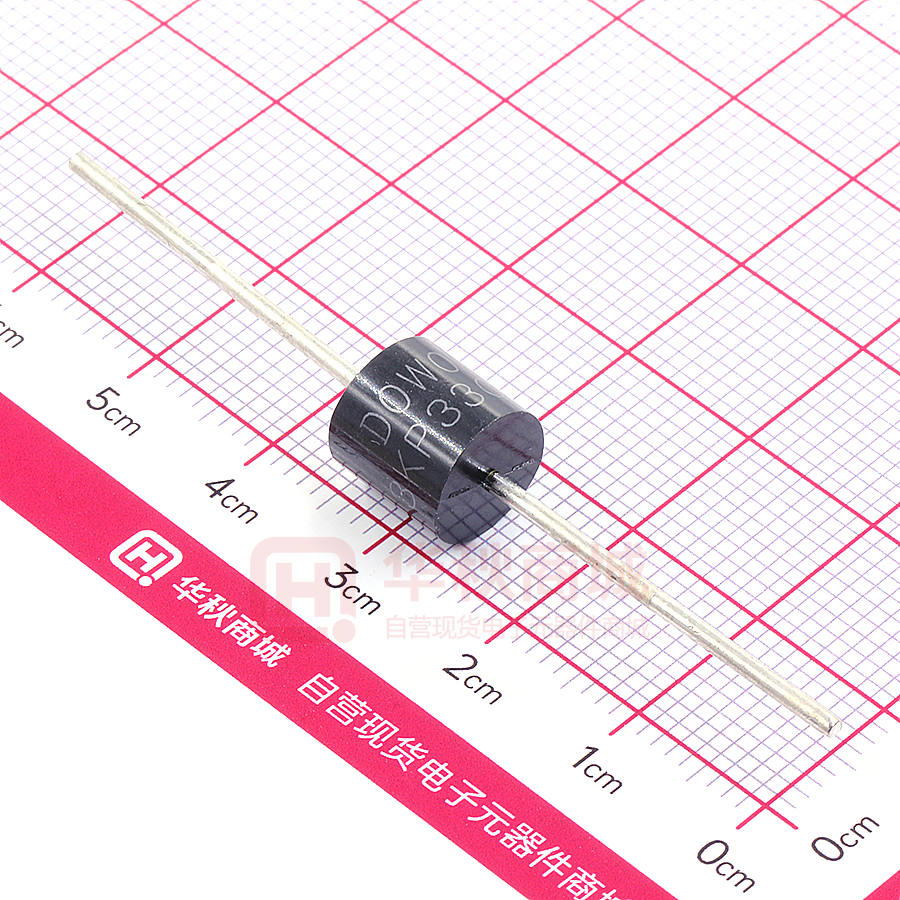

3KP33CA

东沃电子 3KP Series DOWOSEMI Reverse Voltage: 5.0 to 440 V Peak Pulse Power: 3000 W Axial Lead Transient Voltage Suppressors Features ● ● ● ● ● ● Glass passivated chip 3000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % Low leakage Uni and Bidirectional unit Excellent clamping capability Very fast response time RoHS compliant Mechanical Data ● ● ● ● [ ] [ ] 0.360 9.14 0.340 8.64 Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Solderable per MIL-STD-202, method 208 guranteed Polarity: Color band denotes cathode end except Bipolar Mounting position: Any DIA. 0.360 9.14 0.340 8.64 [ ] 1.000 [25.40] MIN DO ● DIA. 0.052 1.32 0.048 1.22 1.000 [25.40] MIN WO ● R-6/P600 Dimensions : inch [ mm ] Maximum Ratings(TA=25℃ unless otherwise noted) Parameter (1) Peak power dissipation with a 10/1000μs waveform Peak pulse current wih a 10/1000μs waveform(1) Power dissipation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sine(2) wave unidirectional only Maximum instantaneous forward voltage at 100 A for unidirectional only(3) Operating junction and storage temperature range Value Symbol PPP 3000 IPP See Next Table PD 6.5 UNIT W A W IFSM 300 A VF 3.5/5.0 V TJ, TSTG –55 to +150 °C Note: (1)Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1 (2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum (3)VF
