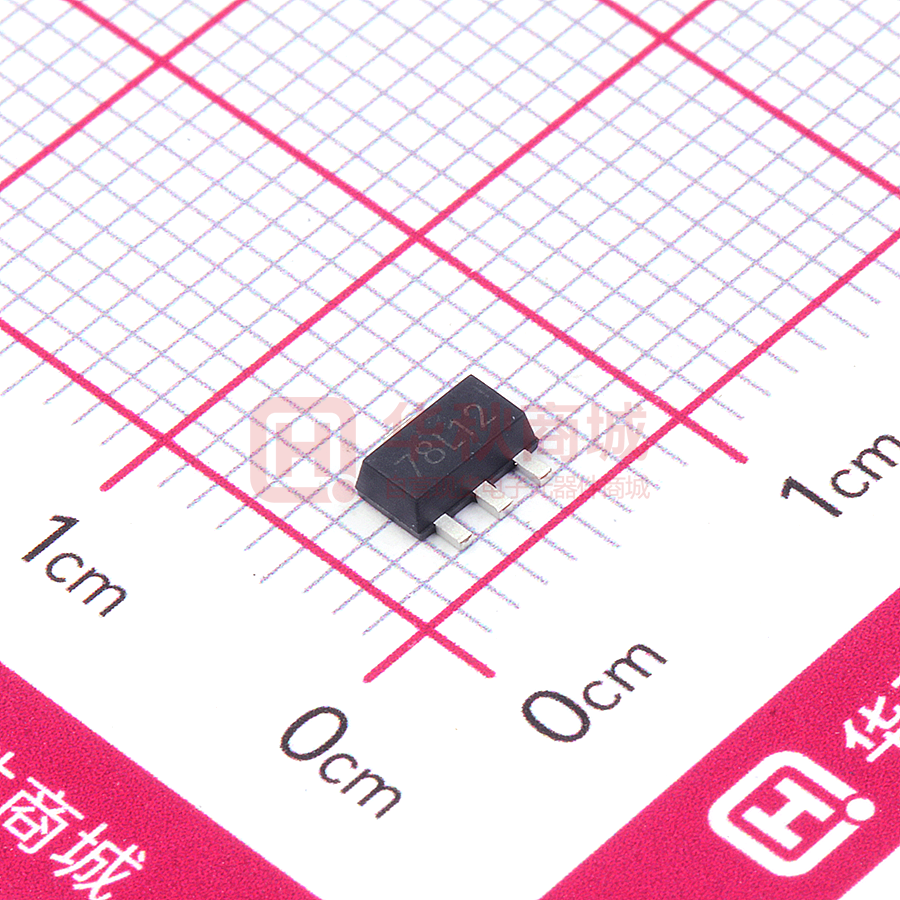

UMW R 78LXX-150 LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.15A POSITIVE VOLTAGE REGULATORS 1 DESCRIPTION TO-92 The 78LXX series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 150mA. 1 FEATURE *Maximum output current of 150mA *Output voltage of 5V,6V,8V,9V,10V,12V,15V and 24V *Thermal overload protection *Short circuit current limiting SOT-89-3 BLOCK DIAGRAM INPUT 3 R13 R17 T10 Z2 R9 T8 T14 T9 R14 T12 R19 R18 R12 T13 T11 R11 T5 OUTPUT R10 1 T6 R8 R15 R5 T4 Z1 T15 R4 R6 T7 R16 R1 C1 R2 R7 T3 T1 T2 GND R3 2 www.umw-ic.com 1 友台半导体有限公司 UMW R 78LXX-150 LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified)) CHARACTERISTICS SYMBOL VALUE UNITS VI 30 V VI 35 V Pd 700 mW Input voltage(for Vo=5,8V) (for Vo=12,15V) High power dissipation Operating Junction Temperature Range TOPR -20~+120 °C Storage Temperature Range TSTG -55~+150 °C 78L05 ELECTRICAL CHARACTERISTICS (VI=10V,Io=40mA,0
