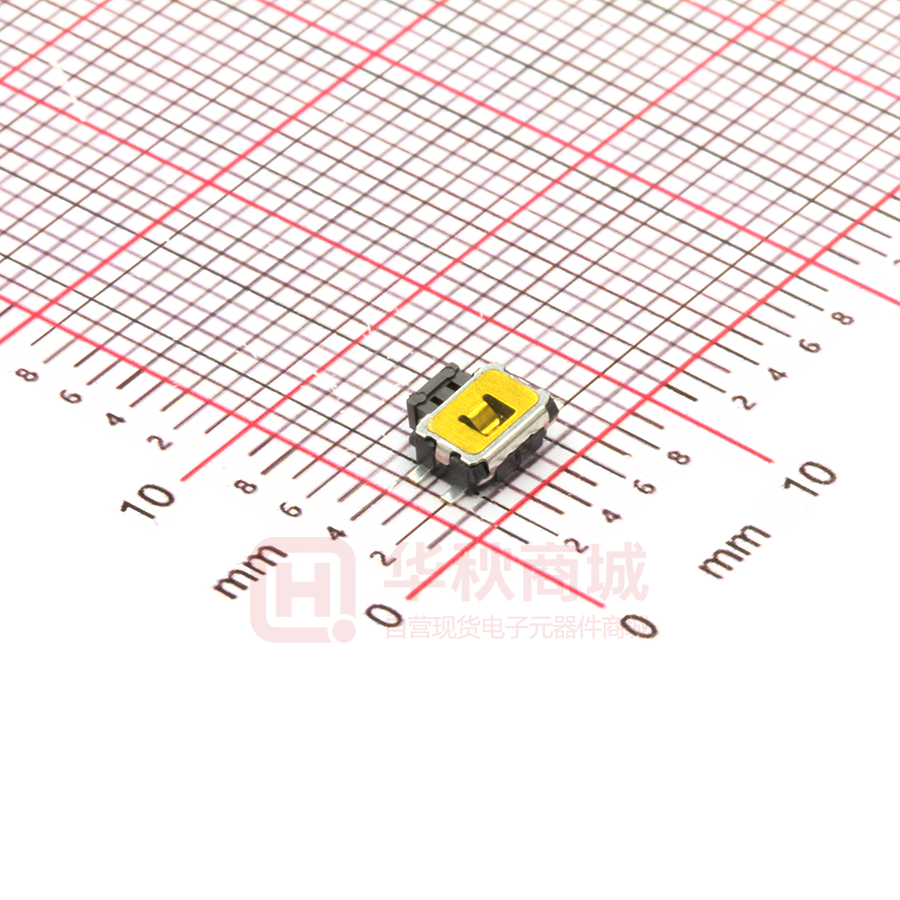

TS-1114S-26

碩方精密電子開關 TACT S WITCH www.Sofng.com 小型 Operation:SMT/贴片卧式 轻触开关 [操作力可定制] LTEM NO.:TS-1114S-** (Series) (L3.50mm× (L3.50mm×W4.70mm× W4.70mm×H1.65mm TACT-SWITCH) 表面贴装 SMT Material declaration Technical parameter ╲ LEVEL A[better product] B[average product] ╲ PROJECT Contact Rating 25mA, 24V DC Electrical Initial Contact Resistance 50mΩ max. Properties Insulation Resistance Withstand Voltage There No Load 100MΩ min.500V DC NAME Description ①A 拨柄 PA6T 耐高温尼龙 ②B 基座 LCP 30%(Gray)耐高温塑胶 UL94V-0 ③C 盖板 不锈钢 Q235-A t=0.20mm ④D 簧片 单面覆银&/不锈钢 SUS304 ⑤E 嵌件 覆银&C5191R-H 磷铜 t=0.20mm ⑥F 覆膜 KTC 聚酰亚胺 Polyimide Skey/PD：100MΩ min.300V DC 300V AC for 1 minute 250 V AC for 1 minut 100,000 Cycles 65,000 Cycles 85,000 Cycles 50,000 Cycles 侧向操作 LATERAL No. 精密部品 NICETY 可靠 STABILIZE 適合環保 RoHS CIRCUIT DIAGRAM Durable Performance Rated Load Sterage temp. -40℃～+85℃(Operating Temp: ) Operating Force 1.6 / 2.6N.(1N.=100gram-force) Heat Rrsistance IR Reflow:255℃,5sec. Manual:350℃,3sec. Unit:mm P.C.B LAYOUT ● ● ● DECIMALS ● ANGLES .X :±0.20 X.° .XX :±0.10 X.X° :±1.0° :±1.5° .XXX :±0.05 .XXX° :±0.5°
