SLC05C

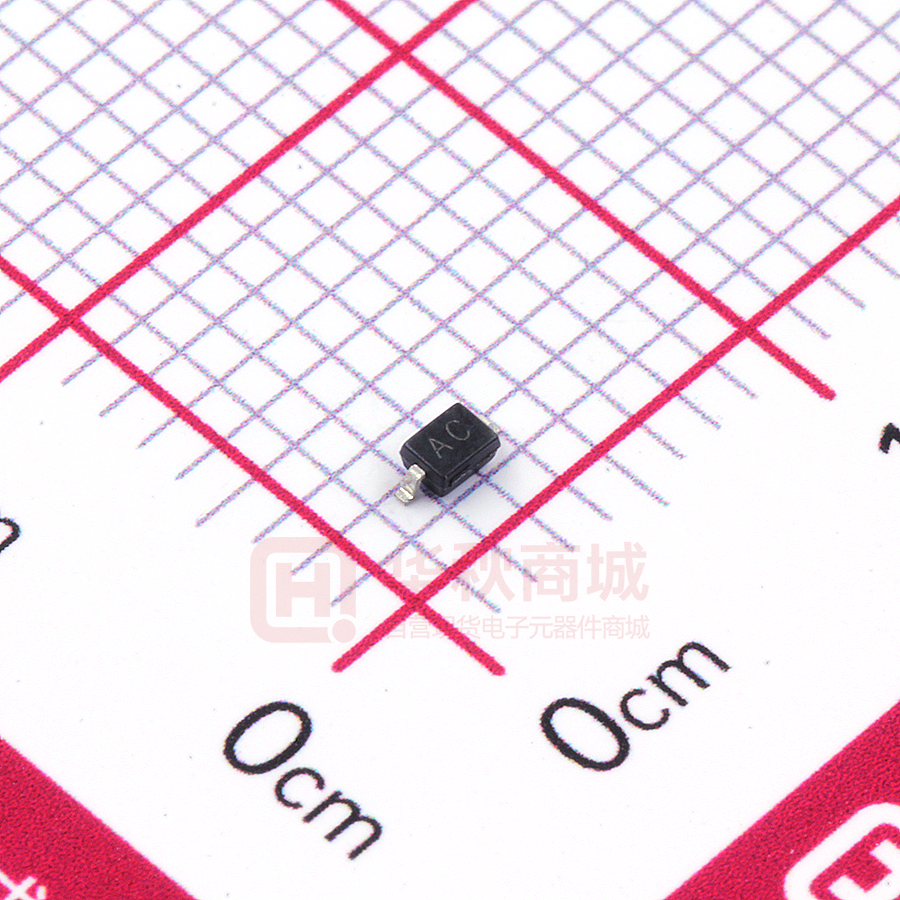

SLC05C – Bi-Direction ESD Protection Diode Description Design to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance and high level of ESD protection makes them a flexible solution for applications such as HDMI, Display Port TM and MDDI interfaces. It is designed to replace multilayer varistors (MLV) in consumer equipment applications such as mobile phone, notebook, PAD, STB, LCD TV etc. Marking Features      IEC61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Surge): 17A (8/20s) 350 Watts Peak Pulse Power per line (tp = 8/20s) Protects one high speed I/O line    Low clamping voltage Working voltage: 5.0V Low leakage current   PDA Portable electronics Applications     Computers and peripherals Digital cameras Audio and video equipment Cellular handsets and accessories Maximum Rating Parameter Symbol IEC61000-4-2 ESD Voltage – Air Mode VESD(1) IEC61000-4-2 ESD Voltage – Contact Mode Limit ±30 ±30 Unit kV Peak Pulse Power PPP(2) 350 W Peak Pulse Current IPP(2) 17 A Maximum Lead Solder Temperature (10 seconds duration) TL 260 °C Junction Temperature TJ -55~150 °C Storage Temperature Range Tstg -55~150 °C Note: 1. Device stressed with ten non-repetitive ESD pulses. 2. Non-repetitive current pulse 8/20s exponential decay waveform according to IEC61000-4-5. 3. All ratings are measured at environmental temperature of T A = 25°C unless otherwise noted. 新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan. TEL: +886-3-5643931 FAX: +886-3-5644624 http://www.pttc.com.tw Page: 1 of 5 2016/12/27 Rev: A SLC05C – Bi-Direction ESD Protection Diode ESD Standards Compliance IEC61000-4-2 Standard Contact Discharge JESD22-A114-B Standard Air Discharge ESD Class Level Test Voltage (kV) Level Test Voltage (kV) 1 2 1 2 2 4 2 4 3 6 3 8 4 8 4 15 Human Body Discharge Voltage (V) 0 0~249 1A 1B 1C 250~499 500~999 1000~1999 2 2000~3999 3A 3B 4000~7999 8000~15999 Electrical Parameters Symbol Parameter VC Clamping Voltage @ IPP IPP Peak Pulse Current VBR Breakdown Voltage @ IT IT Test Current IR Reverse Leakage Current @ VRWM VRWM Reverse Stand-off Voltage Electrical Characteristics Parameter Symbol Test Conditions Reverse Stand-off Voltage VRWM(1) Reverse Leakage Current IR VRWM = 5V VBR IT = 1mA Breakdown Voltage Clamping Voltage Typical Capacitance VC(2) CJ Min Typ Max Unit 5.0 V 1 A 6.0 V IPP = 1A 9.8 IPP = 17A 18.3 V 1.35 pF VR = 0V, f = 1MHz 1.00 V Note: 1. 2. 3. Other voltages available upon request. Non-repetitive current pulse 8/20s exponential decay waveform according to IEC61000-4-5. All ratings are measured at environmental temperature of T A = 25°C unless otherwise noted. 新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan. TEL: +886-3-5643931 FAX: +886-3-5644624 http://www.pttc.com.tw Page: 2 of 5 2016/12/27 Rev: A SLC05C – Bi-Direction ESD Protection Diode Typical Characteristics 新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan. TEL: +886-3-5643931 FAX: +886-3-5644624 http://www.pttc.com.tw Page: 3 of 5 2016/12/27 Rev: A SLC05C – Bi-Direction ESD Protection Diode SOD-323 Package Outline Dimensions Symbol Dimensions (mm) Min Max A Dimensions (inch) Min Max 1.000 0.039 A1 0.000 0.100 0.000 0.004 A2 0.800 0.900 0.031 0.035 b 0.250 0.350 0.010 0.014 c 0.080 0.150 0.003 0.006 D 1.200 1.400 0.047 0.055 E 1.600 1.800 0.063 0.071 E1 2.550 2.750 0.100 0.108 L 0.475 Ref. 0.019 Ref. L1 0.250 0.400 0.010 0.016  0° 8° 0° 8° SOD-323 Recommended Pad Layout Note: 1. Controlling dimensions in millimeters 2. General tolerance: ±0.05mm 3. The pad layout is for reference purpose only Notice PTTC reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. PTTC does not assume any liability arising out of the application or use of any product herein. 新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan. TEL: +886-3-5643931 FAX: +886-3-5644624 http://www.pttc.com.tw Page: 4 of 5 2016/12/27 Rev: A SLC05C – Bi-Direction ESD Protection Diode Tape and Reel Specifications Package Type A B C d E F P0 P P1 W SOD-323 1.48 3.3 1.25 1.50 1.75 3.50 4.00 4.00 2.00 8.00 Reel Option D D1 D2 G H I W1 W2 7” Dia. 178.0 54.4 13.0 R78.0 R25.6 R6.5 9.5 12.3 *All Dimensions are in millimeters. Packaging Information Reel Reel Size BOX Box Size Carton Carton Size 3,000 pcs 7 inch - - - - *All Dimensions are in millimeters. 新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan. TEL: +886-3-5643931 FAX: +886-3-5644624 http://www.pttc.com.tw Page: 5 of 5 2016/12/27 Rev: A
