STI3508
28V High Efficiency 1MHz, 2A Step Up Regulator
FEATURES
GENERAL DESCRIPTION
Integrated 80mΩ Power MOSFET
2V to 24V Input Voltage
1MHz Fixed Switching Frequency
Internal 4A Switch Current Limit
Adjustable Output Voltage
Internal Compensation
Up to 28V Output Voltage
Automatic Pulse Frequency Modulation
Mode at Light Loads
up to 97% Efficiency
Available in a 6-Pin SOT23-6 Package
APPLICATIONS
Battery-Powered Equipment
Set-Top Boxed
White LED Driver
Power Bank
DSL and Cable Modems and Routers
The STI3508 is a constant frequency, 6-pin
SOT23 current mode step-up converter
intended for small, low power applications.
The STI3508 switches at 1MHz and allows
the use of tiny, low cost capacitors and
inductors 2mm or less in height. Internal
soft-start results in small inrush current and
extends battery life.
The STI3508 features automatic shifting to
pulse frequency modulation mode at light
loads. The STI3508 includes under-voltage
lockout, current limiting, and thermal
overload protection to prevent damage in
the event of an output overload. The
STI3508 is available in a small 6-pin SOT-23
package.
APPILCATIONS
Figure 1. Basic Application Circuit
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
www.toll-semi.com
www.suntosemi.com
1
STI3508
ABSOLUTE MAXIMUM RATINGS (Note 1)
Parameter
Value
Unit
Input Supply Voltage ,
2~24
V
LX Voltages
28
V
EN,FB Voltage
24
V
Junction Temperature(Note2)
155
°C
Power Dissipation
500
mW
Lead Temperature(Soldering,10s)
260
°C
PACKAGE/ORDER INFORMATION

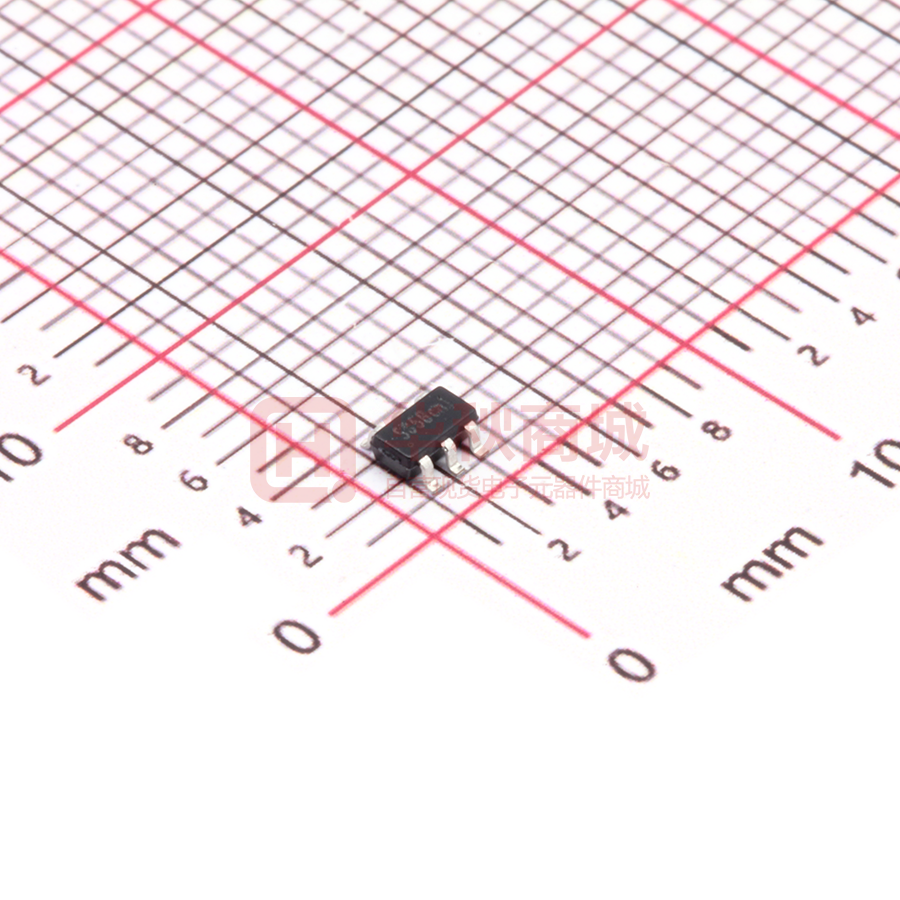

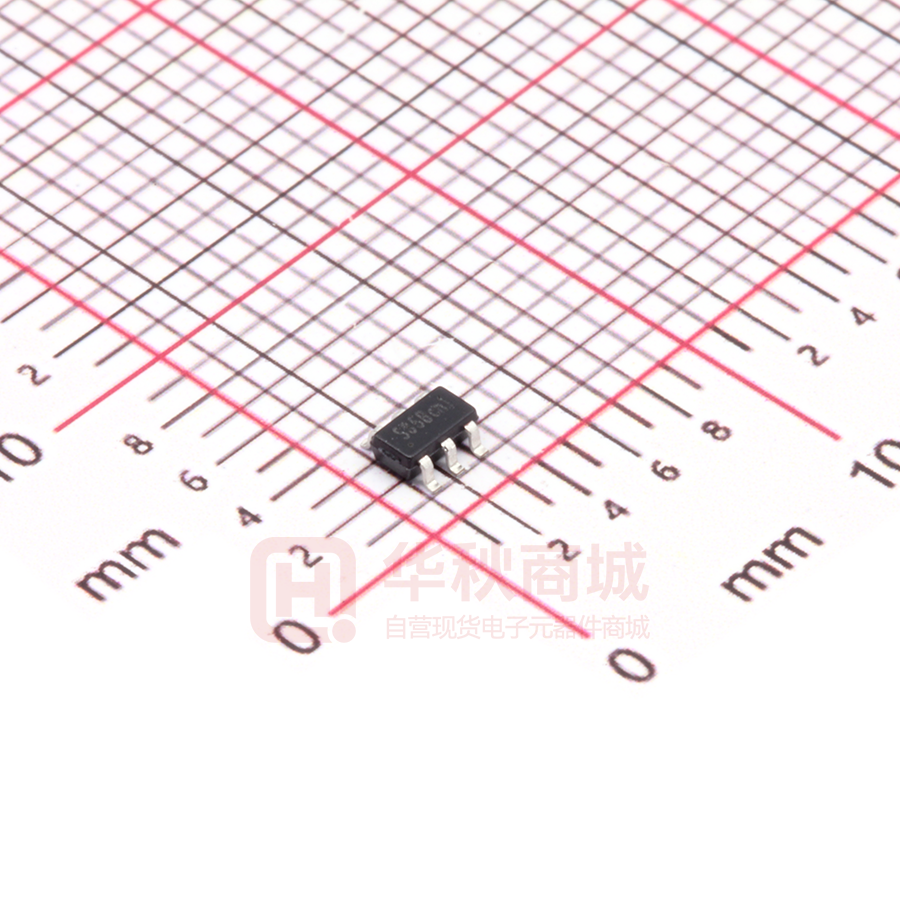

SOT23-6
Top Mark: S35XXX (S35: Device Code, XXX: Inside Code)
www.toll-semi.com
2
Part Number
Package
Top mark
Quantity/ Reel
STI3508
SOT23-6
S35XXX
3000
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
STI3508
PIN DESCRIPTIONS
Pin
Name
Function
1
LX
2
GND
3
FB
4
EN
5
IN
Input Supply Pin. Must be locally bypassed.
6
NC
Not Connection
Power Switch Output. LX is the drain of the internal MOSFET switch. Connect the power
inductor and output rectifier to LX. LX can swing between GND and 28V.
Ground Pin
Feedback Input. The FB voltage is 0.6V. Connect a resistor divider to FB.
Regulator On/Off Control Input. A high input at EN turns on the converter, and a low input
turns it off. When not used, connect EN to the input supply for automatic startup.
ESD RATING
Items
Description
Value
Unit
VESD
Human Body Model for all pins
±2000
V
JEDEC specification JS-001
RECOMMENDED OPERATING CONDITIONS
Items
Description
Voltage Range
IN
2
24
V
TA
Operating Temperature Range
-40
85
°C
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
Min
www.toll-semi.com
Max
Unit
www.suntosemi.com
3
STI3508
ELECTRICAL CHARACTERISTICS (Note 3)
( VIN=VEN=5V , TA = 25°C, unless otherwise noted.)
Parameter
Conditions
Operating Input Voltage
Min
Typ
2
Under Voltage Lockout
Under Voltage Lockout Hysteresis
Current (Shutdown)
Max
Unit
24
V
1.98
V
100
mV
VEN = 0V
0.1
1
Quiescent Current (PFM)
VFB=1.2V,No switch
100
200
µA
Quiescent Current (PWM)
VFB=1.2V,switch
1.6
2.2
mA
Switching Frequency
Maximum Duty Cycle
1
VFB = 0V
EN Input High Voltage
FB Input Bias Current
VFB = 1.2V
LX On Resistance (1)
LX Current Limit (1)
VIN= 5V, Duty cycle=50%
LX Leakage
VLX = 12V
Thermal Shutdown
MHz
90
%
1.5
V
EN Input Low Voltage
FB Voltage
µA
0.4
V
0.612
V
0.588
0.6
-50
-10
nA
80
mΩ
3.5
A
1
μA
℃
155
Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may
be impaired.
Note 2: TJ is calculated from the ambient temperature TA and power dissipation PD
according to the following formula: TJ = TA + (PD) x (250°C/W).
Note3: 100% production test at +25°C. Specifications over the temperature range are
guaranteed by design and characterization.
Note 4: Dynamic supply current is higher due to the gate charge being delivered at the
switching frequency
www.toll-semi.com
4
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
STI3508
OPERATION
The STI3508 uses a fixed frequency, peak current mode boost regulator architecture to
regulate voltage at the feedback pin. The operation of the STI3508 can be understood by
referring to the block diagram of Figure 3. At the start of each oscillator cycle the MOSFET is
turned on through the control circuitry. To prevent sub-harmonic oscillations at duty cycles
greater than 50 percent, a stabilizing ramp is added to the output of the current sense
amplifier and the result is fed into the negative input of the PWM comparator. When this
voltage equals the output voltage of the error amplifier the power MOSFET is turned off. The
voltage at the output of the error amplifier is an amplified version of the difference between
the 1.2V band gap reference voltage and the feedback voltage. In this way the peak current
level keeps the output in regulation. If the feedback voltage starts to drop, the output of the
error amplifier increases. These results in more current to flow through the power MOSFET,
thus increasing the power delivered to the output. The STI3508 has internal soft start to limit
the amount of input current at startup and to also limit the amount of overshoot on the
output.
FUNCTIONAL BLOCK DIAGRAM
Figure 2.STI3508 Block Diagram
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
www.toll-semi.com
www.suntosemi.com
5
STI3508
APPLICATION INFORMATION
Setting the Output Voltage
The internal reference VREF is 0.6V (Typical).The output voltage is divided by a resistor
divider,R1 and R2 to the FB pin. The output voltage is given by
VOUT VREF (1
R1
)
R2
Inductor Selection
The recommended values of inductor are 4.7 to 22μH. Small size and better efficiency are the
major concerns for portable device, such as STI3508 used for mobile phone. The inductor
should have low core loss at 1MHz and low DCR for better efficiency. To avoid inductor
saturation current rating should be considered.
Capacitor Selection
Input and output ceramic capacitors of 22μF are recommended for STI3508 applications. For
better voltage filtering, ceramic capacitors with low ESR are recommended. X5R and X7R
types are suitable because of their wider voltage and temperature ranges.
Diode Selection
Schottky diode is a good choice for STI3508 because of its low forward voltage drop and fast
reverses recovery. Using Schottky diode can get better efficiency. The high speed
rectification is also a good characteristic of Schottky diode for high switching frequency.
Current rating of the diode must meet the root mean square of the peak current and output
average current multiplication as following:
I D ( RMS ) I OUT I PEAK
The diode’s reverse breakdown voltage should be larger than the output voltage.
Layout Consideration
For best performance of the STI3508, the following guidelines must be strictly followed.
Input and Output capacitors should be placed close to the IC and connected to ground
plane to reduce noise coupling.
The GND should be connected to a strong ground plane for heat sinking and noise
protection.
Keep the main current traces as possible as short and wide.
LX node of DC-DC converter is with high frequency voltage swing. It should be kept at a
small area.
Place the feedback components as close as possible to the IC and keep away from the
noisy devices.
www.toll-semi.com
6
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
STI3508
PACKAGE INFORMATION
SOT23-6
Note:
1) All dimensions are in millimeters.
2) Package length does not include mold flash, protrusion or gate burr.
3) Package width does not include inter lead flash or protrusion.
4) Lead popularity (bottom of leads after forming) shall be 0.10 millimeters max.
5) Pin 1 is lower left pin when reading top mark from left to right,
TMI and SUNTO are the brands of TOLL microelectronic
STI3508 V2.1
2013.05
www.toll-semi.com
www.suntosemi.com
7
