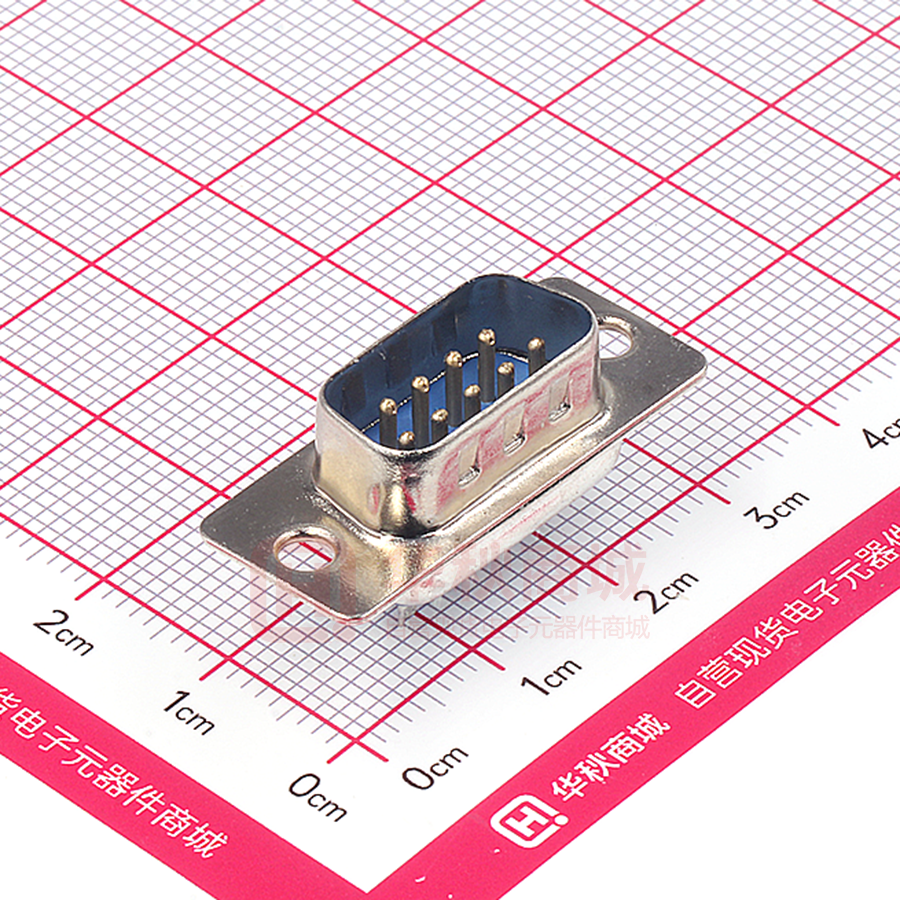

承 認 書 Specification for approval 客戶名稱： Customer 產品名稱： Description： DB-9P 公 传统焊线式 兰胶 客 戶 料 號： Customer part no: 燦科盟產品編號： CKM P/N： DB0009PM000XH00 承 認 書 編 號： Approval sheet NO.: SA150431719 承 認 日 期： Approval date: 2017-11-17 客 戶 確 認 CUSTOMER APPROVED 核 准 APPROVED 審 核 ENGINEER 經 辦 CHECK 刘力 2017/11/17 敬請蓋印承認規格之後，將一份交回給本公司，謝謝! Please return 1sets of this form to confirm your approval of the product specification thank you! 深圳市燦科盟實業有限公司 工廠地址：深圳市光明楼村鲤鱼水工业区鑫博盛科技园 B 栋四楼 聯繫電話：0755-81488157 傳 真：0755-83425987 Http://www.Ckmtw.com.cn E-mail:2000@ckmtw.com.cn 業務負責人： 28154692 13316859588 深圳市灿科盟实业有限公司 DB SERIES 内容：此规格书包含 DB 接插件系列。 Scope: This specification covers the DB spacing Connector series. Index: 1. 产品名称及料号/Product name and part number 2. 额定电压电流/Ratings 3. 特性测试/Performance 3-1.电气特性/Electrical performance 3-1-1.接触阻抗/Contact resistance 3-1-2.绝缘阻抗/Insulation resistance 3-1-3.高压测试/Dielectric strength 3-2.机械特性/Mechanical performance 3-2-1.整组插拔测试/Insertion force and withdrawal force 3-2-2.插入力/Insertion force 3-2-3.拔入力/withdrawal force 3-3.环境特性测试/Environmental performance and others 3-3-1.整组插拔测试后接触阻抗/Repeated insertion/withdrawal 3-3-2.温升测试/Temperature rise 3-3-3.震动测试/Vibration 3-3-4.冲击测试/Shock 3-3-5.耐热测试/Heat resistance 3-3-6.低温测试/Cold resistance 3-3-7.恒温恒湿/Humidity 3-3-8.温度冲击测试/Temperature cycling 3-3-9.盐水喷雾测试/Salt spray 3-3-10.沾锡性测试/Solderability 3-3-11.焊热性测试/Resistance to soldering heat 3-3-12 寿命测试/Life Test 4. 产品规格尺寸及材质/Product shape, dimensions and materials Page 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 4 4 4 4 Note::以上测试视公司之测试条件/能力而定。 FILE NO ENS014 ECR/N NO New spec APPROVAL CHECK DRAWING 1 1. 产品名称及料号/Product name and part number Product Name Part Number 名称 Name DMS-XP MALE DMS-XP FEMAEL 2. 额定电压电流及使用线径/Ratings and applicable wires ITEM STANDARD Rated Voltage(Max) 额定电压（最高） 250V DC/AC(rms) Rated Current(Max) 额定电流（最高） 3A Ambient Temperature 使用温度范围 -50℃-+105℃ 3. 特性测试/Performance 3-1.电气特性/Electrical performance ITEM Test condition Requirement 3-1-1 Contact Resistance 接触阻抗 Mate connectors, reassure by dry circuit ,20mV MAX,10mv.(Based upon JIS C5402 5.4) 0.02 欧（MAX） 将公母对插，二头接上微电流电压测试。 3-1-2 Insulation resistance 绝缘阻抗 Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 1000 兆欧（MIN） 5.2/MIL-STD-202 method 302 condition B) 将公母对插，二头接上电压测试 3-1-3 Dielectric strength 高压测试 Mate connectors, apply 500V AC for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-ST-202 Method 301) 将公母对插，相邻的二支端子接上高压测试 No breakdown and flashover 没有损坏/没有电 弧产生 3-2.机械特性/Mechanical performance ITEM 3-2-1 3-2-1 3-2-4 Test condition Insertion force and withdrawal force 整组插拔测试 Insert and withdraw connectors at the speed rate of 25±3mm/minute 公母对插插拔 30 次，机器行走速度 25±3mm/分钟。 Insertion force 插入力 Insert the crimped terminal into the connectors 将公头插入母座内，测试插入值 withdrawal force 拔入力 Apply axial pull out force at the speed rate of 25±3mm/minute on the terminal assembled In the housing. 将公头从母座中拔出，测试拔出值 Requirement 1.5 KgN（MIN） 2.5Kg (MAX) 1.0Kg (MIN) 2 3-3.环境特性测试/Environmental performance and others ITEM Test condition Requirement 3-3-1 Repeated insertion/ withdrawal When mated up to 30 cycles repeatedly by the Contact rate of 10 cycles per minute Resistance 三十次插拔后，测量接触阻抗 接触阻抗 40mΩ MAX 3-3-2. Temperatur e Rise 温升 Carrying rated current load(Based upon UL1977) 针对额定电流以作测试 30℃ MAX 3-3-3 Vibration 震动测试 Amplitude:1.52mm P.P –调幅 Sweep time:10-55-10Hz in 1 minute 频率 Duration:2 hours in each X.Y.Z axlals 震动 时间 (based upon MIL-STD-202 method 201) Appearance No Damage Contact Resistance 40mΩ MAX Discontinuity 1u sec MAX 不连续性 3-3-4 Shock 冲击测试 50g 3strokes in each X.Y.Z. axlals. (based upon JIS C0041) 50g 力量，XYZ 轴分别三次冲击。 Appearance No Damage Contact Resistance 40mΩ MAX Discontinuity 1u sec MAX 不连续性 3-3-5 Appearance No Damage 耐热测试 105±3℃,96hours (based upon JIS C5402 7.8) 时间 96 小时，温度 85±3℃ Contact Resistance 40mΩ MAX Cold Resistance 低温测试 -50±3℃,96hours (based upon JIS C5402 7.9) 时间 96 小时， 温度-20±3℃ Appearance No Damage Contact Resistance 40mΩ MAX Appearance No Damage Humidity 恒温恒湿 测试 Temperature:40±2℃,Relative humidity:90~95%(RH) (Based upon MIL-STD-202 Method 103B conditions.B) 温度 40±2℃，湿度 90~95%，时间 96 小时。 Contact Resistance 40mΩ MAX Dielectric strength 没有损坏/没 Appearance No Damage Contact Resistance 40mΩ MAX Appearance No Damage Contact Resistance 40mΩ MAX Heat Resistance 3-3-6 3-3-7 3-3-8 3-3-9 Temperatur e cycling 温度冲击 测试 5 cycles: 1>.-50℃ 30 minutes. 2>.+105℃ 30 minutes. 3>.+25℃ 30 minutes. 4>.+65℃ 30 minutes Salt spray 盐水测试 12 hours exposure to a salt spray from the 5±1% solution at 35±2℃.(Based upon JIS C5402/MIL-STD-202method 101D conditions. B) 时 间 12 小 时， 盐水 体比例 5±1% ， 温度 35±2℃。 有电弧产生 3 Solderabi 3-3-10 3-3-11 3-3-12 lity 沾 锡 性 测试 Soldering time:3±0.5sec, solder temperature:230±5℃ 时间：3±0.5 秒， 温度：230±5℃ 95％以上沾锡面积 Resistance to soldering heat 焊热性 测试 Soldering time:5±1sec, solder temperature:260±5℃ 时间：5±1 秒， 温度：230±5℃ No Damage 外观没有影响 Life Test 寿 命 测 试 5000 cycles 5000 次 No Damage 外观,功能没有影响 4. 产品规格尺寸及材质/Product shape, dimensions and materials (见附件图纸) 4
