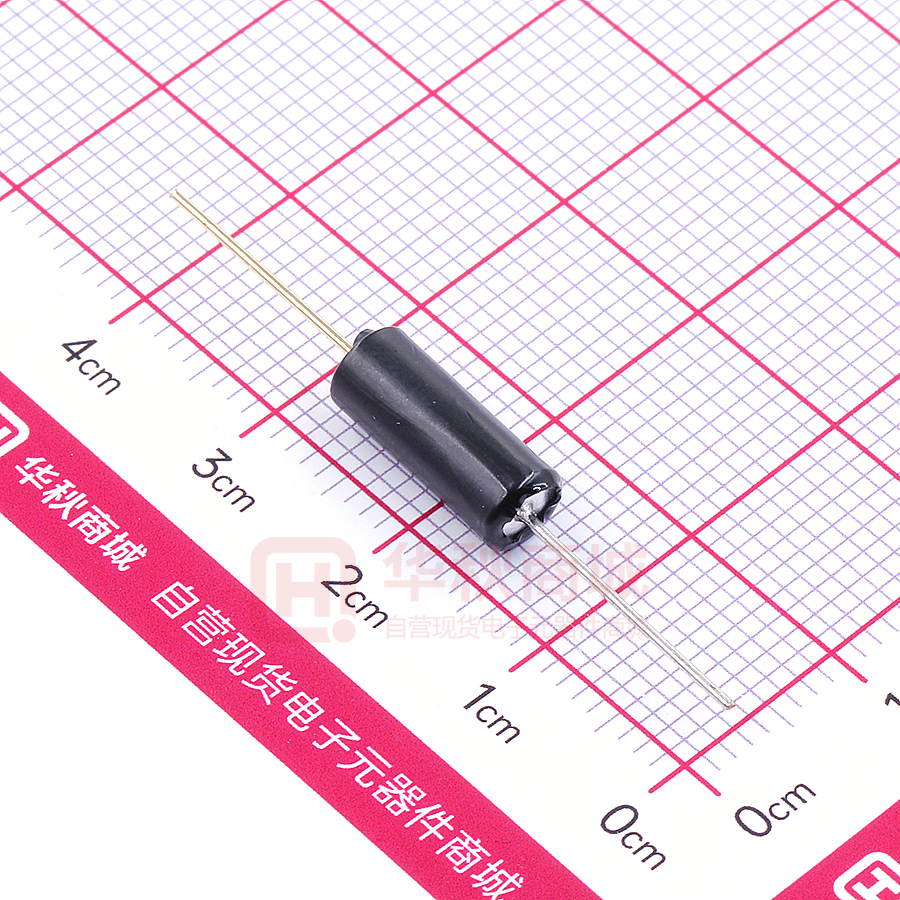

TPSW-460

A B D C E F G Product features 1 Voltage: < 12V Current: < 20mA Conduction time: 2ms Closed circuit resistance: < 10m ohm Open circuit resistance: > 10m ohm High temperature resistance: 120 degrees Terminal tension: 500gf / min Humidity: 25~95%RH Operating life: 100000 times 14.00[0.551]±0.50 12.50[0.492]±0.50 14.00[0.551]±0.50 A Ø3.50[0.138] 2 Ø0.60[0.024] 4.80[0.189]±0.50 B Product features 产品特点 1.460D is double ball type single direction tilt induction trigger switch. 1.460D为双球型单向倾斜感应触发开关。 2. When the electric end of the product guide (foot less) is tilted and the tilt Angle is greater than 10 degrees, the product is in the open, (OFF) state. When the horizontal state of the product is tilted and the trigger end (gold-plated pin end) is lower than the horizontal and the tilt Angle is greater than 10 degrees, the product is in the closed, (ON) state. 2.当产品导轨（无脚）的电气端倾斜且倾斜角度大于10度时，产品处于打开（关闭）状态。 当产品水平状态倾斜，触发端（镀金销端）低于水平且倾斜角度大于10度时，产品处于闭合 （开）状态。 3. When placed horizontally, shaking can be easily triggered, and when there is no foot down, shaking is not easy to trigger. 3.水平放置时，很容易触发震动，没有脚下来时，不容易触发震动。 4. The products of this specification are completely sealed, waterproof and dustproof. 4.本规范产品全密封、防水、防尘。 5. Under normal circumstances, the switching life can reach 100,000 times. 5.正常情况下，开关寿命可达10万次。 6. This product is made of environment-friendly metal material with stable performance. 6、本产品采用环保型金属材料，性能稳定。 3 down to 10° is on down to 10° is off ⑦ ⑥ 4 UNIT COMMON DRAWN BY FUYUAN 台普 A2 A1 REV MM ROCPU DATE REVISION DESCRIPTION A ISSUE B X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR C BALL BALL PIN B PIN A Copper pipe 1 1 1 1 1 PAPT NAMF QTY DATE 2019 Brass Brass MATERIAL 4 Nickel Silver Gold TIN Nickel Brass Brass Brass PROJCTED FINISHING PRODUCT NAME: CHECKED BY COCO MODEL NO: TPSW-460 APPROVAL B ALEN Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD E 3 PLC Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission D 2 Pet heat shrinkable tube TOLERANCE A3 5 Heat shrinkable tube 1 1 Rubber stopper ⑤ ④ ③ ② ① ITEM A4 1 F G 5
