TP18021301040

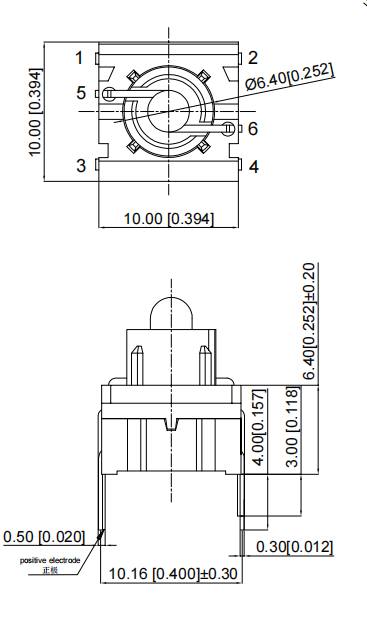

1 2 2x Ø6.40 5 Ø 1. 00 ] [0.252 6 3 D C [Ø [Ø 4xØ0.90 0. 03 9] 4 10.16 [0.400] 10.00 [0.394] 2 E 0.30[0.012] 10.16 [0.400]±0.30 2 3 4 5 6 Technical parameter 技术参数 Rated value: DC24V 50mA 额定值：DC24V 50mA Contact resistance: ≤ 50m Ω 接触电阻：≤50mΩ Insulation resistance: ≥ 10M Ω 绝缘电阻：≥10MΩ Operating temperature: - 40 ℃ ~ + 160 ℃ 使用温度：-40℃~160℃ Black 黑色 ACTUATOR 按钮 Nylon 尼龙 White 白色 COVER 上盖 Nylon 尼龙 Black 黑色 ﹢ CONTACT 簧片 STAINLESS STEEL 不锈钢 SLIVER PLATING 镀银 0.80 [0.032] TERMINAL 端子 COPPER ALLOY 铜合金 Red 红色 LED Name 名称 5 COMMON A3 台普 A2 A1 REV DATE REVISION DESCRIPTION ISSUE TOLERANCE X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR Action force: 300 ± 50gf 动作力：300±50gf Stroke: 1.00 ± 0.2 行程：1.00±0.2 Waterproof grade: IP67 防水等级：IP67 Service life: ≥1,000,000 寿命：≥1,000,000 Nylon 尼龙 7.60 [0.299]±0.20 A4 CIRCUIT 10.40[0.409]±0.20 12.70[0.50]±0.30 6.40[0.252]±0.20 positive electrode 正极 3.00 [0.118] 4.00[0.157] 4 1 HOUSE 底座 ﹣ 0.50 [0.020] 0.035] G + PCB LAYOUT 3 F 2.50 [0.098] 10.00 [0.394] 1 B 7.60 [0.299] A UNIT MM DRAWN BY FUYUAN DATE 2019 Texture of material 材质 PROJCTED Remarks 备注 PRODUCT NAME: CHECKED BY COCO MODEL NO: APPROVAL B ALEN Https: TP18021301040 www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission F
