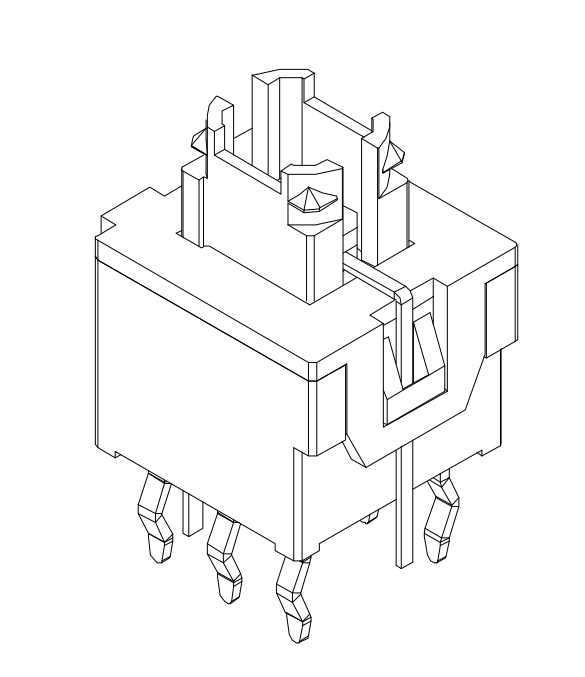

TP5851111010

A B D C 1 8.50[0.335]±0.15 2 E F G 3 9 L2 L1 3 3.80[0.150]±0.40 6.50[0.256]±0.15 Technical parameter 技术参数 1. Rated current: DC12V 50mA 1.额定电流：DC12V 50mA 2. Withstand voltage: AC250V (50-60Hz) for 1 minute 2.耐压：AC250V(50-60Hz)持续1分钟 3. Contact impedance: 100M Ω Max 3.接触阻抗：100mΩmax 4. Insulation impedance: 100M Ω min.500v DC 4.绝缘阻抗：100MΩmin.500V DC 5. Operating force: 200 ± 100gf 9 0.50[0.020] 2-0.20[0.008] 6-0.60[0.024] 2.50[0.098] 2 10.10[0.398]±0.20 1.60[0.063]±0.10 4.60 [0.181]±0.10 1 6 5 4.10[0.161]±0.10 3 5.00[0.197]±0.50 7.80[0.307]±0.40 7 6.12[0.241]±0.50 6 5 2.50[0.098] 5.00[0.197] 4 Ø1 7.80[0.307] .00 [ Ø0 .03 9] Ø0 .90 [Ø 0.0 35 ] 2 3 4 5 6 COMMON A3 台普 A2 A1 DATE REVISION DESCRIPTION 3 2 1 A4 REV 1 Circuit diagram PCB LAYOUT 5 4 L2 L1 ISSUE TOLERANCE X.XX ± 0.10 X.X ± 0.15 X ± 0.25 ANGULAR NO 序号 UNIT Crochet hook 钩针 Cover 盖板 Guide core 导芯 Spring 弹簧 Reed 簧片 Injection molding terminal 注塑端子 Base 底座 Terminal 端子 Part name 部件名 MM DRAWN BY FUYUAN DATE 5.操作力：200±100gf 6. Full stroke 2.0mm ± 0.4mm 6.全行程2.0mm±0.4mm 7. Conduction stroke: 0.8mm ± 0.4mm 7.导通行程0.8mm±0.4mm 8. Working temperature: - 40 ℃ ~ + 85 ℃ 8.工作温度：-40℃~+85℃ 9. Operation type: self-locking 9.运行类型：自锁 10. Service life: 10.000 times 10.寿命：10.000次 LED 8 0.30[0.012] 2.50[0.098] 2.50[0.098] 7 4 4 2 8 5 3.50 [0.138] 5.85 [0.230] 1 7.50 [0.295]±0.15 6 2019 1 Steel wire 钢丝 1 POM 1 POM 1 Steel wire 钢丝 Phosphor copper 磷铜 2 PA66 2 PA66 1 Brass 黄铜 Material 材料 QTY 数量 PROJCTED Red 红灯 Black 黑色 White 白色 1 6 Ag plating 镀银 Black 黑色 Black 黑色 Ag plating 镀银 Remark 备注 PRODUCT NAME: CHECKED BY COCO MODEL NO: TP5851111010 APPROVAL B ALEN Https: www.rocpu.tw ROCPU TECHNOLONGY CO.,LTD Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission F
