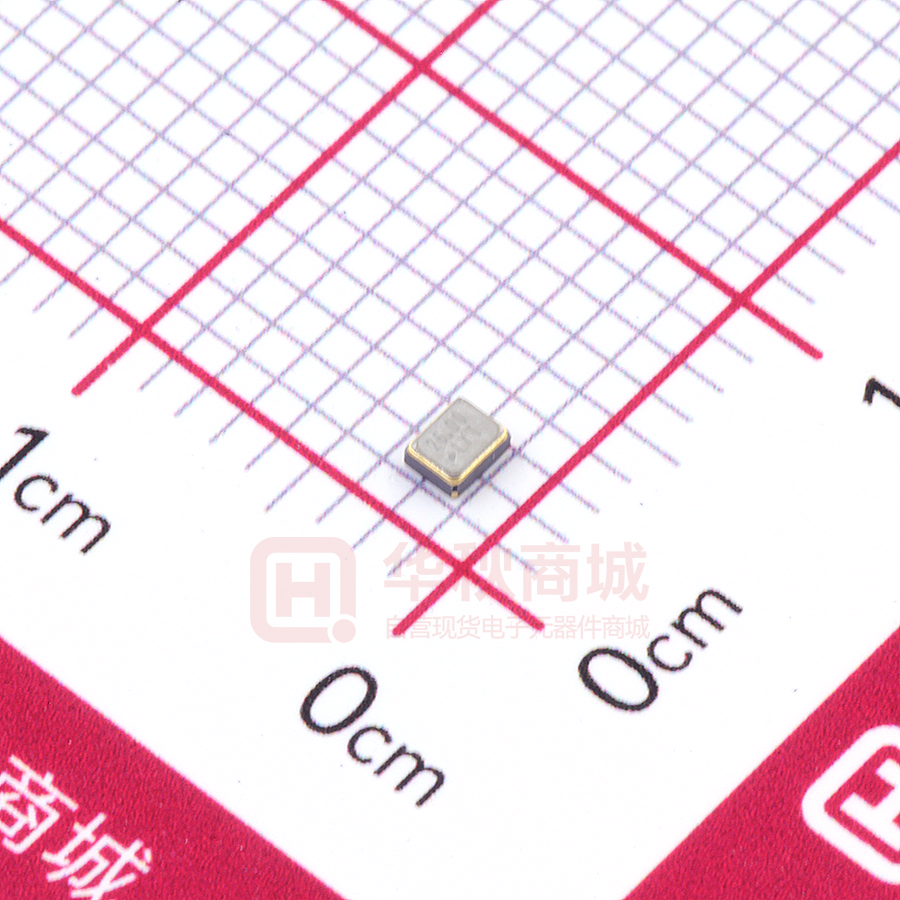

TZETBLSAGF-26M

Model Numbering Guide – VCTCXO / TCXO Available options Type package (mm) Supply Voltage (V) Pulling Range (ppm) T: Z: 2.0x1.6 TCXO Y: 2.5x2.0 X: 3.2x2.5 V: 5.0x3.2 S: 7.0x5.0 (10Pads) A: 7.0x5.0 (4Pads) K: 14.3x9.6 F: 20.4x12.8 (Dip) E: 2.8/3.0/3.3 A: ± 5 J : 2.5 B: ± 8 K:1.8 (TX / TY) C: ±10 T : TCXO T: W: 5.0x3.2 TCXO L: 5.0x3.2 (High (10Pads) Precision /Stratum 3) S: 7.0x5.0 (10Pads) T: 7.0x5.0 (4Pads) U: 13x14 E: 3.3 J: 2.5 T X Freq. Stability (ppm) A: ±0.5 B: ±1.0 P: ±1.5 C: ±2.0 D: ±2.5 Vcon range: 0.5V to 2.5V Temp. Range(°C) Q: ±0.05 M: ±0.1 J : ±0.14 R: ±0.2 K: ±0.28 L : ±0.37 T : ±4.6 C Oscillator Mode Appearance Lead Free Dash Freq. (MHz) B: 0~+55 I : -10~+60 J: -10~+70 C: -20~+70 H: -30~+75 D: -30~+85 L : -40~+85 M: -40~+95 K: -40~+105 A: TTL 15pF / 50±5% J: CMOS 15pF / 50±5% K:CMOS 15pF / 50±10% S: Clipped sine wave 10KΩ//10pF (Including 20 Years Aging) E Output Logic And Symmetry D D S F: Option A G: Option B A:AT L: Low G Fundamental Sensitivity F: RoHs Compliant N: Normal Not P: Programselectable mable TCXO by customer T : Normal with Tri-State A N F - XX.XXXXXX 26.000000 *Not all combinations of options are available. Example: TXECDDSANF-26.000000 Type Package Supply Voltage(V) Pulling Range Freq. Stability Temp Range Output Oscillator Mode Appearance Lead Free Frequency VCTCXO 3.2 x 2.5 mm 3.0 V ±10 ppm ±2.5 ppm -30~+85 °C Clipped sine wave AT Fundamental Normal Appearance RoHs Compliant 26.000000 MHz 6SHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH www.taitien.com sales@taitien.com.tw Rev(34) 07/2021 137
