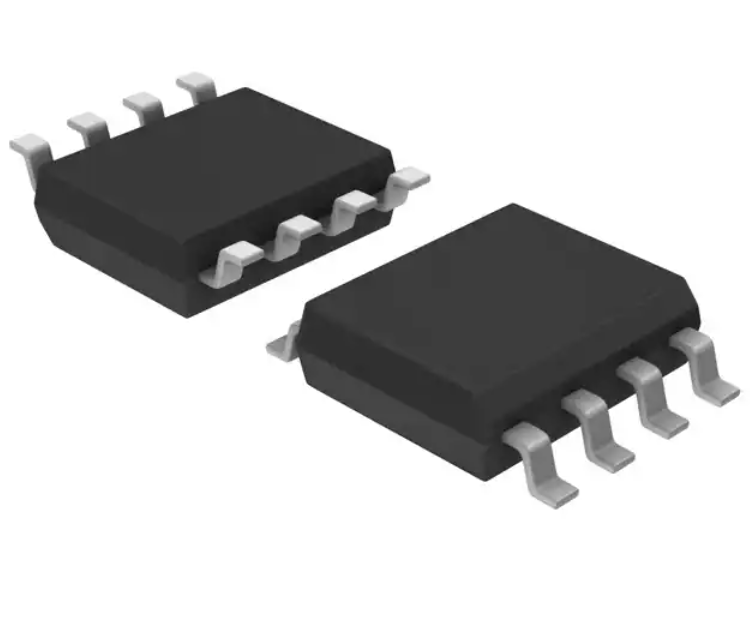

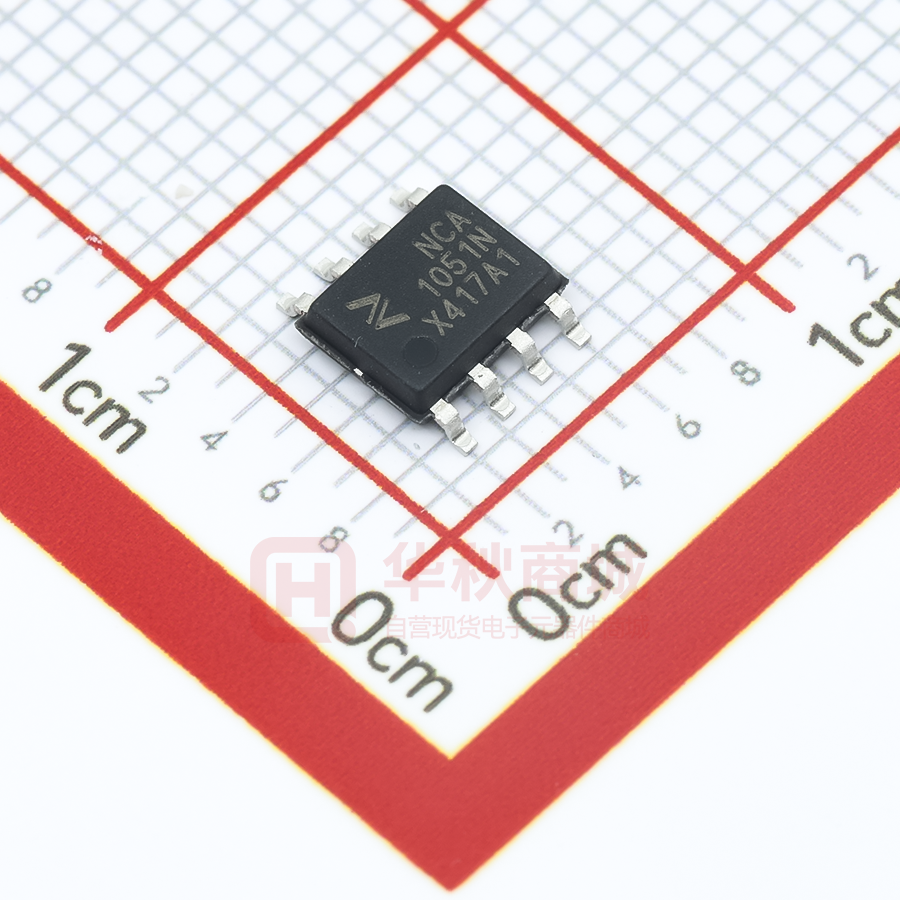

NCA1051N-DSPR

NCA1051 High-speed CAN Transceiver Datasheet (EN) 1.1 Product Overview The NCA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus, which can support at least 110 CAN nodes. The NCA1051 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1051 provides thermal protection and transmit data dominant time out function. These features make the NCA1051 an excellent choice for all types of HS-CAN networks, in nodes that do not require a silent mode with wake-up capability via the bus. Key Features Applications  5Mbps operation in highly loaded CAN networks down to 10 kbps networks using TXD DTO  Industrial automation, control, sensors, and drive systems  Building, security, and climate control automation  CAN bus standards such as CANopen、DeviceNet、 NMEA2000、ARNIC825、ISO11783 and CANaerospace Device Information Part Number NCA1051-DSPR Package SOP8 Body Size 4.90mm × 3.90mm NCA1051N-DSPR SOP8 4.90mm × 3.90mm  Fully compatible with the ISO11898-2 standard  Ideal passive behavior to the CAN bus when the supply voltage is off Functional Block Diagrams  NCA1051 can be interfaced directly to micro controllers with supply voltage from 3V to 5V  Bus fault protection of -70V to +70V  Transmit data (TXD) dominant time out function  Over current and over temperature protection  Date rate: up to 5Mbps  Low loop delay:
