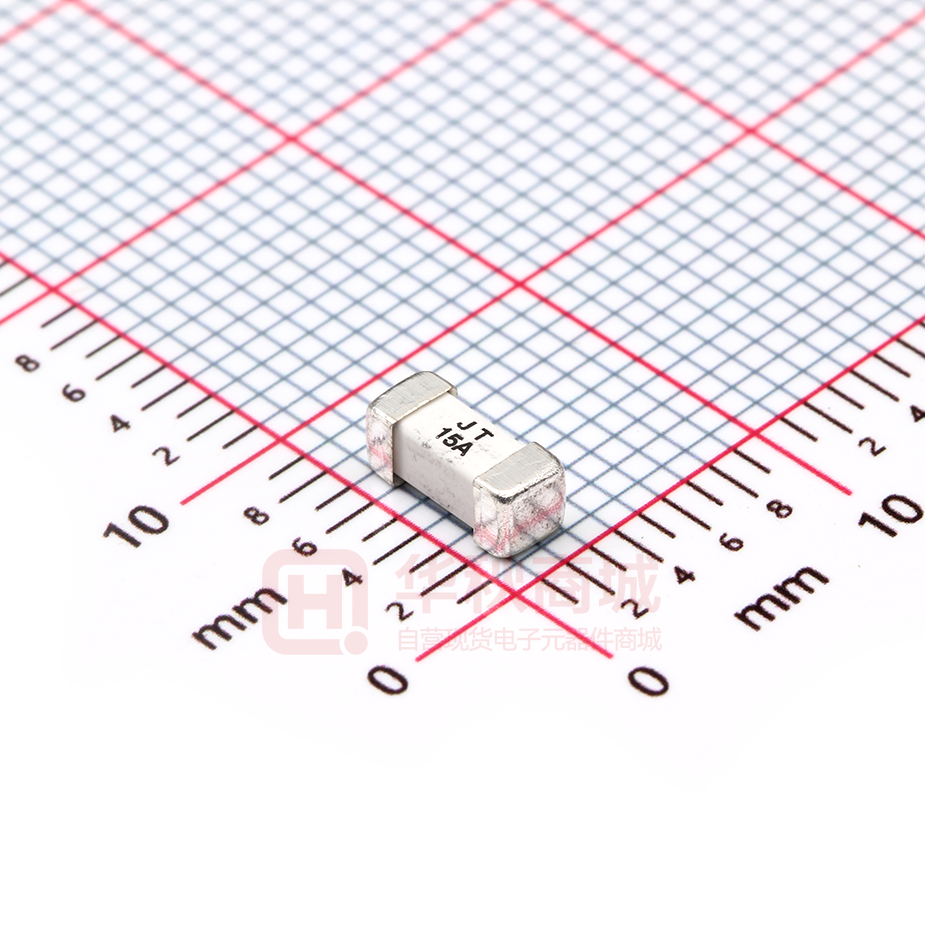

JFC2410-2150TS

PRODUCT DATASHEET Surfase Mount Fuse JFC2410TS TIME-LAY FUSE JFC2410TS TIME-LAY FUSE Descriptions JFC2410TS series time-lay square Surface Mount fuses are ceramic tube/end cap constructions,RoHScompliant, Halogen Free and lead(Pb) exemptsof the requirements of RoHS Directive(2002/95/EC),with U.S. (UL/CSA) safety agency approvals. Provideboard level primary and secondary circuit protection ina wide variety of applications. With excellent inrushcurrent withstanding capability, excellent reliability forthermal and mechanic shock, also have a high reliabilityand stable solder ability, end caps are available ingold/silver/nickel plated. Applications Agency Approvals AGENCY FILE NUMBER AGENCY E486200 ● ● ● ● ● ● ● ● ● ● LED lighting Notebook PC Battery devices LCD/PDP devices LCD backlight in verter Portable Device Power supply Networking devices PC server Cooling fan system ● ● ● ● ● ● ● ● ● ● ● Storage system Telecom system Wireless base station White goods Game console Digital camera Office equipment Digital camera Automotive devices Medical equipment Industrial equipment Features ● ● ● ● ● ● ● ● Time-Lag RoHS compliant Conflict free metals Small size (6.1mm*2.5mm) Wide range of current rating available Wide operating temperature range Low temperature de-rating Tape and Reel for automatic placement Electrical Characteristics ● Pre-Arcing Time / Current Characteristics: % of Ampere Rating(In) JDT FUSE Industrial Co., Ltd www.jdtfuse.com Opening Time 100%*In 4 hours Min 200%*In 120 sec Max 1000%*In 10 ms Min Page 1/5 Revised 09/22/20 JFC2410TS TIME-LAY FUSE Performance Specification Part Number Rated Current (A) JFC2410-0100TS Nominal Cold Resistance (mΩ) Nominal Melting I2t (A2sec) 0.10 3100 0.00138 JFC2410-0250TS 0.25 860 0.145 JFC2410-0500TS 0.50 320 0.275 JFC2410-0750TS 0.75 175 1.240 JFC2410-1100TS 1.00 148 3.500 JFC2410-1150TS 1.50 85 6.305 JFC2410-1200TS 2.00 44 8.950 JFC2410-1250TS 2.50 43 16.025 JFC2410-1300TS 3.00 33 21.560 JFC2410-1315TS 3.15 29 22.750 JFC2410-1350TS 3.50 27 27.050 JFC2410-1400TS 4.00 25 31.808 JFC2410-1500TS 5.00 19 40.250 JFC2410-1600TS 6.00 18 67.245 JFC2410-1630TS 6.30 17 107.55 JFC2410-1700TS 7.00 15 132.78 JFC2410-1800TS 8.00 7.0 235.18 JFC2410-2100TS 10.0 7.0 270.50 JFC2410-2120TS 12.0 7.0 331.52 JFC2410-2150TS 15.0 6.0 375.66 JFC2410-2200TS 20.0 2.3 410.00 JFC2410-2250TS 25.0 1.7 550.00 JFC2410-2300TS 30.0 1.2 900.00 JDT FUSE Industrial Co., Ltd www.jdtfuse.com Max Voltage Rating(V) 250V Interrupting Rating 50A@250V 125V 100A@125V 72V 500A@72V Page 2/5 Revised 09/22/20 JFC2410TS TIME-LAY FUSE Dimensions and Structure ● Outline Drawing and dimensions (unit : mm) 8.0±0.3 2.5±0.1 1.4±0.1 3.0±0.3 2.5±0.1 6.10 ± .20 ① Cap 3.0±0.3 2.5±0.3 ② Ceramic tube Recommended pad layout ● Material Details： NO. Component ① Cap Au Plated Brass Cap ② Body Non-Transparent Square Ceramic Tube ③ Fuse element Material Cu-Ag Alloy wire Product Characteristics No. Item 1 Insulation Resistance 2 Solderability 3 Resistance to Soldering Heat 10 sec at 260°C MIL-STD-202G, Method 210F Test Condition B 4 Thermal Shock 5 cycles, -65°C to +125°C, 15minutes @each extreme MIL-STD-202G, Method 107G Test Condition B 5 Mechanical Shock 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1 6 Vibration 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A 7 Moisture Resistance 10 cycles MIL-STD-202G, Method 106G 8 Salt Spray 5% salt solution,48hrs MIL-STD-202G, Method 101E Test Condition B -55°C to +125°C IEC60068-2-1/2 9 Operating Temperature JDT FUSE Industrial Co., Ltd www.jdtfuse.com   Contain 10,000 ohms minimum T=240°C±5°C, t=5+0/-0.5s, Cover≥95% Reference standard MIL-STD-202G, Method 302 Test ConditionA MIL-STD-202G, Method 208H Page 3/5 Revised 09/22/20 JFC2410TS TIME-LAY FUSE Environmental Characteristic ● Company operating temperature of the environment more than 25+/-5℃, in the selection of fuse specifications, it needs to consider the impact of the operating environment of the temperature fuse. Photo: temperature derating curve. Temperature Rerating Curve 100 .062A .125A .160A .200A .250A .315A .375A .500A .750A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 7A 8A 10A 12A 15A 20A 25A 30A Average Time-Current Curve Test TIME IN SECONDS 10 1 0.1 0.01 0.001 0.05 0.1 1 10 100 1000 CURRENT IN AMPERES Recommended Soldering Parameters tP Reflow Condition TP 260 Ramp-up Critical Zone TL to TP TL 217 Temperature Min (Ts(min)) Temperature (°C ) Tsmax Tsmin Average ramp-up rate(Ts(max)to Tp) tL Preheat Temperature Max (Ts(man)) Preheat Ramp-down ts Reflow 25°C time to peak temperature (t 25°C to peak) JDT FUSE Industrial Co., Ltd www.jdtfuse.com Time Pb-Free assembly 5°C/second max. 150°C 200°C Time (Min to Max)(ts) 60~120 seconds Temperature (TL) 220°C Time Max (TL) 60 seconds Peak Temperature (Tp) 260°C max Ramp-down Rate 5°C/second max Time 25°C to peak Temperature(Tp) 8 minutes max Page 4/5 Revised 09/22/20 JFC2410TS TIME-LAY FUSE PACKING No. JFC2410TS Quantity &Packaging Code 1000 fuses/reel (12mm tape-and-reel on a 7 inch (178mm) reel per EIA Standard 481) Part Numbering JF C 2410 - xxxx T S S=SMD T=Time-Lay xxxx=四位电流 2410 Series C=Ceramic JF=JDT Fuse OTHERS ● If in use beyond the requirements of the specifications, must pass through the mutual confirmation ! ● If the specification is not appropriate, must through consultation between the two sides and by the company to modify. ● It could be in conformance with another file which made by our company. JDT FUSE Industrial Co., Ltd www.jdtfuse.com Page 5/5 Revised 09/22/20
