Wire Wound Chip Common Mode Choke Coil –AMCW-B Series
Operating Temp. : -40℃~+150℃
FEATURES
Winding type realizes small size and low profile
Prevention of common mode noise at high frequency
Excellent solderability
AEC-Q200 verified
APPLICATIONS
Common mode noise filtering for automotive CAN-BUS and signal line.
PRODUCT IDENTIFICATION
AMCW
3225
B
①
②
③
①
AMCW
-2
-110
④
⑥
③
②
Type
Winding Type
Common Mode
Choke Coil
T
⑤
Code
External Dimensions (L×W) (mm)
3225 [1210]
3.2×2.5
4532 [1812]
4.5×3.2
B
for CAN-BUS
⑤
Example
110
220
510
101
④
Number of Lines
2
Inductance(μH)
Nominal Value
11
22
51
100
⑥
Packing
T
Tape & Reel
SHAPE AND DIMENSIONS
AMCW3225B TYPE
Recommended Land Pattern
Unit: mm
Sunlord
Part Number
A
AMCW3225B-2-110T/220T
0.80mm
AMCW3225B-2-510T/101T
0.70mm
Specifications subject to change without notice. Please check our website for latest information.
Revised 2019/05/15
Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
SHAPE AND DIMENSIONS

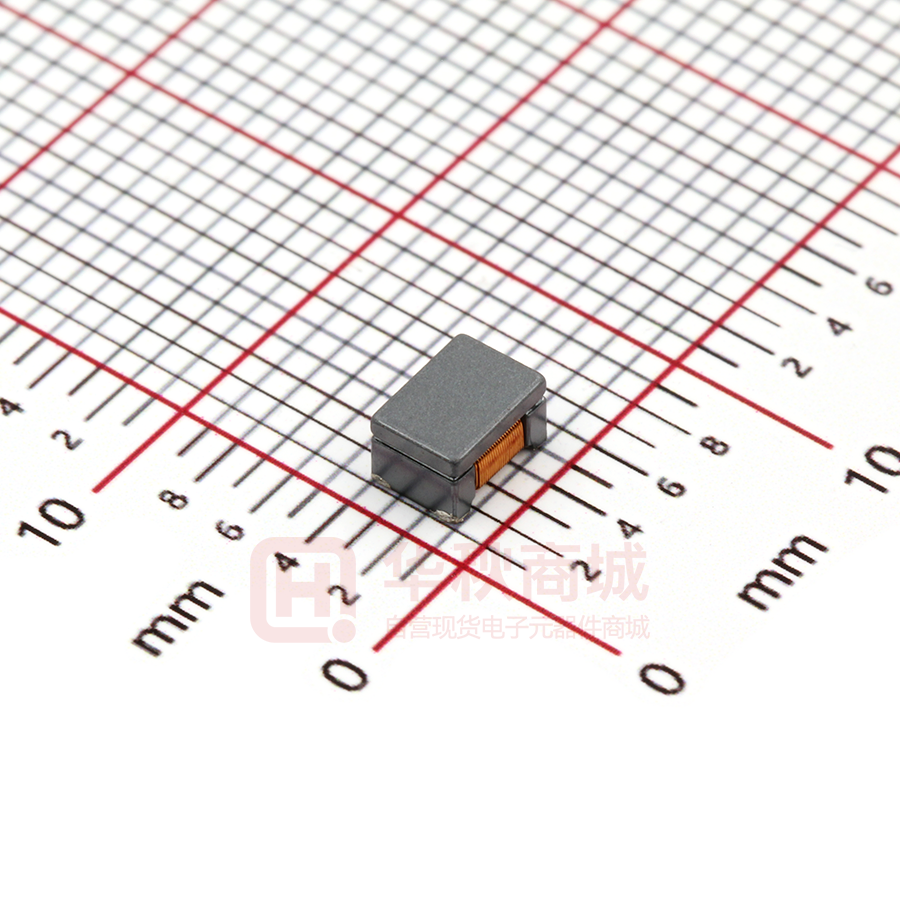

AMCW4532B TYPE
Recommended Land Pattern
Unit:mm
SPECIFICATIONS
AMCW3225B TYPE
Part Number
Inductance
Units
Symbol
AMCW3225B-2-110T
AMCW3225B-2-220T
AMCW3225B-2-510T
AMCW3225B-2-101T
+50%/-30%
μH
L
11(@100KHz/0.1V)
22(@100KHz/0.1V)
51(@100KHz/0.1V)
100(@100KHz/0.1V)
DC
Resistance
Max.
Ω
DCR
0.3
0.5
1.5
2.2
Rated Current
Rated Voltage
Max.
mA
Ir
400
300
200
150
Max.
Volts
VDC
80
80
80
80
Rated Current
Rated Voltage
Max.
mA
Ir
360
310
230
200
Max.
Volts
VDC
50
50
50
50
Insulation
Resistance
Min.
MΩ
IR
10
10
10
10
AMCW4532B TYPE
Part Number
Inductance
Units
Symbol
AMCW4532B-2-110T
AMCW4532B-2-220T
AMCW4532B-2-510T
AMCW4532B-2-101T
+50%/-30%
μH
L
11(@100KHz/0.1V)
22(@100KHz/0.1V)
51(@1.0MHz/0.1V)
100(@1.0MHz/0.1V)
DC
Resistance
Max.
Ω
DCR
0.5
0.8
1.0
2.0
Insulation
Resistance
Min.
MΩ
IR
10
10
10
10
※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales.
EQUIVALENT CIRCUIT
Sunlord
Specifications subject to change without notice. Please check our website for latest information.
Revised 2019/05/15
Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
TYPICAL ELECTRICAL CHARACTERISTICS
Impedance vs. Frequency
AMCW3225B TYPE
Impedance vs. Frequency
AMCW4532B TYPE
Sunlord
Specifications subject to change without notice. Please check our website for latest information.
Revised 2019/05/15
Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
